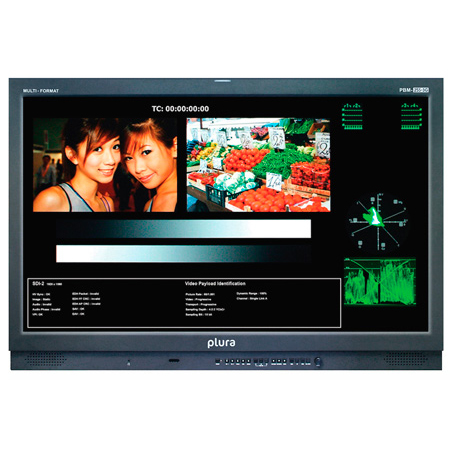

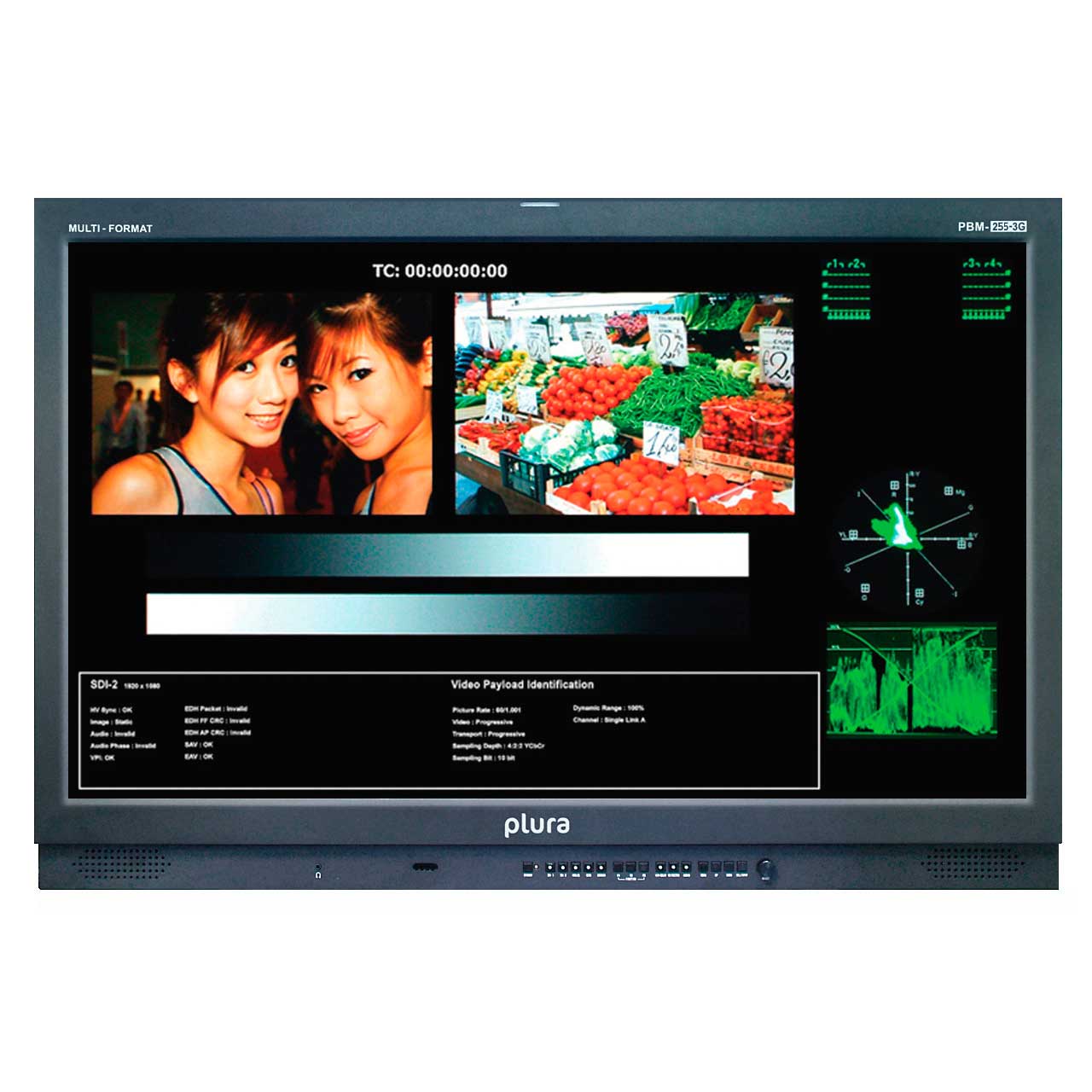

Plura PBM-255-3G 55-Inch 3G Broadcast Monitor (1920x1080) Class A

PBM-255-3G - Overview

• Features:

  • 3Gb/s ready - 1080/60P
  • Advanced Waveform (Y.Cb.Cr. selectable), Vectorscope
  • 2 x Auto-detect HD-SDI, SDI with active loops (3Gb/s / 1.485Gb/s / 270Mb/s)
  • Complies with EBU-3320 TECH, SMPTE-C and ITU-R BT.709 Standards
  • (ICAC) - Plura Intelligent Connection for Alignment & Calibration
  • Dual HD SDI YPbPr 4:2:2 - Dual HD SDI YPbPr/RGB 4:4:4 & 2K
  • RGB, YUV, Y/C, Composite, UXGA, DVI(DHCP) & HDMI(DHCP)
  • Cutting edge De-interlacing and Scaling Technology
  • Fast Response Time for high motion video
  • RGB 10 Bit Digital Signal Processing
  • 178° Viewing Angle Display
  • Closed Caption (608/708)
  • Color Temperature - User, VAR, 11000K, 9300K, 7500K, 6500K, 5000K, 3200K
  • Various and User defined Markers Display, Safe Area in HD & SD
  • Picture and Picture (PaP), Picture in Picture (PiP) display / Blend
  • Advanced Waveform (Y.Cb.Cr.selectable), Vector Scope
  • Analog & Embedded Audio Input, Digital Audio Decoding
  • Built In Stereo Speaker , 16 CH Audio Metering Display
  • IMD & Time code display and Wall Control System
  • Pixel to Pixel Mode, Tally, DC Operation
  • Underscan/ Overscan/ Normal / Zoom
  • Programmable Front Pushbutton Controls, GPI & RS232 Remote Control
  • Intuitive OSD Display, Graphic based, 6 Languages (UNICODE System)
  • OPTIONS: Battery Mount (PBM-217-3G, PBM-220-3G), Carry Case,
  • Rack mount: (PBM-217-3G, PBM-220-3G & PBM-224-3G)


• Specifications:

  • SD-SDI Input: 2EA, HD/SD Serial Digital , 3G/1.485G/270M ,BNC Jack
  • Analog Input: 3EA, Composite, Component(YPbPr/RGB), BNC Jack
  • S-VIDEO Input: 1EA,YC(S-Video)
  • DVI/VGA Input: 1EA, DVI-I, 24pin, Female
  • HDMI: 1EA, HDMI, 19pin Female
  • SDI Output: 2EA, BNC, Active Through Output
  • Analog loop Output: 3 EA, 75? BNC
  • Composite: 1.0Vpp (With sync)
  • YC (S-Video): 1.0Vpp (Y With sync), 0.286Vpp (C)
  • Component: 1.0Vpp (Y With sync), 0.7Vpp (Pb/Pr)
  • RGB: 1.0Vpp (G With sync), 0.7Vpp (R/B)
  • DVI - (Analog PC): H Frequency Range : 22~82KHz, V Frequency Range : 55~90Hz,
  • : Maximum Resolution : UXGA at 60Hz,
  • : Maximum Pixel Rate : 162MHz - Separate Sync Support
  • SMPTE-428.1M: 2048x1080P(24/25)
  • SMPTE-425M(3G): 1920x1080P(50/60)
  • SMPTE-260M: 1920x1035i(60/59.94)
  • SMPTE-274M: 1920x1080i (50/59.94/60)
  • : 1920x1080P (30Psf/25Psf/24Psf/30/25/24)
  • SMPTE-372M: Dual Link HD-SDI YPbPr(4:2:2) : 1080P(50/59.94/60)
  • : Dual Link HD-SDI YpbPr/RGB(4:4:4)
  • : 1080P(30/29.97/25/24/23.98)
  • : 1080i(29.97/25/24/23.98)
  • : 720P(60/59.94/50)
  • SMPTE-296M: 1280x720P (50/59.94/60)
  • SMPTE-125M: 480i(59.94)
  • ITU-R BT.601: 576i(50)
  • Component: 640 X 480 up to 1920 X 1080p
  • HDMI Input: H Frequency Range : 22~82KHz, V Frequency Range : 55~90Hz
  • DVI-I Digital: Maximum Resolution : UXGA at 60Hz , Maximum Pixel Rate : 162MHz
  • Input Line: Analog Stereo (RCA Jack)
  • SDI Audio Input: Embedded HD/SD-SDI Audio
  • Speaker Output: Internal Speaker (Stereo) 2W+2W
  • Output Line: 1EA, L/R, Stereo pin jack
  • Ear-phone Output: 1EA, L/R Stereo, 3.5mm pin jack
  • Output Signal: Input Line & De-embedded Audio, 1~ 16CH
  • GPI: RJ-45 pin (Programmable General Purpose Input)
  • RS422/485: RJ-45 8 pin for upgrade
  • Upgrade Port: D-sub 9 pin female for upgrade
  • RS232: D-sub 9 pin female I/P for wall control
  • Size: LCD 24"
  • Aspect Ratio: 16:10
  • Resolutions: 1920 x 1200
  • Display Area: 518.4 x 324.0 (mm)
  • Display Color: 16.7 M colors
  • Brightness: Max 400 cd/m2
  • Contrast Ratio: 1000 : 1 (Typical)
  • Response Time: Tr=7.5ms / Tf=7.5ms
  • Viewing Angle: Horizontal: 178(Typ.), Vertical 178(Typ.)
  • Power Requirement: AC 100 V ~ 240 V (60/50 Hz)
  • Power Consumption: 4.5 A - 2.0A(420W)
  • Working Temperature: -30°C ~ 40°C (-22F ~ 104°F)
  • Working Humidity: 10%RH ~ 85%RH (Non Condensed)
  • Storage Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
  • Storage Humidity: 10%RH ~ 85%RH (Non Condensed)
  • Weight (w/o Stand & Packaging): 45 Kg – 99.2 Lbs
  • Dimension (W*H*D)
  • w/o Box & Stand: 1320 x 832 x 102 mm
  • 51.97 x 32.75 x 4 Inch
  • Packing Dimension (WxHxD): 1475 x 975 x 305 mm
  • 58.0 x 38.25 x 12.0 Inch
  • Accessory: Power Cord - Desk Stand
  • Option: Carrying Case
