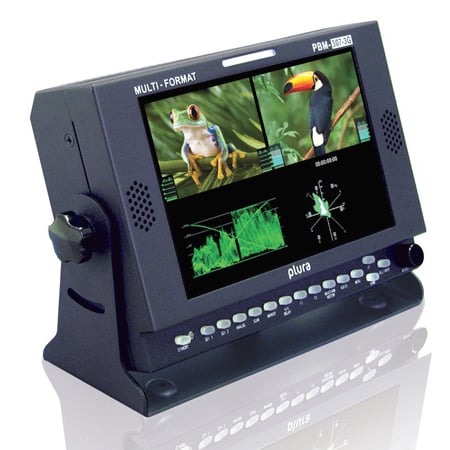

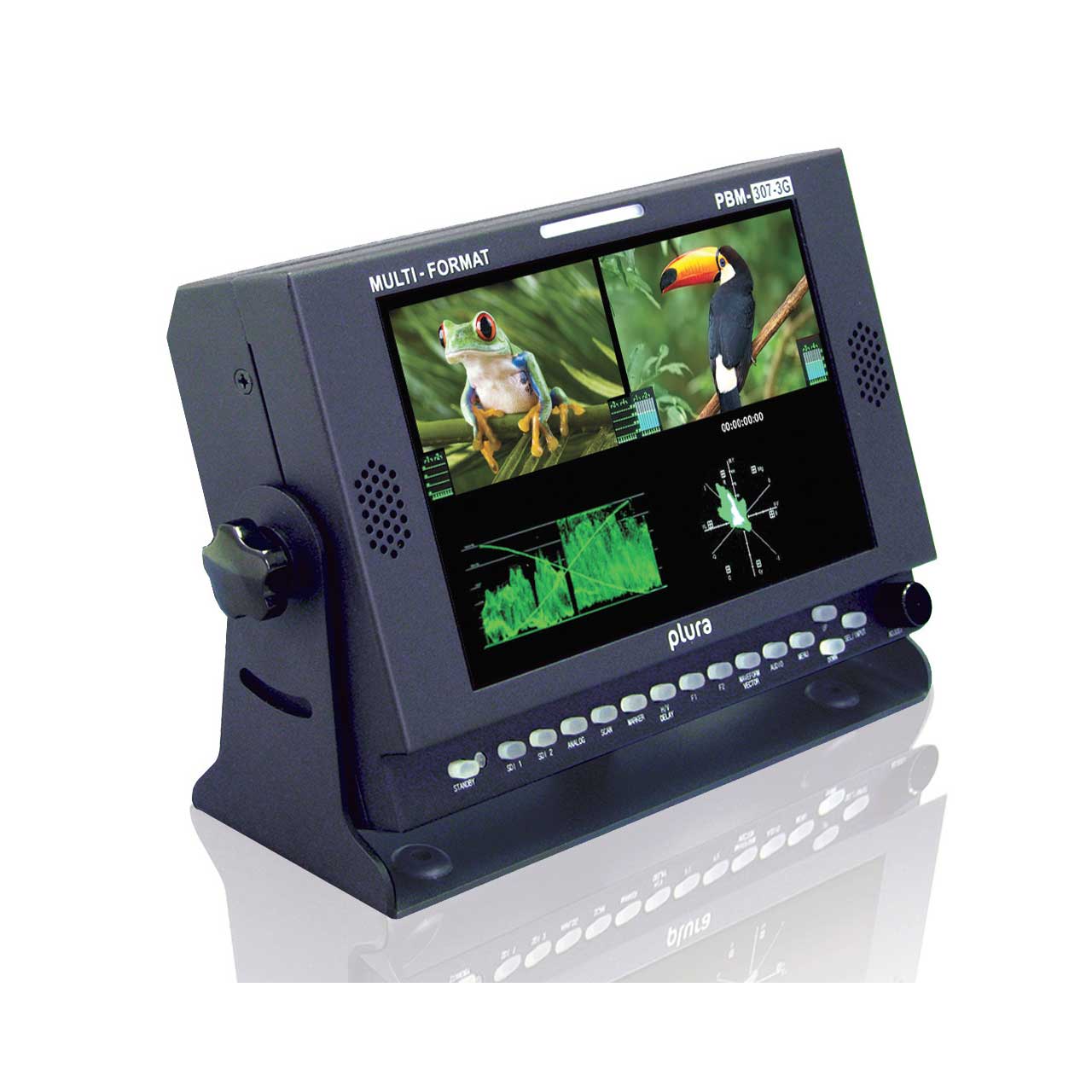

Plura PBM-307-3G 7-Inch 3G HD-SDI Broadcast Monitor (1024x600) Class A

PBM-307-3G - Overview

• Features:

  • 3Gb/s ready - 1080/60P

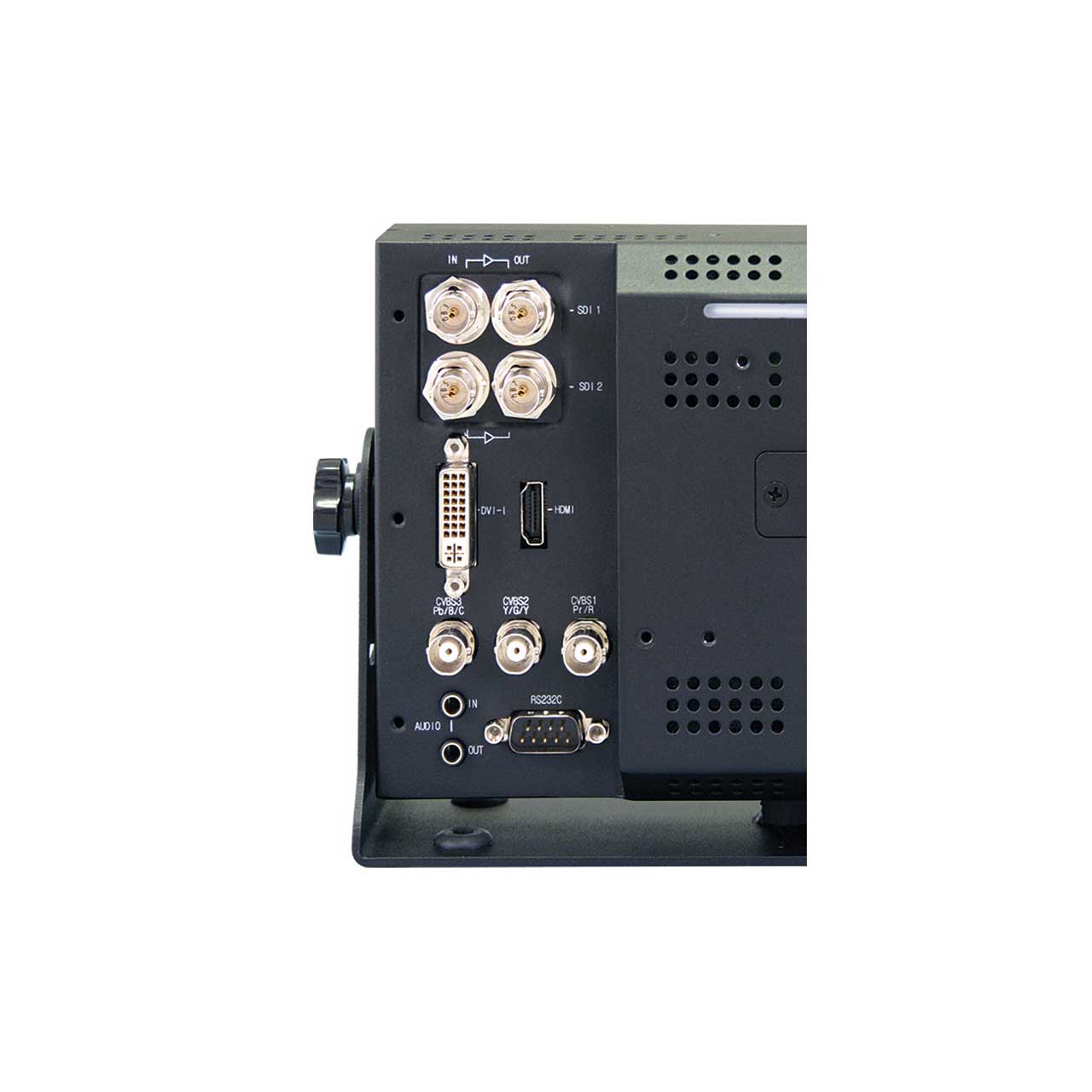

  • 2 x Auto-detect HD-SDI, SDI with active loops (3Gb/s / 1.485Gb/s / 270Mb/s)
  • Dual HD SDI YPbPr 4:2:2 - Dual HD SDI YPbPr/RGB 4:4:4 & 2K
  • RGB, YUV, Y/C, Composite, UXGA, DVI(DHCP) & HDMI(DHCP)
  • Complies with EBU-3320 TECH, SMPTE-C and ITU-R BT.709 Standards
  • (ICAC) - Plura Intelligent Connection for Alignment & Calibration
  • Closed Caption (608/708) - North American Market
  • Teletext 801 & Subtitle OP-47 - Australia & NZ Market
  • Cutting edge De-interlacing and Scaling Technology
  • Fast Response Time for high motion video
  • RGB 10 Bit Digital Signal Processing
  • 178° Viewing Angle Display
  • Internal Monitor Display (IMD)
  • Underscan/ Overscan/ Normal / Zoom
  • Pixel to Pixel Mode, Tally, DC Operation
  • False Color and Peaking Filter / Focus Assist
  • Video Range Test with adjustable Y & C values
  • Display LTC & DVITC time code with line select
  • Internal Pattern Generator and Wall Control System
  • Built In Stereo Speaker , 16 CH Audio Metering Display
  • Analog & Embedded Audio Input, Digital Audio Decoding
  • Color Temperature - User, VAR, Adjustable (11000K TO 3200K)
  • Various and User defined Markers Display, Safe Area in HD & SD
  • Picture and Picture (PaP), Picture in Picture (PiP) display / Blend
  • Intuitive OSD Display, Graphic based, 6 Languages (UNICODE System)
  • Display Advanced Waveform & Vector Scope simultaneously with line select
  • Programmable Front Pushbutton Controls, GPI & RS232 Remote Control

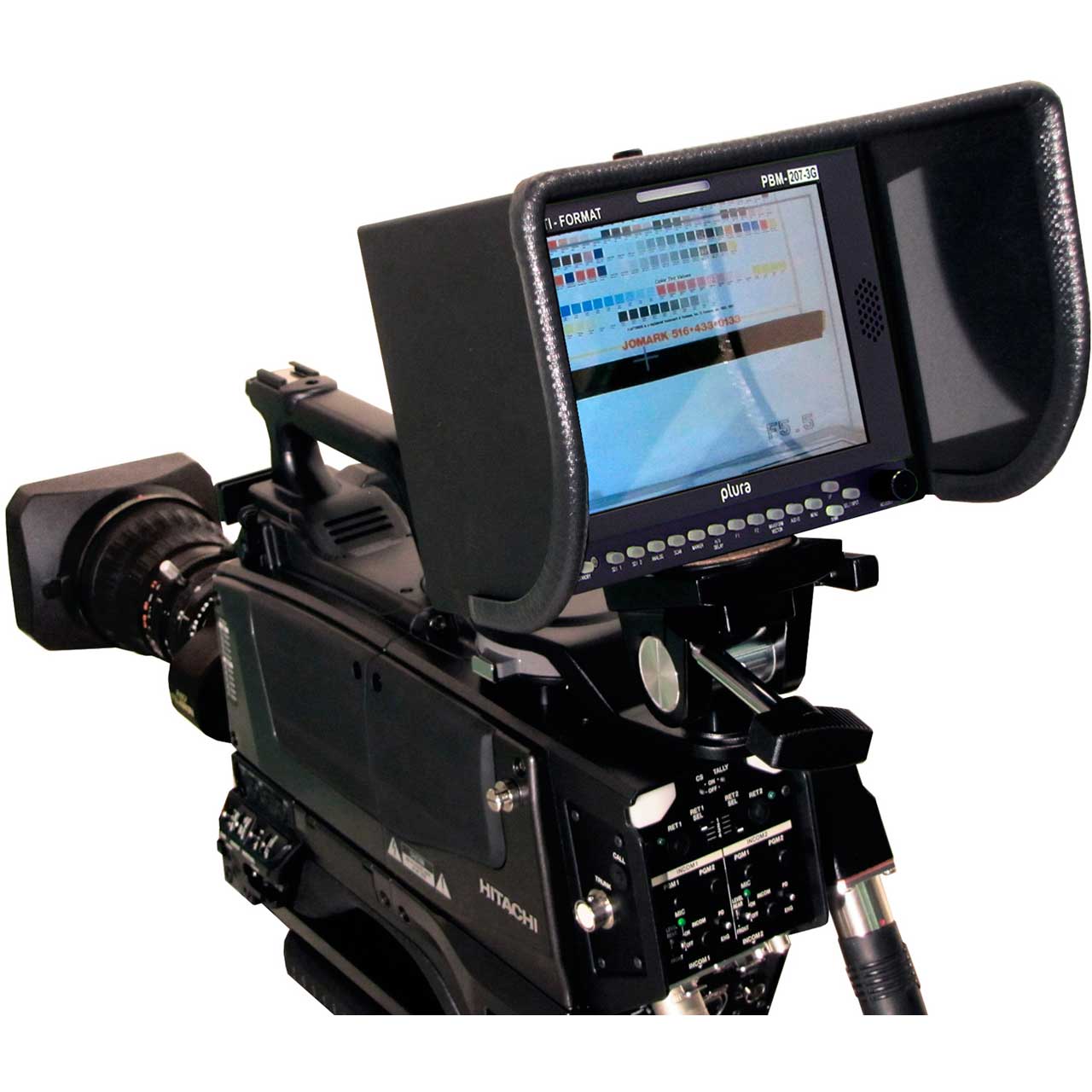

  • OPTIONS: Battery Mount, Carry Case, Rack mount & Sunvisor


• Specifications:

  • SMPTE-125M: 480i(59.94)
  • ITU-R BT.601: 576i(50)
  • Component: 640 X 480 up to 1920 X 1080p
  • HDMI: H Frequency Range : 22~82KHz, V Frequency Range : 55~90Hz,
  • DVI-I Digital: Maximum Resolution : UXGA at 60Hz ,
  • Maximum Pixel Rate : 162MHz
  • Audio Input Line: Analog Stereo (RCA Jack)
  • SDI Audio Input: Embedded HD/SD-SDI Audio
  • Speaker Output: Internal Speaker (Stereo) 2W+2W
  • Output Line: 1EA, L/R, Stereo pin jack
  • Ear-phone Output: 1EA, L/R Stereo, 3.5mm pin jack
  • Output Signal: Input Line & De-embedded Audio, 1~ 16CH
  • GPI: RJ-45 pin (Programmable General Purpose Input)
  • RS422/485: RJ-45 8 pin for upgrade
  • Upgrade Port: D-sub 9 pin female for upgrade
  • RS232: D-sub 9 pin female I/P for wall control
  • Size: LCD 7"
  • Aspect Ratio: 16:09
  • Resolutions: 1024 x 600
  • Display Area: 153.6 x 91 (mm)
  • Display Color: 16.7 M colors
  • Brightness: Max 400 cd/m2
  • Contrast Ratio: 900 : 1 (Typical)
  • Response Time: Tr=7.5ms / Tf=7.5ms
  • Viewing Angle: Horizontal: 178(Typ.), Vertical 178(Typ.)
  • Power Requirement: DC 12V/ 5A
  • Power Consumption: 0.1-1A (12W)
  • Working Temperature: -30°C ~ 40°C (-22F ~ 104°F)
  • Working Humidity: 10%RH ~ 85%RH (Non Condensed)
  • Storage Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
  • Storage Humidity: 10%RH ~ 85%RH (Non Condensed)
  • Weight (w/o Stand & Packaging): 3 Kg - 6.62 Lbs
  • Dimension (W*H*D)
  • w/o Box & Stand: 203 x 131 x 52 mm
  • 8 5.16 x 2.05 Inch
  • Packing Dimension (WxHxD): 550 x 435 x 220 mm
  • 21.7 x 17.2 x 8.7 Inch
  • Accessory: Power Cord - Desk Stand
  • Option: Battery Mount, Rack mount, Carrying Case
