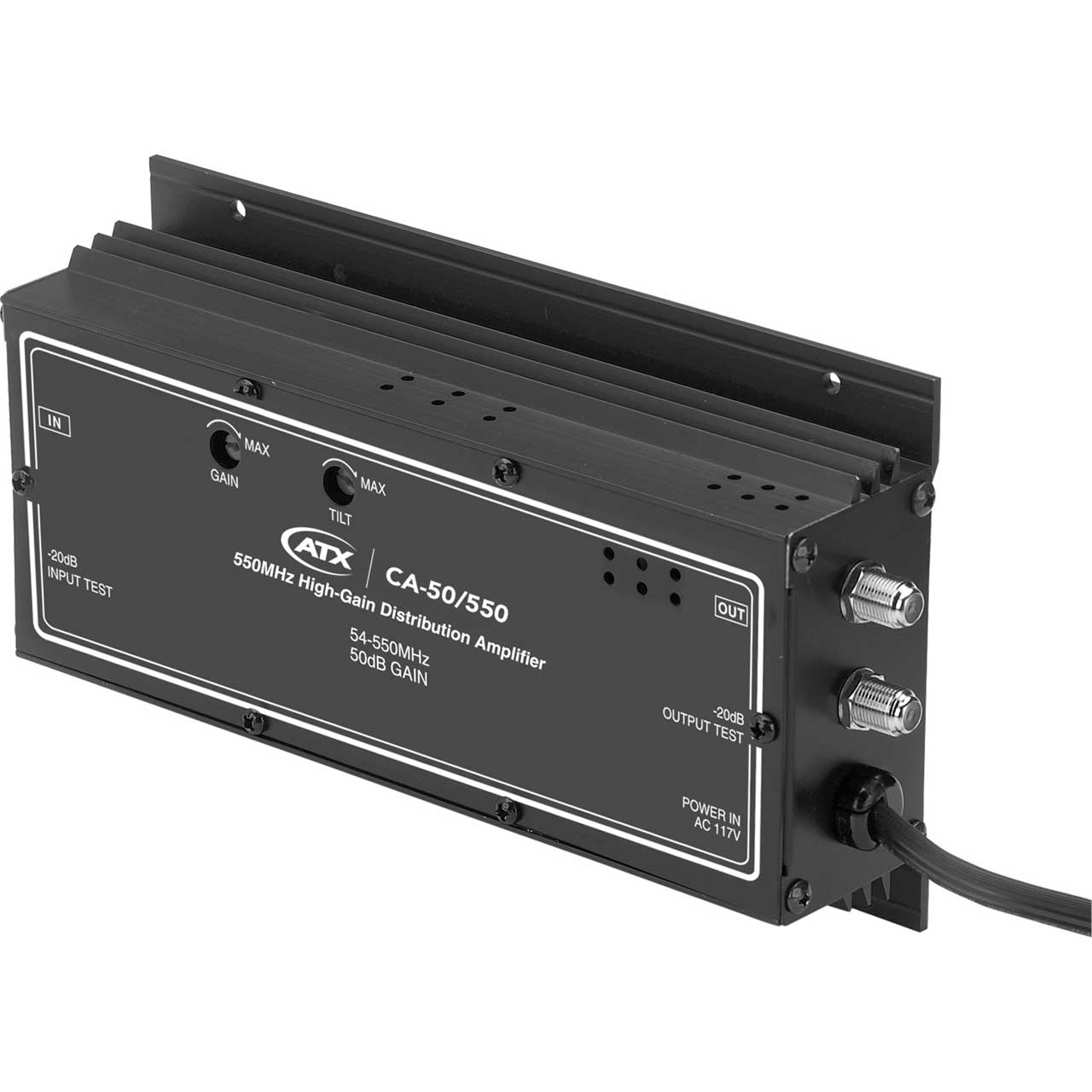

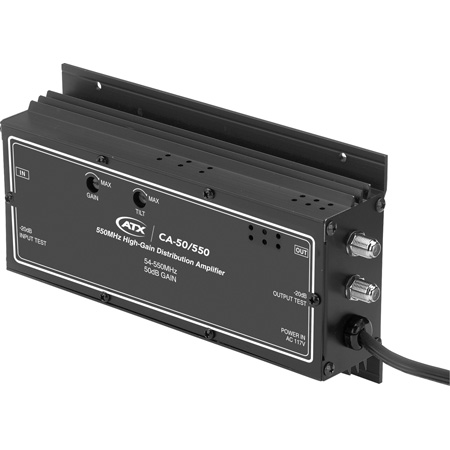

ATX Networks CA-50/550 550MHz CATV High-Gain Headend Distribution Amplifier

Name: ATX Networks CA-50/550 550MHz CATV High-Gain Headend Distribution Amplifier
Brand: ATX Networks
SKU: PM-CA-50-550
Price: 209.00 USD
Availability: InStock

ITEM #: PM-CA-50-550 MFG #: CA-50/550

ATX Networks

List Price:

$219.00

Our Price:

$209.00

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

CA-50/550 - Overview

The Tru Spec ATX Network CA-50/550 is a high quality push-pull wall-mounted distribution amplifier producing signals with extremely low-noise and harmonic distortion. This amplifier is capable of 78 channel operation over the 54-550MHz range, and makes an excellent distribution system amplifier in MDU, CATV, and SMATV systems. Because of its extremely low-noise figure and low distortion, the CA50/550 is ideally suited for use in larger networks where amplifier cascading is required.

Features:
- 54-550MHz frequency range (CATV 2~PPP)
- 50dB gain designed for low input applications to provide optimum carrier to noise performance
- ±0.75dB flatness per 100MHz provides low distortion and excellent frequency response
- Employs state-of-the-art hybrid push-pull technology for distortion-free audio-video quality
- Adjustable slope and gain controls for easy system balancing
- Easy-access controls and low-loss (-20dB) test point enable simplified setup and performance monitoring
- Built-in lightning and line voltage surge protection protects the unit from damage
Specifications:
- Bandwidth: 54~550MHz
- Gain (FWD) 54~550 MHz: 50dB
- Maximum Output (78 channels): 49dBmV
- Flatness: 0.5dB
- Noise Figure (FWD): 7dB
- Composite Second Order (FWD): 70dB
- Composite Triple Beat(FWD): 58dB
- Input Test Point Loss: 20dB
- Output Test Point Loss: 20dB
- Power Input: 115VAC
- Power Frequency: 60Hz
- Power Required: 4 Watt
- Dimensions: 8" (L) x 2.75" (D) x 4.5" (H)
- Weight: 2.5 lbs.
