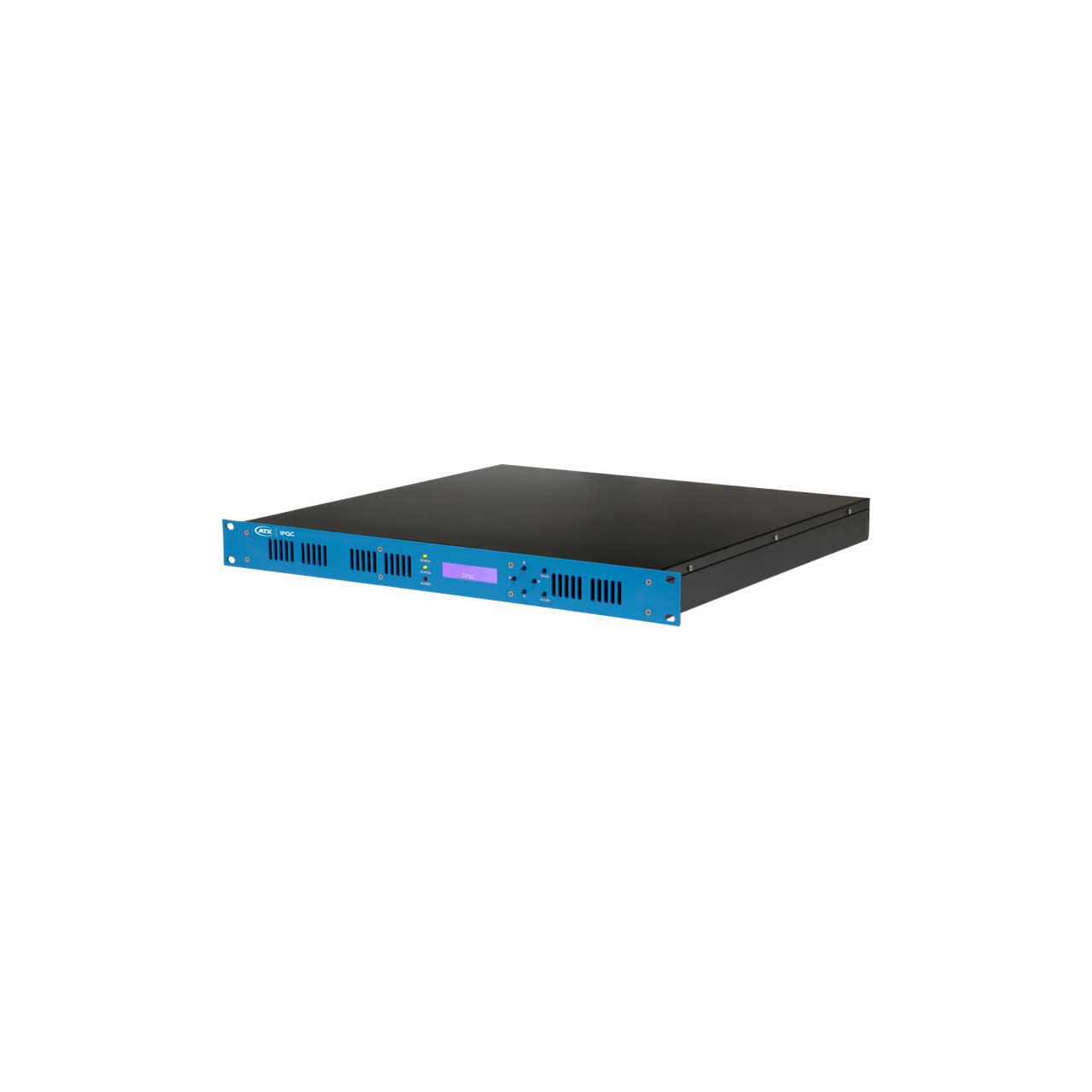

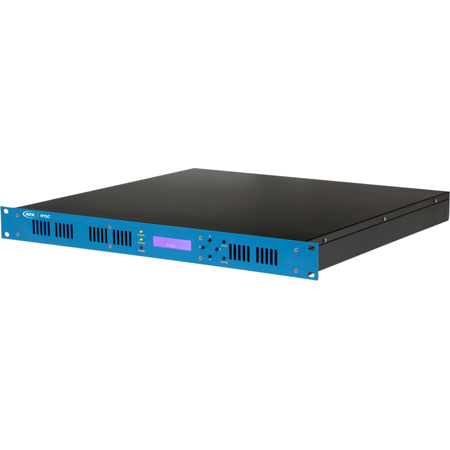

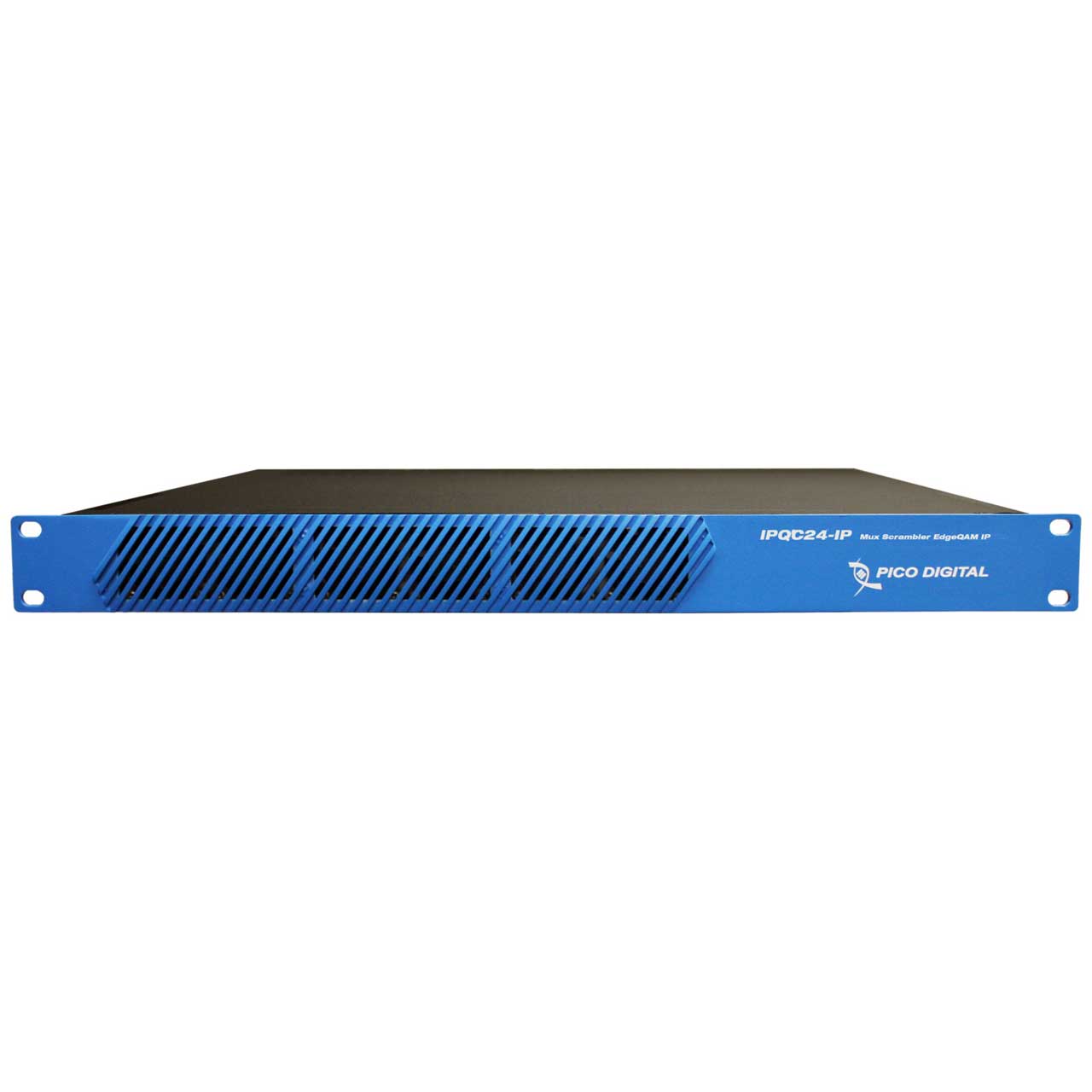

ATX Networks IPQC24-IP 1-RU Video Edge QAM - Adds 24 IP Output Streams to IPQC24

ITEM #: PM-IPQC24-IP MFG #: IPQC24-IP

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$38,000.00

Our Price:

$25,988.90

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


IPQC24-IP - Overview

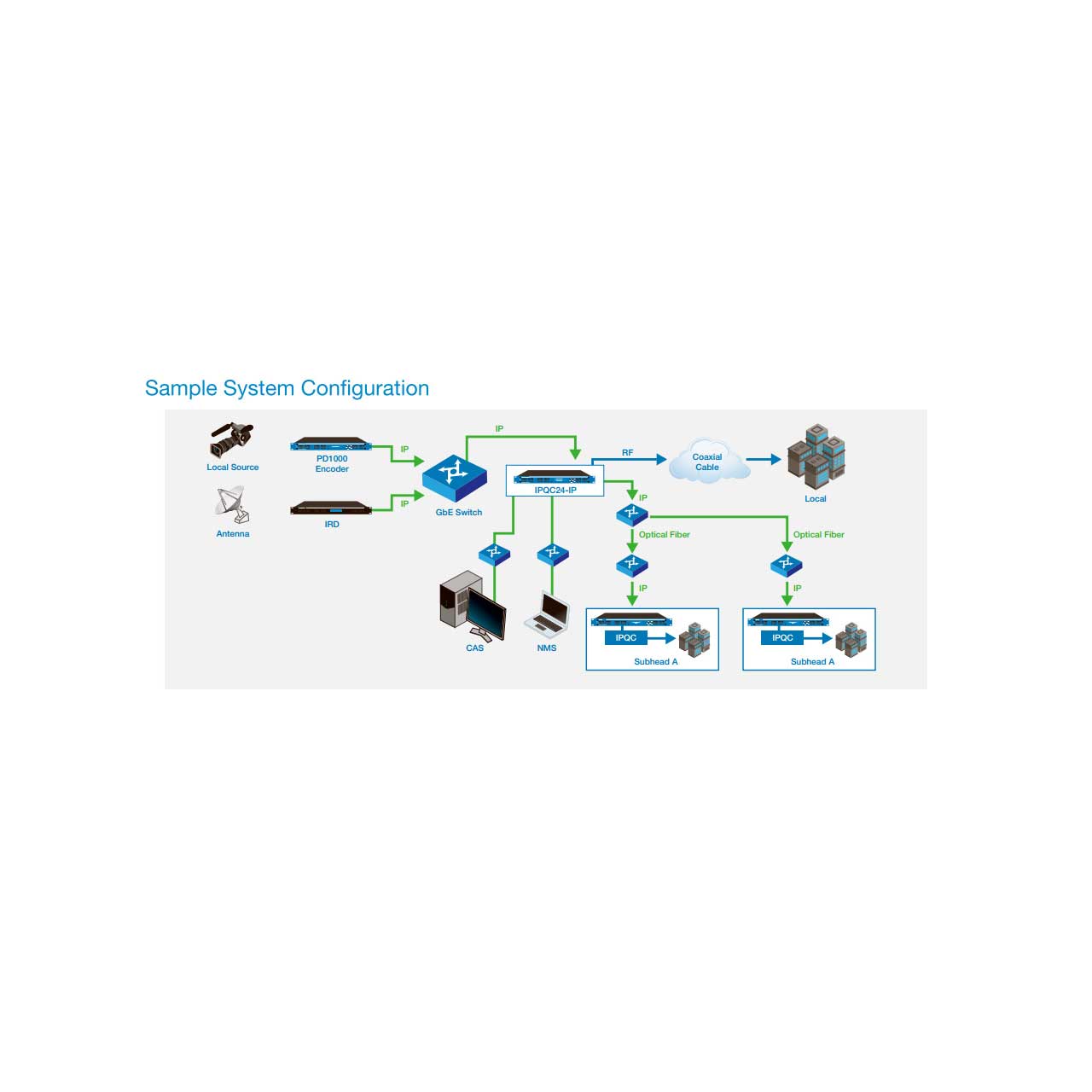

The IPQC24-IP adds 24 IP output streams to the IPQC24. The IPQC24 is a highly integrated 1-RU edge QAM that can multiplex and scramble IP video signals and convert them to QAM/DVB-C channels for use in CATV systems, such as the ATX Network CONDOR. The unit features a flexible design and can be configured in a number of ways to suit specific end applications. The IPQC24-IP is perfect for installations where a single master headend will feed numerous remote head-ends via IP. The high-quality QAM output of the edge QAM is organized into 24 independent QAM channels, which can be placed anywhere within a 768 MHz span, from 36 MHz to 960 MHz. The IPQC24-IP supports up to four simultaneous CA systems and 1680 Mbps of IP data input.

Now you can give your subscribers the digital media experience they expect at a much lower cost than you imagined. With ATX Network's CONDOR, you get an upgradeable set-top box platform and headend broadcast system that empowers you to efficiently convert to all-digital today, while adding new services over time with our future-proof middleware. CONDOR is more than just video.

  • Features:

    • Supports up to 512 channels of IP input over UDP, RTP MPTS/SPTS)
    • Supports unicast and multicast, IGMP v2/v3
    • Max 840 Mbps effective bitrate for every GbE input
    • Supports re-multiplexing and MPTS/SPTS multiplexing
    • Supports up to 256 PIDs remapping per channel
    • 24 QAM carriers outputs, adjustable frequency output within 768 MHz
    • Supports 24 IP (MPTS) outputs over UDP, RTP/RTSP
    • Supports RS (204, 188) encoding
    • Excellent RF performance, MER = 40 dB
    • Remote control and monitoring via an easy-to-use web browser
    • Modular design, 1-RU chassis
    • Redundant power supply
    • Simultaneous multiple encryption - four CA Systems supported
    • Compliant to DVB-C (EN 300 429) and ITU-T J.83 Annex A & B
    • Supports DVB general scrambling system (ETR289), Simulcrypt standards ETSI 101 197 and ETSI 103 197
    • 2 GbE inputs, RJ-45 interface or SF

  • Specifications:

    • Input

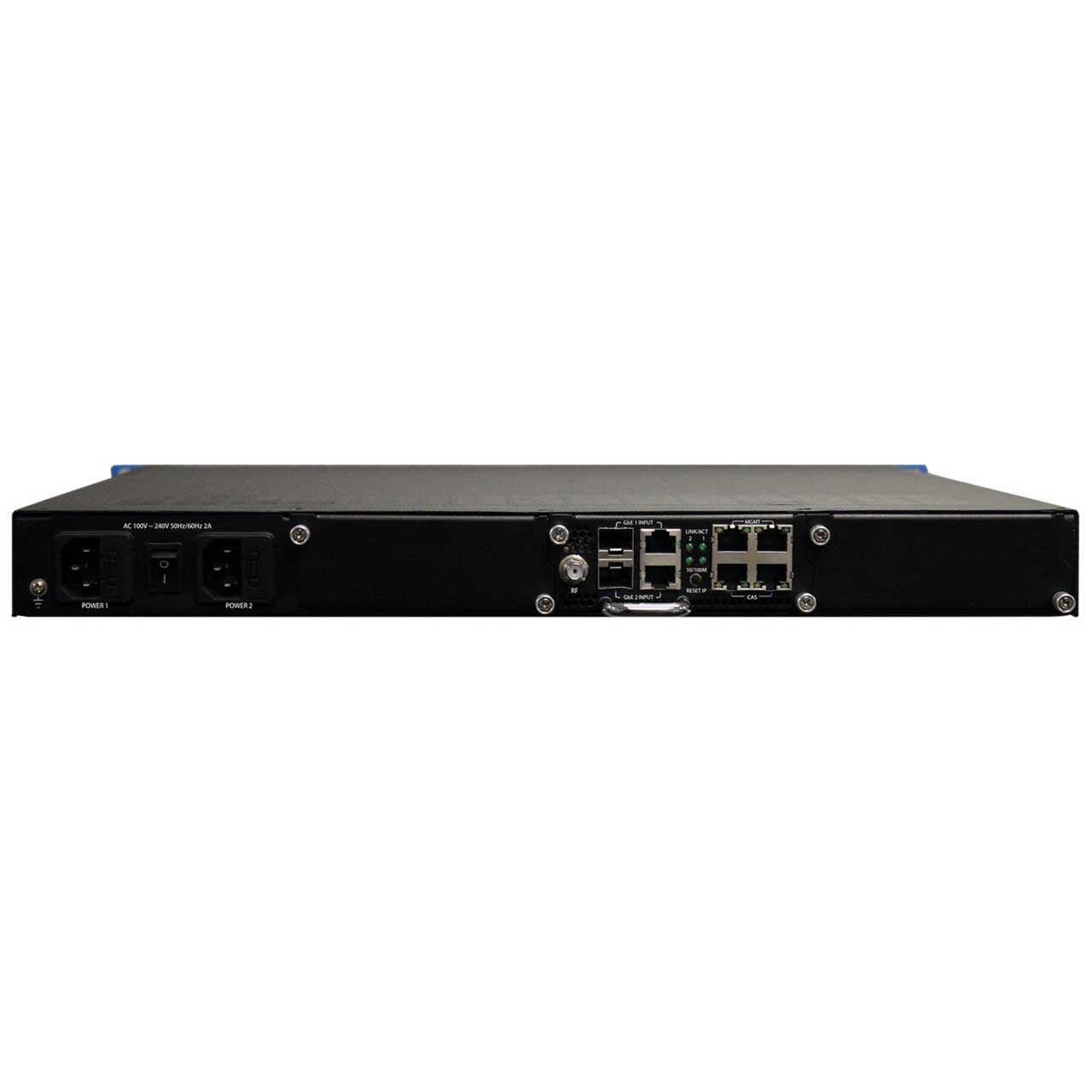

    • Interface: 2 GbE (RJ-45) or 2 SFP input ports, hot backup
    • IP Input: 256 x 2 = 512
    • Transport Protocol: TS over UDP/RTP, unicast and multicast, IGMP V2/V3
    • Transmission Code: Max 840 Mbps effective bitrate for every GbE input

    • Multiplexer
    • Input Channels: 512
    • Output Channels: 24
    • Max PIDs: 256 / channel
    • Functions: PID remapping (auto/manually optional), PSI / SI table automatically generating Note: No EAS Support

    • Scrambling
    • Simultaneous Encryption: 4 different CA systems
    • Scramble Standard: ETSI 101 197, ETSI 103 197
    • Connection: Local/remote

    • QAM Modulation
    • QAM Channels: 24
    • Modulation Standard: EN300 429/ITU-T J.83 Annex A and B
    • Symbol Rate: 5750 Ksps to 7200 Ksps, 1 Ksps steps
    • Constellation: 16, 32, 64, 128, 256 QAM
    • FEC: RS (204, 188)

    • RF Output
    • Interface: 1 F-type output port for 24 carriers, 75 Ω impedance
    • Frequency Range: 36 MHz to 960 MHz, 1 kHz steps
    • Output Level (Combined): 59 dBmV, .5 dB steps
    • RF Level Adjustment Range (Combined): 39 dBmV to 59 dBmV
    • MER: ≥ 40 dB

    • IP Output
    • 24 IP (MPTS) output over UDP, RTP/RTSP

    • Management
    • Connection: RJ-45, GbE, Full Duplex, Auto-Neg
    • Protocols: HTTP
    • User Interface: Web Browser
    • Browser Support: IE9 or later, Firefox, and Chrome

    • General
    • Dimensions: 19" (L) x 18.5" (D) x 1.75" (H)
    • Weight: 19.8 lbs
    • Operating Temperature: 0 °C to 45 °C
    • Power Supply: AC 110 V +/- 10 %, 50 Hz/ 60 Hz, AC 220 V +/- 10 %, 50 Hz/ 60 Hz
    • Consumption: 15.4 Watts

  • Warranty:

    • 3 Years
