Postium OBM-N180 18.5 In 1920 x 1080 Resolution 3G-SDI LCD Monitor - 2x 3G-SDI Inputs

Name: Postium OBM-N180 18.5 In 1920 x 1080 Resolution 3G-SDI LCD Monitor - 2x 3G-SDI Inputs
Brand: Postium
SKU: POST-OBM-N180
Price: 2964.00 USD
Availability: InStock

ITEM #: POST-OBM-N180 MFG #: OBM-N180

Postium

Our Price:

$2,964.00

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

OBM-N180 - Overview

The Postium OBM-N180 offers the superior picture quality and wide viewing angle, and includes an array of professional features and the advanced audio & video signal analysis functions including Waveform, Vector Scope, Audio Level Meter, IMD, Camera Log Selection, Custom 3D LUT Import, Focus Assist, etc. The OBM N series are equipped with various I/O interfaces such as 3G-SDI, HDMI, Component, Composite, DVI.

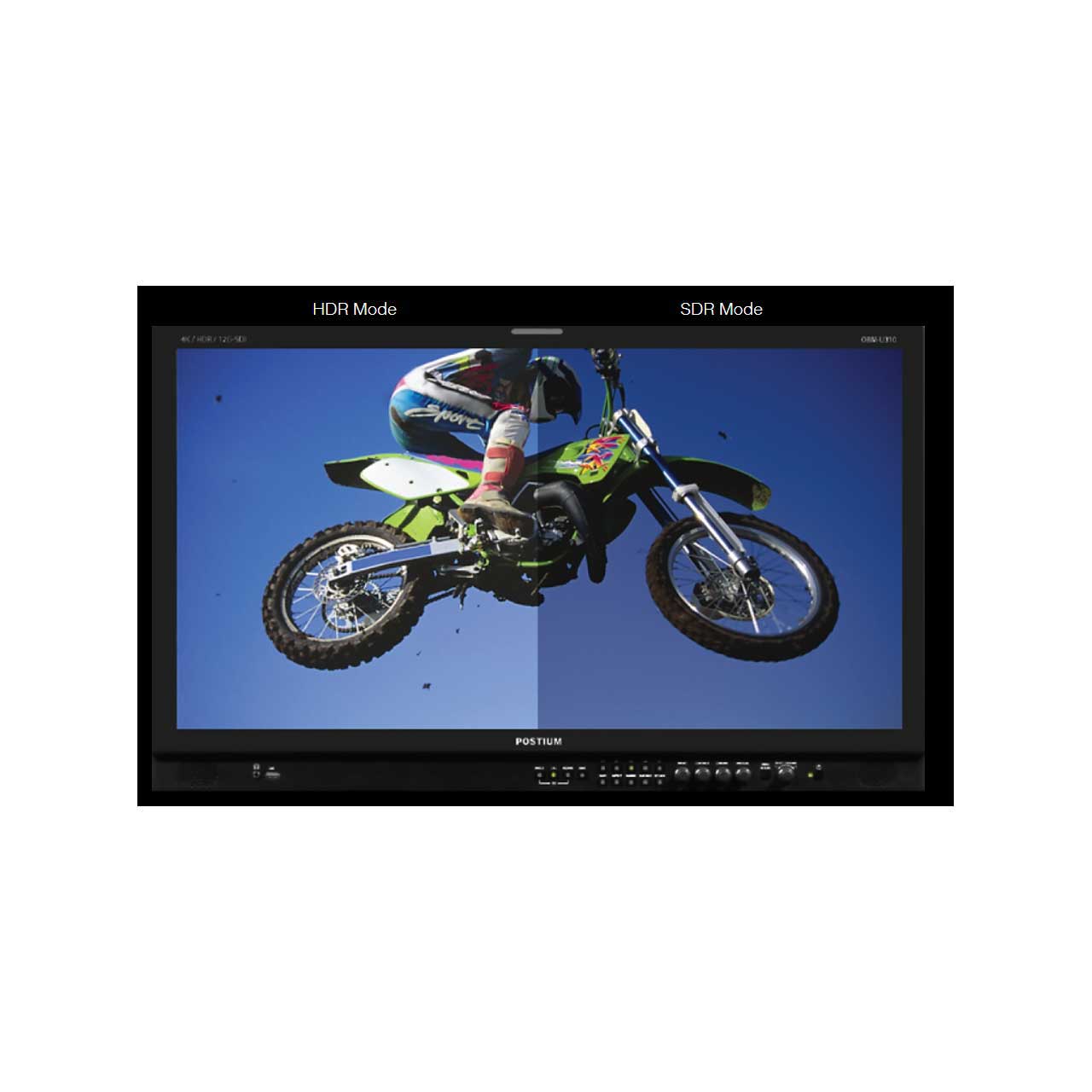

High Dynamic Range(HDR) Display Function
High Dynamic Range (HDR) Emulation applies a High Dynamic Range display gamma curve to HDR content. The OBM-L Series supports PQ EOTF (SMPTE ST 2084), Hybrid Log Gamma and S-Log3. Postium's HDR function allows users to view both highlights and shadow details within scenes simultaneously, thus resulting in more natural and realistic reproduction.

Focus Assist
This function controls the aperture level of a video signal, and displays images on screen with sharpened edges to help camera focus operation.

Closed Caption
The OBM series can display closed captions with an SDI input. It supports the CEA-708(HD-SDI closed captioning standard) and CEA-608(SD-SDI closed captioning standard).

Features:
- 3G/HD/SD-SDI 2 Channel
- HDR(High Dynamic Range) Display supporting PQ EOTF(ST 2084), Hybrid Log Gamma, S-Log3
- 3D-LUT for Accurate Color Reproduction
- SDR EOTF - BT.1886 (Gamma 2.4)
- 1.064 Billion Colors
- Custom 3D LUT File Import Through USB
- Color Temperature(3200K, 5500K, 6500K, 9300K, USER 1/2/3, D-CINEMA)
- Compare Color Settings (Side by Side)
- Waveform, VectorScope (Wave + Vector, Waveform Wide, Position Change, Size Adjustment)
- Monitor Control via Ethernet, RS-422
- Various Markers (EBU, 4:3, 16:9, 1.85:1, 2.35:1, Variable etc.)
- Internal Patterns Display for Color Test (Black ~ 100% White, Color Bar)
- Time Code Display (Position / Size Selection)
- Easy Firmware Update by USB
- Fast Mode
- Focus Assist
- HDR Waveform
- De-embedded 8~16ch Audio Level Meter
- Remote Control via GPI(RJ-45) Port
- 3 Color TALLY Lamp
- Closed Caption(608, 708)
- Key Lock & Password Lock
Specifications:

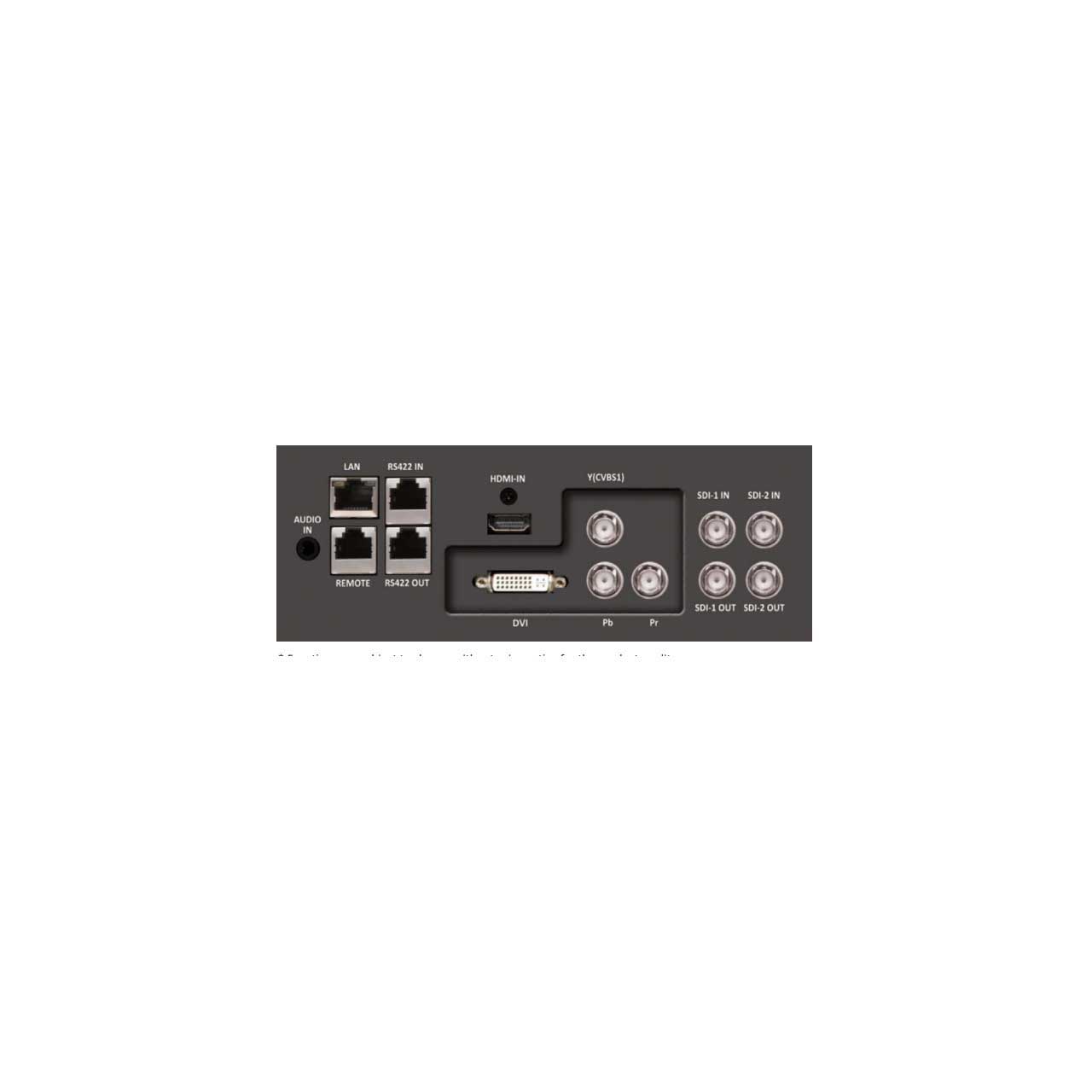

- Input:
  - 2x BNC: 3G/HD/SD-SDI-1/2
  - 1x HDMI: HDMI 1.3a
  - 3x BNC (YPbPr): Analog(YPbPr)
  - 1x BNC (CVBS): Composite
  - 1x DVI: DVI-D
- Output: 1x BNC: 3G/HD/SD-SDI-1/2
- Input Signal Format:
  - SMPTE ST 425-AB: 1080p(60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50
  - SMPTE ST 274: 1080p(30/29.97/25/24/23.98/24sF/23.98sF), 1080i (60/59.94/50)
  - SMPTE ST 296: 720p(60/59.94/50)
  - SMPTE ST 260: 1920 x 1035i(60/59.94)
  - SMPTE ST 2048: 2048 x 1080p(24/23.98/24sF/23.98sF)
  - SMPTE ST 125: 480i(59.94)
  - ITU-R BT.656: 576i(50)
  - HDMI: ~ 1080p(60)
  - DVI-D: VESA/IBM Modes
- Audio In/Out:
  - 1x Phone Jack In: Line In(Stereo)
  - 1x phone Jack Out: H/P Out(Front, Stereo)
  - 2x Speaker Out: Stereo

  Display:
- Size: 18.5" LCD
- Resolution: 1920 x 1080 (16:9)
- Pixel Pitch: 0.213mm
- Color: 1.064B colors(8bit+2bit FRC)
- Viewing Angle: 178(H), 178(V)
- Luminance of White: 500cd/m²
- Contrast: 1000 : 1
- Display Area (HxV): 408.96 x 230.04 (mm)

  General:
- 1x Ethernet: Control/Update, RJ-45P Input / Output
- 1x GPIO: GPI-7 Port, RJ-45P Jack
- 2x Serial: RS-422 Jack, RJ-45P Input / Output
- 1x USB: For Firmware Update, Color Calibration
- Power Requirements: AC(100-230V,50/60Hz)/DC12V
- Power Consumption: Max 40W
- Operating Temperature: 0 ~ 40°C(32~104°F)
- Operating Humidity: 20 ~ 80% RH
- Weight: Main Body: 6.7kg/14.77lbs
- Dimensions: 18.54 x 13.18 x 4.72inch
- Accessories: Power Cable
Item Includes:
- 1x Power Cable
GTIN:
8809771070227
