PreSonus AudioBox USB 96 2x2 USB 2.0 / 96kHz Audio Interface

ITEM #: PRE-AUDBOX-USB96 MFG #: AUDIOBOX USB 96

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the PRE-AUDBOX-USB96

AUDIOBOX USB 96 - Overview

Simple, reliable, and portable.
Whether you are a musician, producer, voiceover artist or podcaster on a tight budget, the PreSonus AudioBox USB® 96 audio interface is for you! This simple, handy little audio/MIDI interface has just the right features for basic recording needs, allowing you to plug in and start recording up to 24-bit, 96 kHz audio right away. Bus-powered and built to travel, the AudioBox USB 96 makes recording easy.

Just the right size.

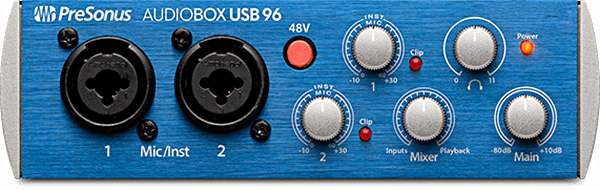

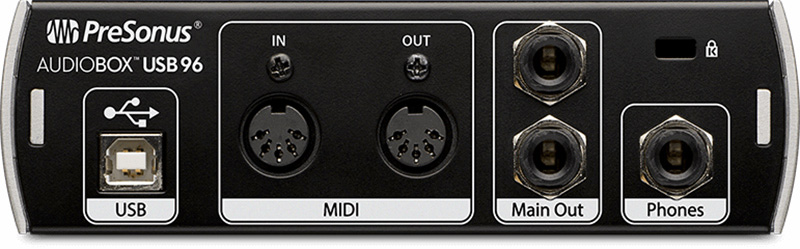

The AudioBox USB 96 audio interface's two front-panel combo mic/instrument inputs make it ideal for singer/songwriters, podcasters, and guitar or guitar-bass collaborations. Simply connect a couple of mics and you have an easy-to-use stereo recording system. A mix control lets you control the level between the input signal and computer playback, without hearing annoying delays. You also get a pair of balanced line-level outputs, an ultra-loud, crystal-clear headphone out, plus MIDI I/O, so you can connect your favorite synth or MIDI controller. The result is a simple, affordable, mobile recording solution.

Roadworthy and ready to travel.
Here is a mobile audio interface in the best sense of the term. We gave the AudioBox USB 96 a heavy-duty steel chassis so it can take a serious pounding and remain completely reliable. Its screaming-loud headphone output ensures you can hear your music loud and clear, even in noisy locations. And it's USB 2.0 bus-powered, so you can record with it anywhere you can use a laptop. Simply drop it in your laptop bag or slap it on a tabletop.

World-class recording software included.
While the AudioBox USB 96 audio interface works with virtually all Mac and Windows audio-recording software, it comes with a free license for PreSonus' Studio One® Artist DAW, giving you a complete recording solution. Built by creative people for creative music production, Studio One is easy to learn and enables you to compose, record, and produce your masterpiece without getting distracted by the tools. Studio One also enjoys a robust online community of enthusiastic and helpful users you can turn to for advice.

  • Features:

    • 2 dual-purpose front-panel input channels, each with high-quality mic preamplifiers
    • 2 combo mic/instrument inputs
    • Individual channel-trim controls with 0 to +35 dBu mic gain range
    • 48V phantom power for condenser microphones
    • Mixer control (blends the input signal with the computer playback stream for zero-latency monitoring)
    • Headphone jack with level control
    • Main-output level control
    • LED clip indicator for each channel

  • Specifications:

    • Microphone Preamp
    • Type: XLR Female Balanced
    • Frequency Response (±3.0 dB): 20 Hz to 20 kHz
    • Input Impedance (Balanced): 1200Ω
    • THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain): < 0.008%
    • S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz): > 95 dB
    • Common Mode Rejection Ratio (1 kHz, 55 dB Gain): > 45 dB
    • Gain Control Range (± 1 dB): 0 dB to 35 dB
    • Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N): -3 dBu
    • Phantom Power (±2 VDC): +48 VDC

      Instrument Input
    • Type: ¼" TS Female Unbalanced
    • Input Impedance 0.5 MΩ

      Line Outputs
    • Type: ¼" Balanced
    • Output Impedance: 51Ω

      Headphone Output
    • Type: ¼" TRS Active Stereo
    • Maximum Output: 60 mW/Ch @ 60Ω Load
    • Frequency Response (±1.0 dB): 20 Hz - 30 kHz
    • MIDI I/O Type: Dual 5-pin Female DIN

      Digital Audio
    • ADC Dynamic Range (A-wtd, 48 kHz Sample Rate): 105 dB
    • DAC Dynamic Range (A-wtd, 48 kHz Sample Rate): 105 dB
    • Bit Depth: 24
    • Reference Level for 0 dBFS: +4 dBu
    • Internal Sample Frequency Selections (kHz): 44.1, 48, 88.2, 96
    • Power: USB 2.0 bus-powered

      Physical
    • Dimensions: 1/3U (steel chassis)
    • Height: 5.5"
    • Depth: 1.75"
    • Width: 5.5"
    • Weight: 5 lbs

  • GTIN:

    0673454005381
