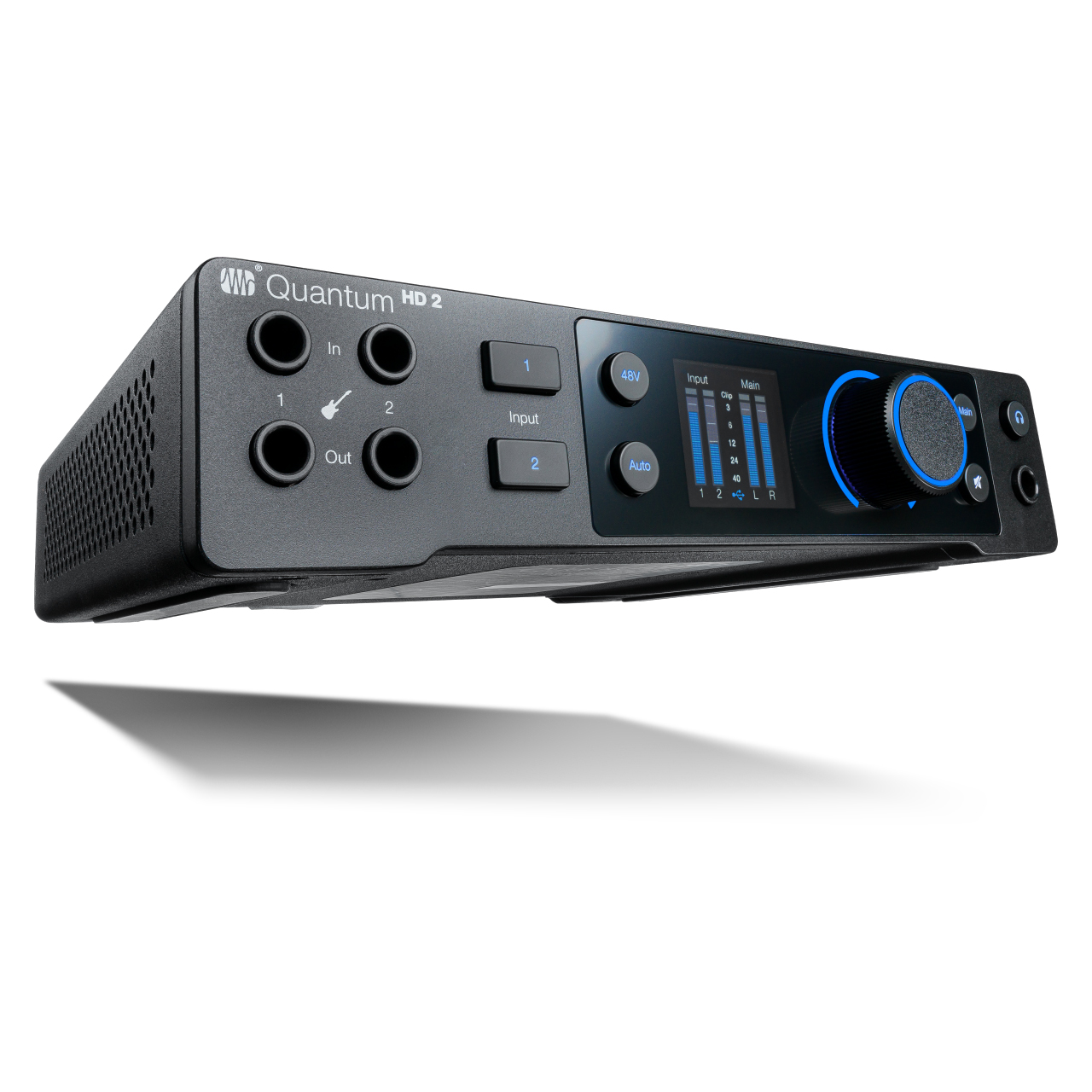

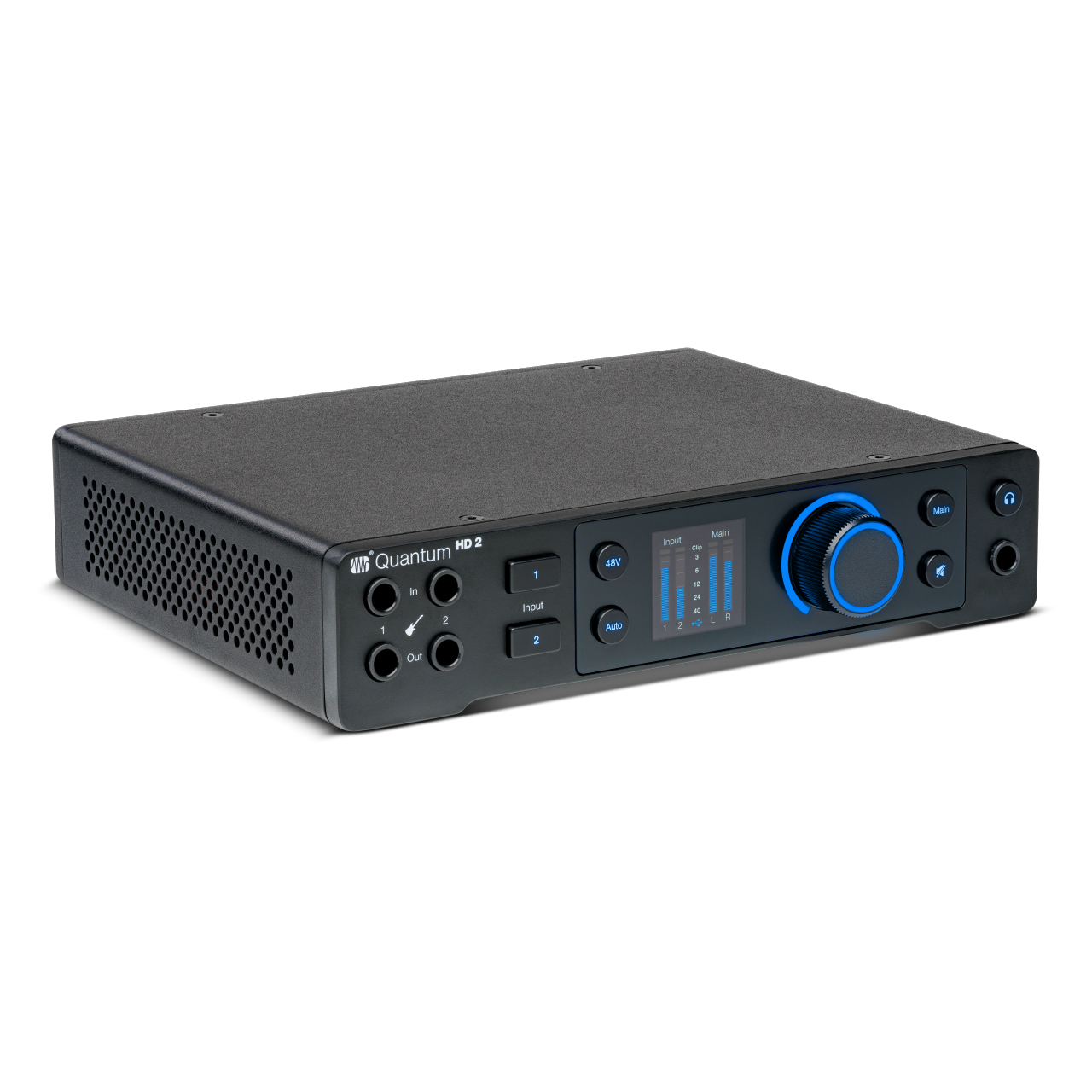

PreSonus Quantum HD2 20x24 32-bit 192 kHz USB-C Low-Latency Audio Interface with AX-HD Mic Preamps +75 dB of Gain Range

ITEM #: PRE-QUANTUM-HD2 MFG #: QUANTUM HD2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$499.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    QUANTUM HD2 - Overview

    Power your project with the PreSonus Quantum HD 2 - the recording interface for project studios and full band recordings.

    The Culmination of 30 Years of Innovation
    The Quantum HD 2 features two newly redesigned high-definition MAX-HD mic preamps with +75 dB of gain - making it ideally suited for today's most popular microphones. Guitarists and bassists will love the two instrument inputs, which were co-developed with Fender engineers. An Auto Gain button sets the perfect gain level for your microphones and instruments. You also get two re-amp outputs so you can send audio from your DAW to your guitar or bass amp and re-record it to experiment with different amps, pedals, and mic placements. An illuminated push encoder provides flexible control over gain level and output volume, making it great for self-produced recording.

    High Performance Signal Flow
    PreSonus's custom low-latency driver provides exceptionally low audio latencies when recording, and high-performance converters with 124 dB dynamic range let you hear and capture audio with stunning clarity and fidelity.

    All-New MAX-Hd Mic Preamps
    The Quantum HD 2 features two newly designed mic preamps with +75 dB of gain. PreSonus's high-definition MAX-HD preamps are transparent, low-noise, and digitally-controlled analog, making them ideally suited to today's most popular microphones.

    Co-Developed With Fender®
    Built by the best ears in the business, guitarists and bassists will love the two instrument inputs, co-developed with Fender engineers - industry experts who designed them specifically for guitar and bass.

    Professional Recording Software Included
    Leap into 12 months of Studio One+ add-ons, exclusive content, and tools, plus a perpetual license to Studio One Professional Edition.

    Auto Gain
    An Auto Gain button sets the perfect gain level for your microphones and instruments, so you get the perfect take every time.

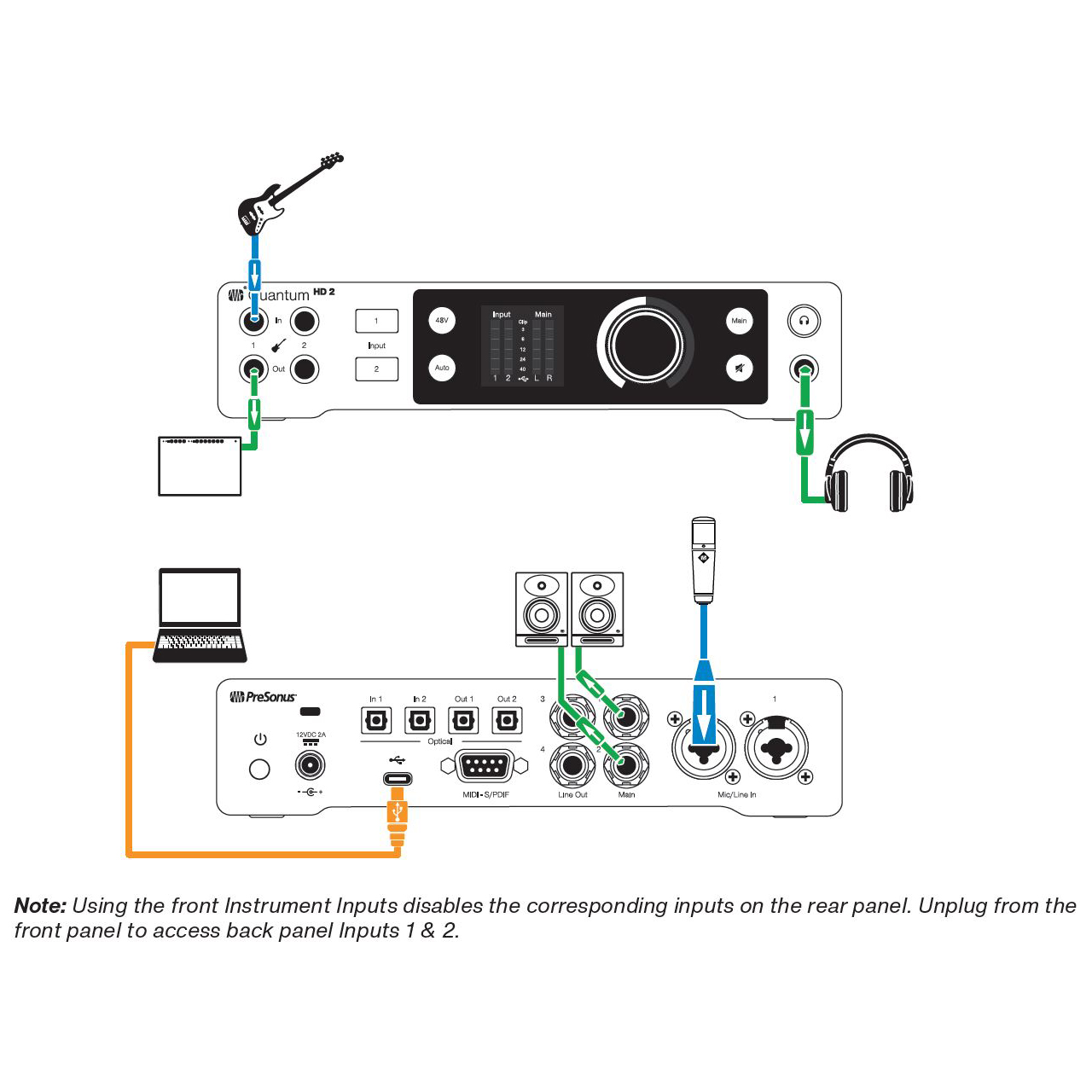

    Re-Amp Outputs
    Re-amp audio directly from your DAW and use amps and effects to sculpt your sounds. Send audio from your DAW to your guitar or bass amp and re-record it to experiment with different amps, pedals, and mic placements.

    Universal Control App
    Quantum works on any mobile or desktop device, so you're ready to record whenever inspiration strikes - whether on your phone, tablet, or in your home studio. Critical preamp functions like preamp gain, phantom power, and more can be controlled with the Quantum HD 2's flexible front panel, or right from Studio One and the Universal Control app, so you can dial in the perfect gain staging without looking away from your recording session.

    • Features:

      • 20 x 24, 32-bit 192 kHz USB-C Audio Interface
      • High-performance converters with 124 dB dynamic range let you hear and capture audio with stunning clarity and fidelity
      • Custom low-latency driver provides exceptionally low audio latencies when recording
      • Two all-new, next-generation PreSonus MAX-HD preamps provide transparency and accuracy across the frequency range with +75 dB of gain to maximize the performance for today's most popular studio microphones for modern recording and broadcast
      • Discreet phantom power means consistent, full power for microphones that require it, so you'll get the most from your high-performance studio microphones
      • 2 Re-amp outputs let you send audio from your DAW to your favorite outboard gear and record it again, so you can experiment with different amps, pedals, and mic placement to get the exact sound you want without cutting multiple takes
      • 16 channels of ADAT Optical input (up to 48 kHz) plus stereo S/PDIF I/O make connecting your digital gear fast and easy

    • Specifications:

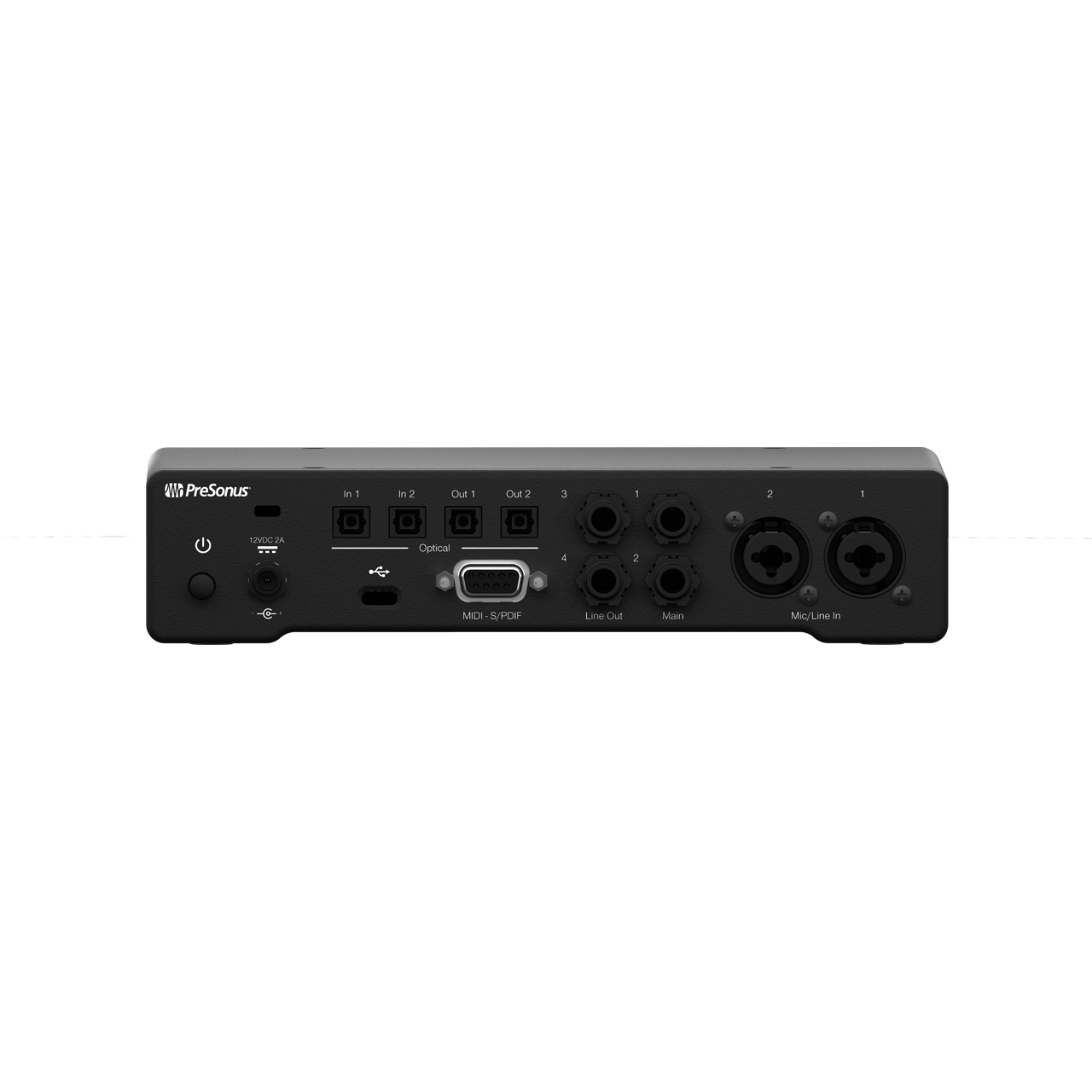

      • Controls/Connections
      • Headphone Jack: One - 1/4" TRS Female Stereo
      • Connectivity: USB-C, MIDI I/O, 5-Pin Female DIN
      • Digital Audio Connections: SPDIF IO, RCA 75Ω Coax, ADAT Optical IO, Toslink Connectors, ADAT/SMUX Formats

        Mic Preamp
      • Mic Input: XLR Female (Combo), Balanced
      • Total Harmonic Distortion: 0.002% (1 kHz, Minimum Gain)
      • Gain Control Range: 75 dB
      • Mic Preamp Maximum Input Level: +18 dBu (Balanced, Minimum Gain)
      • Phantom Power: +48 VDC
      • Frequency Response: 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
      • Mic Preamp Input Impedance: 1600 Ohms
      • Dynamic Range: 116 dB (A-Weighted, Minimum Gain)
      • Equivalent Input Noise: -130 dBu (Maximum Gain, 150 Ohms, 20 kHz BW, A-Weighted)

        Instrument Inputs
      • Impedance: 1M Ohms
      • Max Level: +21 dBu (Unbalanced, Minimum Gain)
      • Gain Range: 75 dB
      • Frequency Response: 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
      • Dynamic Range: 111 dB (A-Weighted, Minimum Gain)
      • Total Harmonic Distortion: 0.003% (1 kHz, Minimum Gain)

        Line Inputs
      • Max Level: +18 dBu (Balanced, Minimum Gain)
      • Gain Range: +/- 10 dB
      • Frequency Response: 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
      • Dynamic Range: 118 dB (A-Weighted, Minimum Gain)
      • Total Harmonic Distortion: 0.001% (1 kHz, Minimum Gain)
      • Impedance: 10K Ohms

        Main/Line Outputs
      • Max Level: +18 dBu (Balanced)
      • Frequency Response: 20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)
      • Total Harmonic Distortion: 0.001% (1 kHz, +4 dBu)
      • Dynamic Range: 123 dB (A-Weighted)
      • Output Impedance: 51 Ohms
      • Line Output: 1/4" TRS Female

        Headphone Outputs
      • Max Output: 11 dBu (50 Ohms)
      • Frequency Response: 20 Hz to 20 kHz, +/- 0.3 dB (Unity Gain, Reference 1 kHz)
      • Dynamic Range: 118 dB (A-Weighted)
      • Total Harmonic Distortion: 0.001% (1 kHz)
      • Impedance Working Range: 33 Ohms

        Digital Audio
      • Dynamic Range: 124 dB
      • Bit Depth: 32-bit
      • Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 (kHz)

        Weight/Dimensions
      • Height: 1.9"
      • Depth: 7.5"
      • Width: 8.5"
      • Weight: 2.9 lbs

    • Item Includes:

      • 1x Quantum HD 2 Audio Interface
      • 1x Quantum HD 2 Quick Start Guide
      • 1x 1.5M USB-C to USB-C cable
      • 1x IEC Cable
      • 1x Safety and Compliance Guide

    • GTIN:

      0673454012150
