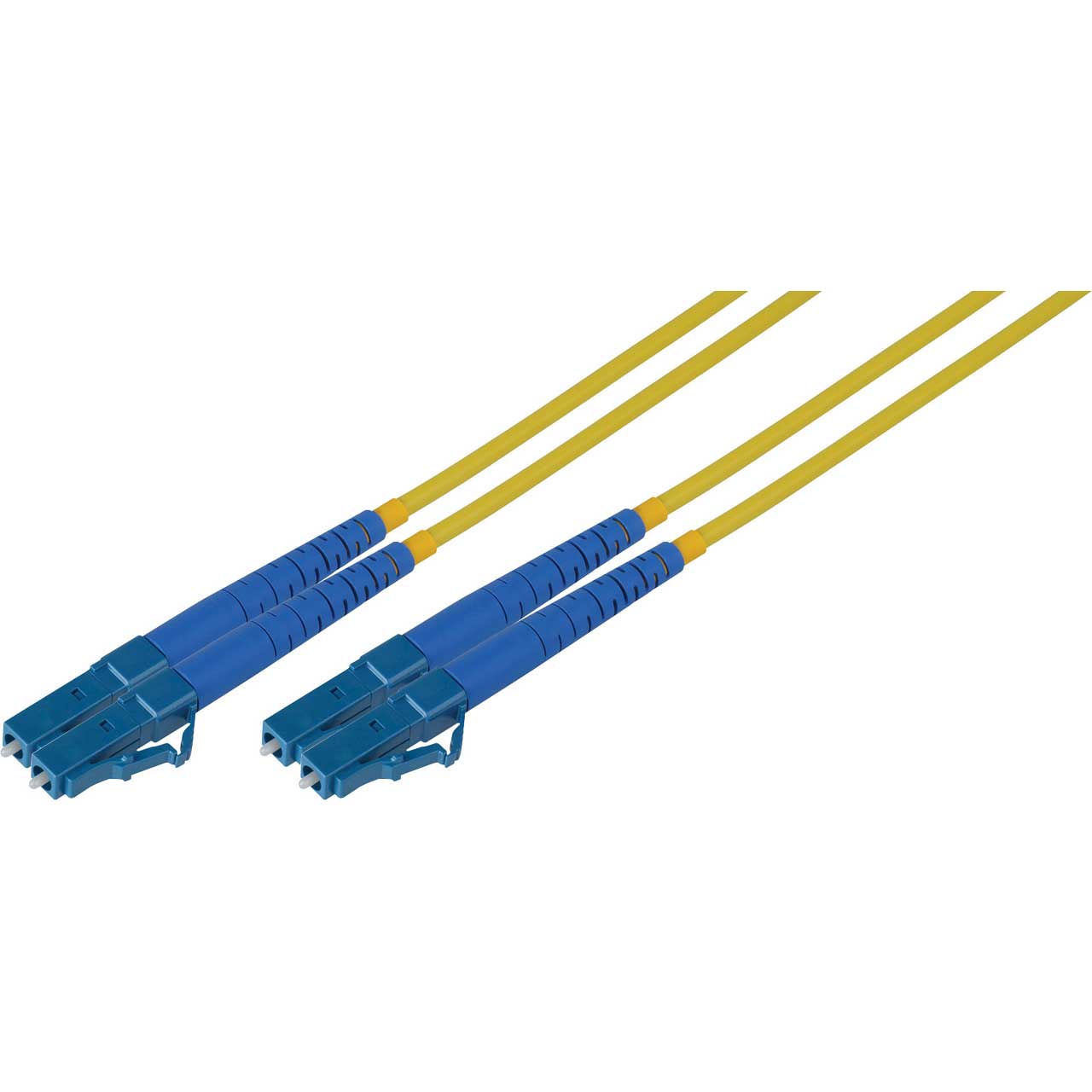

100-Meter 9u/125u Plenum Fiber Optic Patch Cable Single Mode Duplex LC to LC - Yellow

ITEM #: PSMD9-LC-LC-100 MFG #: PSMD9-LC-LC-100

Primary Image
Camplex
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$155.49

Our Price:

$147.95

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

PSMD9-LC-LC-100 - Overview

Performance series LC to LC 9/125 Duplex (Dual) Singlemode Plenum fiber optic cables from Camplex. Manufactured with high quality components, these fiber optic patch cables feature Yellow OFNP jackets. Camplex fiber optic patch cables are fully tested to ensure reliable performance in critical applications. Custom lengths & connector combinations always available from our in-house Fiber Lab.

  • Features:

    • Ceramic ferrules for long-lasting reliability and precision alignment
    • Connect patch panels or network devices requiring 9/125 singlemode cabling
    • OFNP jacket
    • LC to LC


  • Specifications:

    • Plenum Rated
    • 9µm core and 125µm cladding
    • Insertion Loss: ≤0.30dB max (PC, UPC) / ≤0.20dB max (APC)
    • Return Loss: ?45dB (PC) / ≤55dB (UPC) / ≤65dB (APC)
    • Tensile Strength: Long Term: 160N / Short Term: 300N
    • Pressive Strength: Long Term: 300N / Short Term: 1000N
    • Bend Radius (mm): Dynamic: 80mm / Static: 40mm
    • Attenuation: @1310nm: ≤0.3dB/km / @1550nm: ≤0.3dB/km
    • Temperature: -20°C ~ 80°C


  • Warranty:

    • 1 Year
