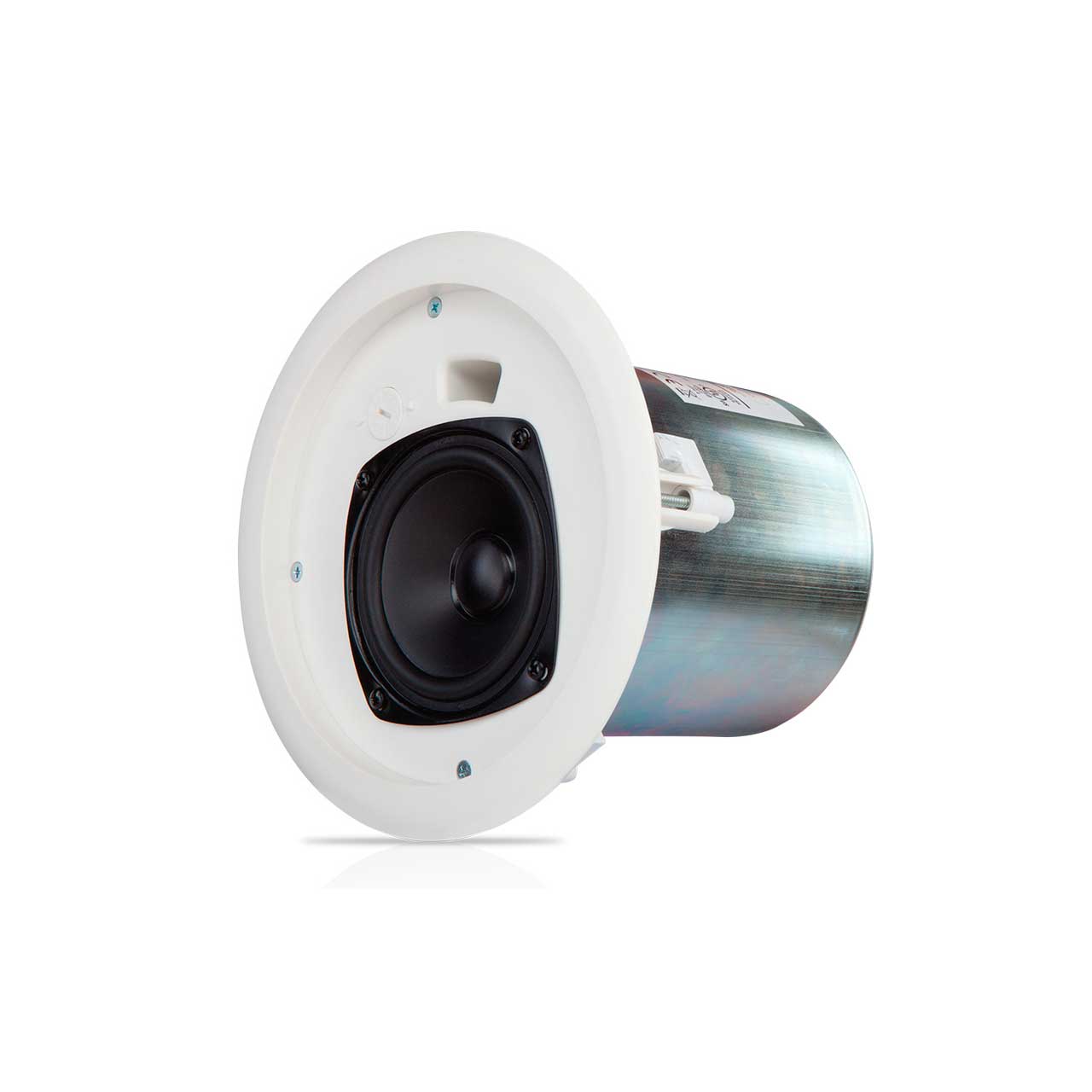

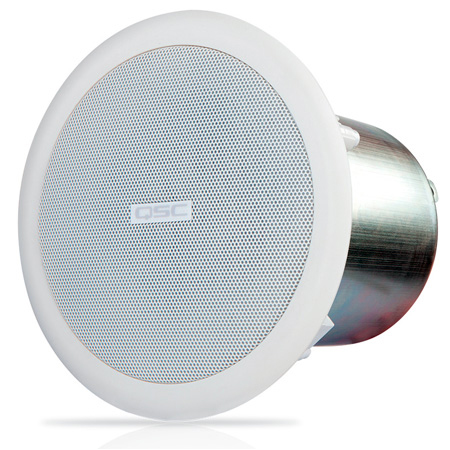

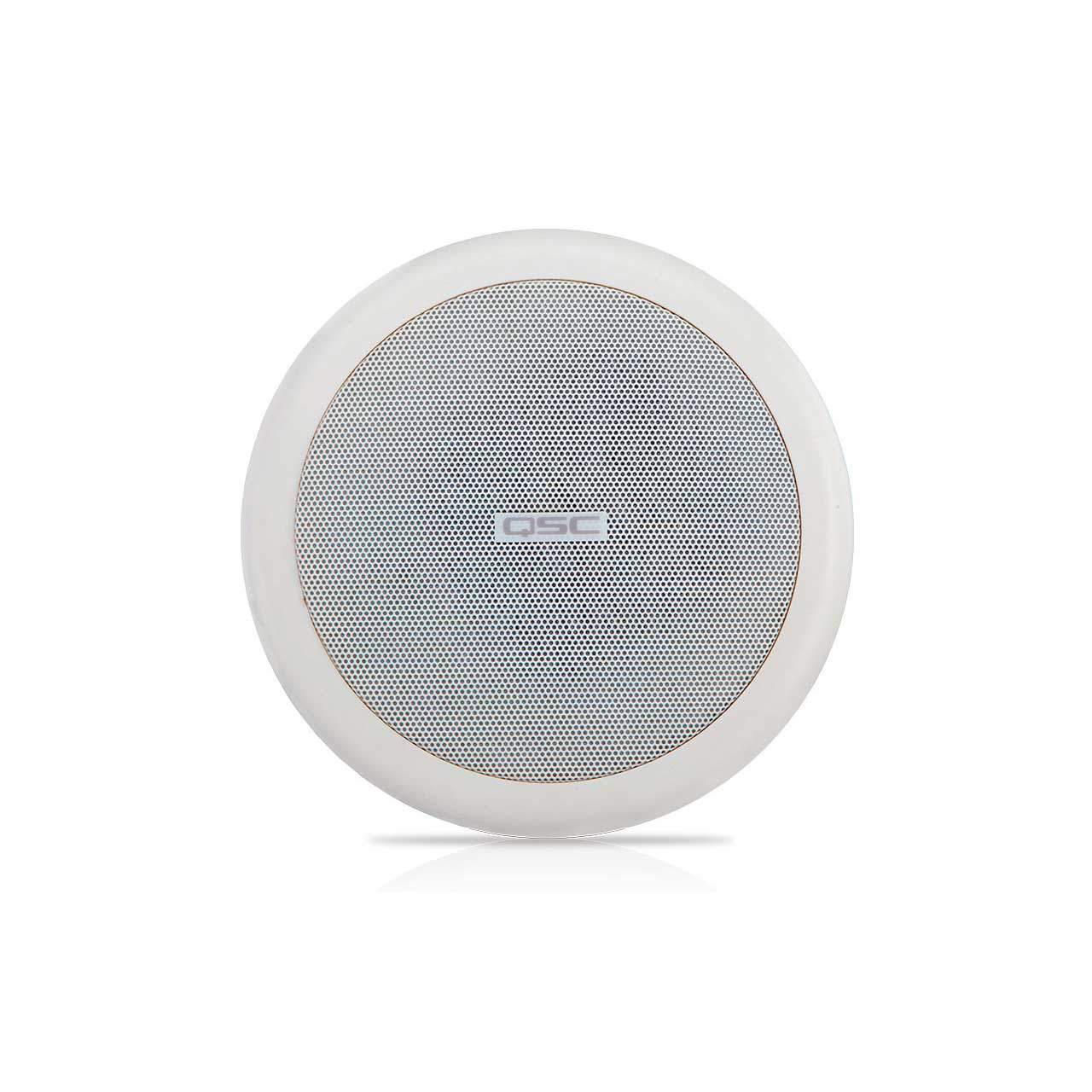

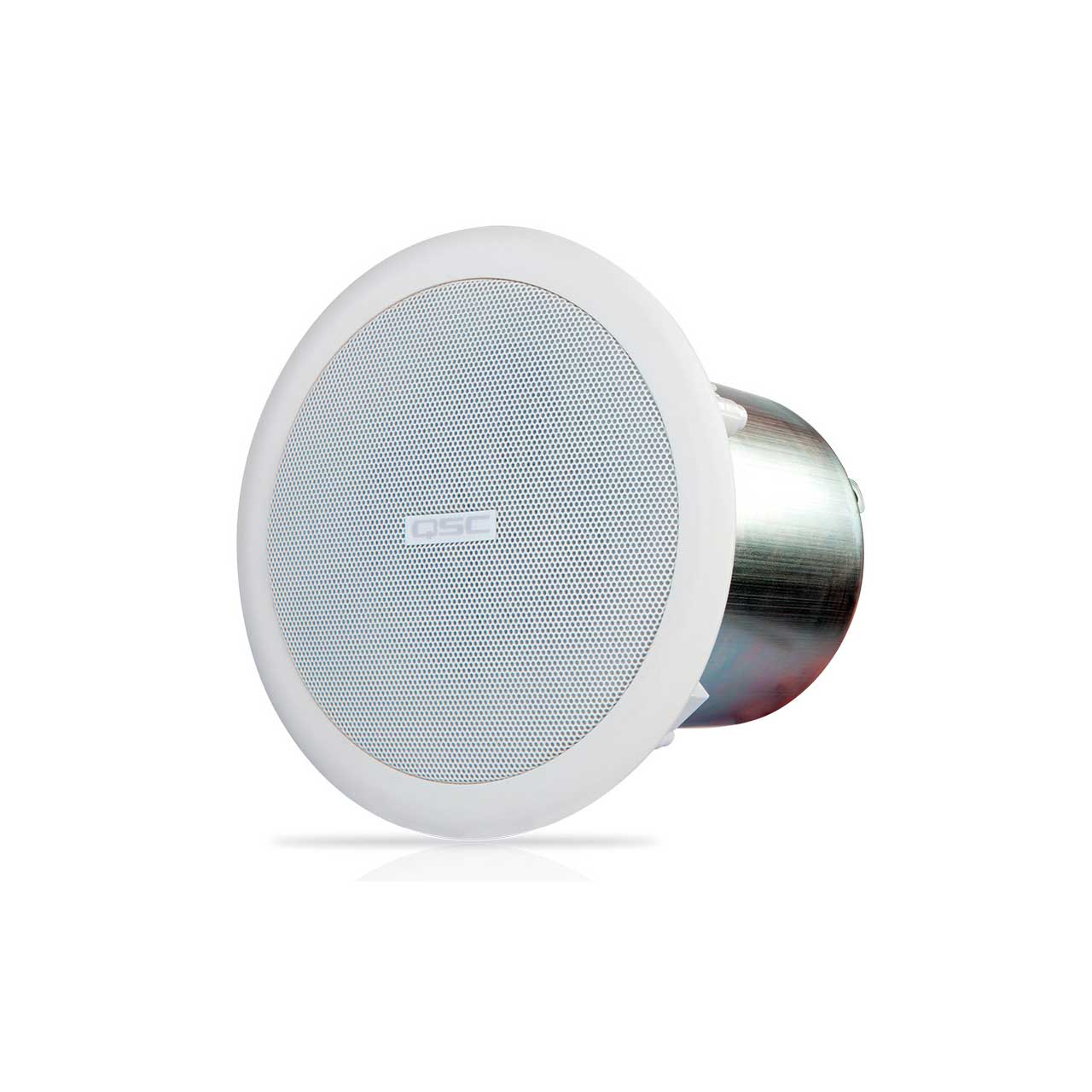

QSC AC-C4T 4 Inch Ceiling Mounted Loudspeaker- 70/100 with 8 Ohm Bypass -Pair

AC-C4T - Overview

• Features:

  • High quality 4" full-range transducer provides exceptional clarity through the critical voice range.
  • Ported baffle for increased low frequency extension down to 70 Hz.
  • Low-saturation 70V/100V transformers with 8-ohm bypass.
  • 4-pole Euroblock connector for easy system wiring.
  • Advanced voicing filter sets using QSC Intrinsic Correction are available through either Q-Sys processing or CXD amplifier platforms.
  • White (RAL 9010) with UV inhibitors to match complementing QSC product families.


• Specifications:

  • Effective frequency range: 70 Hz to 16 kHz
  • Rated noise power / voltage: 16 watts / 11.3 volts (rms)
  • Broad-band sensitivity: 89 dB SPL
  • Coverage angle (-6 dB): 140° (500 Hz to 5 kHz)
  • Maximum continuous SPL: 101 dB
  • Maximum peak SPL: 107 dB
  • Rated impedance: 8 ohms
  • Transformer taps: 70 V: 16, 8, 4, 2, 1 watts and 8-ohm bypass
  • 100V: 16, 8, 4, 2, watts and 8-ohm bypass
  • Transducer: 4" Polypropylene cone with butyl rubber surround
  • Input connector type: Euroblock connector with parallel output terminals
  • Baffle material: Painted ABS polymer
  • Grille material: Powder coated steel
  • Back can material: Galvanized steel
  • Testing: Listed UL1480, UL2043 safe for use in air handling space
  • Net weight: 4.9 lb / 2.22 kg
  • Product dimensions: 8.4" + 7.9” (214 + 201 mm)
  • Cut-out Dimensions: 7.31" (185.67mm)
  • Ceiling Capture Thickness: 0.25" to 1.5" (6.35 to 38.1mm)
  • Shipping weight: 15.1 lb / 6.86 kg
  • Shipping dimensions: 10.75" + 24" + 10.5" (273.1 + 609.6 + 266.7 mm)
  • Included accessories: Rails and C-ring for ceiling tile installation


• GTIN:

  0684284064332
