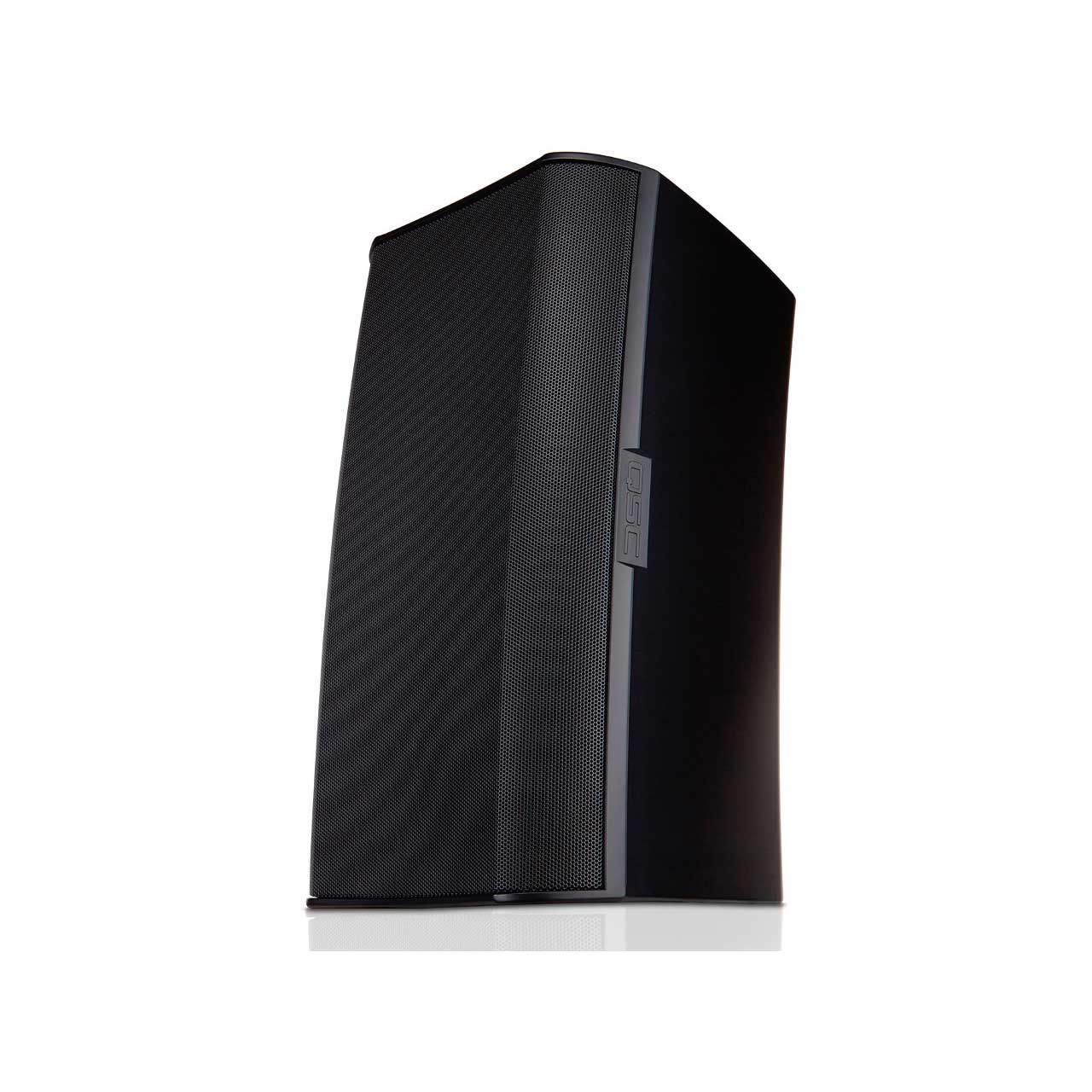

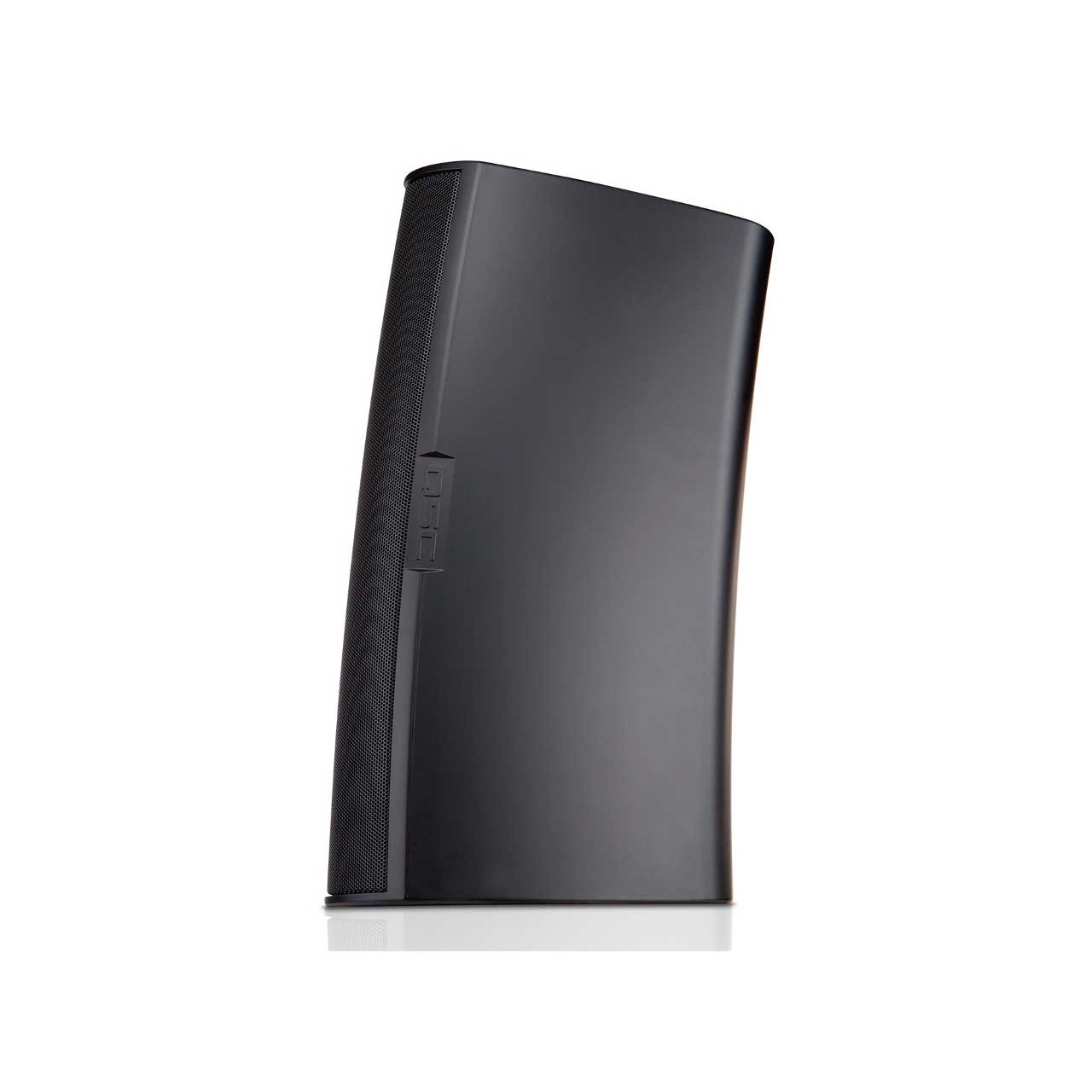

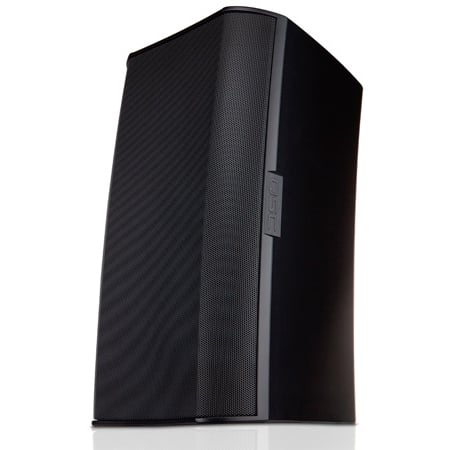

QSC AD-S112SW AcousticDesign Series 12 Inch 300 Watt Surface-Mount Subwoofer - Black

AD-S112SW - Overview

• Features:

  • 12” weather treated woofer
  • TFR™ (Turbulent Flow Reduction) port provides optimal resonant tuning and high velocity air flow
  • Maximum peak SPL 121 dB
  • Included yoke mount maximizes boundary plane coupling while reducing vibration transmission
  • Optional M10 Kit-C for additional installation versatility
  • Lightweight ABS enclosures offer long-term durability and lasting good looks
  • Sealed input panel cover and powder coated aluminum grilles for added weather resistance
  • Meets IEC60529 IP-54 for dust and splash resistance


• Specifications:

  • Effective frequency range: 30 to 135 Hz
  • Rated noise power / voltage: 300 watts / 50 volts (rms)
  • Broad-band sensitivity: 90 dB SPL
  • Maximum continuous SPL: 115 dB
  • Maximum peak SPL: 121 dB
  • Rated impedance: 8 ohms
  • Recommended amplifier power (loudspeaker "program" power): 600 watts
  • LF transducer: 12” weather resistant paper cone woofer, 2.5” / 64mm voice coil
  • Input connector type: Euroblock connector with parallel output
  • Enclosure material: Painted ABS polymer
  • Grille material: Powder coated aluminum
  • Yoke material: Powder coated galvanized steel
  • Ingress protection: IP-54
  • Operating environment: Designed for indoor and outdoor use


• GTIN:

  0684284063588
