Multidyne R2-6001-DA-2x4-AA openGear 20-Slot Frame Rear I/O Module for MDoG-6001-DA-2x4-AA

ITEM #: R2-6001-DA-2X4 MFG #: R2-6001-DA-2X4-AA

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Multidyne
Free Shipping with $49 Minimum Order

List Price:

$135.00

Our Price:

$134.51

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

R2-6001-DA-2X4-AA - Overview

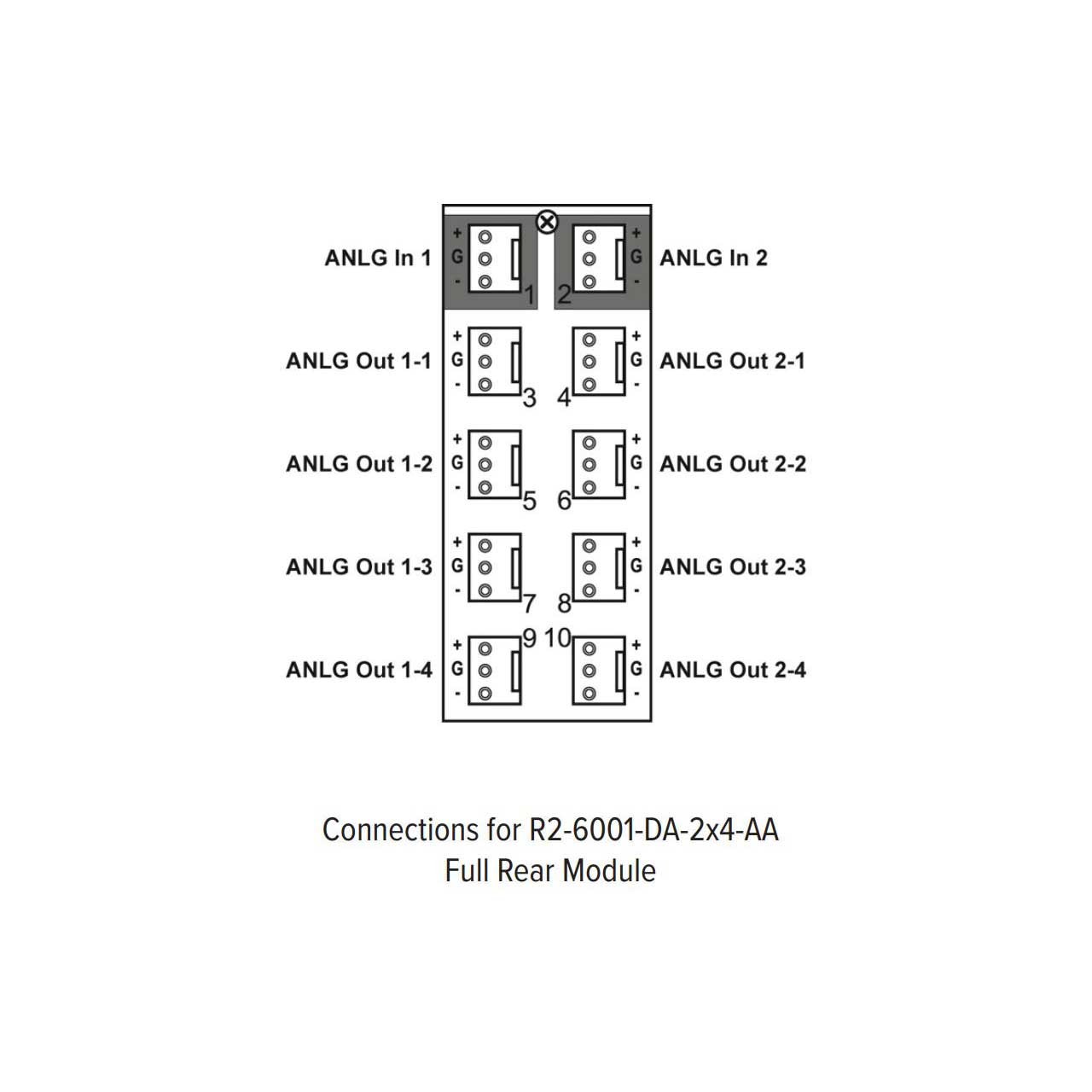

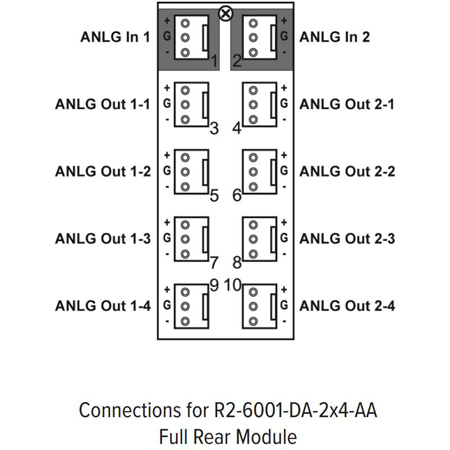

20-Slot Frame Rear I/O Module (Standard Width) (2) Balanced Analog Audio In, (8) Balanced Analog Audio Out

The MDoG-6001-DA-2X4-AA is also ideal for LTC timecode distribution throughout a facility. In the 1x8 mode, the MDoG-6001-DA-2X4-AA provides 8 copies of the incoming signal when used with the R2-6001-DA-2x4-AA full rear module.

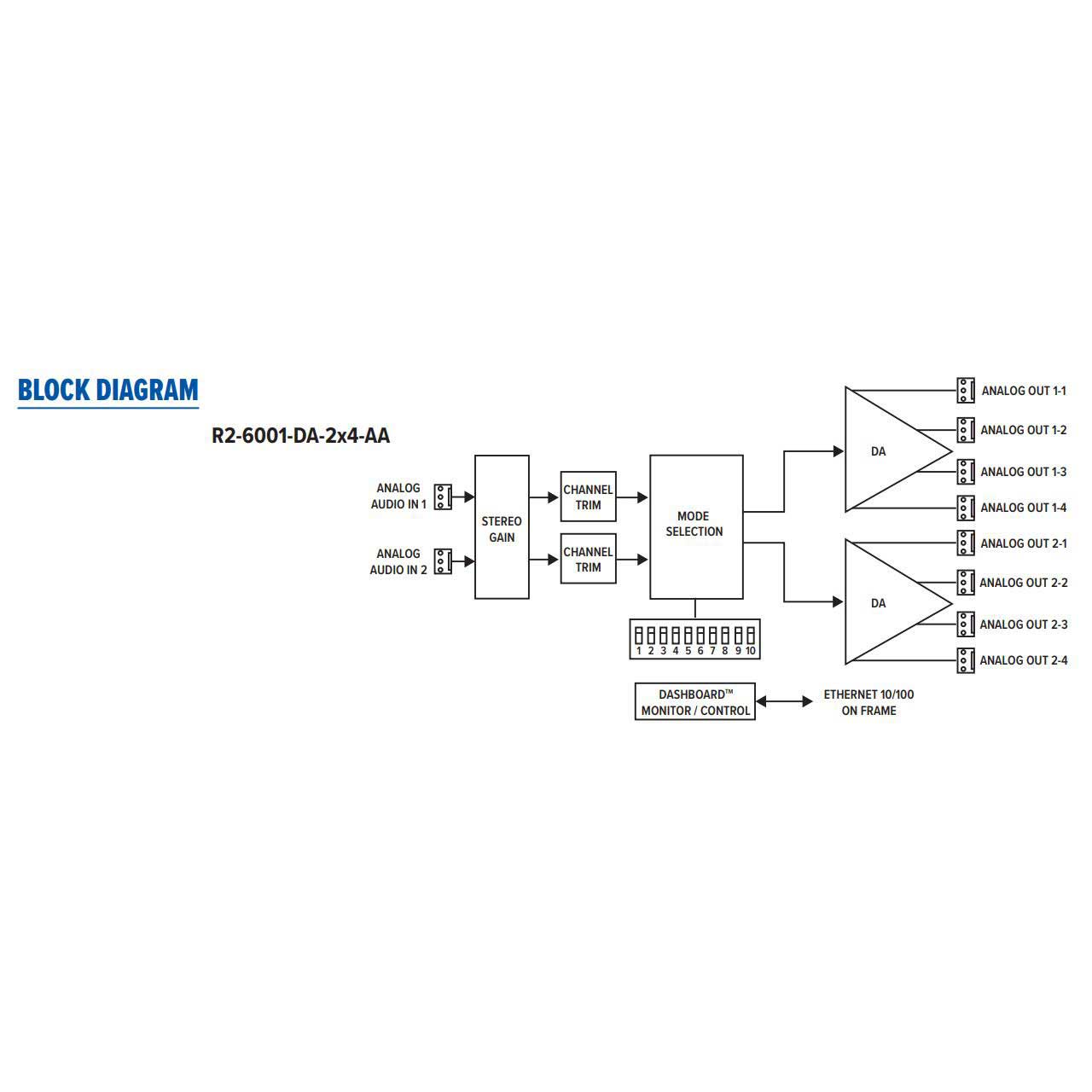

The MDoG-6001-DA-2X4-AA is a remote gain analog audio distribution amplifier designed for broadcast use. It can be used as either a mono 1x8 or dual-channel 1x4 stereo audio distribution amplifier. When used with the standard rear module, it provides 8 copies of the single mono input signal or 4 copies each of the stereo inputs. The MDoG-6001-DA-2X4-AA has internal audio processing for independent channel or stereo gain control as well as summing capability which can be set using the on board DIP switch or controlled via Dashboard remote control and monitoring system.

  • Features:

    • Complete remote control of operating mode and gain control.
    • Stereo 2x4, Mono 1x8, and Stereo Sum L+R x 8 outputs.
    • Full broadcast-grade balanced signal capability with +27.5 dBu maximum input level support.
    • Low-impedance outputs.
    • Selectable control via DIP switch or DashBoard remote control.
    • Remote control monitoring via DashBoard software.
    • Hot-swap capable.


  • Specifications:

    • Power < 5 Watts
    • Number of Inputs (2) Balanced
    • Impedance >20 ohm, Balanced
    • Maximum Input Level +27.5 dBu
    • Connector Type WECO Removable Modular
    • Number of Outputs (8) balanced; available as stereo 2x4, mono 1x8, and stereo sum L+R x 8 output
    • Impedance 60 O, balanced
    • Output Isolation > 60 dB
    • Connector Type WECO Removable Modular
    • Gain ±15 dB
    • Freq. Response 20 - 20 kHz ±0.1 dB
    • Noise < -85 dBu, 10 - 22 kHz at unity gain
    • Harmonic Distortion < 0.01%
