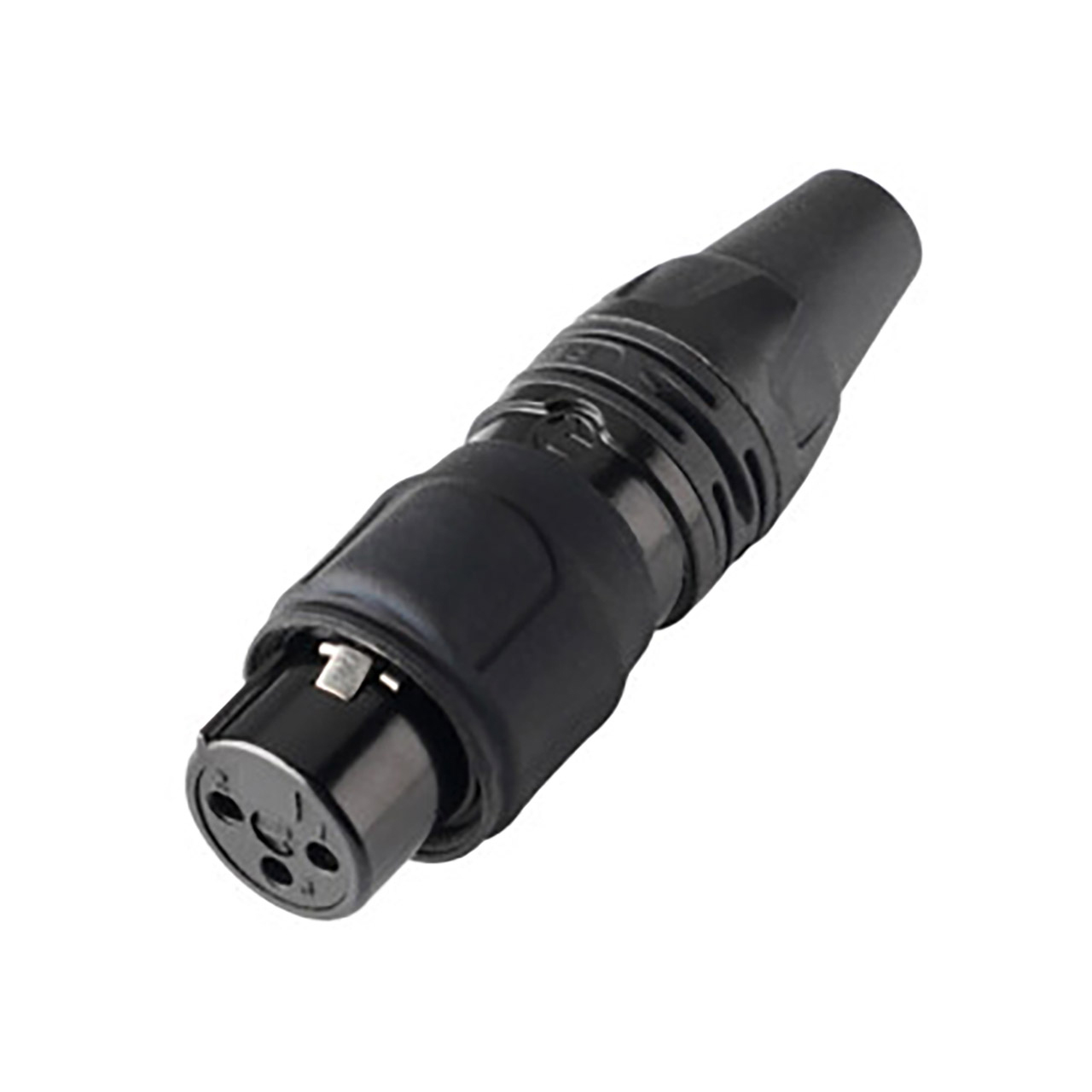

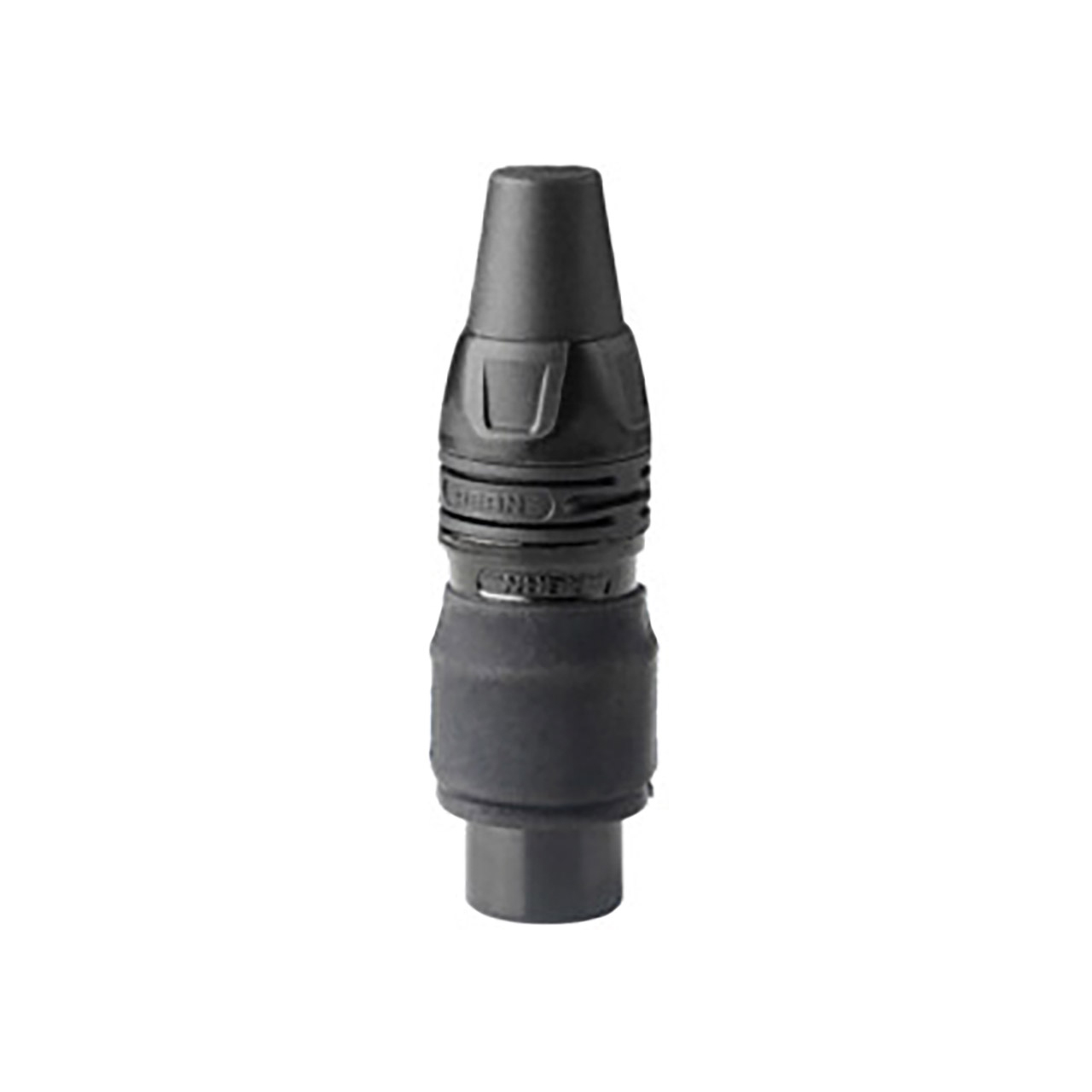

REAN Z Series RCX3F-Z-012 3-Pin Female XLR Cable Connector - Black/Gold - 100 Pack Individually Bagged

ITEM #: RCX3F-Z-012-100 MFG #: RCX3F-Z-012-1

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$1,185.00

Our Price:

$711.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


RCX3F-Z-012-1 - Overview

The REAN RCX3F-Z-012 is an XLR female cable connector with black plated housing and gold plated contacts. The metal housing is designed with internal threads, to ensure it can withstand gravity under any conditions. It's IP65 rated, ensuring that no water will get inside the connector, regardless of the angle at which it's bent.

  • Specifications:

    • Connection Type: XLR
    • Gender: Female
    • Contact Resistance: < 5mΩ
    • Dielectric Strength: 1.5 kV DC
    • Insulation Resistance: > 10GΩ (Initial)
    • Rated Current per Contact: 16A
    • Rated Voltage: < 50V
    • Insertion Force: ≤ 60N
    • Withdrawal Force: ≤ 60N
    • Lifetime: > 1000 mating cycles
    • Cable O.D. : 5.0mm - 7.0mm
    • Contact: Bronze
    • Contact Plating: Gold
    • Ground Contact: Bronze
    • Ground Contact Plating: Tin
    • Shell: Zinc Alloy
    • Shell Plating: Black
    • Chuck: PA
    • Boot: PA+TPU
    • Solderability: Complies with IEC 68-2-20
    • Standard Compliance: IEC 61076-2-103
    • Protection Class: IP65
    • Temperature Range: -22°F - 176°F (-30°C - 80°C)

  • Item Includes:

    • 100x RCX3F-Z-012 Individually Bagged Female XLR Connectors
