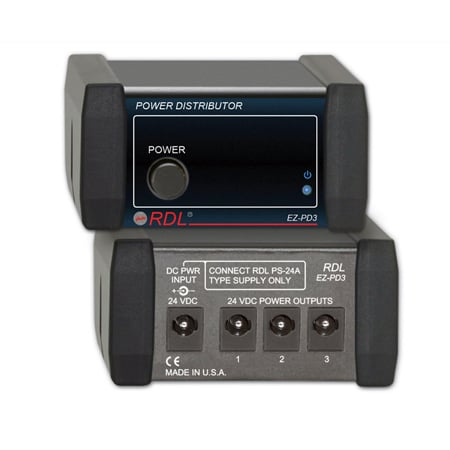

RDL EZ-PD3 Power Supply Distributor

ITEM #: RDL-EZ-PD3 MFG #: EZ-PD3

Primary Image
Radio Design Labs
Free Shipping with $49 Minimum Order

List Price:

$180.87

Our Price:

$135.66

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

EZ-PD3 - Overview

The EZ-PD3 is the ideal choice where power distribution from a current-limited switching power supply is needed. It is suitable for powering up to three EZ modules from a single power supply. Upon application of power, the EZ-PD3 ramps the voltage up, charging any load capacitance as quickly as possible, then switching full voltage to the load. A front-panel power switch is provided. The front-panel blue LED remains illuminated when the outputs are active.

  • Features:

    • Distribution of 24 Vdc Power
    • Soft-Start from Switching Supply
    • Outputs may be Activated by a Front-Panel Switch
    • Up to 3 Power Distribution Points
    • Voltage Presence Indication
    • Reverse Voltage Protection
    • Energy Efficiency by Powering Multiple Products from a Single Power Supply


  • Specifications:

    • Input/Output Voltage: 24 Vdc @ 600 mA (Intended for use with current limited switching supply)Outputs (3): Total load current must not exceed 600 mA
    • Indicator: POWER LEDAmbient Operating Environment: 0° C to 55° CPower Requirement: 24 Vdc @ 20 mA plus connected loadsPackage Type: Cardboard Box
    • Package Dimensions: 3.625 x 4.625 x 2.125 in.
    • Shipping Weight: 0.675 lbs.
    • WEEE weight: 0.41 lbs.
    • Tariff code: 8518.29.0000


  • GTIN:

    0813721010964
