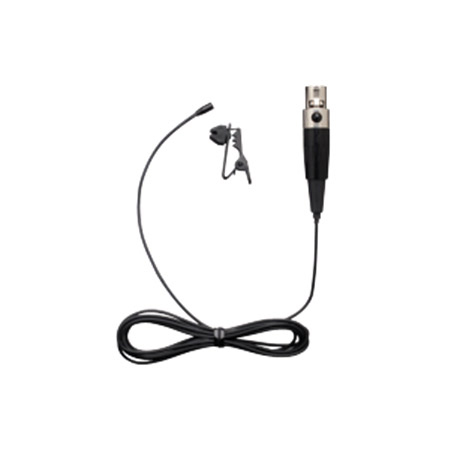

Electro-Voice RE97LTx Micro-Lavalier Condenser Microphone Black

ITEM #: RE97LTX-BLACK MFG #: RE97LTX-BLACK

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$343.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


RE97LTX-BLACK - Overview

The Electro-Voice RE97LTx is an ultra-miniature, omnidirectional, condenser microphone designed for applications that demand a high quality microphone element that is practically invisible when worn by the speaker or performer. The RE97LTx is intended for spoken-word use in theatrical performance, fixed installations, corporate AV presentations, houses of worship, or any venue where a full-range, natural, and well-balanced sound is required from an inconspicuous, lightweight microphone.
The output of the RE97LTx is clean and accurate, while the omni-directional polar pattern ensures uniform output regardless of the microphone's angle relative to the sound source. The provided clip is a convenient anchor for the microphone on a lapel, tie, or shirt collar.
The supplied windscreens can be utilized in windy environments and to reduce breath noise. The RE97LTx has a shielded 4ft cable terminated in a genuine Switchcraft TA4F connector and is ready for use with standard EV and Telex body-pack transmitters including the EV REV-BP, BPU-2/CSB-1000 and Telex WT-500/WT-1000. The wire to the body-pack is ultra-flexible, and may be easily concealed.

  • Features:

    • Ultra-Miniature Size for Inconspicuous Use.
    • Omni-directional Polar Pattern to Provide Clean Sound and Uniform Response.
    • Available in black and beige.
    • Superior Sound Quality.
    • TA4F connector is compatible with all EV bodypack transmitters.
    • Use with TXA for wired XLR applications.

  • Specifications:

    • Transducer: Condenser, Back-Electret
    • Freq. Response: 50 Hz - 15 kHz
    • Polar Pattern: Omnidirectional
    • Sensitivity, 1 kHz: -48 dBV, 4.0 mV/Pascal
    • Maximum SPL: >120 dB SPL
    • Equivalent Noise: 32 dBA
    • Dynamic Range: 88 dB
    • Output Impedance, 1 kHz: 3000 Ohms
    • Power Requirements: +5 VDC
    • Current Consumption: 310 A
    • Polarity: Positive Pressure on Diaphragm Produces a Positive Voltage on Pin 2.
    • Cable: 4 ft (1.22 m) Long, 0.052 in (1.30 mm) Diameter
    • TA4F Connector Wiring: Pin 1 - Ground, Pin 2 - Audio, Pin 3 - Bias Voltage, Pin 4 - Unused.
    • Accessories Furnished: Long and Short Windscreens, Dual Clothing Clip, Gig Bag.
    • Colors Available:Black, Beige.
    • Net Microphone Weight: 10.5 g (0.4 oz).
    • Clip Only - 2.1 g (0.08 oz).
    • Optional Accessories: TXA Phantom Power Adapter.

  • GTIN:

    0701001084142
