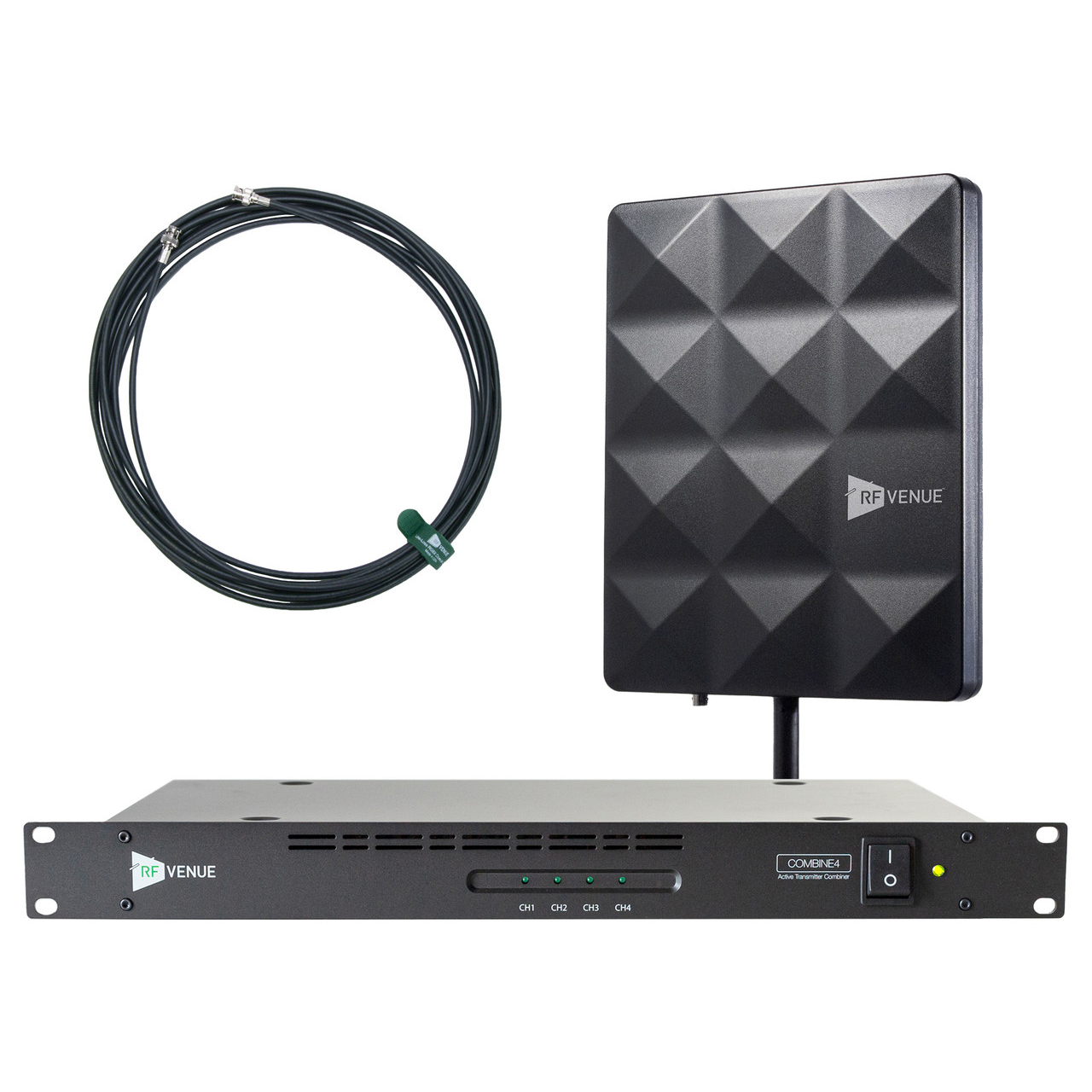

RF Venue COMB4CPB-STAGE 4 Channel IEM Transmitter Combiner with CP Stage Antenna Bundle

ITEM #: RFV-COMB4CPSTAGE MFG #: COMB4CP-STAGE

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$1,277.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


COMB4CP-STAGE - Overview

Experience crystal clear IEMs for the whole band with the RF Venue COMB4CP-STAGE turnkey package.

The CP Stage is a compact, weather resistant, circularly polarized antenna designed for in-ear monitor transmitters and wireless microphone systems. Similar to its high-powered big brother the patented CP Beam, it delivers a rock-solid, dropout-free signal for in-ear monitors (IEMs) and wireless microphone systems. Housed in a lightweight yet extremely durable IP rated weather resistant enclosure, the CP Stage is suitable for both portable use and permanent outdoor installation. The antenna is easily connected to a microphone stand mount, providing a secure connection to boost signal quality for both in-ear monitors and microphones wherever you need it.

The COMBINE4 active IEM transmitter combiner brings together up to four in-ear monitor transmitter signals into a single, more effective transmit antenna - the CP Stage - eliminating the use of multiple antennas which lowers intermodulation distortion and improves system performance and reliability. The COMBINE4 includes DC power interconnect cables to power compatible IEM transmitters, eliminating the need for wall warts. Coaxial cable interconnects are also included to make the COMBINE4 a turnkey system for your IEM rig.

  • Specifications:

      COMBINE4
    • Frequency range: 470-960 MHz
    • Input connectors: 4X BNC
    • Full system gain: 0 dB (±2 dB)
    • Maximum RF input power: +20 dBm (100 mW)
    • LED indicator (input signal threshold): > +5 dBM (Threshold power)
    • Power consumption: 60 W
    • I/O: 4X RF inputs. 1 antenna out. 4 DC outputs.
    • Input AC voltage: 100~240 VAC, 50/60 Hz, Max 2A
    • Output DC voltage: +12 V. 1 A max (4 outputs total 48 W)
    • Dimensions: 18.90 x 1.77 x 10.24" (480 x 45 x 260mm)
    • Weight: 5.07lbs (2.3kg)

      CP STAGE
    • Operating Band: 470-928 MHz
    • Polar Pattern: Hypercardiod
    • Impedance: 50Ω
    • Average Return Loss: 10 dB
    • Polarization: Right Hand Circular
    • Gain at: 500 MHz 3 dBi
    • Beam width: 120°
    • Dimensions: 10 x 12 x 1" (247 x 306 x 27mm)
    • Weight: 2lbs (0.9kg)
    • IP Rating: IP44
    • Operating Temperature: 14 - 104°F (-10 - 40°C)
    • Color: Matte Black
    • Weather Resistant Connector: BNC-F

  • Item Includes:

    • 1x CP Stage Antenna
    • 1x COMBINE4 IEM Transmitter Combiner
    • 1x IEC Power Cable
    • 1x 25' RF Venue Low Loss Antenna Cables
    • 4x 1' BNC Interconnect Cables
    • 4x 1' DC Power Interconnect Cables

  • GTIN:

    0658580647155
