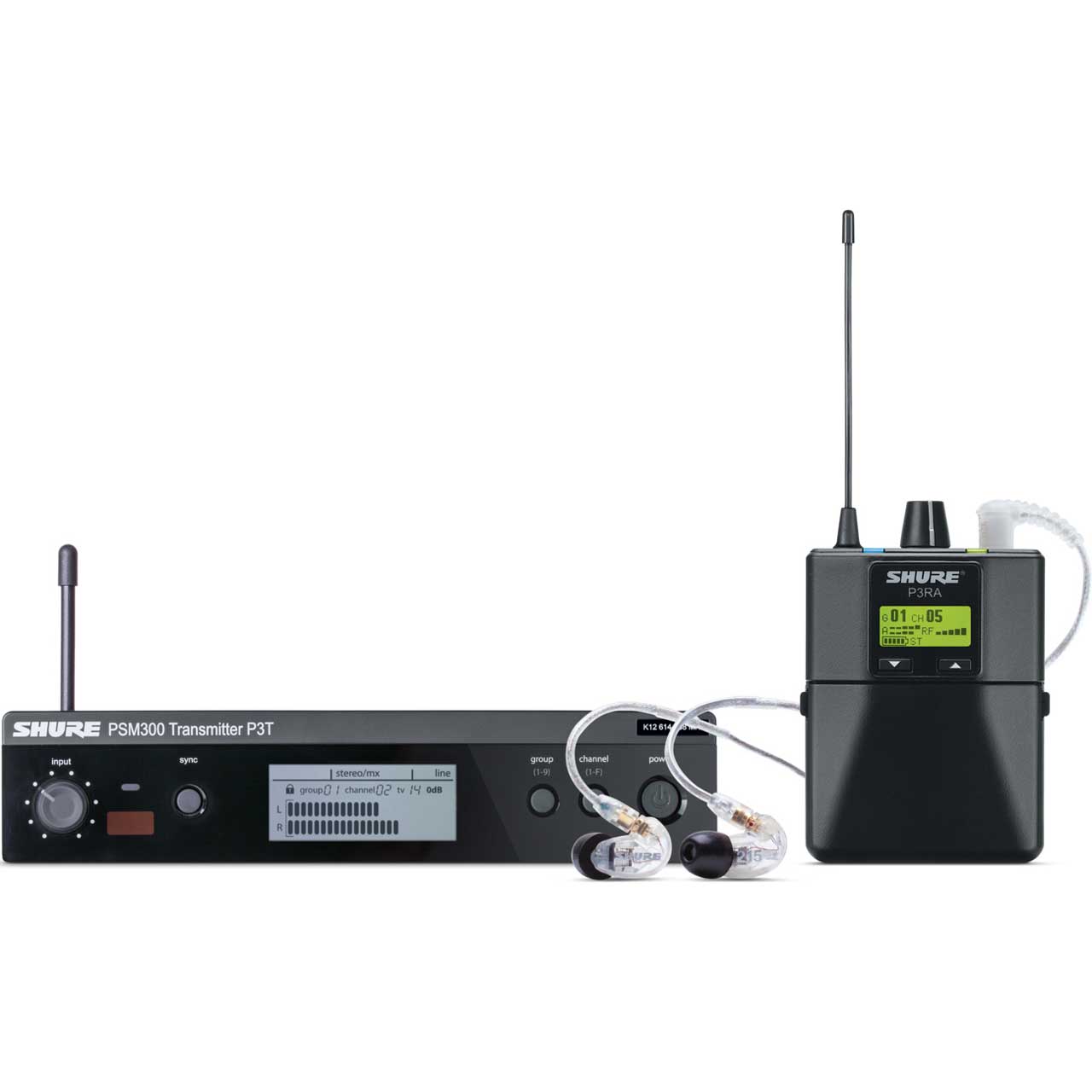

Shure PSM 300 Stereo Personal Monitor System with SE215-CL Earphones - G20 Band 488.15 - 511.85 MHz

P3TRA215CL-G20 - Overview

Stereo Personal Monitor System with SE215-CL Earphones - G20 Band 488.15 - 511.85 MHz

• Features:

  • PSM 300
  • Send two channels of audio wirelessly to performers onstage
  • Solid RF connection over a 300 foot (90 meter) range
  • Create a personal mix on each bodypack with adjustable stereo balance or MixModer two-channel mono blend.
  • Up to 90 dB signal-to-noise ratio provides clear, detailed audio at any volume
  • Systems available with Shure Sound IsolatingT earphones
  • One-touch scan and IR sync quickly and easily assigns a clean wireless channel
  • No complicated menus, just simple volume and mix controls that focus on the performance
  • All-metal half-rack transmitter
  • Slim, lightweight bodypack attaches easily to a belt or guitar strap


• Specifications:

  • PSM300 System Specifications
  • RF Carrier Range: 488-937.5 MHz (Varies by region, see frequency range and output power table).
  • Compatible Frequencies Per band: up to 15.
  • Tuning Bandwidth: 24 MHz maximum (Note: varies by region).
  • Operating Range Environment dependent: 90 m (300 ft).
  • Audio Frequency Response: 38 Hz-15 kHz.
  • Signal-to-Noise Ratio A-weighted: 90 dB (typical).
  • Total Harmonic Distortion ref. ±34 kHz deviation @1 kHz: <0.5% (typical).
  • Companding: Patented Shure Audio Reference Companding.
  • Spurious Rejection ref. 12 dB SINAD: >80 dB (typical).
  • Frequency Stability: ±2.5 ppm.
  • MPX Pilot Tone: 19 kHz (±1 Hz).
  • Modulation: FM, MPX Stereo (ref. ±34 kHz deviation @ 1 kHz).
  • Operating Temperature: -18 °C (0 °F) to +63 °C (145 °F).
    P3T Wireless Transmitter
  • RF Output Power: 10, 20, 30 mW Note: varies by region.
  • RF Output Impedance 50 O (typical)
  • Net Weight 783 g (27.6oz.)
  • Dimensions 43 x 198 x 172 mm (1.7 x 7.8 x 6.8 in.), H x W x D
  • Power Requirements 12-15 V DC, 260 mA maximum
  • Audio Input
  • Connector Type 6.35 mm (1/4") TRS
  • Polarity Tip positive with respect to ring
  • Configuration Electronically balanced
  • Impedance 40 kO (actual)
  • Nominal Input Level Switchable, +4 dBu, -10 dBV
  • Maximum Input Level +4 dBu: +22 dBu
  • -10 dBV: +12.2 dBu
  • Pin Assignments Tip=hot, Ring=cold, Sleeve=ground
  • Phantom Power Protection Up to 60 V DC
  • Audio Output
  • Connector Types 6.35 mm (1/4") TRS
  • Configuration Electronically balanced
  • Impedance Connected directly to inputs
    P3RA Professional Wireless Bodypack Receiver
  • Active RF Sensitivity (at 20 dB SINAD): 2.2 microvolts
  • Image Rejection: >90 dB
  • Adjacent Channel Rejection: >60 dB
  • Intermodulation Attenuation: >50 dB
  • Blocking: >60 dB
  • Audio Output Power 1 kHz @ <1% distortion, peak power, @32 ohms: 80 mW (per output).
  • Minimum Load Impedance: 16 ohms
  • Headphone output: 3.5 mm (1.8") stereo
  • Net Weigh:t 196 g (6.9 oz.) (with batteries)
  • Dimensions: 99 x 66 x 23 mm (H x W x D)
  • Battery Life (continuous use); 4-5.5 hours, AA batteries, 5.5-7 hours, SB900A battery


• Item Includes:

  • P3RA Professional Wireless Bodypack Receiver
  • P3T Wireless Transmitter
  • Rackmount and hardware kits
  • SE112-GR earphones
  • 1/4 wave antenna
  • BNC bulkhead adapter
  • BNC cable
  • Power supply
  • Battery adapter kit
  • 2 AA batteries
  • Zipper bag
  • User guide


• GTIN:

  0042406371704
