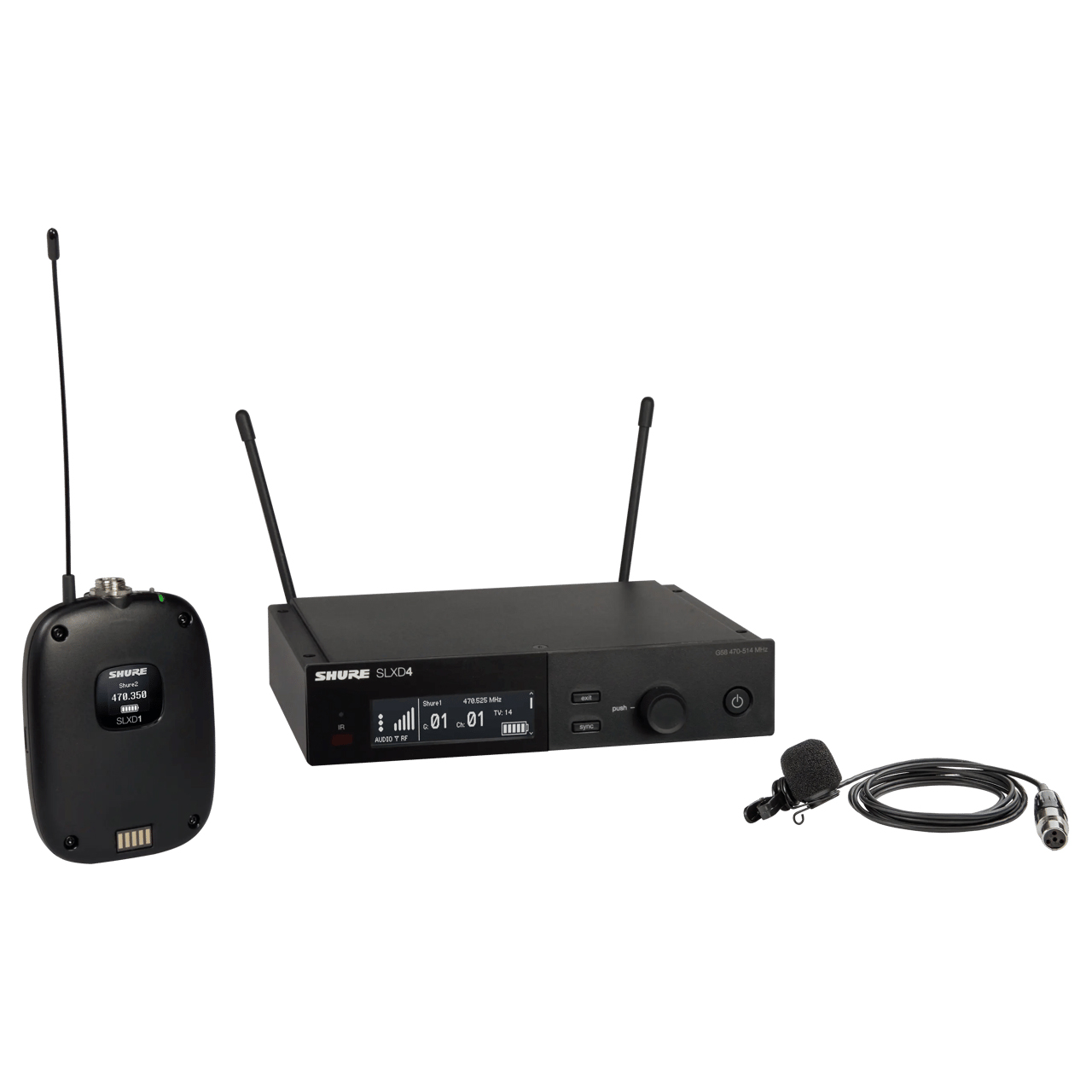

Shure SLXD14/85M-H55 Digital Wireless Combo System with WL185m Lavalier Microphone - 514MHz - 558MHz

ITEM #: SH-SLXD14-85MH55 MFG #: SLXD14/85M-H55

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Shure Inc
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$989.00

Our Price:

$789.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

SLXD14/85M-H55 - Overview

Featuring the WL185m Cardioid Lavalier Microphone and the SLXD1 transmitter, the Shure SLXD14/85M provides transparent digital audio and rock-solid RF stability for lecture halls and live performances.

The SLXD14/85M Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required. Ships with SLXD4 single-channel receiver, SLXD1 bodypack transmitters and WL185m Cardioid Lavalier Microphone with antenna and rackmount accessories and 2 AA batteries.

  • Specifications:

    • RF
    • RF Carrier Frequency Range: 514MHz - 558MHz
    • Working Range: 328' (100m) (Note: Actual range depends on RF signal absorption, reflection and interference.)
    • RF Tuning Step Size:
      - JB Band: 125kHz
      - All Other Bands: 25kHz (Varies by region.)
    • Image Rejection: >70dB (typical)
    • RF Sensitivity: -97dBm at 10-5 BER

      Audio
    • Latency: 3.2 ms
    • High-Pass/Low Cut Filter: 150Hz, -12dB/octave (Note: factory default is for the HPF to be off)
    • Audio Frequency Response: 20Hz - 20kHz (+1, -2dB)
    • Audio Dynamic Range (A-weighted, 20Hz - 20kHz, typical): 118dB @ 1% THD
    • Total Harmonic Distortion: <0.02%
    • System Audio Polarity:
      - XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output.
      - TRS: Postive pressure on microphone diaphragm produces positive voltage on the tip of the 1/4" with respect to the ring of the 1/4" output.
    • Mic Offset Range: 0dB - 21dB (in 3dB steps)

      Temperature Range
    • Operating Temperature Range: 0°F - 122°F (-18°C - 50°C)
    • Storage Temperature Range: -20°F - 165°F (-29°C - 74°C)


  • Item Includes:

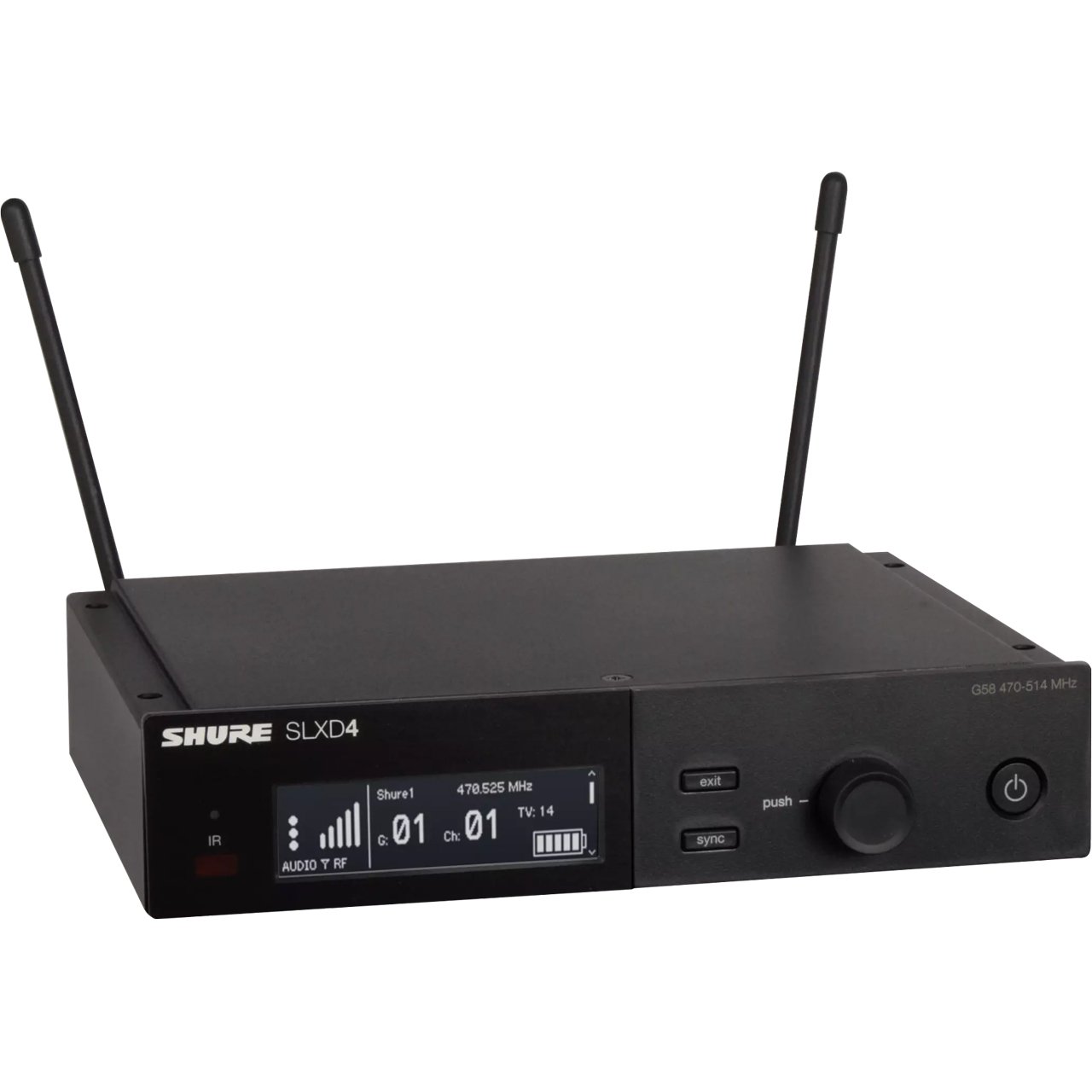

    • 1x SLXD4 Digital Wireless Receiver

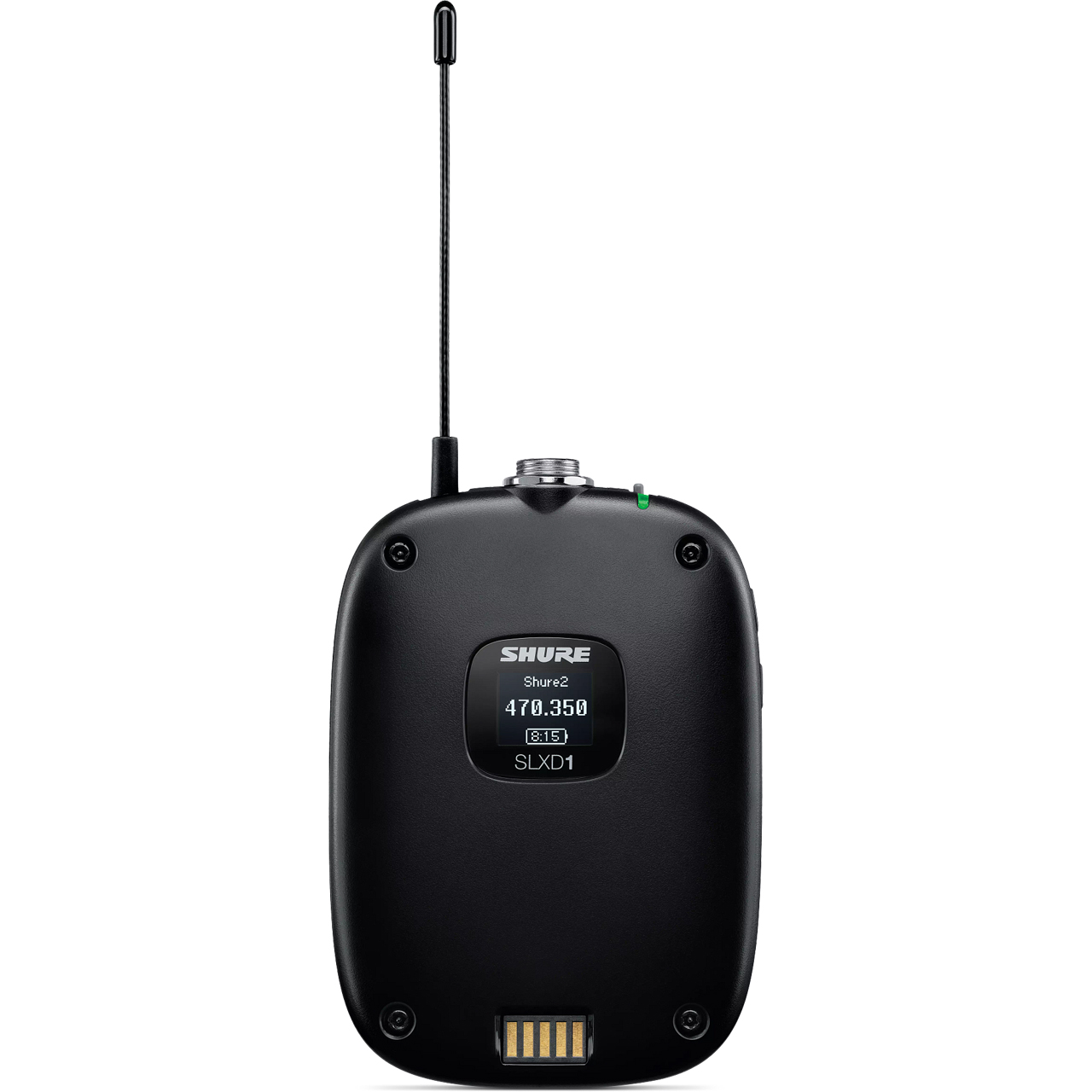

    • 1x SLXD1 Bodypack Transmitter
    • 1x Rackmount Kit
    • 2x AA Batteries
    • 1x Power Supply

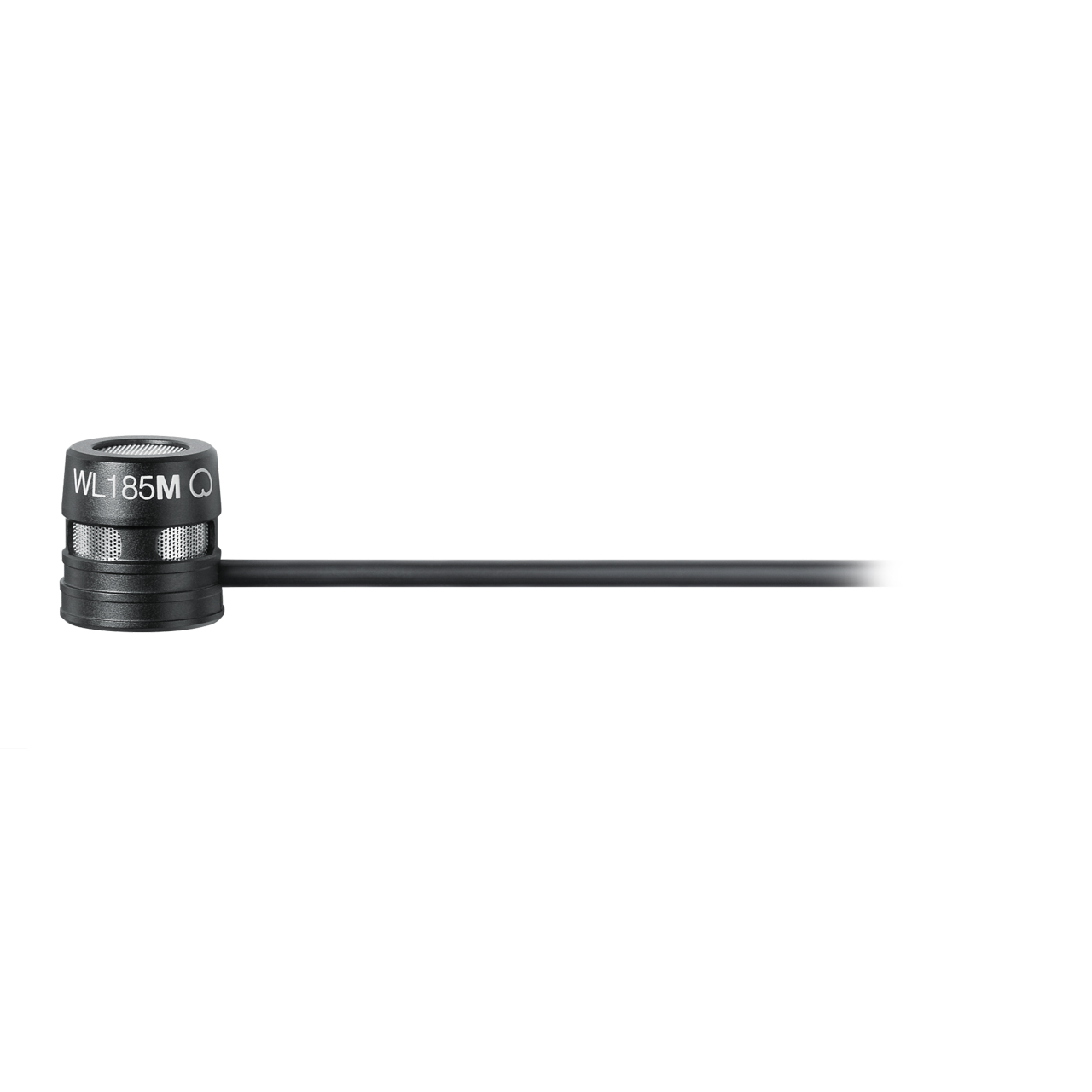

    • 1x WL185m Low-profile Cardioid Lavalier Microphone
    • 1x Single-Mount Tie Clip
    • 1x Snap-Fit Windscreen
    • 1x Carrying Pouch


  • GTIN:

    0042406852180
