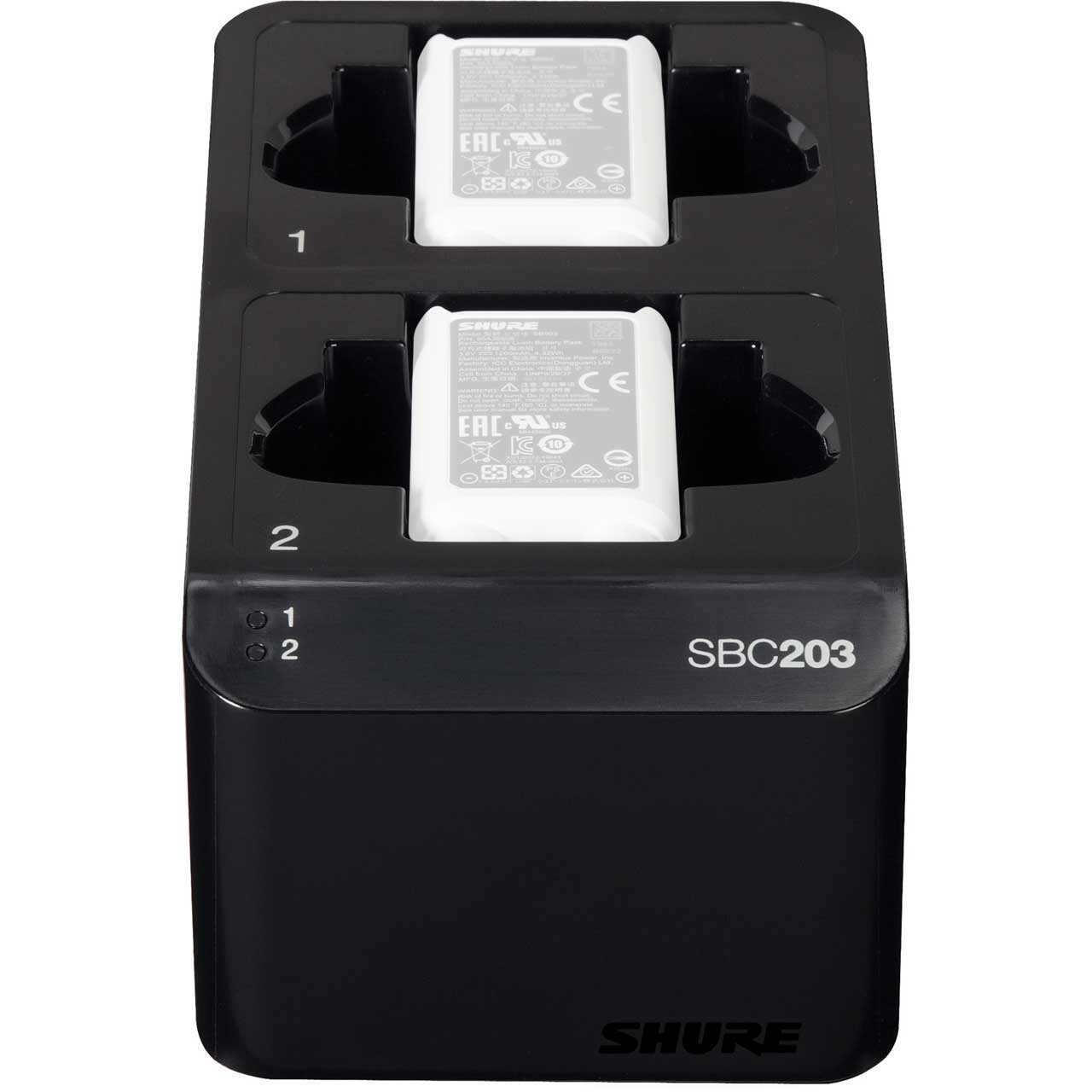

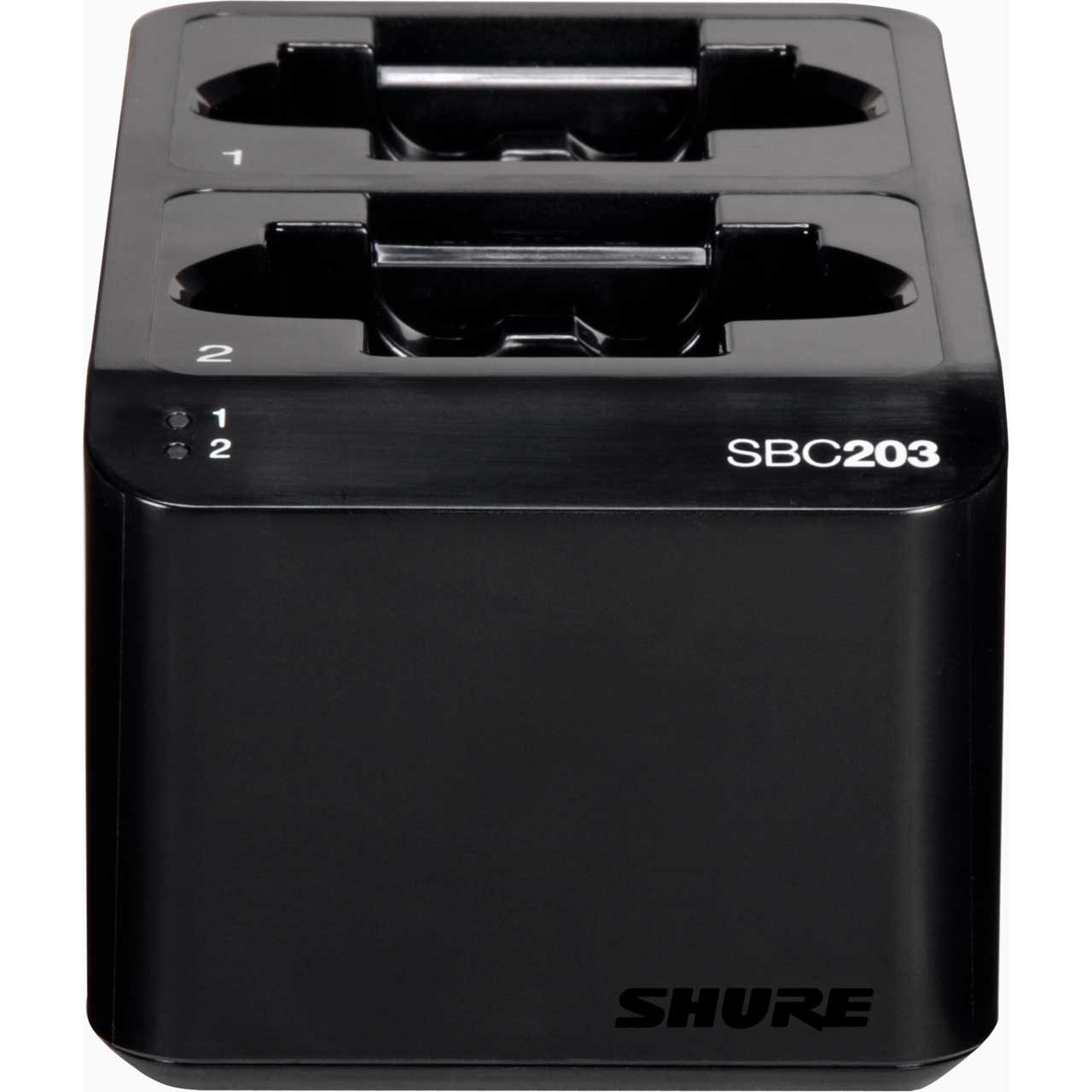

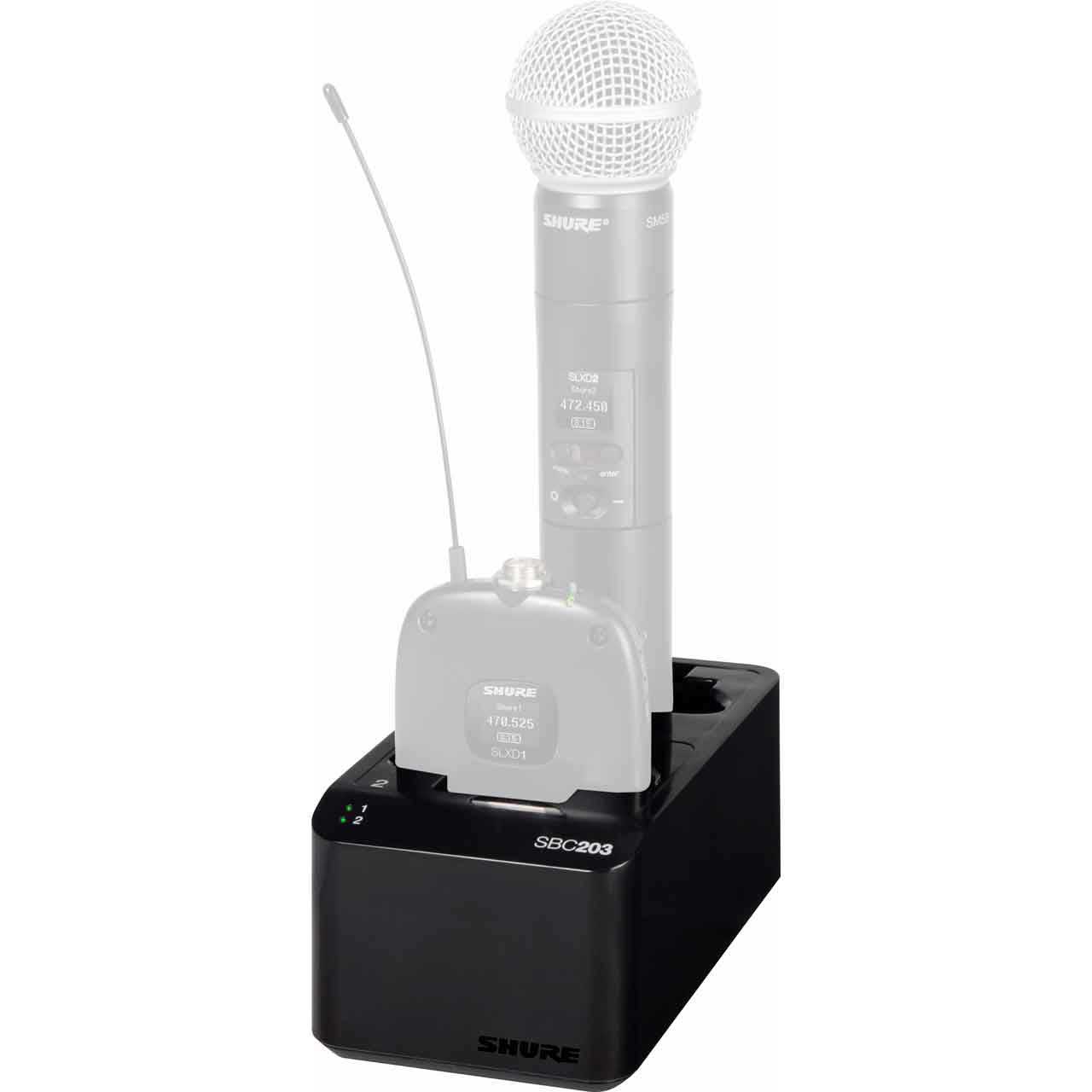

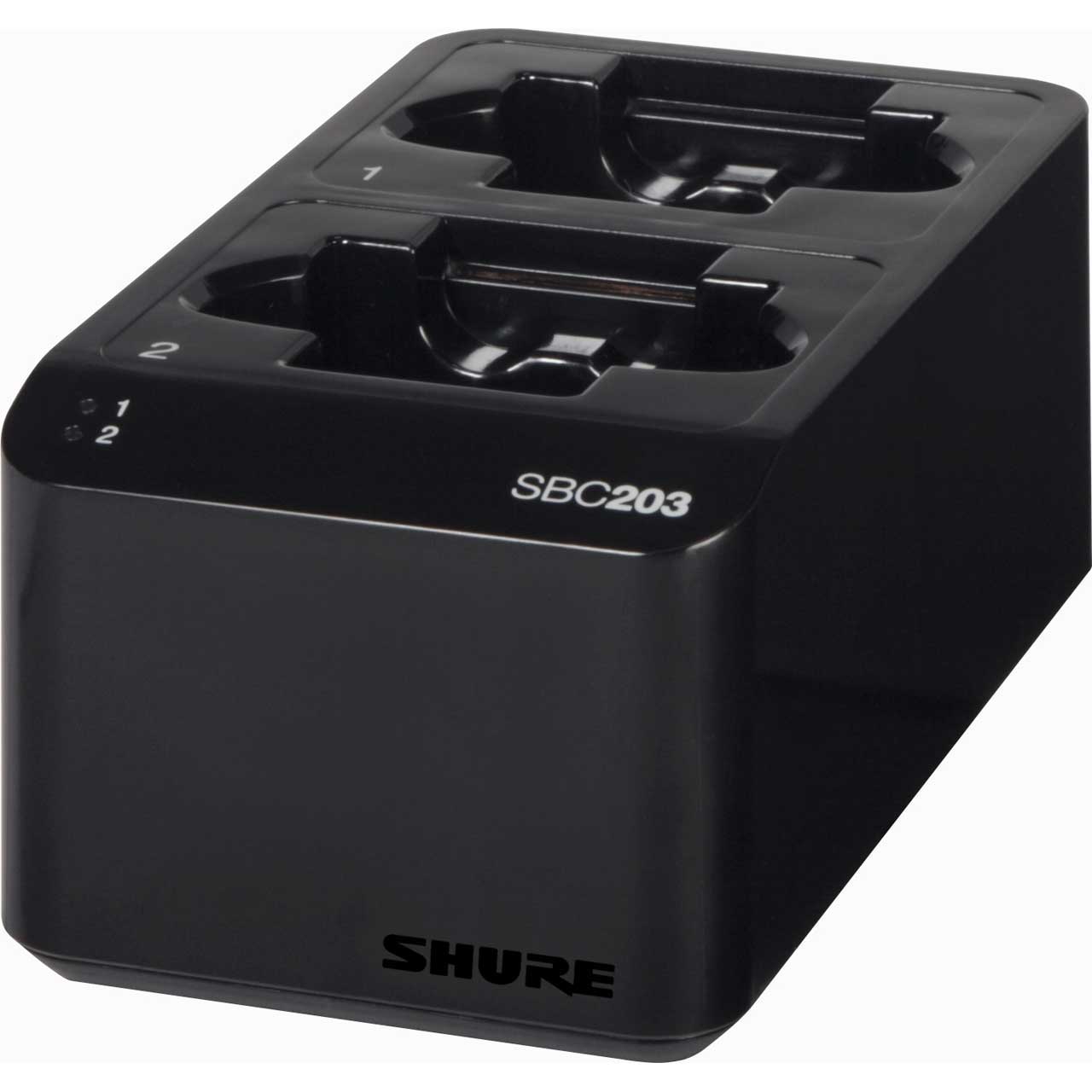

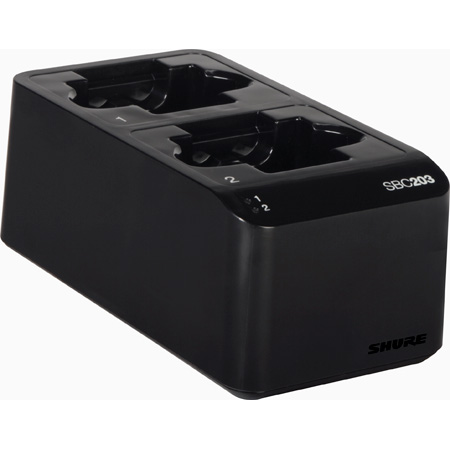

Shure SBC203-US Dual Docking Station for SLX-D transmitters and SB903 battery

SBC203-US - Overview

• Specifications:

  • Charge Current: 625 mA or 250 mA Lower current used when using another power source, or operating between 32 °F and 50 °F (0 °C and 10 °C)
  • Charge Time: 50%: 1 hour, 15 minutes / 100%: 2 hours, 30 minutes
  • External Power Supply: SBC10-USB15W or SBC10-USB15WS
  • Power Requirements: 5 VDC, 3 A max
  • Charging Temperature Range for Battery: 32 °F to 113 °F (0 °C to 45 °C)
  • Dimensions (H x W x L): 2.6 x 3.9 x6.5 in / 66 x 99 x 165 mm
  • Weight: 10.0 oz (284 g)
  • Housing: ABS

    Power Supply
  • Input Voltage Range: 100 to 240 VAC
  • Operating Frequency: 50 to 60 Hz
  • Maximum Input Power: 0.6 A at 100 VAC full load
  • Output Voltage: 4.75 to 5.25 VDC
  • Maximum Output Power: 3.0 A at 5 V
  • Operating Temperature Range: 32 °F to 140 °F (0 °C to 60 °C)


• Item Includes:

  • 1x SH-SBC203


• GTIN:

  0042406562812
