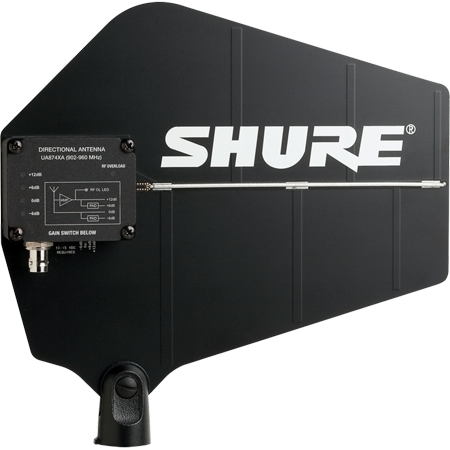

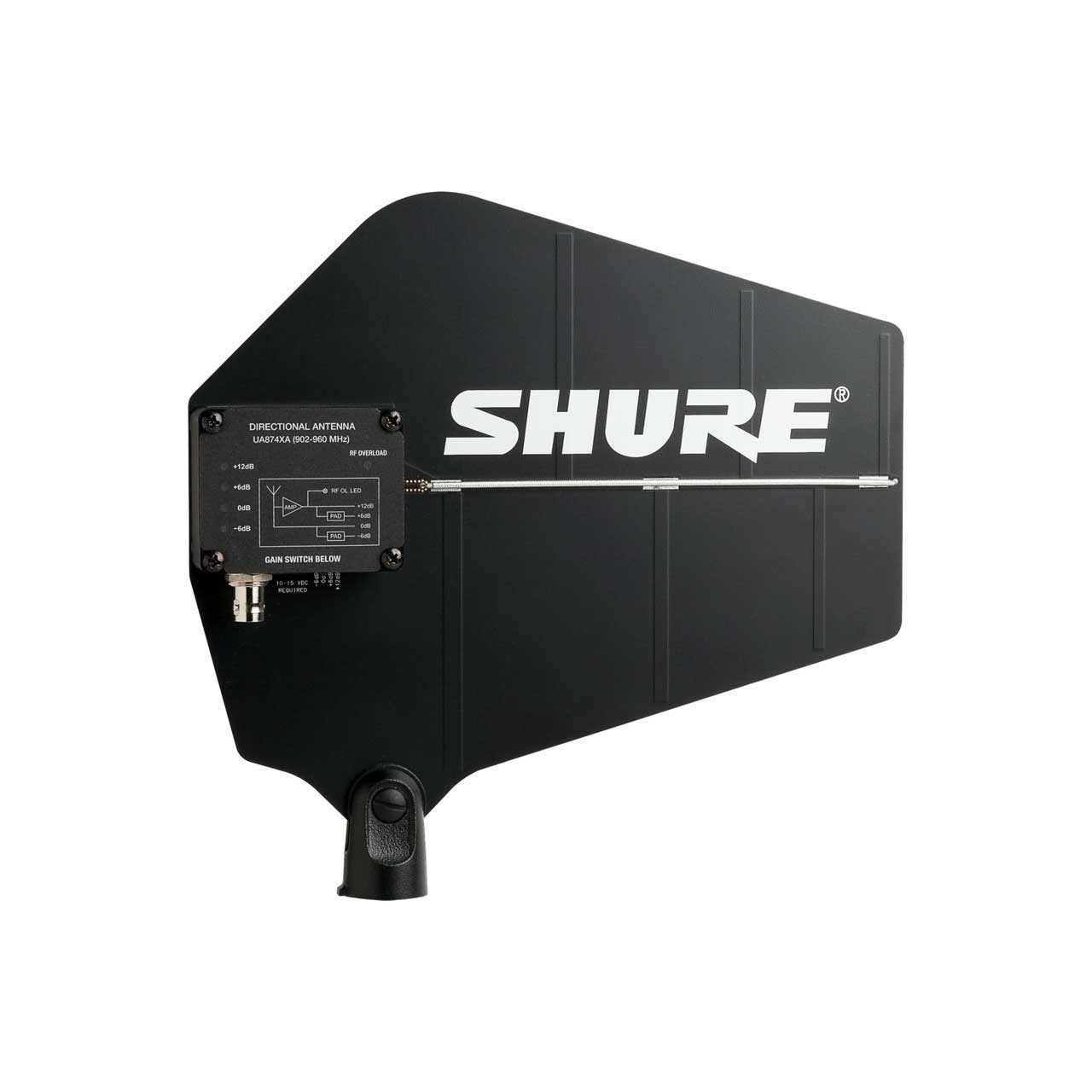

Shure UA874XA Active Directional Antenna with Gain Switch - 902-960Mhz

ITEM #: SH-UA874XA MFG #: UA874XA

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$566.00

Our Price:

$404.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


UA874XA - Overview

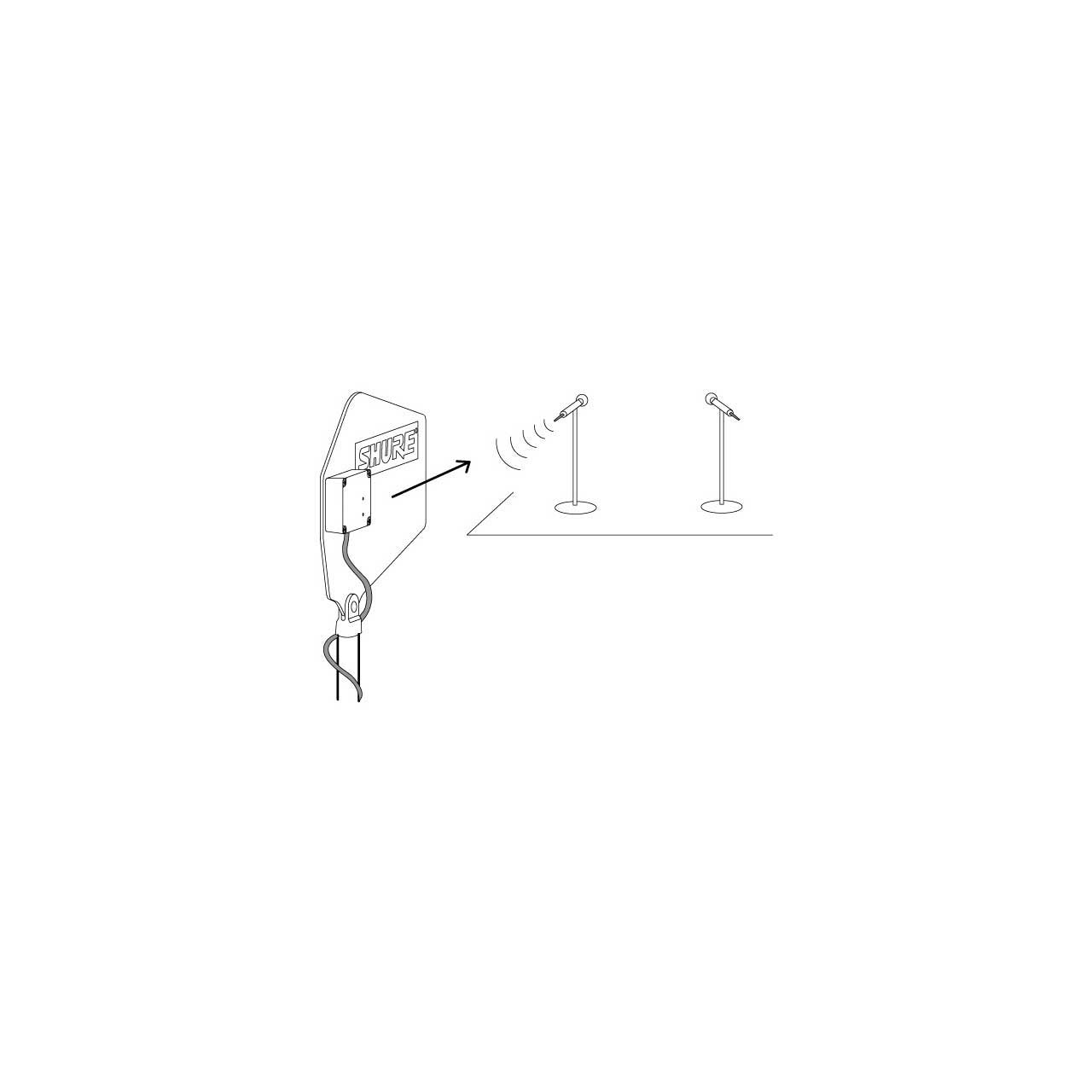

The Shure UA874 uses a log periodic dipole array to offer enhanced reception when directed toward the desired coverage area. An integrated amplifier and four gain settings compensate for varying degrees of coaxial cable signal loss. The UA874 can be mounted on a microphone stand, suspended from the ceiling, or mounted to a wall using the integrated swivel adapter.

  • Features:

    • Low-noise signal amplifier compensates for insertion loss in coaxial cable
    • Compatible with Shure wireless receivers and antenna distribution systems that provide 10-15 V DC bias
    • Integrated threaded adapter mounts easily to microphone stands

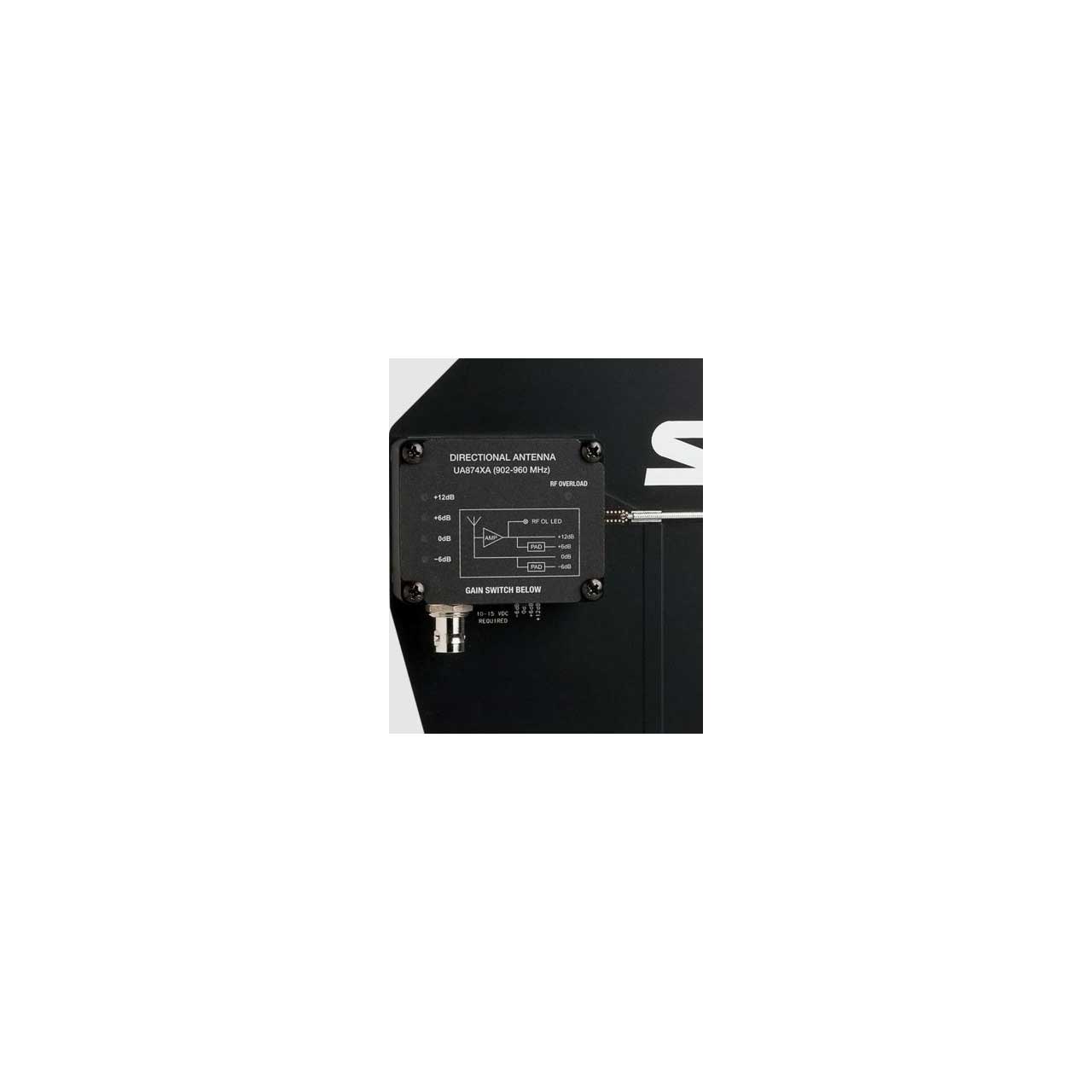

    • Four-position gain selector switch
    • Onboard RF overload LED indicator
    • Shure quality, ruggedness, and reliability

  • Specifications:

    • Connector Type
    • BNC, Female

      Impedance
    • 50 Ω

      Power Requirements
    • 10 to 15 V DC bias from coaxial connection, 75 mA

      RF Frequency Range
    • 902-960 MHz

      Reception Pattern
    • 3 dB Beam Width; 70 degrees

      Third-order Overload Intercept Point (OIP3)
    • >30 dBm

      Antenna Gain
    • On Axis; 7.5dBi

      Signal Gain
    • ±1 dB, Switchable; +12 dB, +6 dB, 0 dB, -6 dB

      RF Overload LED Threshold
    • -5 dBm
    • RF overload LED does not operate for passive gain settings

      Dimensions
    • 224 x 234 x 36 mm (H x W x D)

      Weight
    • 213 g (7.5 oz.)

      Operating Temperature Range
    • -18°C (0°F) to 63°C (145°F)

      Storage Temperature Range
    • -29°C (-20°F) to 74°C (165°F)

  • GTIN:

    0042406475693
