RF Venue COMB8CPB-STAGE 8 Channel IEM Transmitter Combiner with CP Stage Antenna Bundle

ITEM #: RFV-COMB8CPSTAGE MFG #: COMB8CP-STAGE

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$2,377.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


COMB8CP-STAGE - Overview

Experience crystal clear IEMs for the whole band with the COMB8CP-STAGE turnkey package.

This upgrade pack contains everything needed to configure up to 8 channels of in-ear monitors with industry-leading essential components in a compact footprint. The CP Stage Antenna and COMBINE8 work seamlessly together to deliver clean, low-noise RF with a simple plug-and-play setup. No RF expertise needed - each element is meticulously designed to deliver optimal audio quality and reliability to any stage.

The CP Stage is a compact, weather resistant, circularly polarized antenna designed for in-ear monitor transmitters and wireless microphone systems. Similar to its high-powered big brother the patented CP Beam, it delivers a rock-solid, dropout-free signal for in-ear monitors (IEMs) and wireless microphone systems. Housed in a lightweight yet extremely durable IP rated weather resistant enclosure, the CP Stage is suitable for both portable use and permanent outdoor installation. The antenna is easily connected to a microphone stand mount, providing a secure connection to boost signal quality for both in-ear monitors and microphones wherever you need it.

The COMBINE8 active IEM transmitter combiner brings together up to eight in-ear monitor transmitter signals into a single, more effective transmit antenna - the CP Stage - eliminating the use of multiple antennas which lowers intermodulation distortion and improves system performance and reliability. The COMBINE8 includes RF Venue's DC Octopus power cable that can provide power to up to 8 compatible IEM transmitters, eliminating the need for wall warts. Coaxial cable interconnects are also included to make the CP Stage Antenna and COMBINE8 a turnkey system for your IEM rig.

  • Specifications:

      COMBINE8
    • Operating Range: 470-608 MHz
    • Input Connectors: 8X BNC
    • Full System Gain: 0 dB (±2 dB)
    • Maximum RF Input Power: +18 dBm (60 mW)
    • LED Indicator (Input Signal Threshold): > +5 dBM (Threshold power)
    • Power Consumption: 84W
    • I/O: 8x RF inputs, 1 antenna out
    • Input AC Voltage: 100-240 VAC, 50/60 Hz, 2A
    • DC Output: 12VDC 4A
    • Dimensions: 18.90 x 1.77 x 10.24" (480 x 45 x 260mm)
    • Weight: 3.7kgs

      CP STAGE
    • Operating Band: 470-928 MHz
    • Polar Pattern: Hypercardiod
    • Impedance: 50Ω
    • Average Return Loss: 10 dB
    • Polarization: Right Hand Circular
    • Gain at: 500 MHz 3 dBi
    • Beam width: 120°
    • Dimensions: 10 x 12 x 1" (247 x 306 x 27mm)
    • Weight: 2lbs (0.9kg)
    • IP Rating: IP44
    • Operating Temperature: 14 - 104°F (-10 - 40°C)
    • Color: Matte Black
    • Weather Resistant Connector: BNC-F

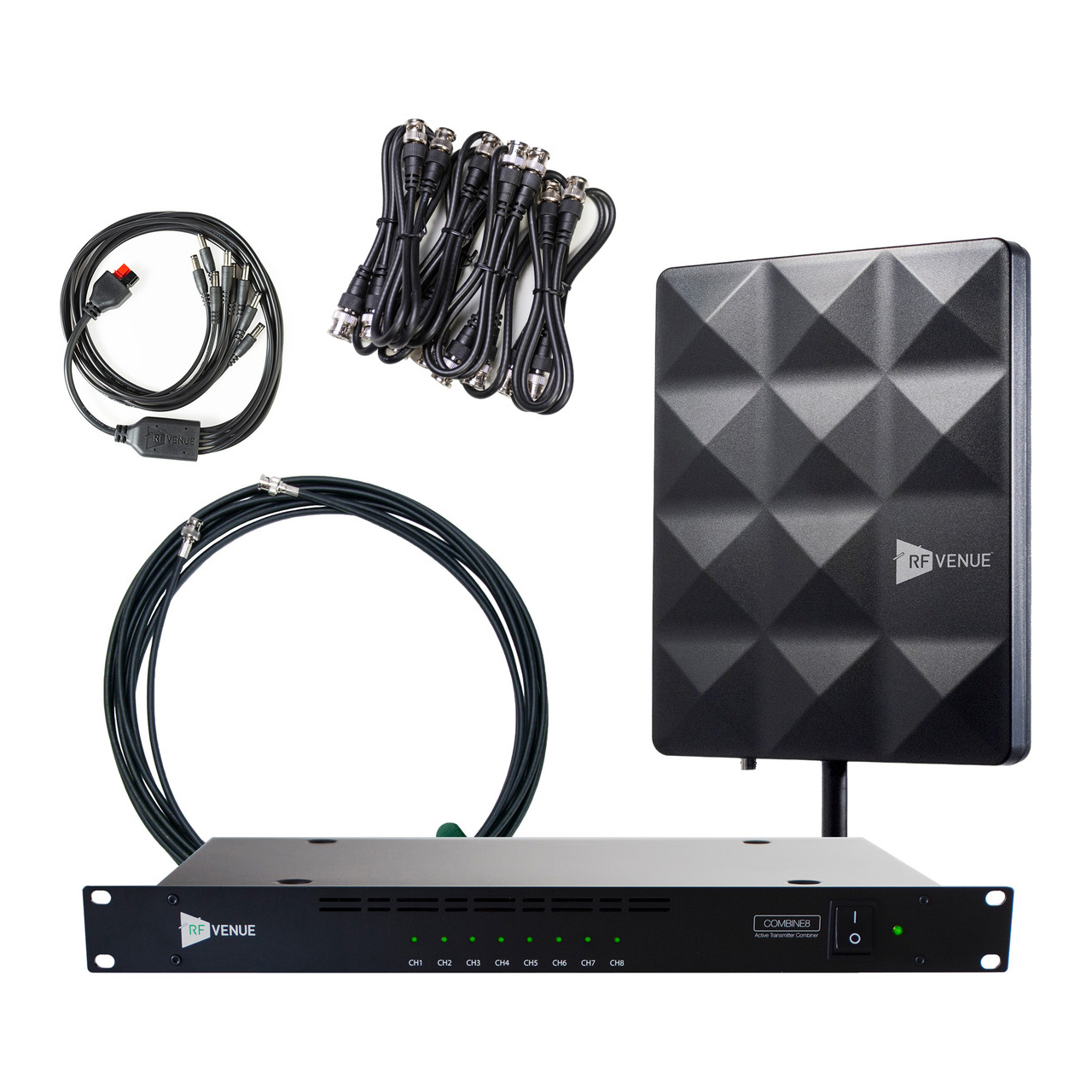

  • Item Includes:

    • 1x CP Stage Antenna
    • 1x COMBINE8 IEM Transmitter Combiner
    • 1x IEC Power Cable
    • 1x 25' RF Venue Low Loss Antenna Cables
    • 8x 1' BNC Interconnect Cables
    • 1x DC Octopus 8-connector power distribution cable

  • GTIN:

    0658580647162
