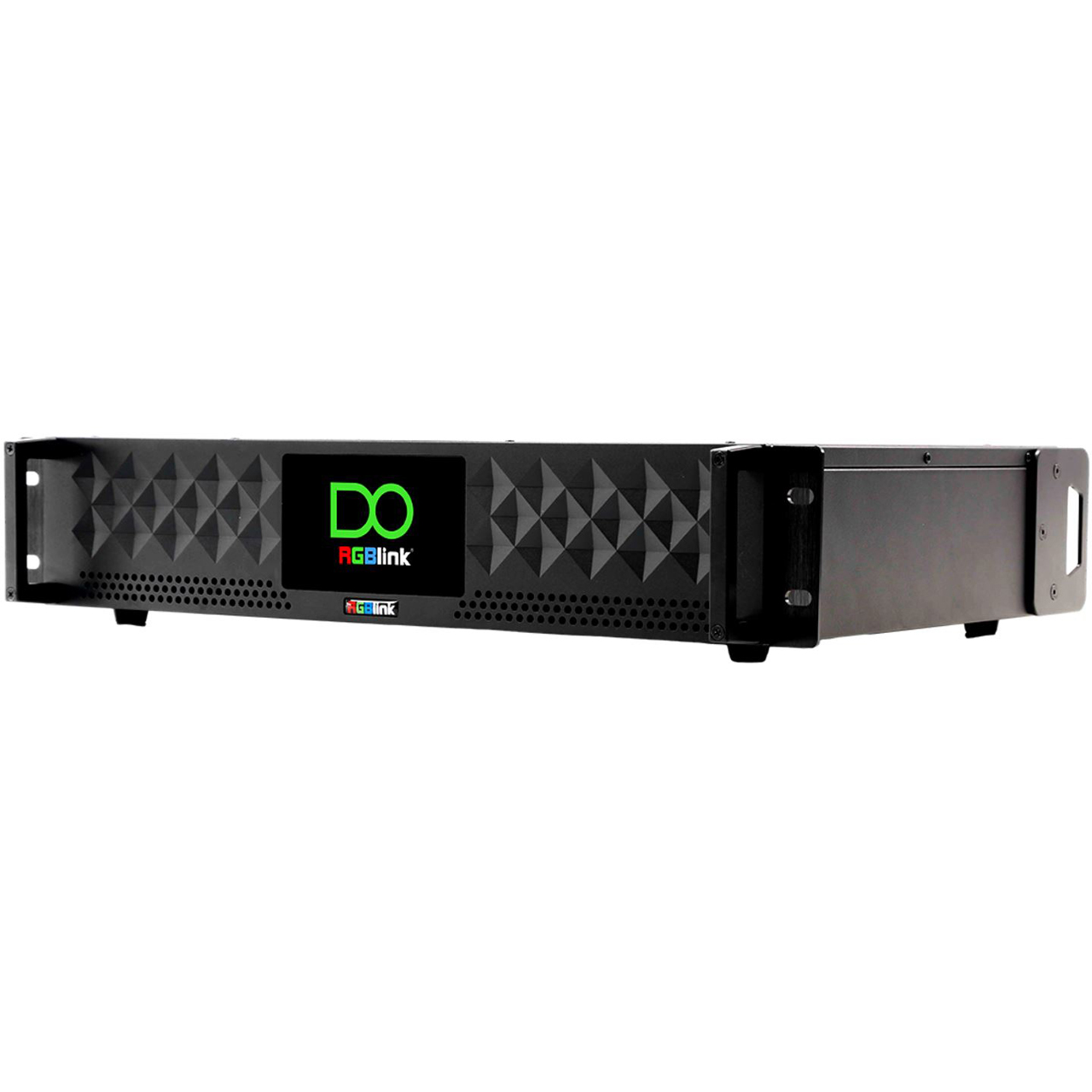

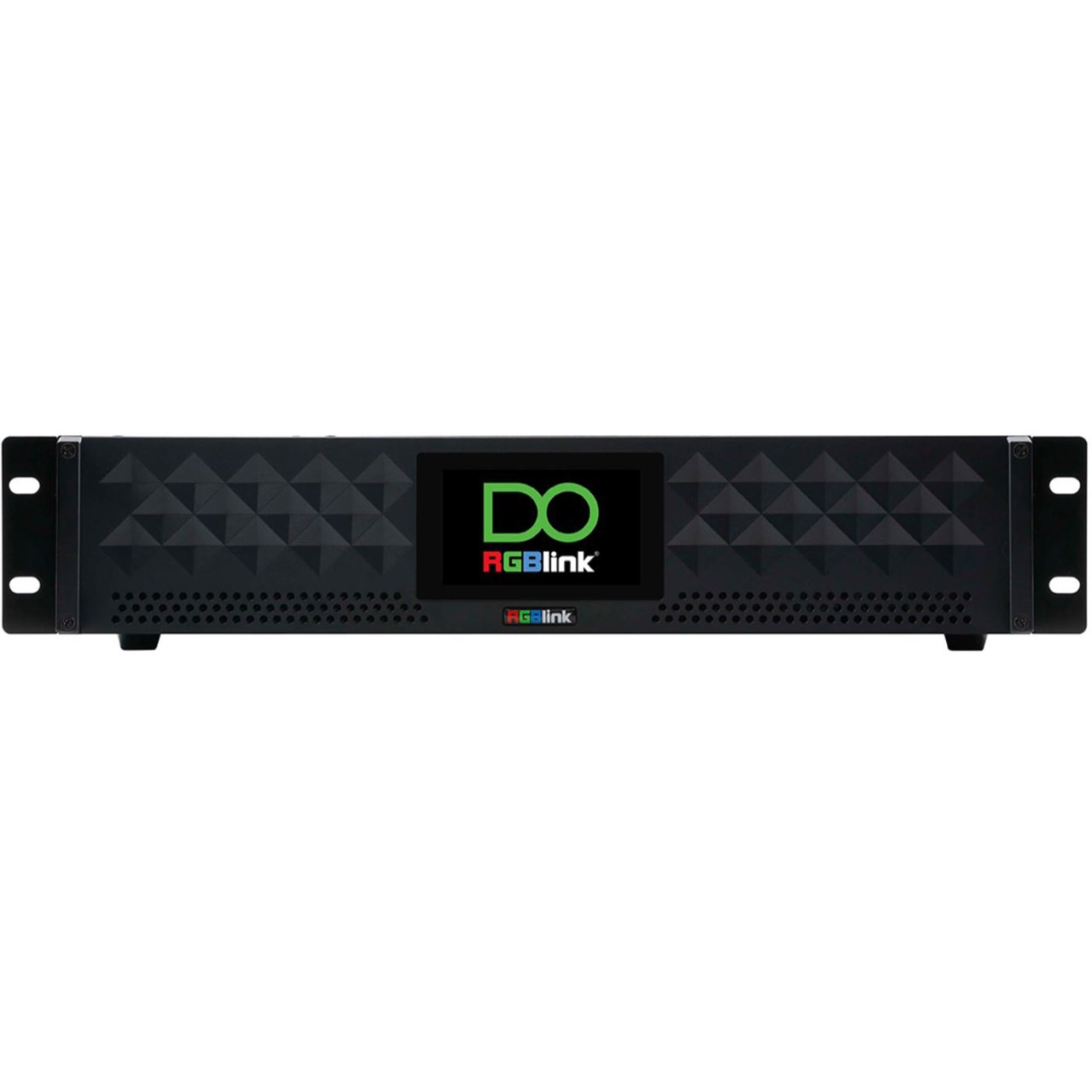

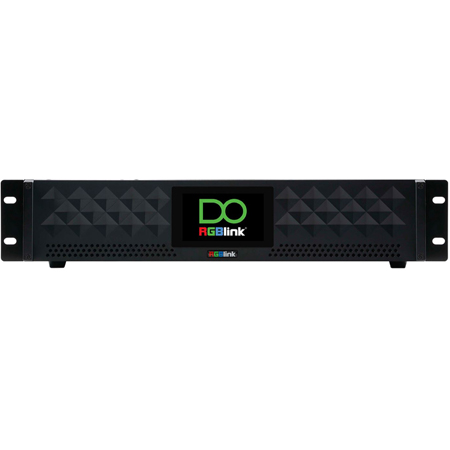

RGBLink D8 Plus 8K Native Video Scaler with 8K EDID and 4 inch LCD Touch Screen - HDMI 2.1/DP 1.4 Input Interfaces

D8 PLUS - Overview

• Features:

  • 8K@60 input, HDCP 2.2 compliance
  • Support signal switch between two 8K@60 inputs
  • Built-in 4 inch LCD touch screen control
  • 8K EDID management
  • Genlock synchronization unequal splicing, multiple layouts available
  • Layer cropping and scaling
  • Genlock input and loop throuch
  • XPOSE 2.0 control
  • Support standard output resolution and customize output resolution
  • Hot swap
  • Open API


• Specifications:

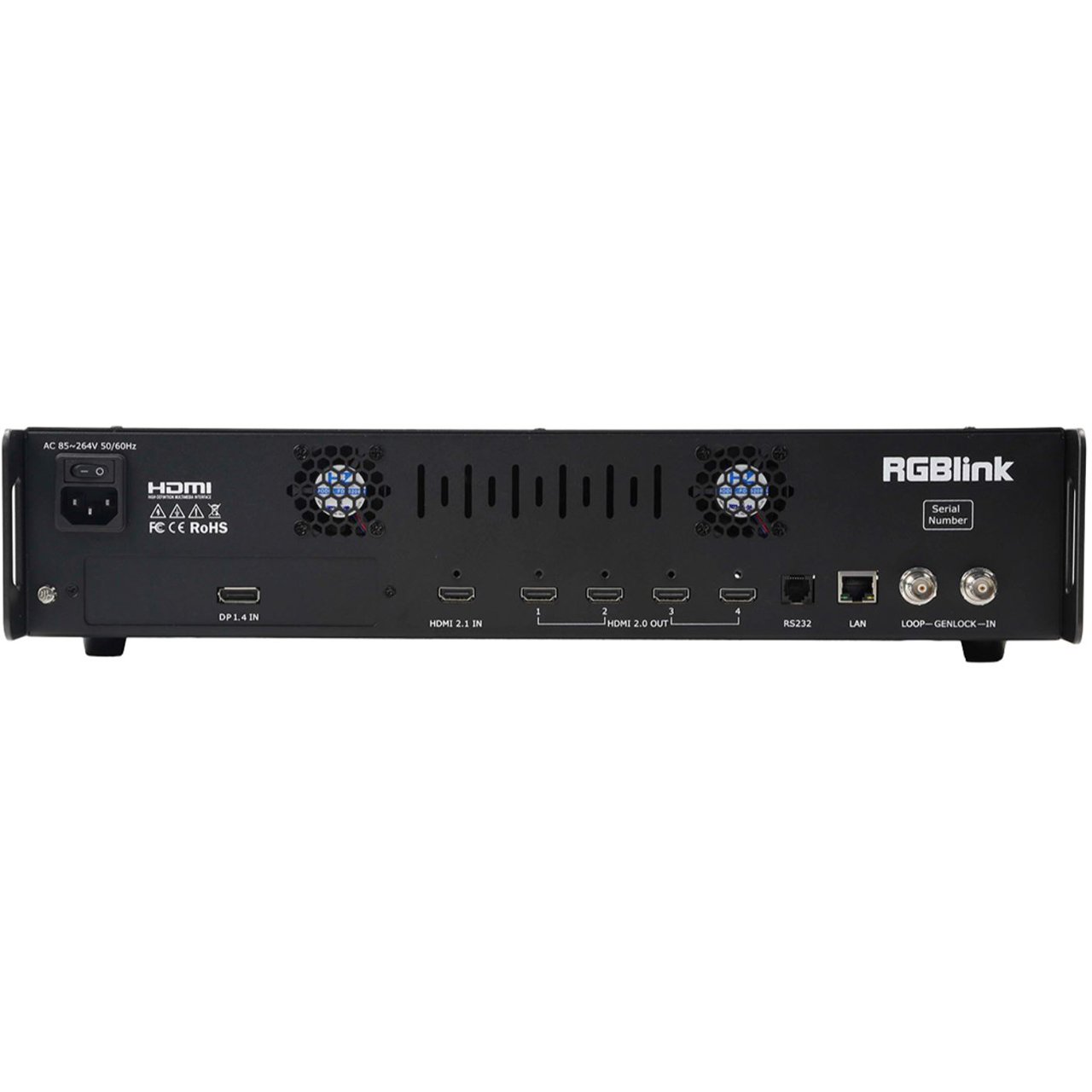

  • Input
  • 1x HDMI-A (HDMI 2.1)
  • 1x DP (DP 1.4)

    Output
  • 4x HDMI-A (HDMI 2.0)

    Communication
  • 2x BNC (1xIN |1xLOOP) for Genlock
  • 1x RJ45 LAN (preliminary)
  • 1x RJ11 (RS232)

    Power
  • 1x IEC

    Warranty:
  • All video products are designed and tested to the highest quality standard and backed by full 1 years parts and labor warranty. Warranties are effective upon delivery date to customer and are non-transferable. RGBlink warranties are only valid to the original purchase/owner. Warranty related repairs include parts and labor, but do not include faults resulting from user negligence, special modification, lighting strikes, abuse(drop/crush), and/or other unusual damages. The customer shall pay shipping charges when unit is returned for repair.


• Item Includes:

  • 1x RGBLink D8 Plus 8K
  • 1x AC Power Cord
  • 1x Network Cable
  • 1x 8K HDMI Cable
  • 1x DB9 to RJ11 Cable
  • 1x DB9 to USB Cable
  • 1x 8K DP Cable


• Warranty:

  • 1 year parts and labor
