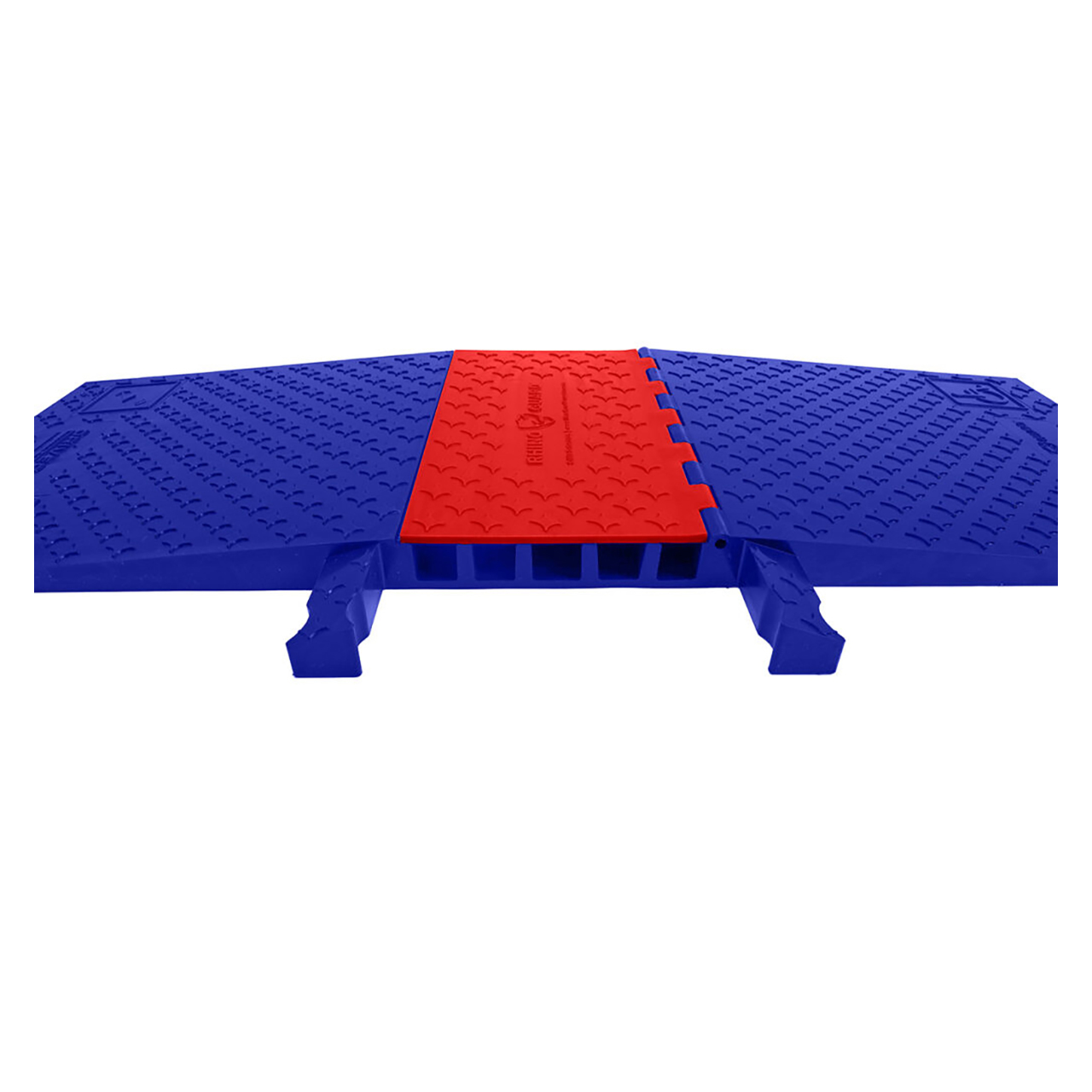

RhinoGuard RGADA513A-RBLU 5-Channel 1.3 Inch ADA Cable Protector - 30000lbs Axle Load Capacity - Red Lid/Blue Base

RGADA513A-RBLU - Overview

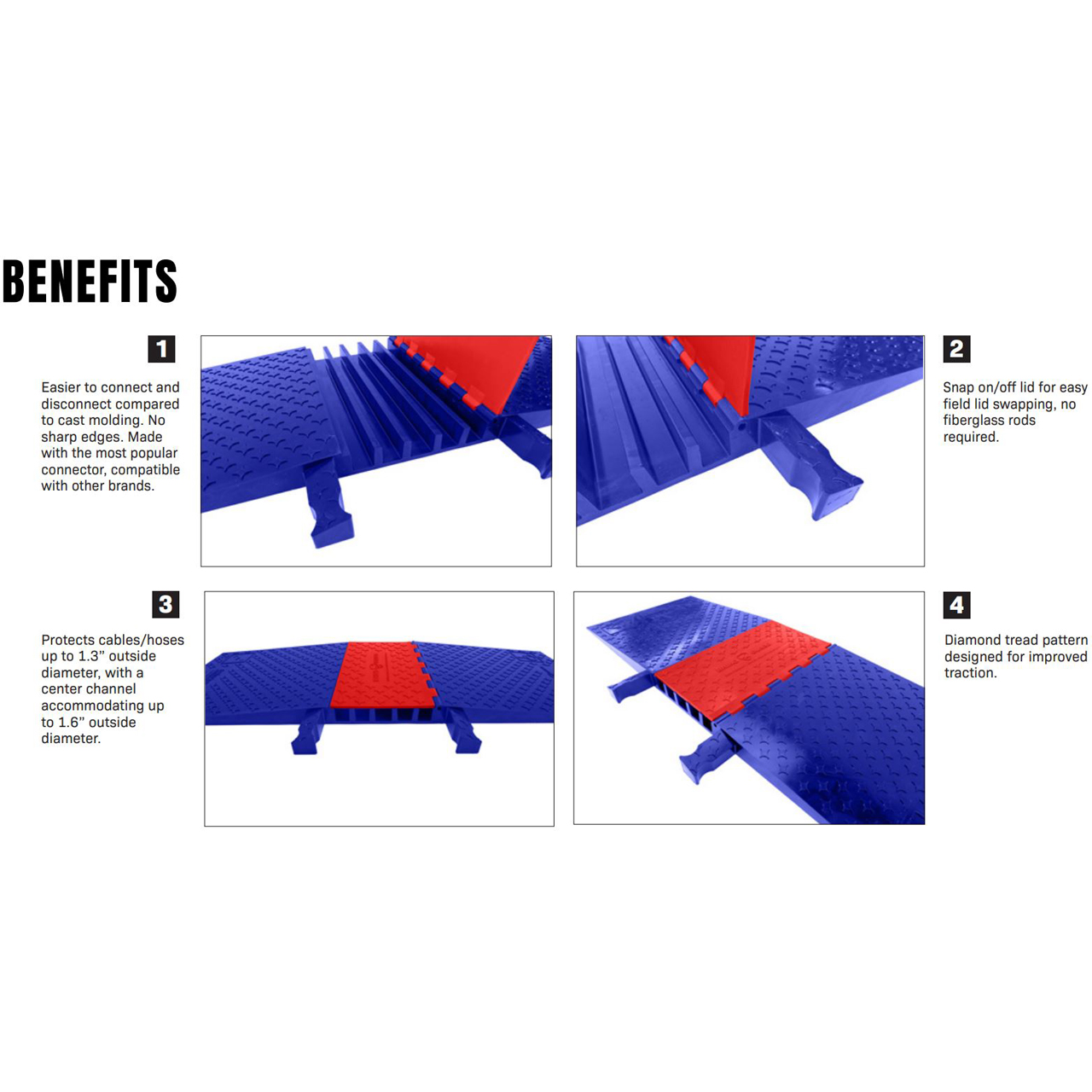

• Features:

  • Compliant with ADA/DDA Standards (Americans with Disabilities Act/Disability Discrimination Act): The specification of 12" of horizontal distance for every 1" of vertical rise ensures a gradual slope, facilitating wheelchair accessibility. This feature is also beneficial for pushing carts and maneuvering low-clearance equipment across different environments.
  • Superior Reaction Injection Molding (RIM): Produces lighter-weight parts with a higher strength-to-weight ratio. Up to 25% lighter than other cast models on the market.
  • Consistent, High-Quality Parts: Easier to connect/disconnect compared to cast molding. Premium aesthetic appearance with no sharp edges, making it safer to handle.
  • Compatibility and Material Advantages: Made with the most popular connector, compatible with other brands. Polyurethane material offers higher load capacity/impact absorption, non-conductivity, lighter weight, and UV stabilized/weather resistance.

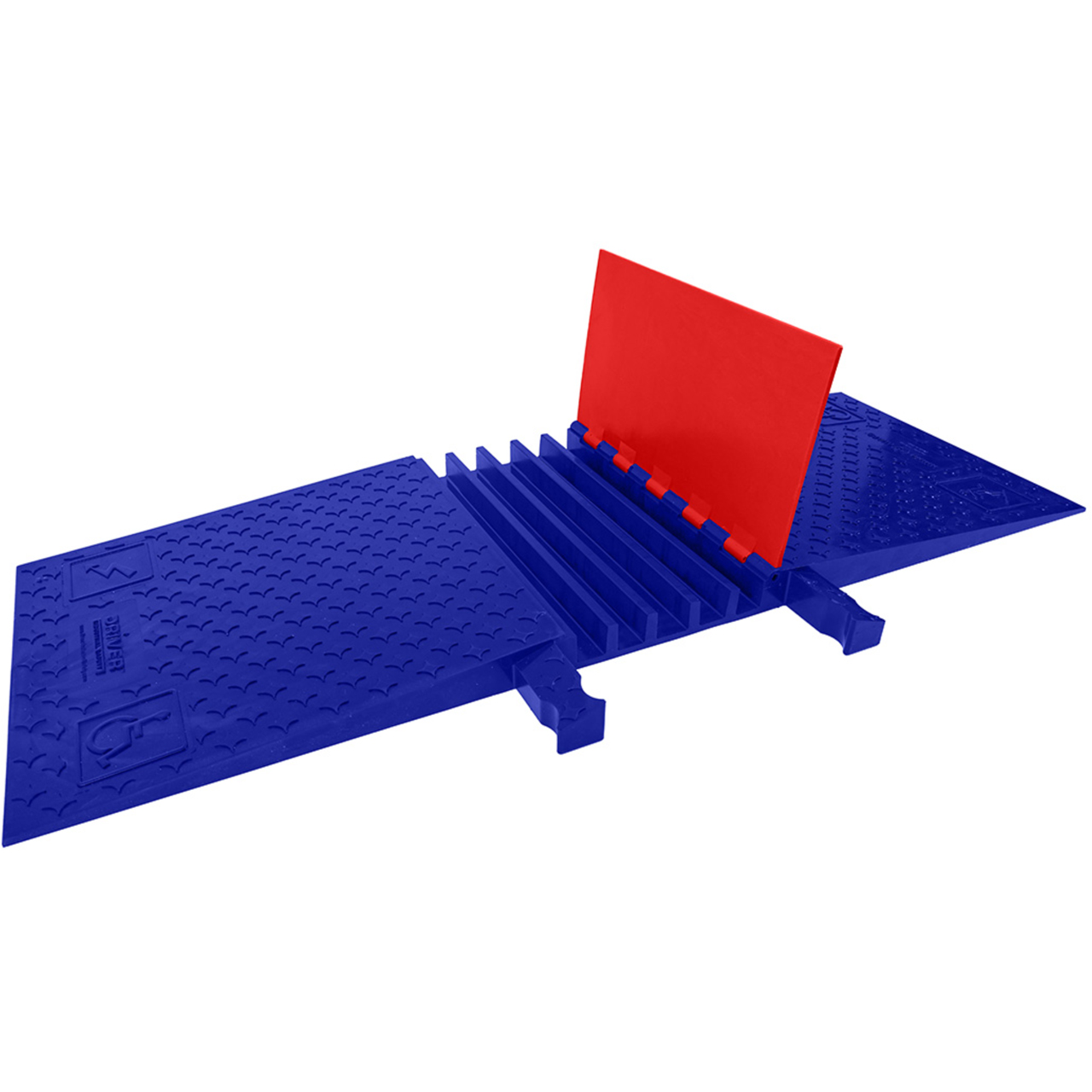

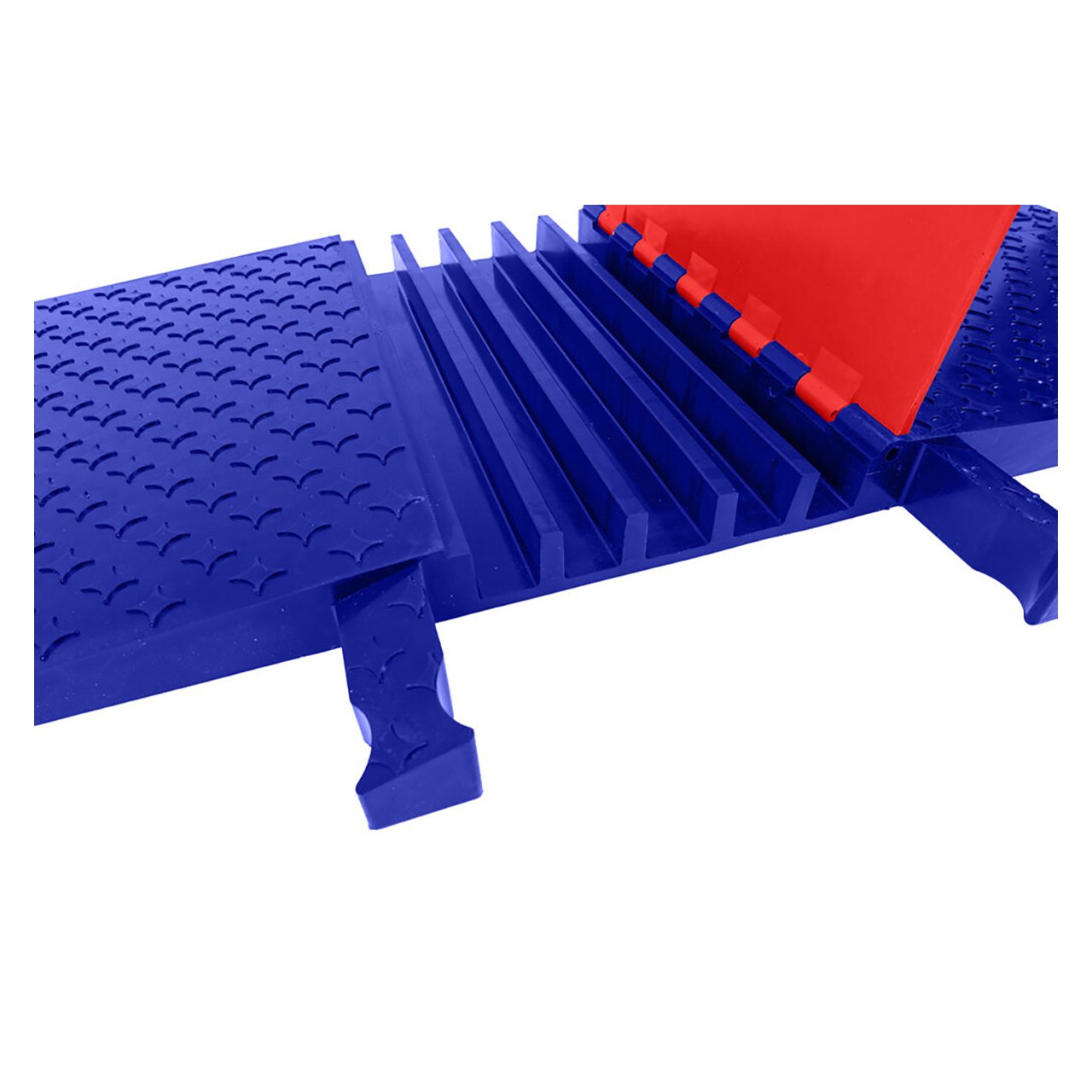

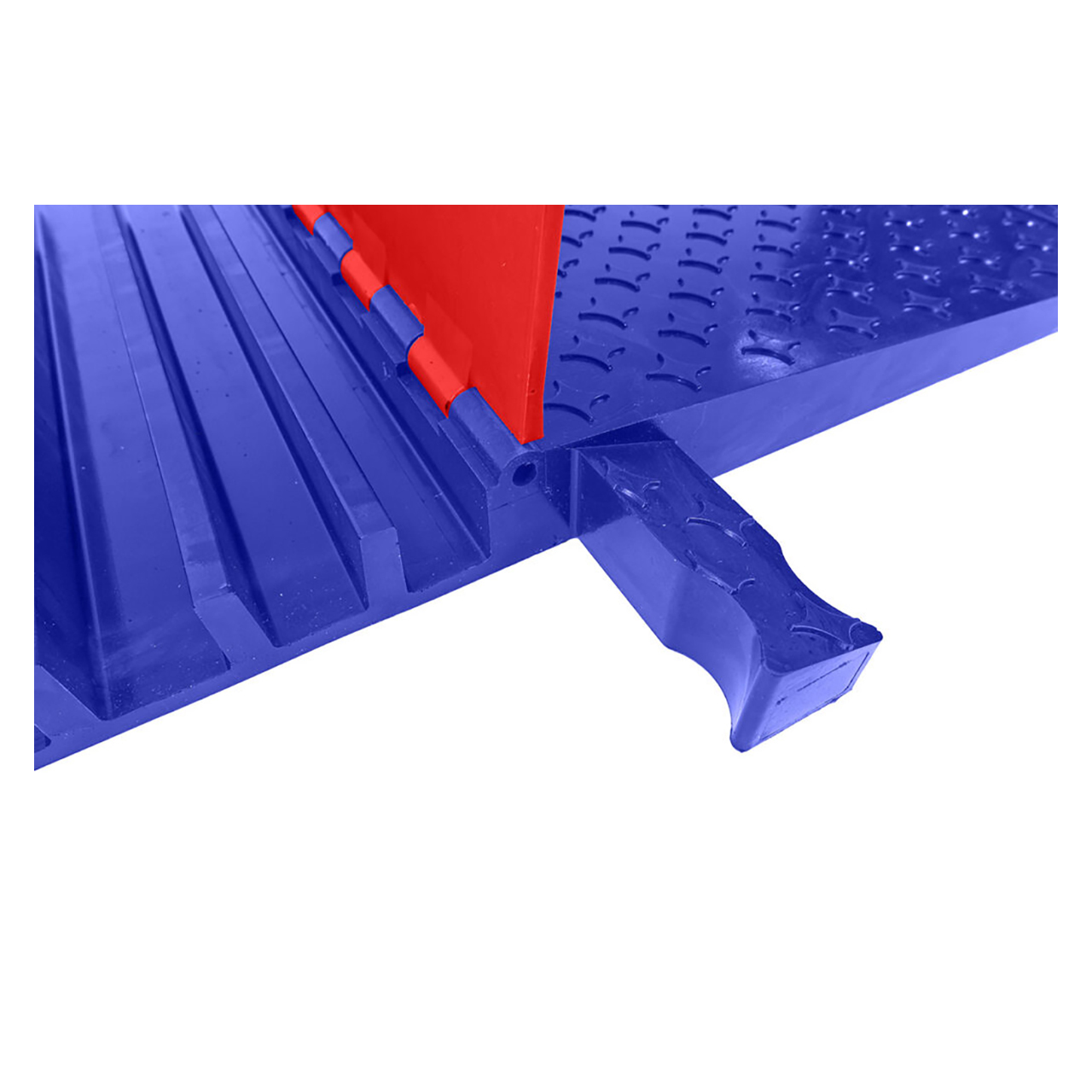

  • Functional Design: Snap on/off lid for easy field lid swapping, no fiberglass rods required. Protects cables/hoses up to 1.3" outside diameter (ideal for 4/O cable), with a center channel accommodating up to 1.6" outside diameter (ideal for #2 AWG 5-wire banded sets).
  • Safety and Performance Features: Diamond tread pattern designed for improved traction. Protects cables and hoses effectively.
  • Customization Options: Custom colors and logos are available, allowing for personalization.


• Specifications:

  • Number of Channels: 5
  • Load Capacity Per Axle: 30,000lbs
  • Load Capacity Per Tire: 15,000lbs
  • Length: 18.0"
  • Width: 50.0"
  • Height: 2.0"
  • Weight: 21.0lbs
  • Max Cable Outside Diameter: 1.32", 1.6" (Center Channel)


• Item Includes:

  • 1x RhinoGuard RGADA513A-RBLU 5-Channel 1.3 Inch ADA Cable Protector - 30000lbs Axle Load Capacity - Red Lid/Blue Base
