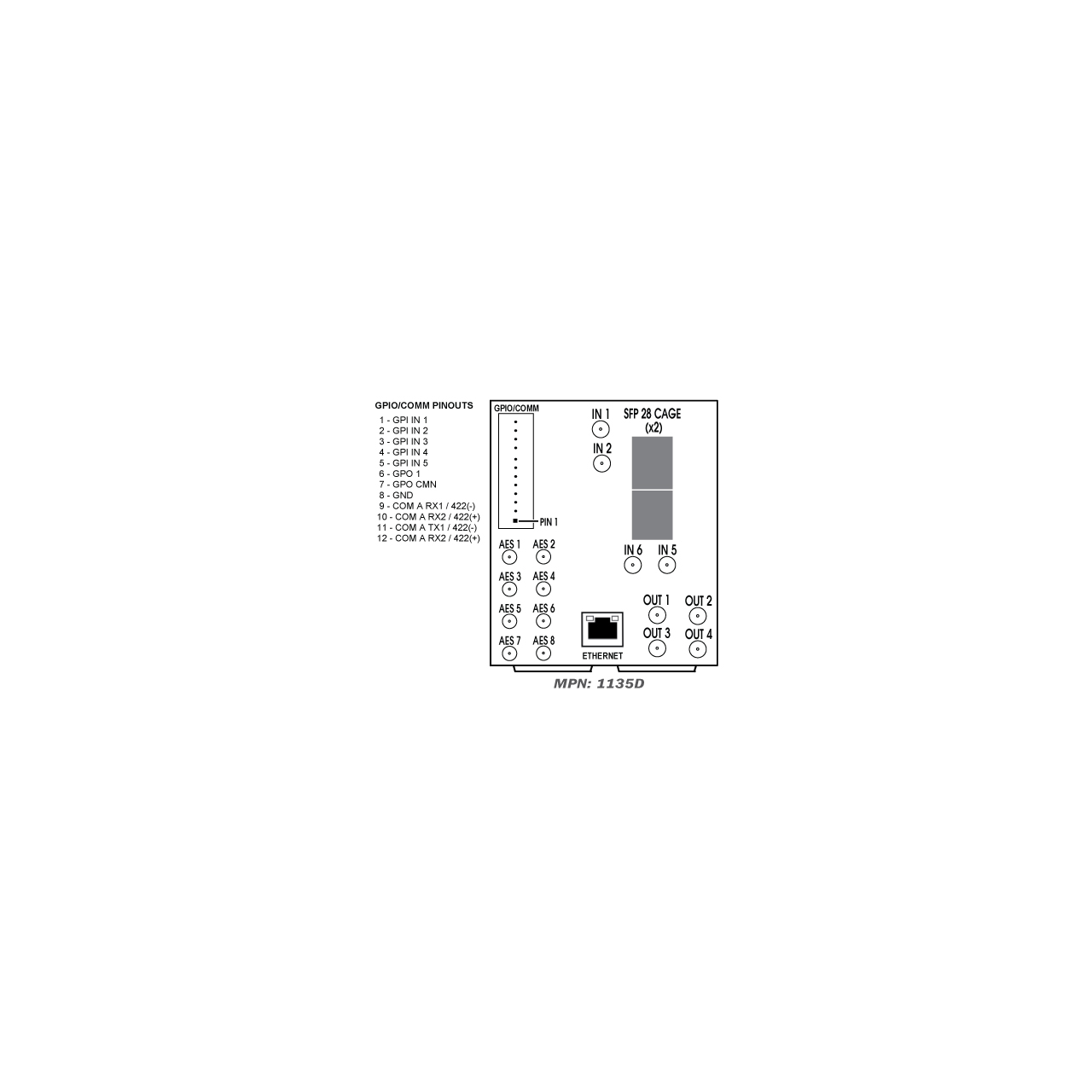

The Cobalt RM20-9905-M-HDBNC is an M-HDBNC 20-Slot, Frame Rear I/O Module (Double-Width) for the 9905-Mpx Converter frames. It features (4) 12G/6G/3G/HD/SD/SD-SDI Inputs, (4) 12G/6G/3G/HD/SD/SD-SDI Processed Outputs, (8) AES I/O, (2) 25G SFPs/Receptacles and a GPIO/COMM (All coaxial connectors HD-BNC). It works with INDIGO 2110-DC-01 and is supported on HPF-9000 and oGx openGear frames.
The Multi-Path 9905-MPx 3G/HD/SD Quad-Path Up/Down/Cross Converter/Frame Sync/Embed/De-Embed Audio Processor (items sold separately) is a Cobalt® next-generation advanced scaler/frame synchronizer for the openGear® platform. The 9905-MPx provides four independent signal paths of UDX / frame sync / audio embedding and de-embedding on a single open-Gear® card. Using the HPF-9000 20-slot frame, this provides up to 24 channels (6 cards) of processing in a single frame. The 9905-MPx represents a new level of openGear packaging density!
Please Note: Rear modules with SFP access do not come standard with any SFP functionality. Appropriate SFP option must be provisioned for rear module SFP functionality.
