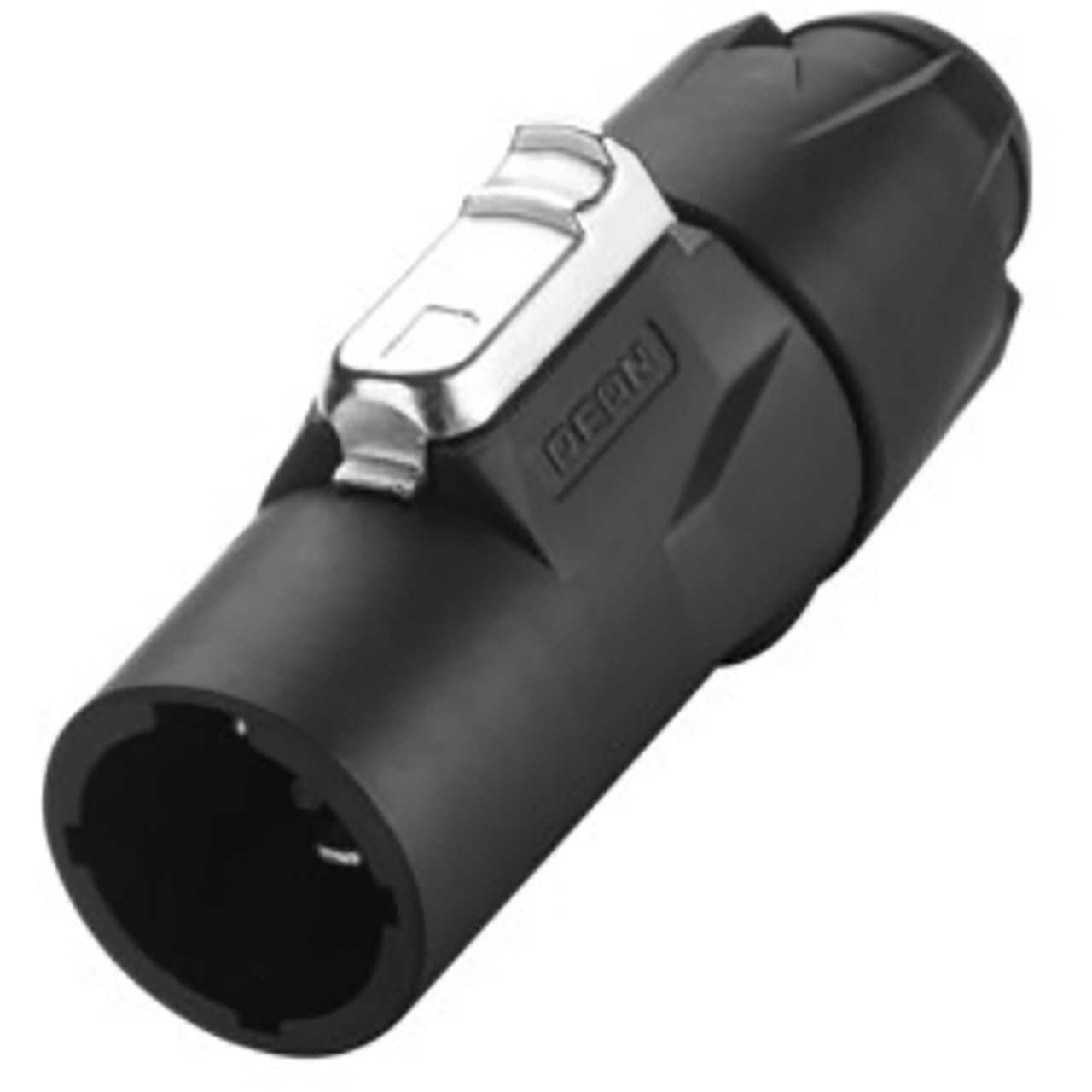

REAN RCAC3M-X-000-1 Power X Series IP65 Male Cable XLR Connector - Power Out - Screw Terminals - 50/Pack

Name: REAN RCAC3M-X-000-1 Power X Series IP65 Male Cable XLR Connector - Power Out - Screw Terminals - 50/Pack
Brand: Rean
SKU: RN-RCAC3MX000150
Price: 315.50 USD
Availability: PreSale

ITEM #: RN-RCAC3MX000150 MFG #: RCAC3M-X-000-1

Rean

List Price:

$526.50

Our Price:

$315.50

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

RCAC3M-X-000-1 - Overview

REAN RCAC3M-X-000-1 is a lockable male cable connector with excellent flammablity class by using V0 materials.

Designed for outdoor applications, IP65 protection, weather resistant.

The power X series are connectors with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Specifications:
- Number of Contacts: 2 + PE
- Rating Europe: EN 60320-1: 16A 250V AC
- Rating USA: UL 60320-1: 20A 250V AC
- Dielectric Strength: 4kV DC/2.8kV AC
- Contact Resistance: ≤ 2mΩ
- Insulation Resistance (after dampheat): > 0.1GΩ

  Mechanical
- Retention Method: Twist lock
- Lifetime: > 5000 mating cycles
- Cable O.D. Range: 6mm - 12mm
- Wiring: Screw terminals
- Wiresize: 1.0mm² - 2.5mm²
- Wiresize: 12 AWG

  Material
- Shell: Polyamide
- Insert: Polyamide
- Contacts: Copper alloy
- Contact Plating: Ag
- Strain Relief: PBT

  Environmental
- Temperature Range: -22°F - 176°F (-30°C - 80°C)
- Flammability: UL94 V-0
Item Includes:
- 1x REAN RCAC3M-X-000-1 Power X Series IP65 Male Cable Connector - Power Out - Screw Terminals - 50/Pack
