Roland Systems Group V-8HD Video Switcher & UVC-01 Encoder Streaming Bundle

ITEM #: ROL-V-8HD-STR MFG #: V-8HD-STR

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,599.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


V-8HD-STR - Overview

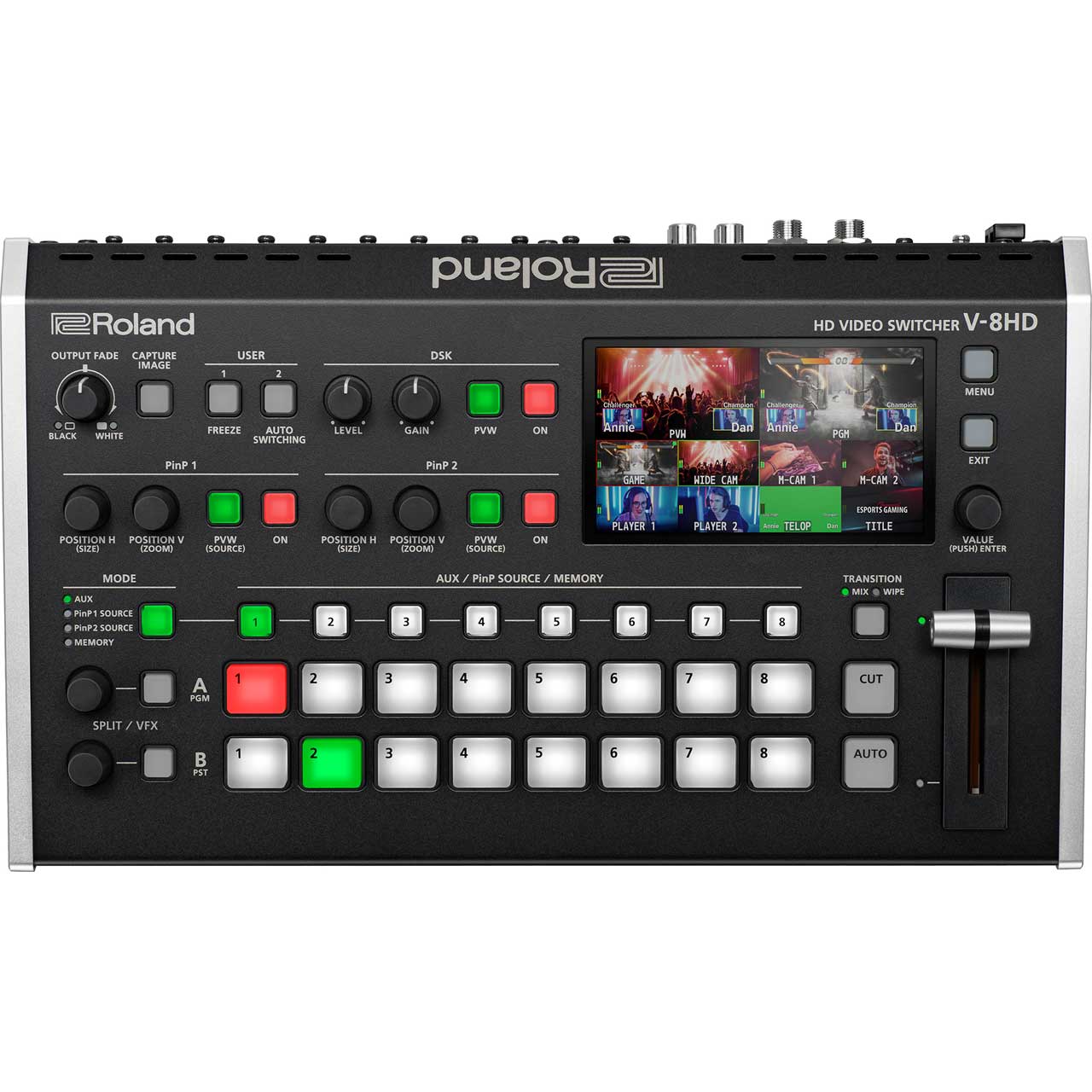

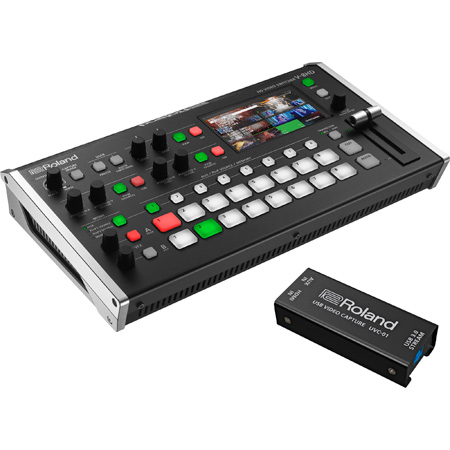

Portable, and reliable, the Roland V-8HD brings a world of creative options to live event switching. All-in-one hardware design eliminates computer setup hassles and software based crashes, while the HDMI workflow and loaded professional toolset streamline production. In addition to the switcher, the streaming bundle includes a Roland UVC-01 "Plug and Play" Encoder for efficient and simple streaming application.

Plug-and-Play for Flawless Recordings and Livestreams

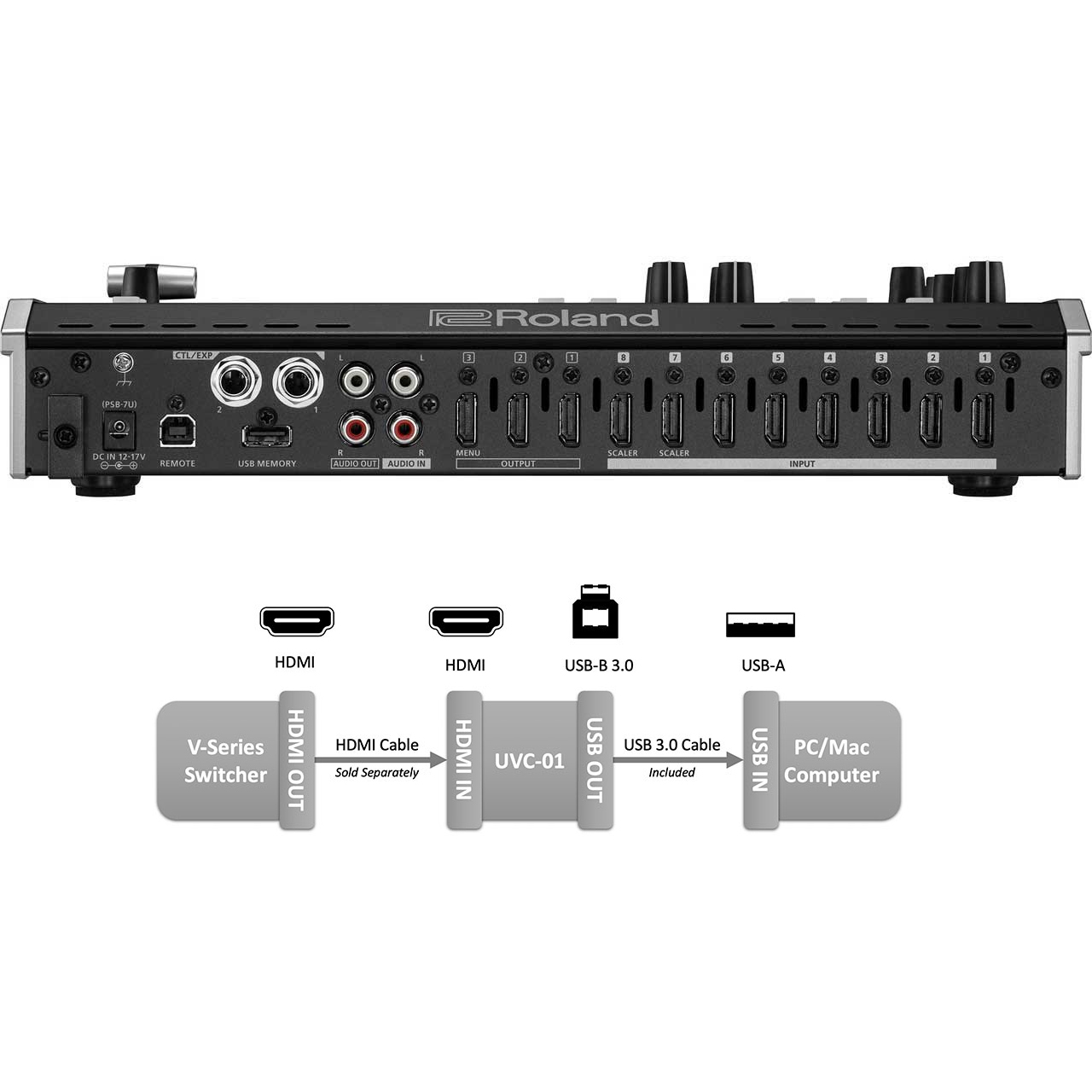

For online content creators, musicians, and gamers to businesses, schools, and houses of worship, livestreaming is an essential medium for communicating with people around the world. With the UVC-01, it's never been easier to add high-quality livestreaming capabilities to your Roland V-series video switcher or favorite HDMI-equipped camera or camcorder. Just connect to the UVC-01 via HDMI, plug into your computer's USB 3.0 port, and start streaming to Facebook Live, YouTube, and other popular platforms. Offering plug-and-play operation in a rugged, pocket-size design, the UVC-01 is ready for action everywhere you go.

  • Features:

    • V-8HD Features
    • All HDMI workflow
    • Five-layer effects and keying engine
    • Built-in multi-viewer preview monitor
    • Aux output for a different video feed
    • Technology-assisted automatic video switching
    • 18-channel digital audio mixer with effects
    • Start & Stop Atomos recorders
    • Free iPad remote control app available
    • Ultra-mobile, lightweight, and efficient
    • Aids in reducing capital expenditure

      UVC-01 Features
    • Please Note: The UVC-01 is only available with the bundle.

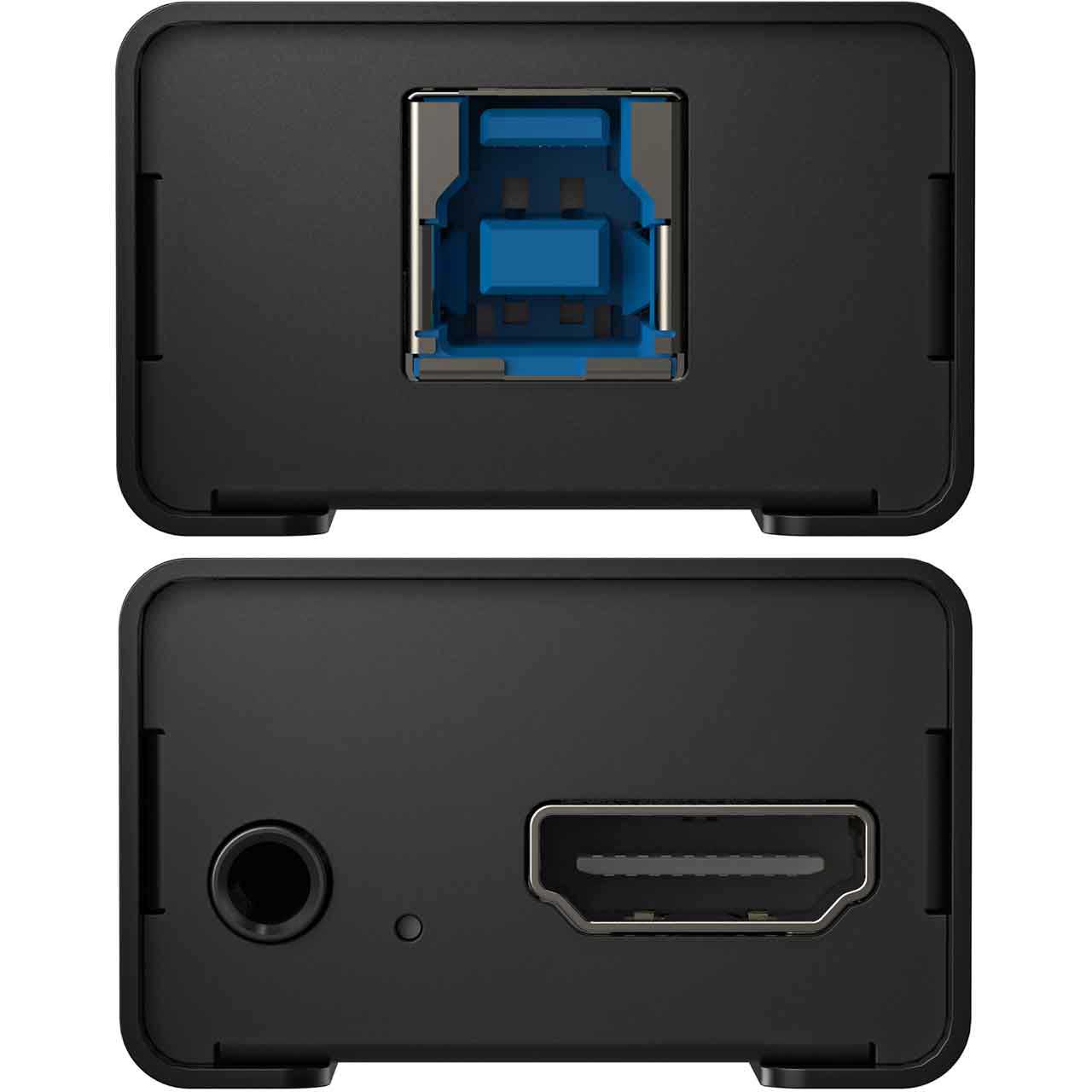

    • High-quality HDMI to USB 3.0 video encoder
    • Plug-and-play USB webcam operation for Mac and Windows computers
    • Seamlessly works with all Roland V-series switchers with an HDMI output
    • Also works with most HDMI-equipped cameras and camcorders
    • Uncompressed 1080p HD at 60 FPS for engaging livestreams
    • Dedicated analog audio line input for live music versatility
    • Powered via USB

  • Specifications:

    • V-8HD Specifications
    • Video
    • Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit
    • Input Connectors: INPUT 1--6: HDMI type A x6 *HDCP Supported; INPUT 7--8: HDMI type A x2 *HDCP Supported *Multi-format Supported
    • Output Connectors: OUTPUT 1--3: HDMI type A x3 *HDCP Supported

      Audio
    • Audio Processing: Sampling rate: 24 bits/48 kHz
    • Audio formats: Linear PCM, 24 bits/48 kHz, 2ch
    • Audio Effects: Delay, High pass filter, Compressor, Noise gate, Equalizer, Multi-band compressor, Limiter, Test tone output

      Connectors
    • Input Connectors: INPUT 1--8: HDMI Type A x8, AUDIO IN: RCA phono type
    • Output Connectors: OUTPUT 1--3: HDMI Type A x3, AUDIO OUT: RCA phono type, PHONES: Stereo miniature type
    • Other Connectors: USB MEMORY: USB A type (for USB flash drive) REMOTE: USB B Type (for remote control from iPad) CTL/EXP: 1/4" TRS phone type
    • Other Functions: Preset Memory (24 scenes), Panel lock function, EDID Emulator, Auto Switching, Auto Input Detect

      Other
    • Display: 4.3" TFT Color LCD: 480 x 272 dots
    • Power Supply: AC Adapter
    • Current Draw: 3.3A
    • Power Consumption: 39.6W
    • Operating Temperature: 32° to 104°F (0° to 40°C)
    • Dimensions (WxDxH): 12.48 x 7.60 x 2.76" (317 x 193 x 70mm)
    • Weight: 4Lbs (2kg)
    • For a full list of specifications please visit the Data Sheets Tab

      UVC-01 Specifications
    • Video
    • Input Connectors: HDMI IN connector: HDMI type A *Multi-format Supported *HDCP Not Supported
    • Output Connectors: USB STREAM port: USB 3.0 B type
    • Input Formats: 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz), HD (1280 x 720/60 Hz), WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz), FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz), UXGA (1600 x 1200/60 Hz), FHD (1920 x 1080/60 Hz) *The refresh rate is the maximum value of each resolution. *Conforms to VESA DMT Version 1.0 Revision 11.
    • USB Video Output Format/Resolution: YUY2 (Uncompressed)/1920x1200, 1920x1080, 1680x1050, 1600x1200, 1600x900, 1440x900, 1366x768, 1360x768, 1280x1024, 1280x960, 1280x800, 1280x720, 1152x864, 1024x768, 1024x576, 960x540, 856x480, 800x600, 768x576, 720x576, 720x480, 640x480, 640x360, 320x240 *The maximum frame rate is 60 fps.

      Audio
    • Audio Formats: HDMI IN connector: Linear PCM, 48kHz/44.1kHz, 24bits/20bits/16bits, stereo; USB STREAM port: Linear PCM, 48kHz, 16bits, stereo
    • Input Connectors: HDMI IN connector: HDMI type A
    • AUX IN jack: Stereo miniature phone type
    • Output Connectors: USB STREAM port: USB 3.0B type
    • Nominal Input Level: AUX IN jack: -10dBu (Maximum input level: +8dBu)
    • Input Impedance: AUX IN jack: 10kohms
    • Power Supply: Supplied from the computer via USB
    • Current Draw: 500mA
    • Operation Temperature: 32° to 104°F
    • Dimensions (WxDxH): 3.54 x 1.46 x 0.90"
    • Weight: 0.21Lbs

  • Item Includes:

    • 1x V-8HD Multi-Format Video Mixer
    • 1x UVC-01 Encoder
    • 1x Startup Guide
    • 1x AC adapter
    • 1x Power cord

  • GTIN:

    0761294224427
