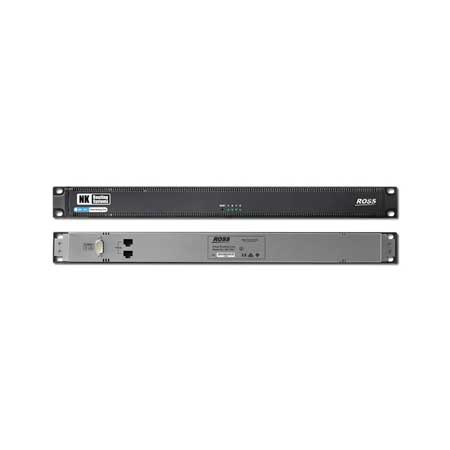

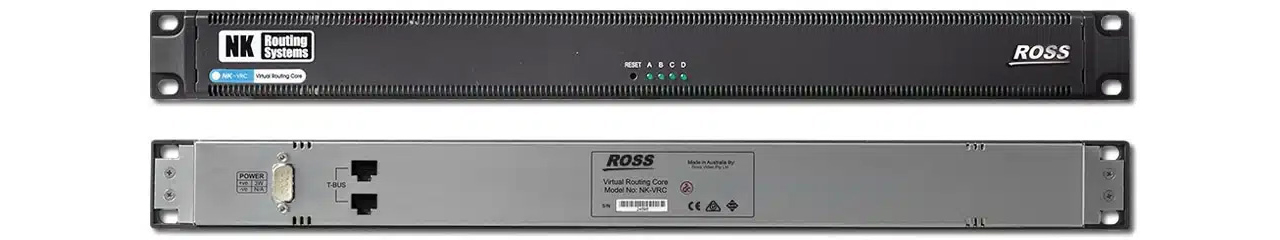

The Ross NK-VRC Virtual Routing Core adds virtual routing and resource management to any NK Series Routing System. Virtual routing and resource management is an important requirement in larger routing systems, especially those with multiple levels.

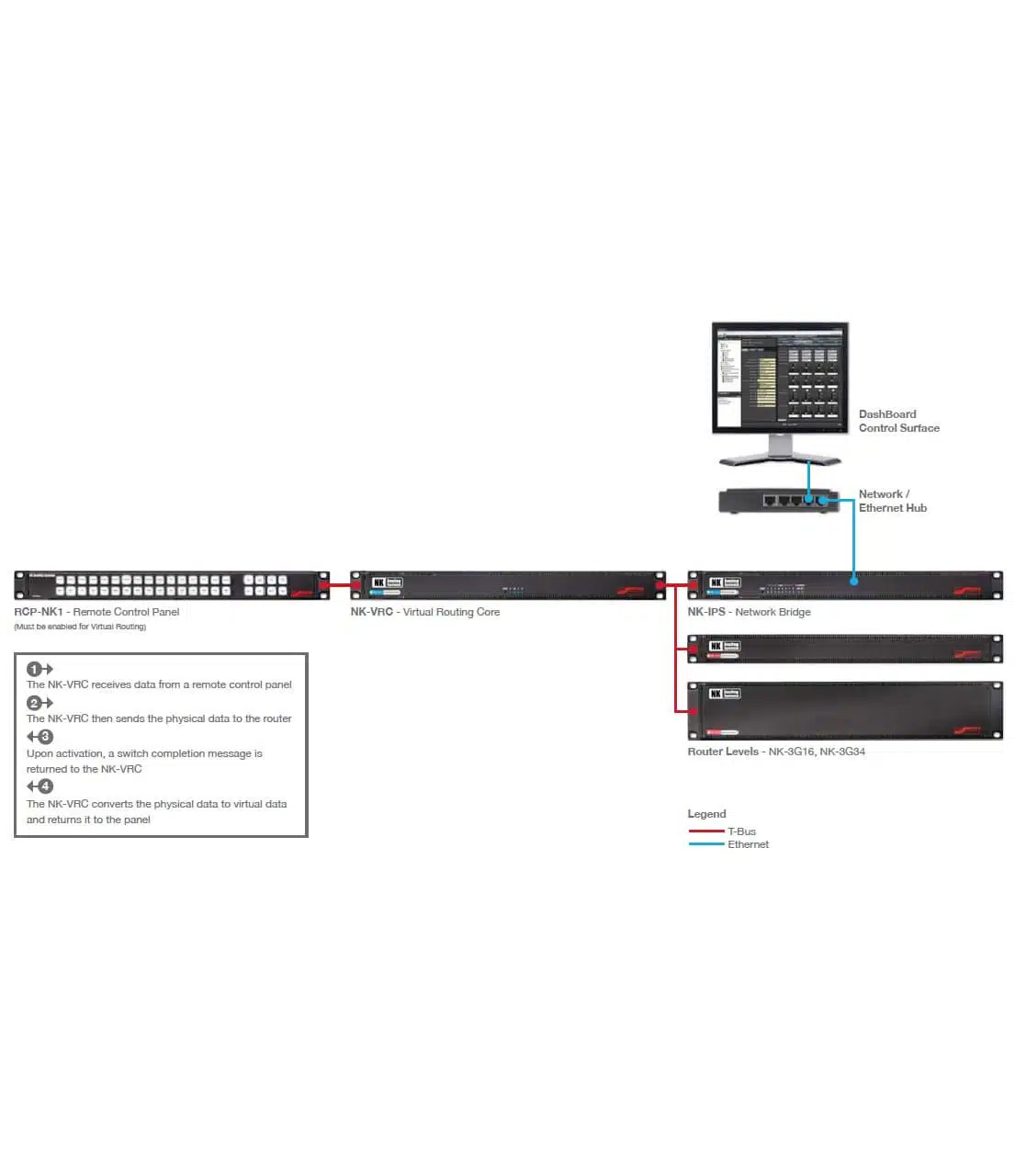

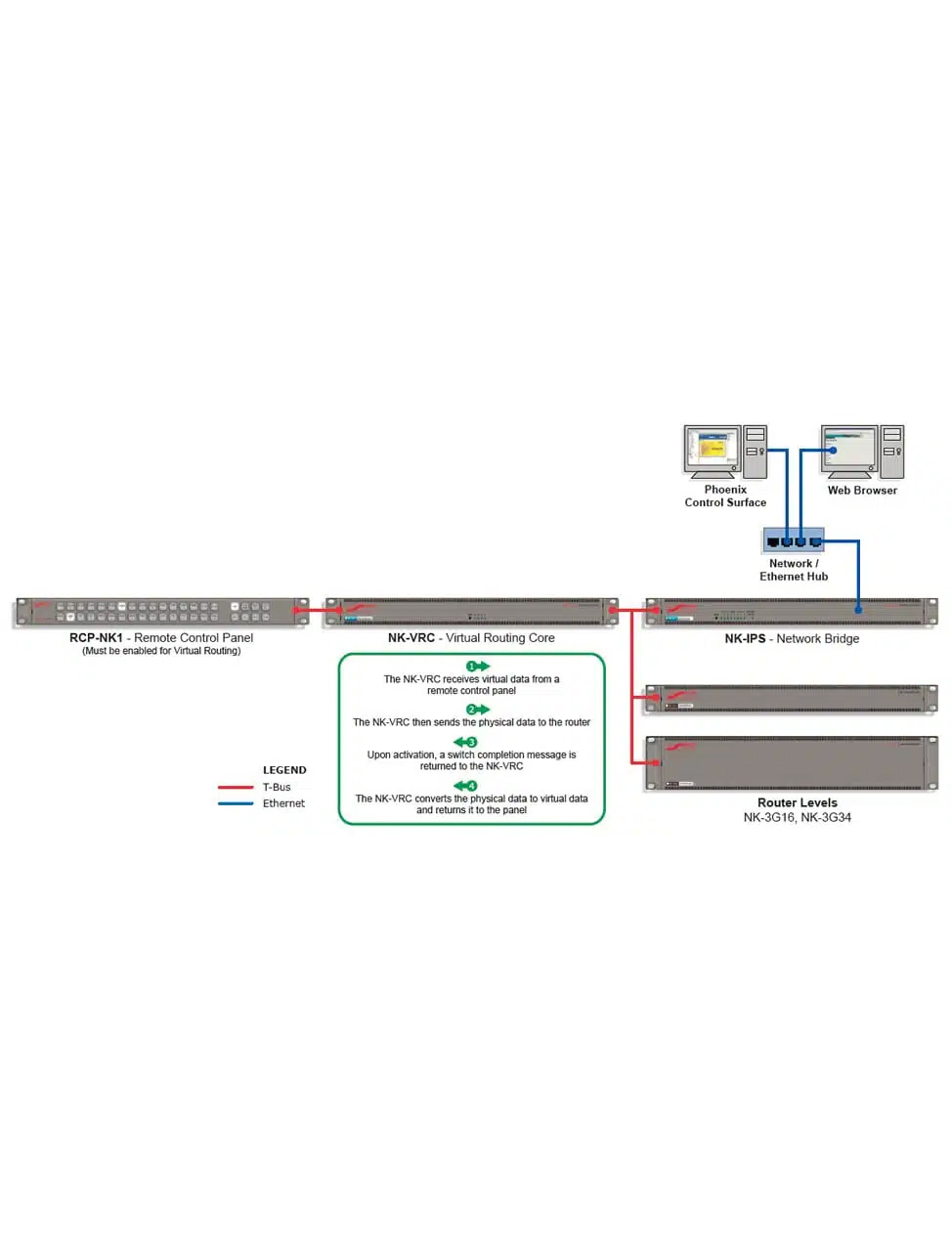

Virtual routing provides the ability to assign physical sources and destinations to virtual sources and destinations. Without the NK-VRC, tied switching of sources and destinations will always switch the same physical inputs and outputs across multiple routers. The NK-VRC enables a more flexible setup where the sources and destinations do not have to be identically connected across multiple levels.

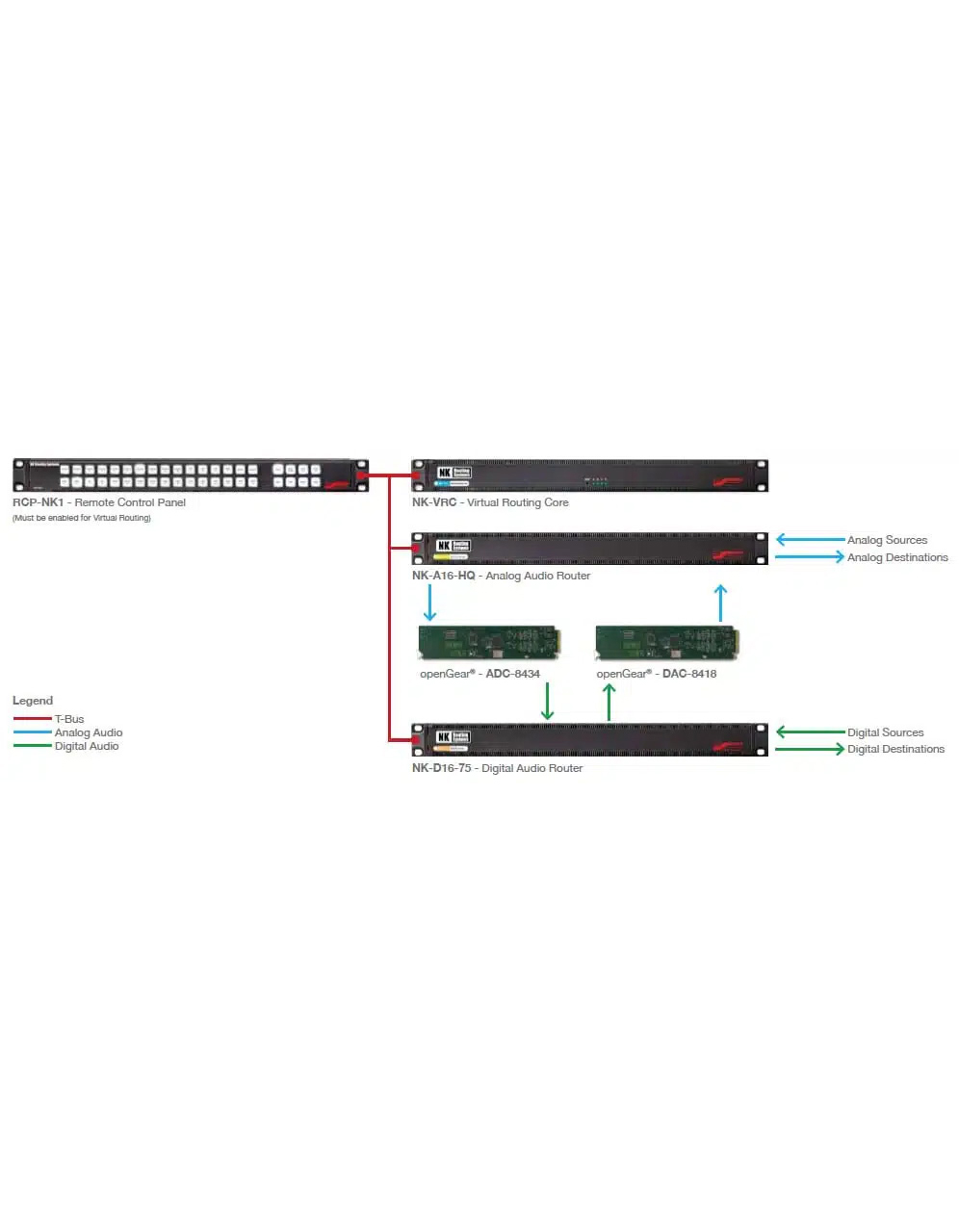

Additionally, the NK-VRC enables resource management or path finding in an NK Series Routing System. Resource management enables routing of signals between different router types (such as analog and digital). This is done by using resources to convert between one format to another (such as an analog to digital converter).
Resource management simplifies the operation of a router system by routing signals through a resource from one router to another, without having the user know which source and destination the resource is connected to. Once configured, the system will be able to automatically find the path between routers.
Multiple resources can be managed to enable more than one signal path between routers.
