AJA KUMO-6464-12G 4RU Compact 64x64 12G-SDI Router with 1 Power Supply

ITEM #: AJA-KUMO646412G1 MFG #: KUMO-6464-12G

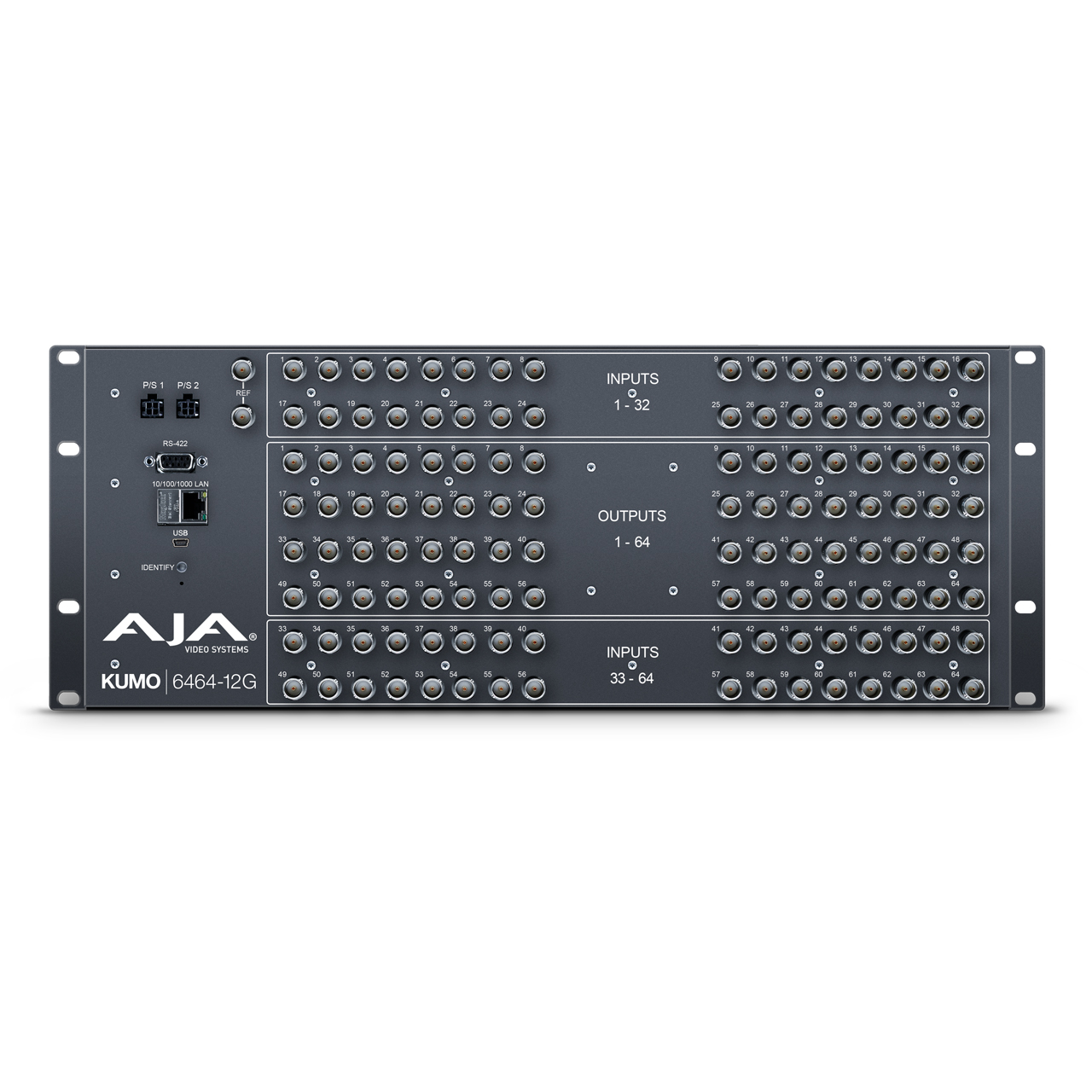

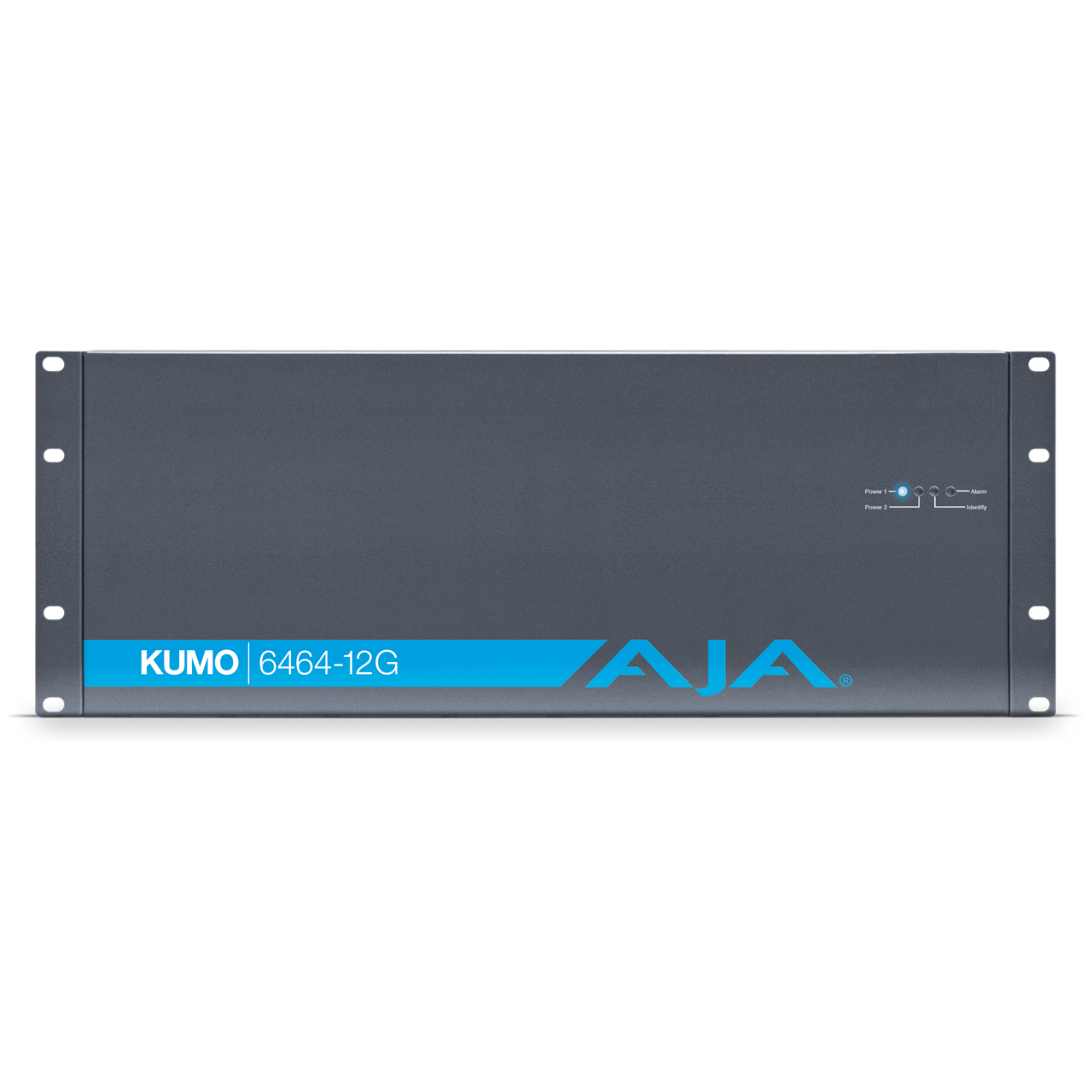

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$14,999.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info


KUMO-6464-12G - Overview

Redesigned for maximum reliability and performance, The AJA KUMO 6464-12G offers increased capacity for larger configurations while maintaining a compact 4RU height and slim profile, with support for 12G-SDI/6G-SDI/3G-SDI/1.5G-SDI/270Mb and DVB ASI, 64x 12G-SDI inputs, and 64x 12G-SDI outputs. Professionals can easily route and control video with embedded audio to/from BNC connections with auto reclocking of SDI rates. KUMO 6464-12G devices can be configured for ganged dual- and quad-port routing, so that users can easily combine multiple inputs and outputs for Dual Link, 4K, UltraHD, and 8K workflows, enabling seamless routing of uncompressed, compressed, or RAW 4K signals throughout a facility.

KUMO 12G-SDI routers support large format resolutions, high frame rate (HFR) and deep color formats while reducing cable counts when transporting 4K/UltraHD over a single SDI link. The routers offer network-based and physical control using KUMO CP and CP2 and mirror the physical form of AJA's production-proven KUMO 6464 routers, with a USB port for configuring IP addresses via AJA's free eMini-Setup software.

Built to the same quality standards as all AJA products, KUMO 6464-12G is the ideal choice for any situation where a balance of size, performance, reliability, and capacity are critical, such as virtual production, post facilities, and mobile trucks.

Powerful Signal Management
KUMO 6464-12G's powerful cross-point routing matrix maps any input to any number of outputs without the need for additional patch panels or distribution amplifiers.

As 8K and 4K/UltraHD workflows continue to be adopted, KUMO 6464-12G can meet this need. KUMO 12G-SDI routers offer single-link cable connectivity for 4K/UltraHD and, with a simple setting change, can be configured for ganged dual link or quad link routing allowing users to group together multiple inputs and outputs for 8K workflows. This allows routing of raw or 8K or 4K/UltraHD signals for virtual production, live events, OB trucks, or post facilities.

Compact Routing
The KUMO family of compact SDI routers provides powerful signal control and support full broadcast specifications over 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI and SD-SDI, with quality that exceeds SMPTE specifications. The super-compact 1RU, 2RU, and 4RU formats are just a few inches deep, making them a perfect fit for any broadcast, production, or post production environment, from mobile sports trucks and edit suites, virtual production, corporate video installations, or live theatrical A/V rigs.

No fans are used in the KUMO routers, enabling installation in environments that require silent operation such as on-set, audio booths and operating rooms.

  • Features:

    • Single cable support for 4K/UltraHD 12G-SDI routing in a compact 4RU profile.
    • 64x 12G-BNC inputs and 64x 12G-BNC outputs.
    • 8K (Quad-12G), 4K, UHD, 2K, HD, and SD resolution support.
    • Compatible with and exceeds SMPTE specifications.
    • Facilitates Quad Link, Dual Link, 4K/UltraHD and 8K/UltraHD2 with multiport SDI switching for two or four sources at once.
    • Up to 8 salvos can be configured and saved in each KUMO router.
    • Capability to configure, save, export, and import up to 20 presets in each KUMO router.
    • Embedded web server for remote control on a standard web-browser.
    • Support for up to 32 AJA KUMO CP and CP2 control panels, direct connect or networked via ethernet.
    • 1x RS-422 DB9 with support for Grass Valley Native Protocol.
    • USB port for easy initial network setup.
    • Auto reclocking SDI rates: 270/1.483 Gbps/1.485 Gbps/2.967 Gbps/2.970 Gbps/5.934 Gbps/5.940 Gbps/11.868 Gbps/11.880 Gbps.
    • Format agnostic, 270 Mbps - 12 Gbps.
    • Passes all SDI embedded ancillary data including audio and HDR signaling.
    • Support for 270Mb DVB ASI.
    • Reference Input: analog color black (1V) or composite sync (2V or 4V) looping, non-terminating.
    • 10/100/1000 Ethernet (RJ-45), REST API.
    • Fanless design, completely silent operation.
    • Redundant power supply option.
    • Five-year warranty and AJA's world-class support.

  • Specifications:

    • Video Formats:
      - 270Mbps, 1.5Gbps, 3Gbps, 6Gbps, 12Gbps SDI
      - 270Mbps DVB-ASI
    • Video Input Digital:
      - 12G-SDI Inputs
      - 64x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
    • Video Output Digital:
      - 12G-SDI Outputs
      - 64x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
      - Noninverting
    • Ancillary Data: Passes all SDI embedded ancillary data including audio
    • Salvo: Up to 8 Salvos can be configured and saved in each KUMO router
    • Cable Equalization (Belden 1694A):
      - 12Gbps, up to 50m
      - 6Gbps, up to 90m
      - 3Gbps, up to 140m
      - 1.5Gbps, up to 200m
      - 270Mbps, up to 390m
      - Automatic operation
    • Reclocking: 270Mbps, 1.483Gbps, 1.485Gbps, 2.967Gbps, 2.970Gbps, 5.934Gbps, 5.940Gbps, 11.868Gbps, 11.880Gbps - Auto Select
    • Switching Modes:
      - Single/Normal, Dual, and Quad Link modes
      - Switches in vertical blanking per SMPTE RP-168
    • Control Panel Compatibility:
      - AJA KUMO CP (First 32 I/O in Single/Normal, all I/O in Dual or Quad mode) - 1RU X-Y Ethernet control panel
      - AJA KUMO CP2 (Single/Normal, Dual or Quad mode) - 2RU X-Y Ethernet control panel
    • Reference Input:
      - External, 2x BNC
      - Looping, nonterminating
      - Blackburst or tri-level sync
    • Network Interface:
      - 1x RJ-45, 10/100/1000 Ethernet
      - Supports AJA KUMO Ethernet control panels, direct connect or networked
      - Basic support for Grass Valley Native Protocol
      - Embedded web server for remote control
    • USB Interface: 1x Mini-USB for IP configuration using AJA eMini-Setup
    • Serial Interface:
      - 1x DB-9 Female, RS-422
      - Basic support for Grass Valley Native Protocol

      Dimensions
    • Dimensions: 4RU - 17.4" x 1.55" x 7.00" (441.96mm x 39.37mm x 177.8mm)
    • Weight: 9.2lbs (4.2kg)
    • Power:
      - Enclosure: Dual, redundant, 10-14VDC regulated, 4-pin Molex, 50W typical, 72W max.
      - AC adapter, included: 100V - 240V AC, 50/60Hz, universal input, 84W
      - Optional redundant AC adapter sold separately, KUMO-84W-PWR
    • Safe Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Safe Storage Temperature (Power OFF): -40°F - 140°F (-40°C - 60°C)
    • Operating Relative Humidity: 10% - 90% noncondensing
    • Operating Altitude: <3,000 meters (<10,000 feet)

  • Item Includes:

    • 1x AJA KUMO-6464-12G 4RU Compact 64x64 12G-SDI Router
    • 1x Power Supply

  • Warranty:

    • 5-Year Limited Warranty
