The Ross RCP-NK1 is a simple and cost-effective control panel that can be used in a wide variety of applications.

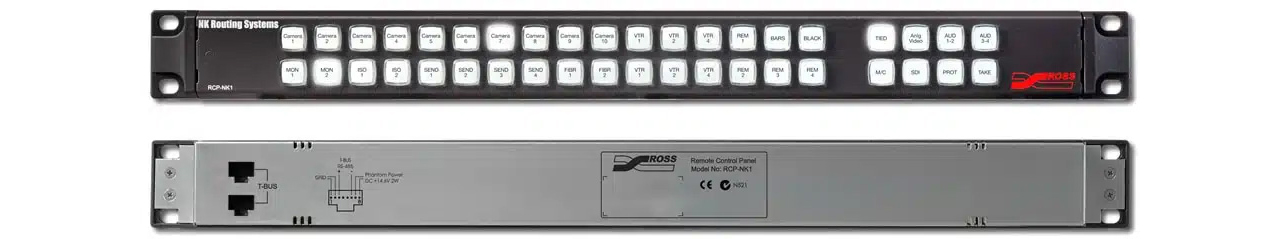

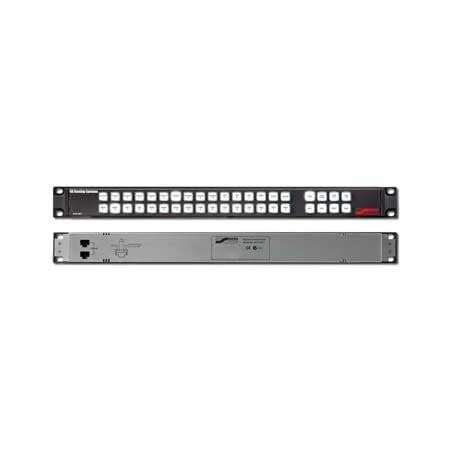

Ideally suited as a menu driven source / destination switching control panel for small routers or as a cut-bus or multi-cutbus control panel for any sized router, the RCP-NK1 features 40 soft, fully programmable backlit keys arranged in a 32 + 8 configuration for convenient function key layout.
Each button can be configured to operate as a source, destination, breakaway, level select or macro function. Additionally protect, take and panel lock functions can be programmed to any button. Using source and destination shift buttons, a single RCP-NK1 can access up to 48 sources or destinations.

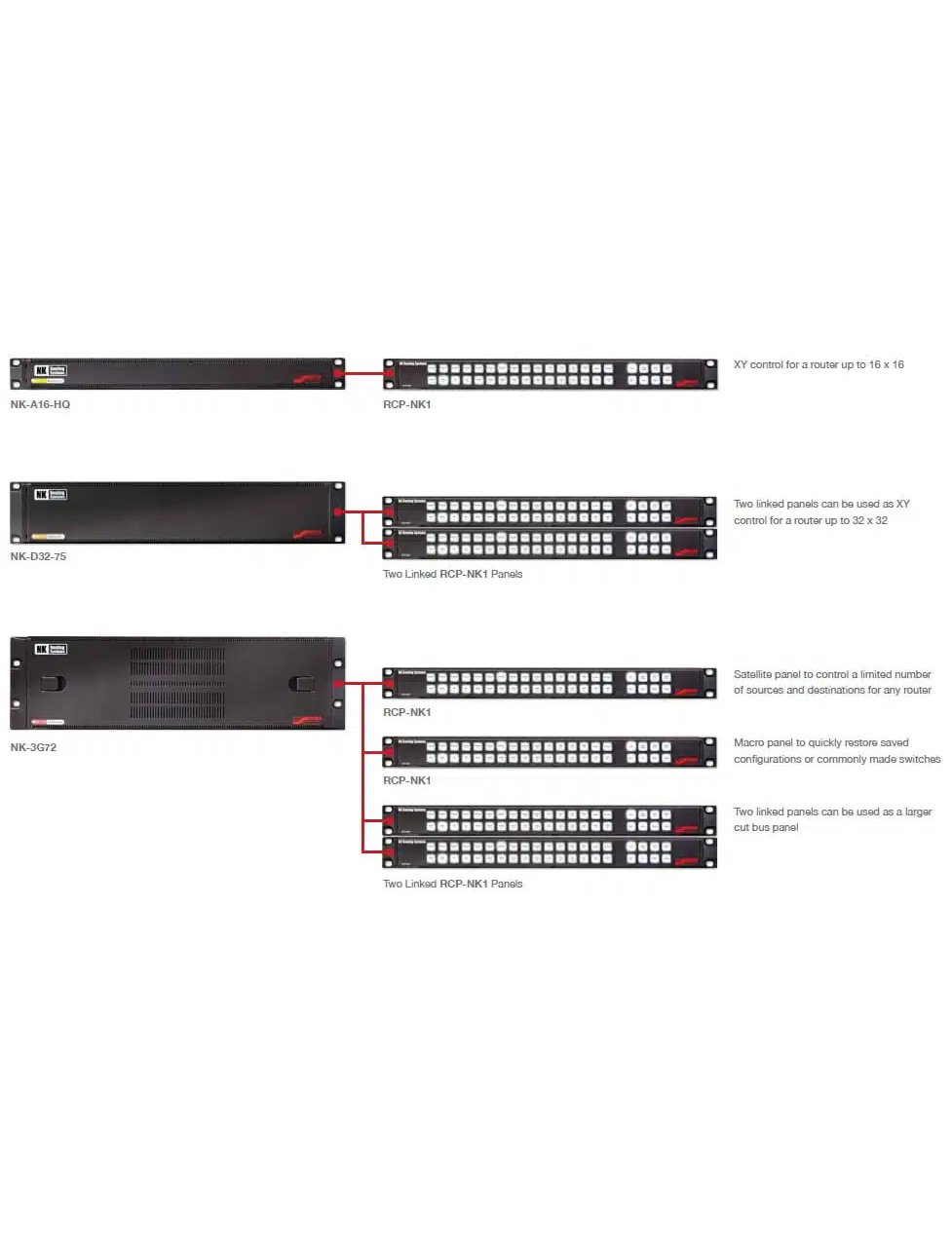

Multiple RCP-NK1's can be tied together to operate as a single, larger panel. By doing this, the tied RCP-NK1's can operate as a larger menu driven source / destination switching panel, or a larger cut bus panel with a single button per source access.
The variable backlight allows labels to be read in low light control room conditions, making this panel ideal for a wide range of environments.
