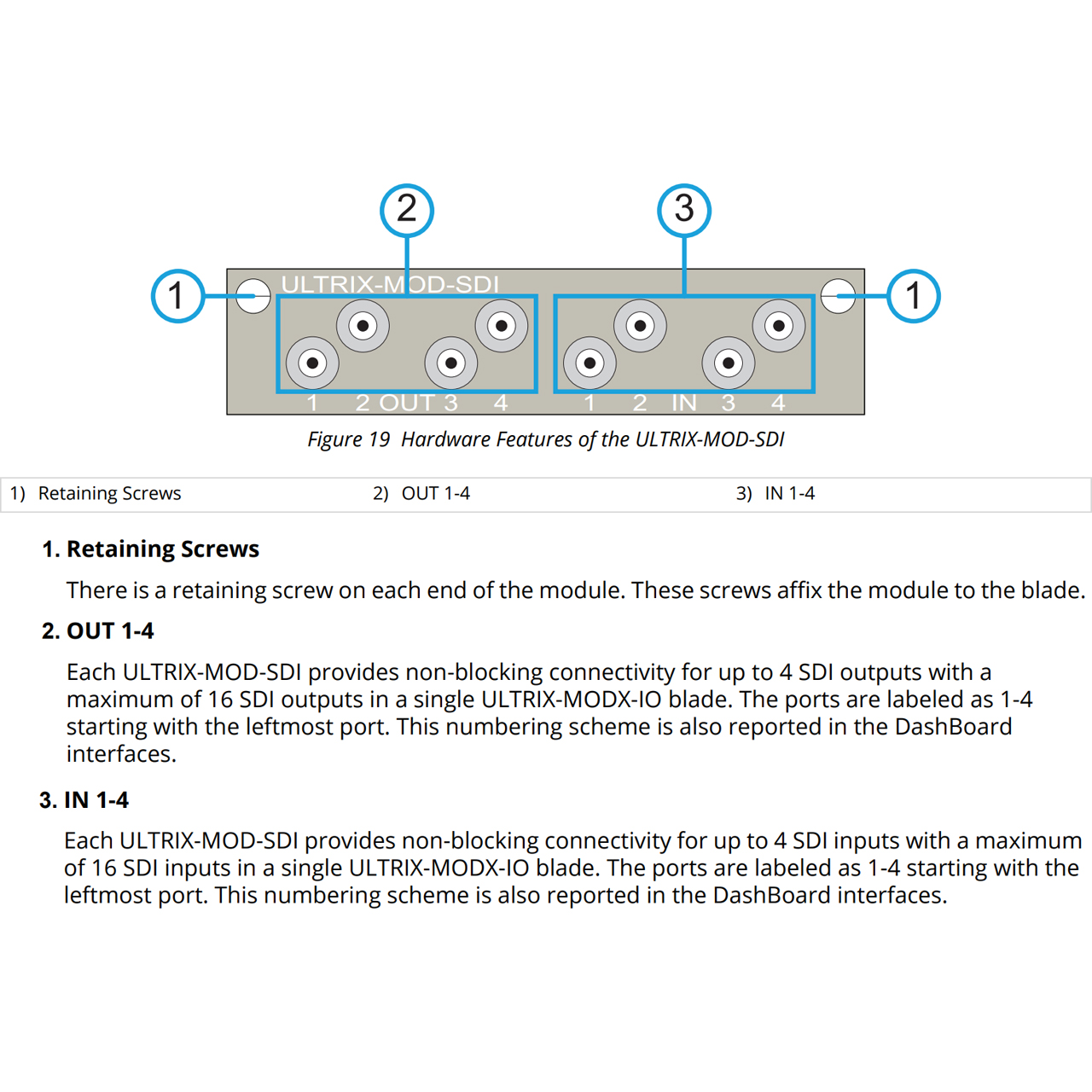

Each Ross ULTRIX-MOD-SDI provides 4 outputs and 4 inputs via HD-BNCs. The ports are labeled as 1-4 starting with the leftmost port. This numbering scheme is also reported in the DashBoard interfaces.
Out 1-4
Each ULTRIX-MOD-SDI provides non-blocking connectivity for up to 4 SDI outputs with a maximum of 16 SDI outputs in a single ULTRIX-MODX-IO blade. The ports are labeled as 1-4 starting with the leftmost port. This numbering scheme is also reported in the DashBoard interfaces.
In 1-4
Each ULTRIX-MOD-SDI provides non-blocking connectivity for up to 4 SDI inputs with a maximum of 16 SDI inputs in a single ULTRIX-MODX-IO blade. The ports are labeled as 1-4 starting with the leftmost port. This numbering scheme is also reported in the DashBoard interfaces.

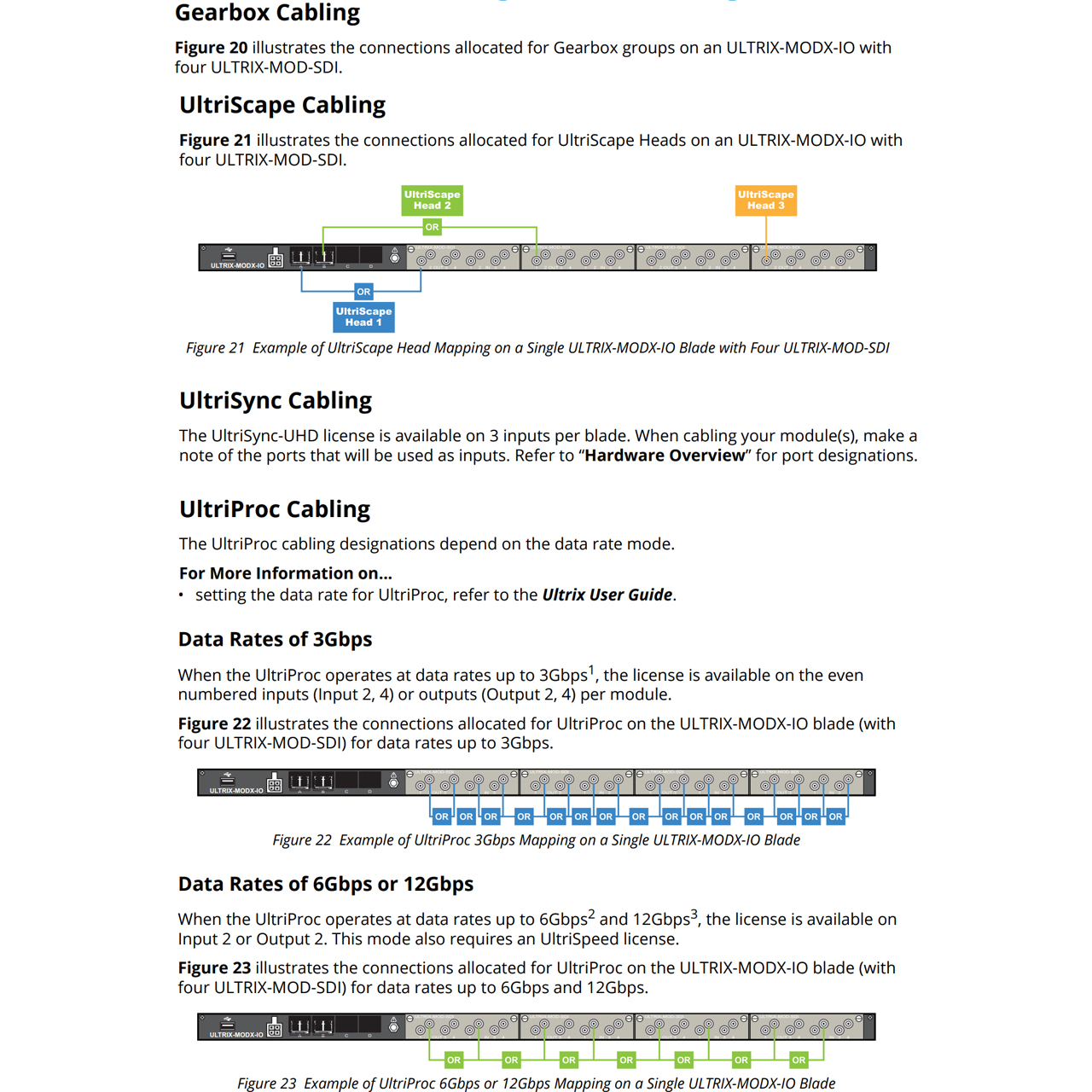

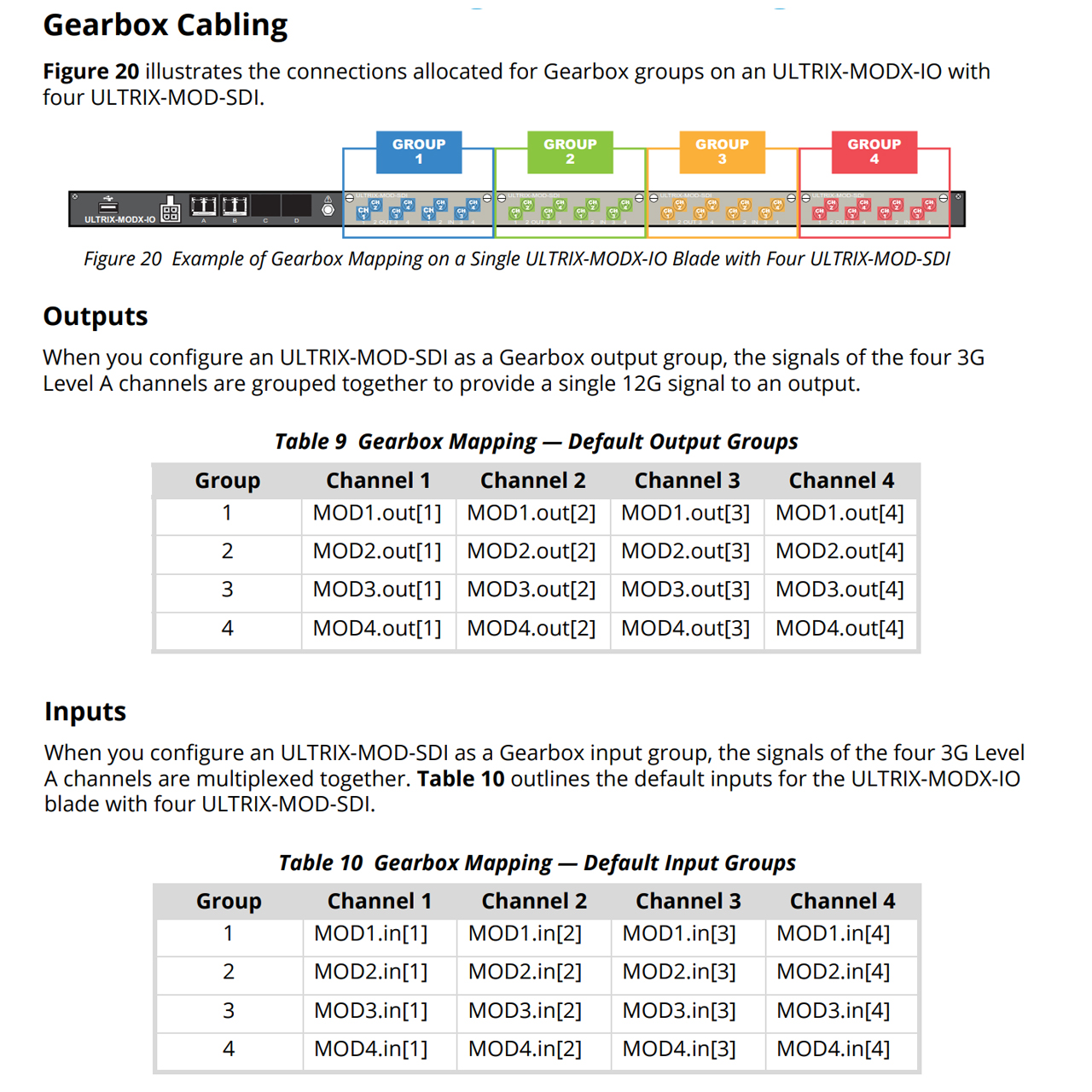

Outputs
When you configure an ULTRIX-MOD-SDI as a Gearbox output group, the signals of the four 3G Level A channels are grouped together to provide a single 12G signal to an output.
Inputs
When you configure an ULTRIX-MOD-SDI as a Gearbox input group, the signals of the four 3G Level A channels are multiplexed together.
