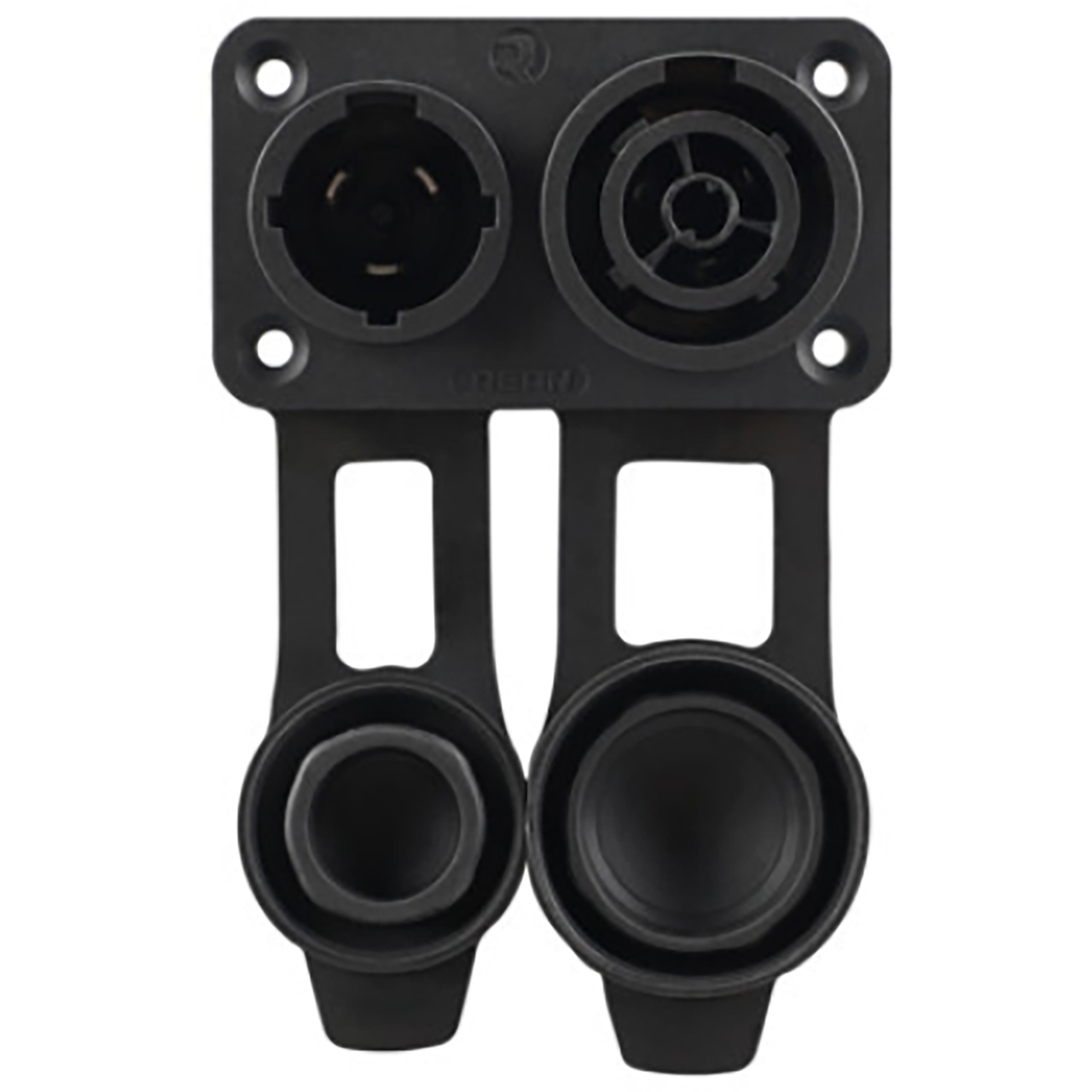

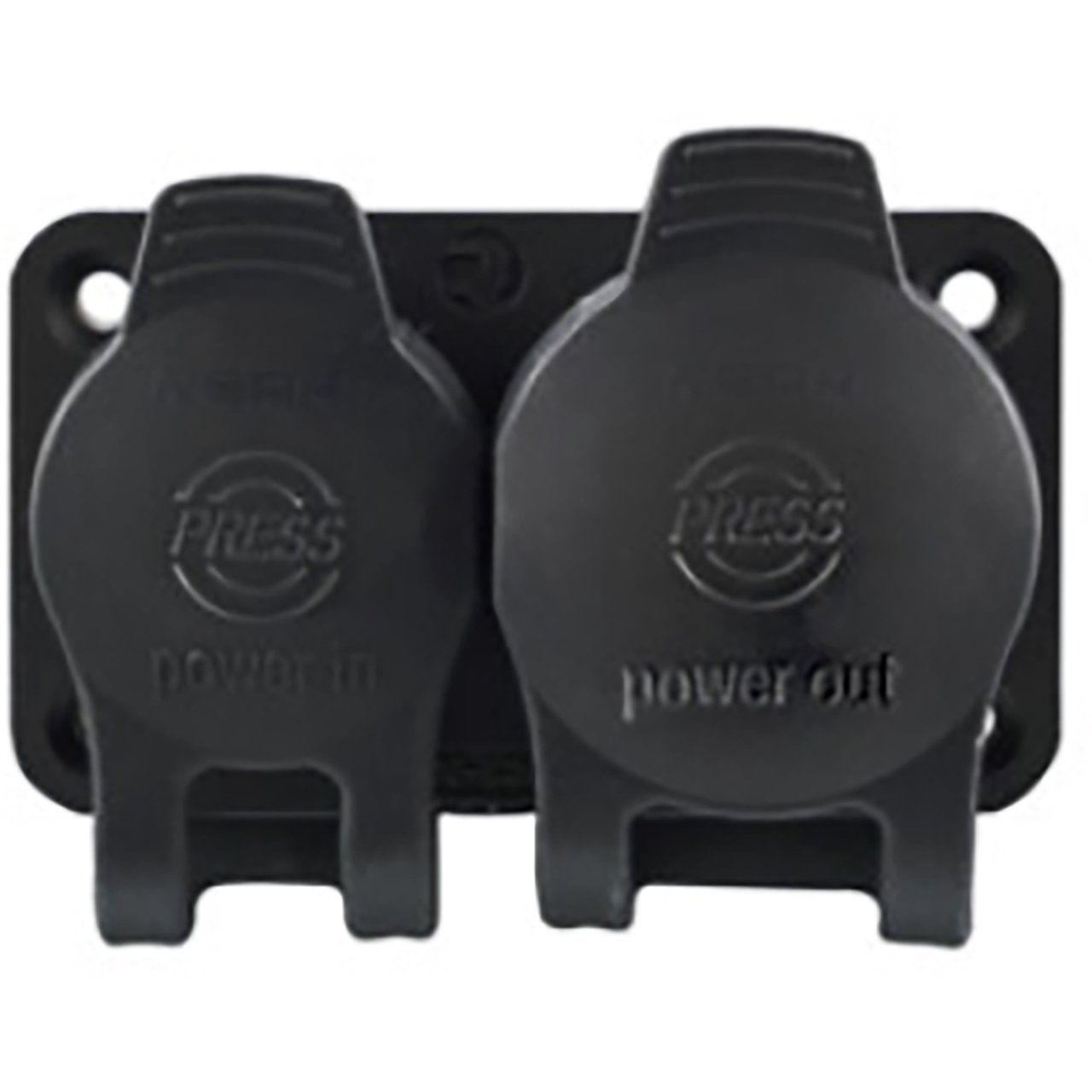

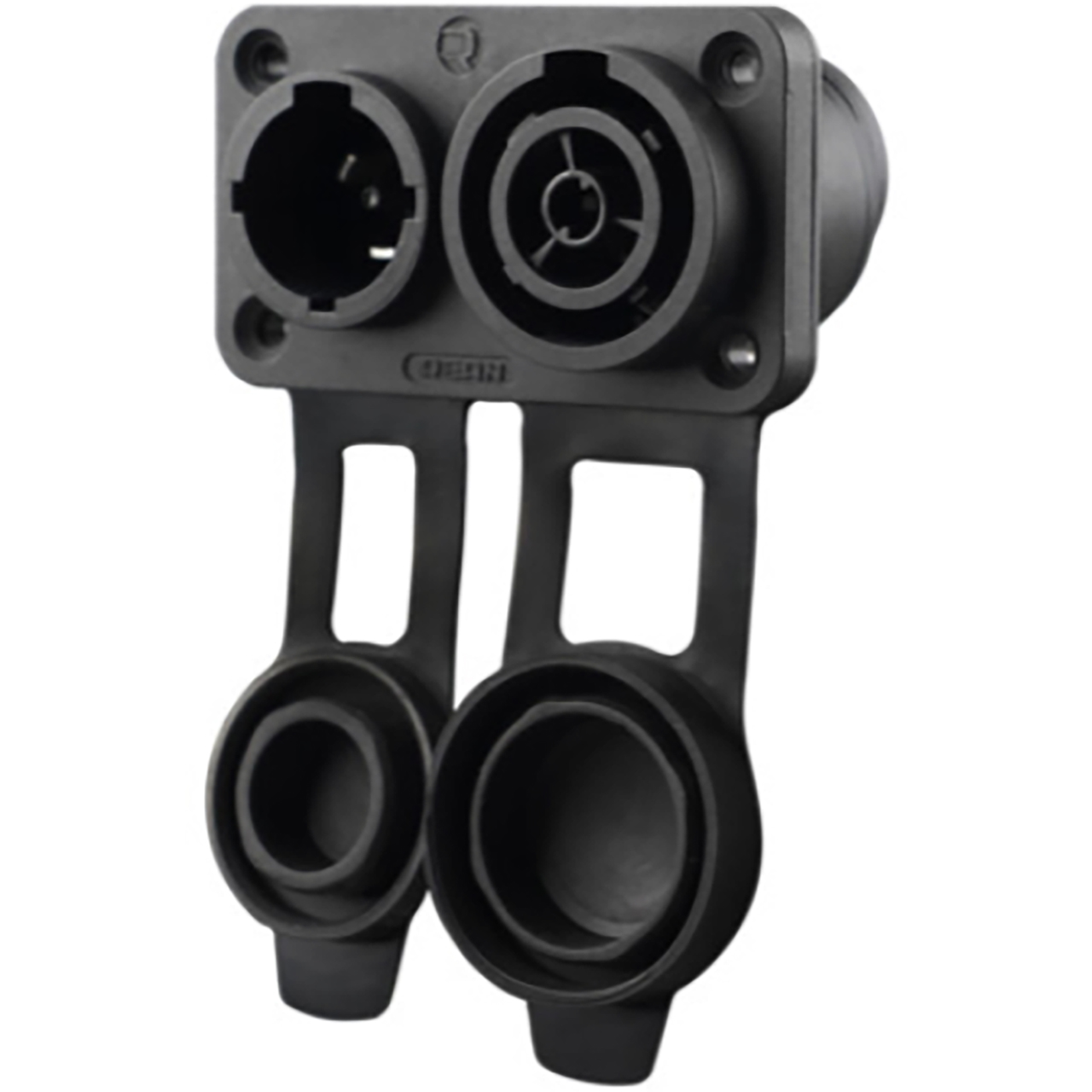

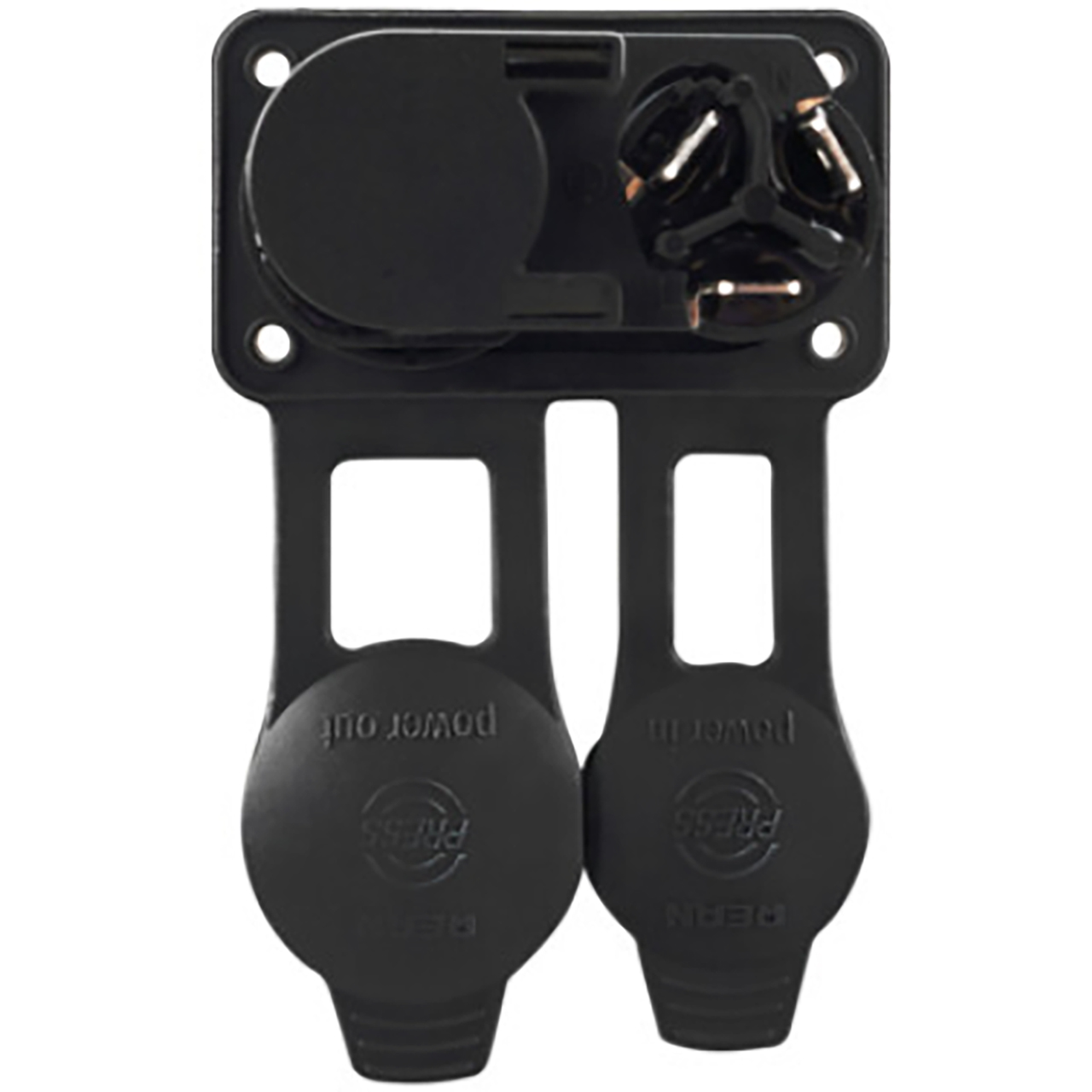

REAN RRAC3MF-X-010 Power X Series IP65 Duplex Male/Female Receptacle - Power In/Out - 1/4in Flat Tab Terminal - 100/Pack

RRAC3MF-X-010 - Overview

• Features:

  • IP65 protection by closing the cap or mating with RCAC3M-X-000 or RCAC3F-X-000
  • Airtight protectionM
  • ains connector with breaking capacity (CBC)
  • IEC/EN60320-1 compliant VDE certification
  • UL60320-1 compliant UL certification
  • IP67 protection to prevent water intrusion into the device interior


• Specifications:

  Electrical
  • Number of Contacts: 2 + PE
  • Contact Resistance: ≤ 2mΩ
  • Dielectric Strength: 4kV DC/2.8kV AC
  • Insulation Resistance (after dampheat): > 1GΩ
  • Rating Europe: EN 60320-1: 16A 250V AC
  • Rating USA: UL 60320-1: 20A 250V AC

    Mechanical
  • Retention Method: Twist lock
  • Lifetime: > 5000 mating cyclesÿ
  • Wiring: Flat tabs 6.35mm x 0.8mm

    Material
  • Shell: Polyamide
  • Contacts: Copper alloy
  • Contact Plating: Ag
  • Locking Element: Stainless steel

    Environmental
  • Flammability: UL94 V-0
  • Protection Class: IP65 and Airtight
  • Temperature Range: -22°F - 176°F (-30°C - 80°C)


• Item Includes:

  • 1x REAN RRAC3MF-X-010 Power X Series IP65 Duplex Male/Female Receptacle - Power In/Out - 1/4in Flat Tab Terminal - 100/Pack
