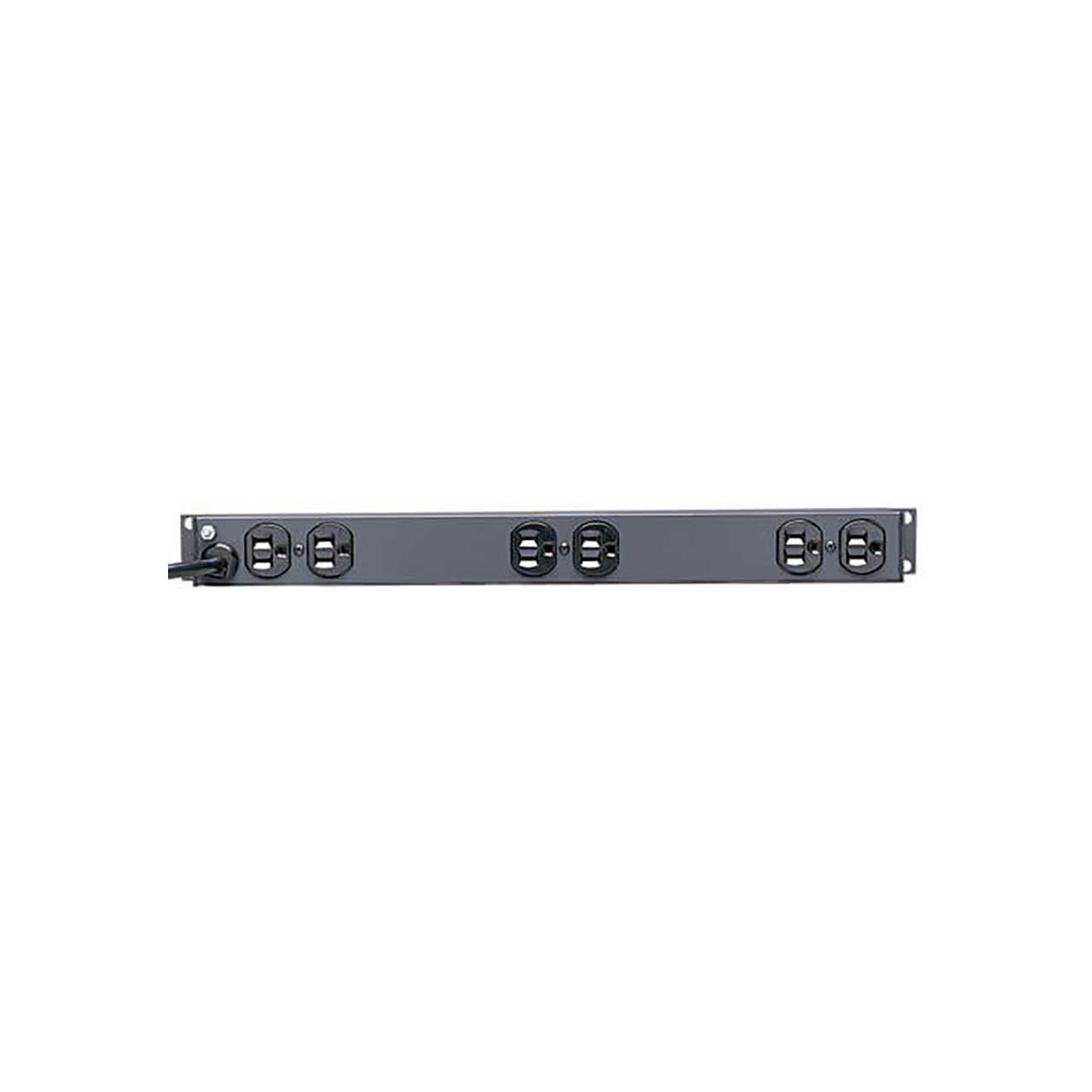

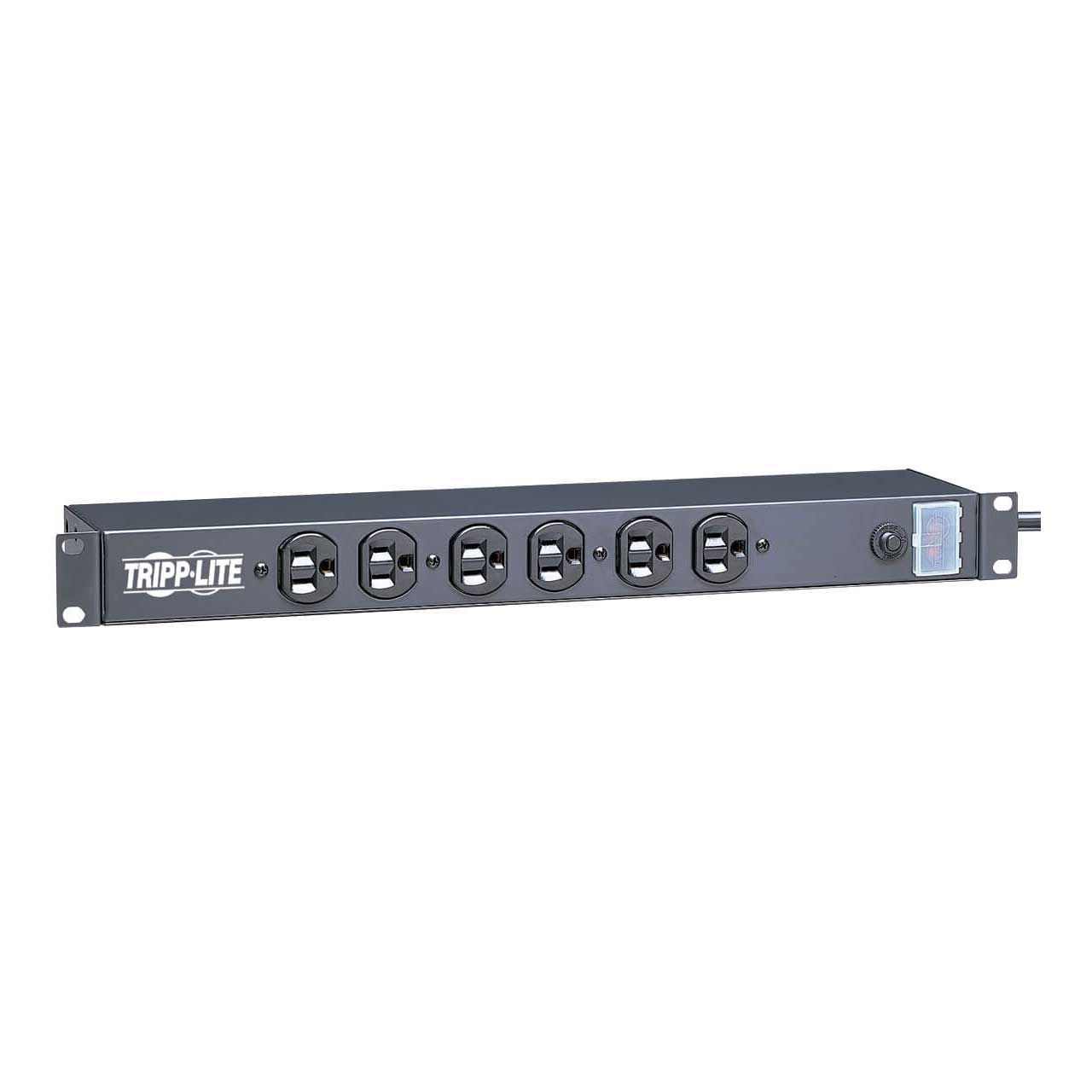

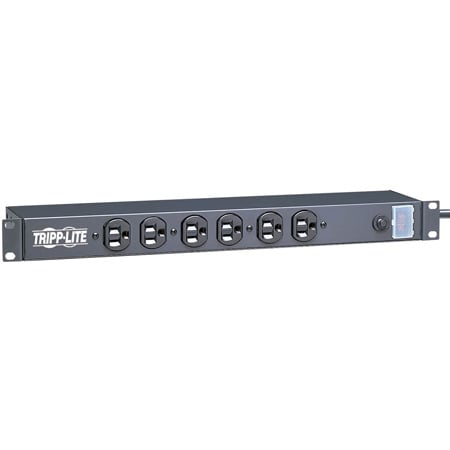

Tripp Lite RS-1215 12 Outlet Rackmount Power Strip

RS-1215 - Overview

• Features:

  • Versatile all-metal cabinet with detachable mounting flanges allows rackmount, wallmount, under-counter and other creative mounting options
  • Uses one rack space (1U) in standard 19 inch rack ("zero U" mounting possible in many racks)
  • Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment
  • 12 NEMA5-15R output receptacles (6 front/6 rear)
  • 15 foot AC cord NEMA5-15P plug connection
  • Lighted power switch confirms power on/off status
  • Snap-in switch guard prevents accidental turn off
  • 15 amp electrical capacity with circuit breaker
  • 120V AC, 50/60Hz electrical compatibility


• Specifications:

  • Output
  • Frequency compatibility: 50 / 60 Hz
  • Circuit Breaker (amps): 15
  • Outlet quantity / type: 12 NEMA 5-15R
  • Outlet orientation: 6 front facing / 6 rear facing

    Input
  • Recommended Electrical Service: 15A 120V
  • Input connection type: NEMA 5-15P
  • Input cord length (ft.): 15
  • Input cord length (m): 4.572
  • Voltage compatibility (VAC): 120

    LEDs Alarms & Switches
  • Switches: Red illuminated 2 positon switch controls power to all outlets
  • Locking switch cover: Transparent locking switch cover prevents accidental shutoff

    Physical
  • Unit Dimensions (HWD/in): 1.75 (1U) x 17.5 x 4.5
  • Unit Dimensions (HWD/cm): 4.445 x 44.45 x 11.4
  • Unit weight (lbs): 4.6
  • Material of construction: Sheet metal
  • Receptacle Color: Black
  • AC line cord color: Black
  • Form factors supported: 1U rackmount, wall-mount and under-counter installation supported

    Special Features
  • TVSS grounding: Back panel nut and bolt grounding lug

    Certifications
  • UL1363 (Power Tap): UL1363 (UR status)
  • cUL / CSA (Canada): cUL

    Warranty
  • Product Warranty Period (U.S., Canada & Puerto Rico): Lifetime limited warranty


• Item Includes:

  • RS-1215
  • Mounting hardware
  • Instruction manual


• Applications:

  • Offers multiple outlet power distribution for multiple loads in 19 inch rackmount, wallmount and under-counter applications, such as internet working, PC systems, telecommunications, audio/video, security, sound reinforcement and more. Ideal for distribution of UPS, generator or commercially derived AC power to protected equipment.


• GTIN:

  0037332011534
