RTS BP6000 2-Channel Universal Beltpack with 4-pin Male XLR Headset Connector

ITEM #: RTS-BP6000-A4M MFG #: BP6000-A4M

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$505.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


BP6000-A4M - Overview

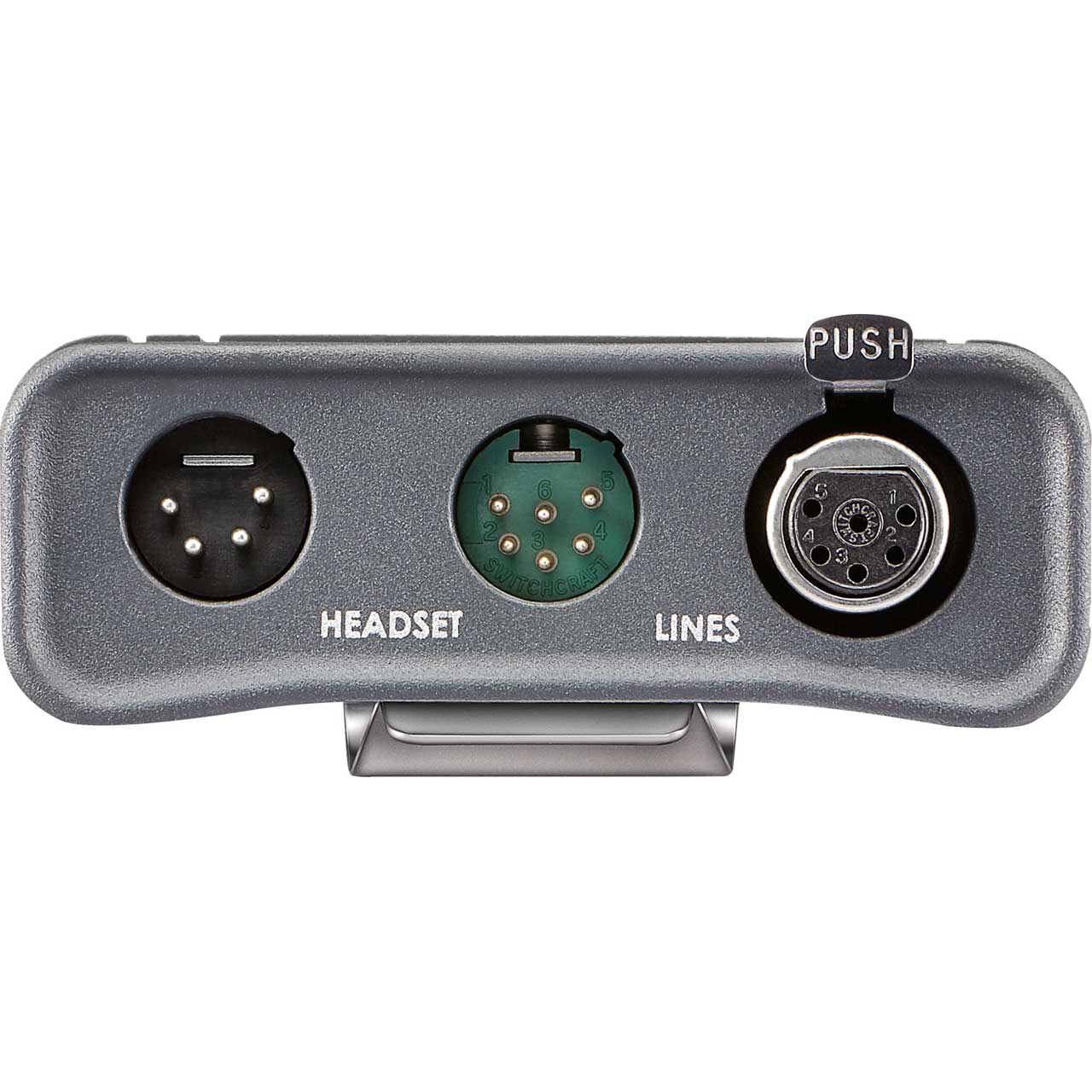

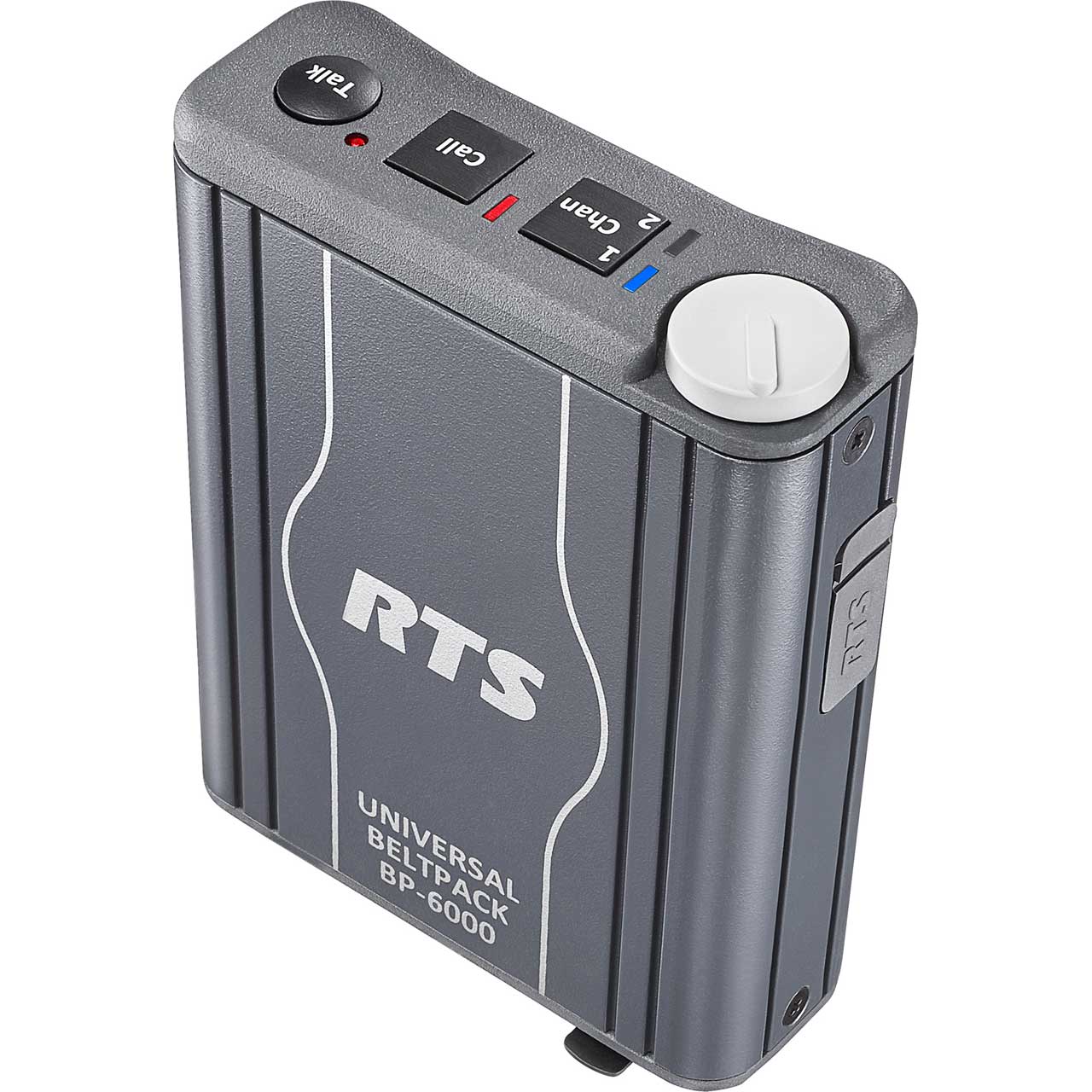

The BP-6000-A4M is a portable user station compatible with Audiocom and Clear-Com party line systems. The BP-6000 is a 2-channel beltpack equipped with a mode-sensing system configuration, meaning the beltpack determines what type of system it is installed into and configures itself according to the system. The BP-6000 has a 4-pin male XLR connector with auto-sensing headset inputs. Dynamic and electret headset microphones are supported. The loop and line connection both use 6-pin Switchcraft connectors. Multiple programming options are available. To simplify programming, voice prompts guide the user through the menus.

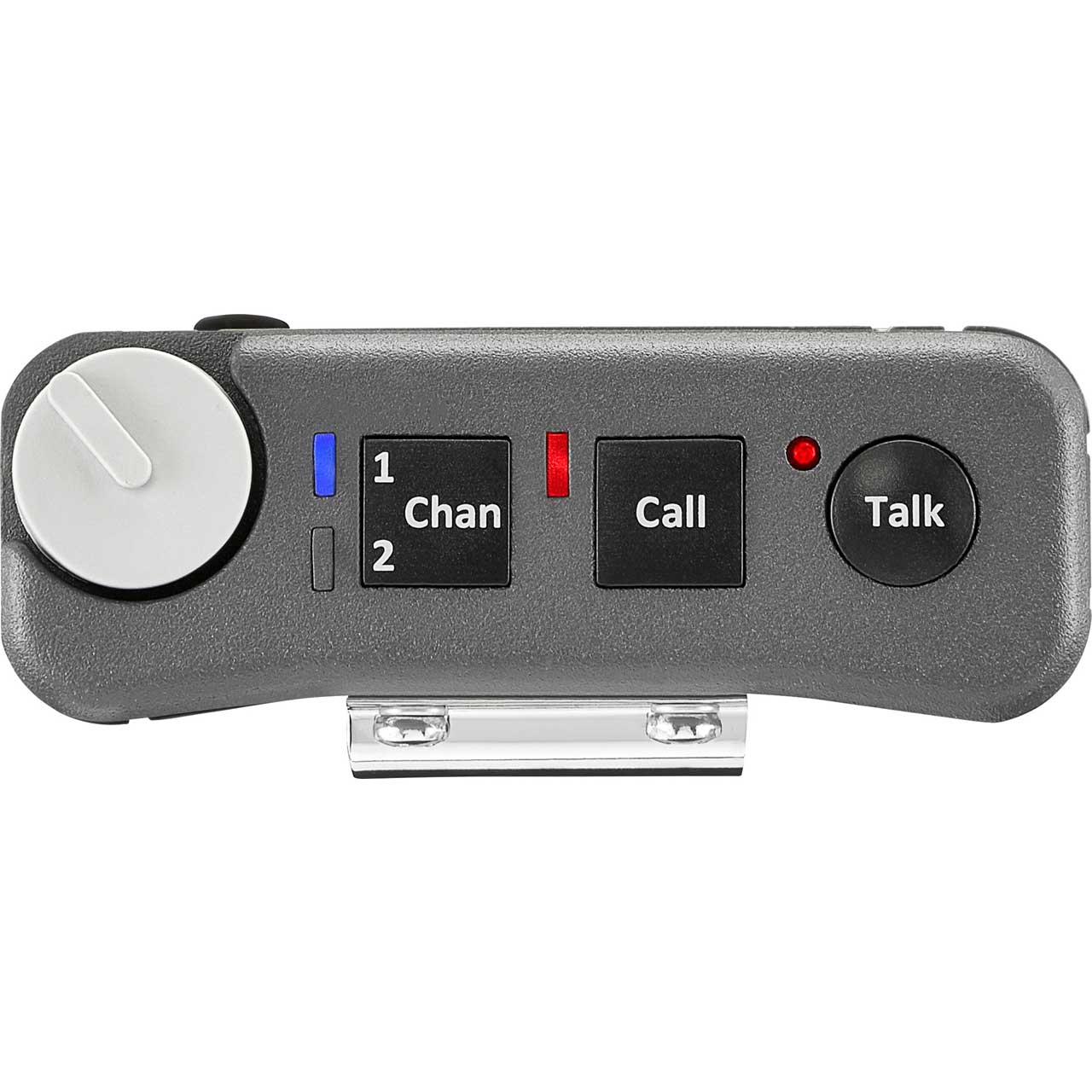

  • Features:

    • Voice prompts for simplified configuration
    • Remote Mic Kill turns off all active microphones, reducing background noise.
    • Programmable TALK Button, (Always) On, (Always) Off, Switched, or Momentary.
    • Mode-sensing System Configuration
    • Updated design for modern, sleek appearance
    • Reduced current draw allows for more beltpacks being powered by the power supply
    • Auto-sensing headset inputs, electret or dynamic
    • Uses a 6-pin Switchcraft connectors for line and loop connections.

  • Specifications:

    • Power Requirements:
    • Max. Operating Current (unbalanced): 50mA
    • Max. Operating Current (balanced): 55mA
    • Channel Supplied: 18 - 33V DC
    • Local Power: 18 - 33V DC

      Environmental
    • Operating Temperature: 32°F - 131°F
    • Operating Humidity: 5% - 95%, non-condensing
    • Storage Temperature: -4°F - 158°F
    • Storage Humidity: 15% - 90%, non-condensing

      Interface Requirements
    • Headset: 50 - 200Ω (dynamic); 1k - 13kΩ (electret)
    • Microphone Output Adjustable: max. 15dB (3dB per level)
    • Headphones: 50 - 600Ω

      Balanced Intercom Channel
    • Output Level: 0.0dBu nominal
    • Frequency Response: 200Hz - 8kHz
    • Noise Contribution: ≤60dBu
    • Total Harmonic Distortion: <1.0%

      Terminating Impedance
    • Balanced: 300Ω
    • Bridging Impedance: >10kΩ

      Call Signaling
    • Send: 20kHz
    • Receive: 20kHz

      Mic Off Frequency
    • Send: 24kHz
    • Receive: 24kHz

      Unbalanced Intercom Channel
    • Output Level: 0dBu nominal
    • Frequency Response: 200Hz - 8kHz
    • Terminating Impedance: 200Ω
    • Noise Contribution: ≤60dBu
    • Total Harmonic Distortion: <1.0%

      Call Signaling
    • Send: DC only
    • Receive: DC only
    • Total Harmonic Distortion: <1.0%

      Headphone Amplifier
    • Maximum Output: >140mW into 150Ω load
    • Frequency Response: 200Hz - 8kHz ±3dB
    • Audible Alert: 1kHz
    • Total Harmonic Distortion: <1.0%
    • Sidetone: >13dB dynamic adjustment range

      Bridging Impedance Unbalanced: >10kΩ
    • Crosstalk: ≤60dB

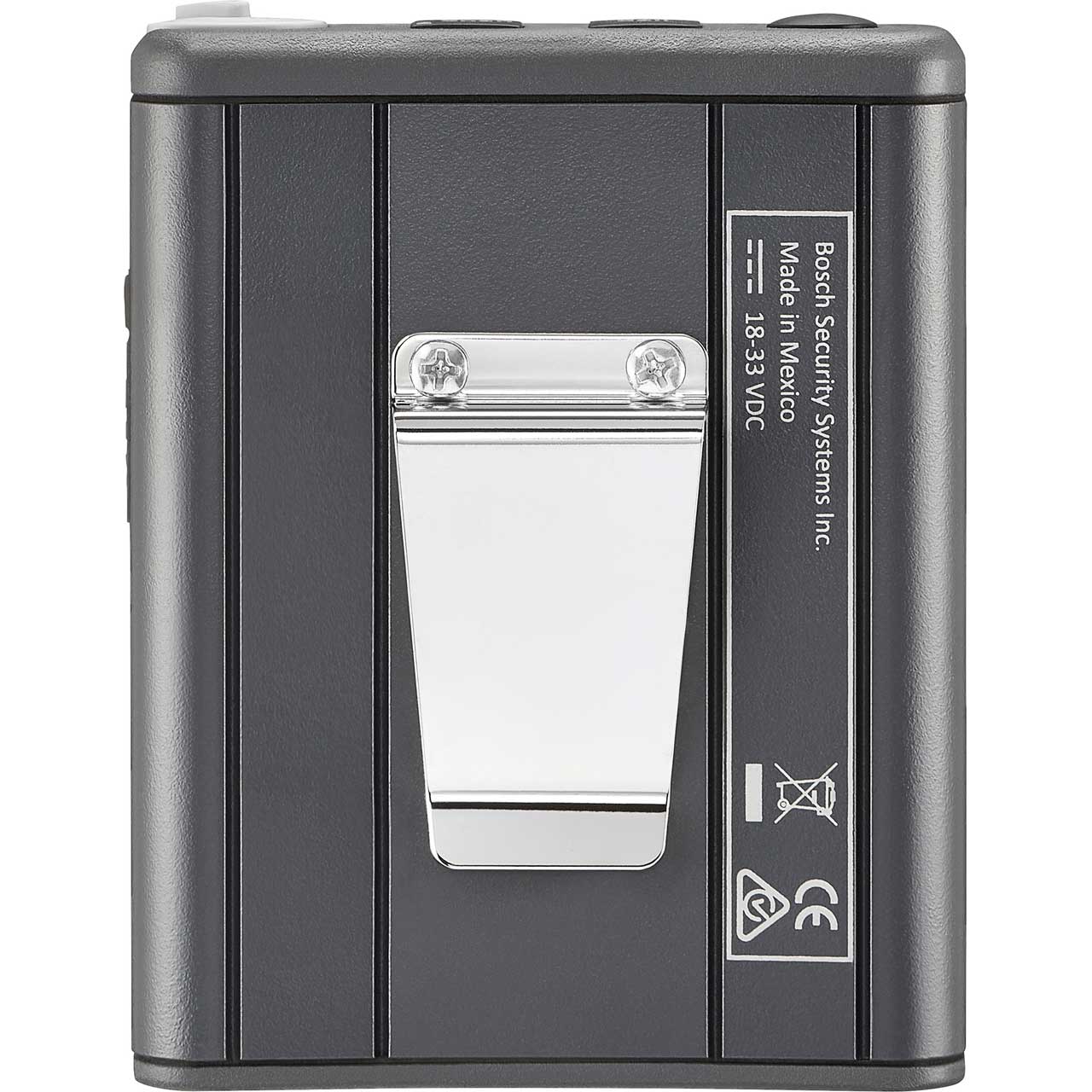

    • Dimensions: 3.75" W x 1.35" D (1.55" D w/beltclip) x 4.69" H (4.79" H w/top panel button)
    • Weight: 0.813lbs

  • GTIN:

    0800549831796
