RTS KP-4016PB Push Button Intercom Key Panel with A5F Connector

ITEM #: RTS-KP4016PB5F MFG #: KP-4016PB

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    KP-4016PB - Overview

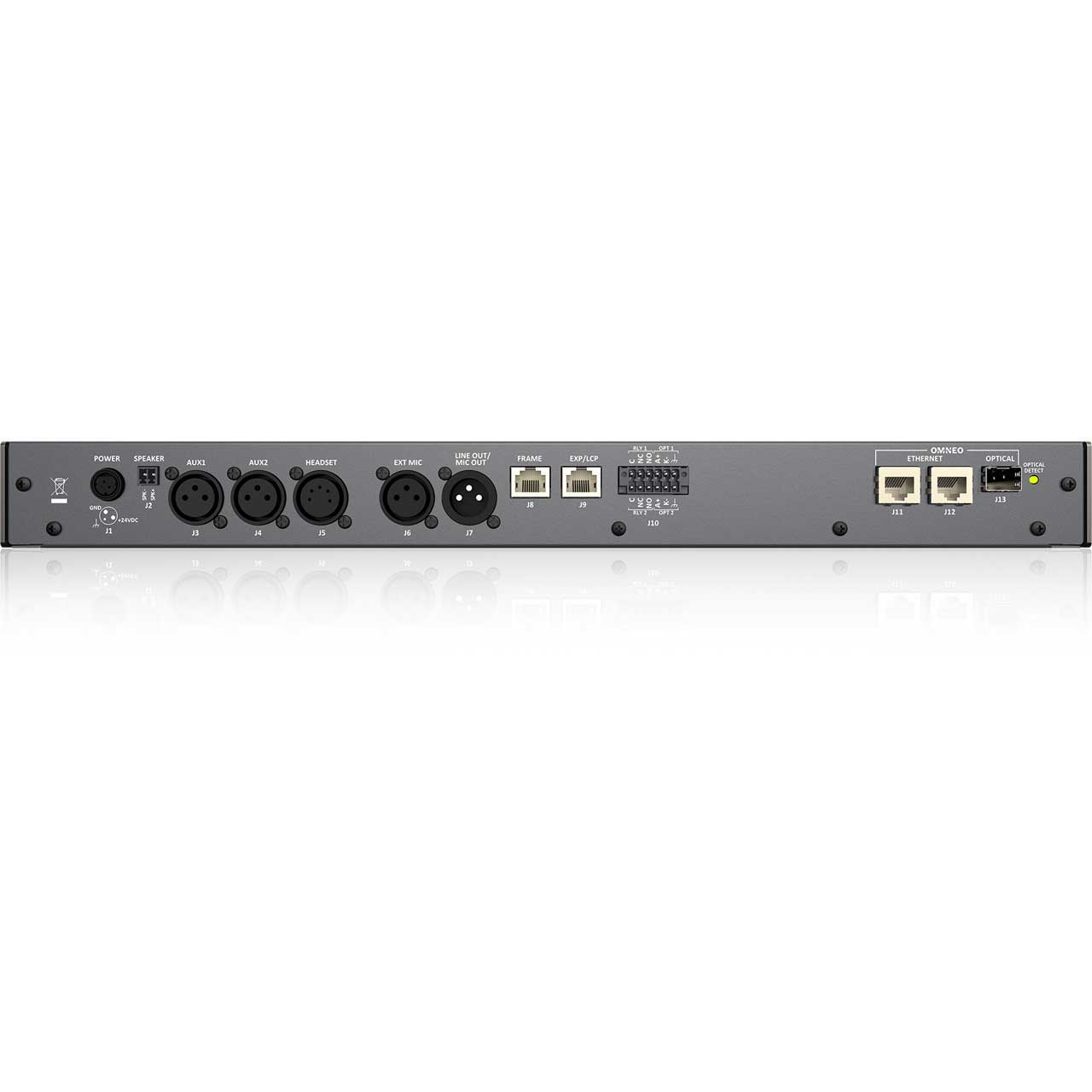

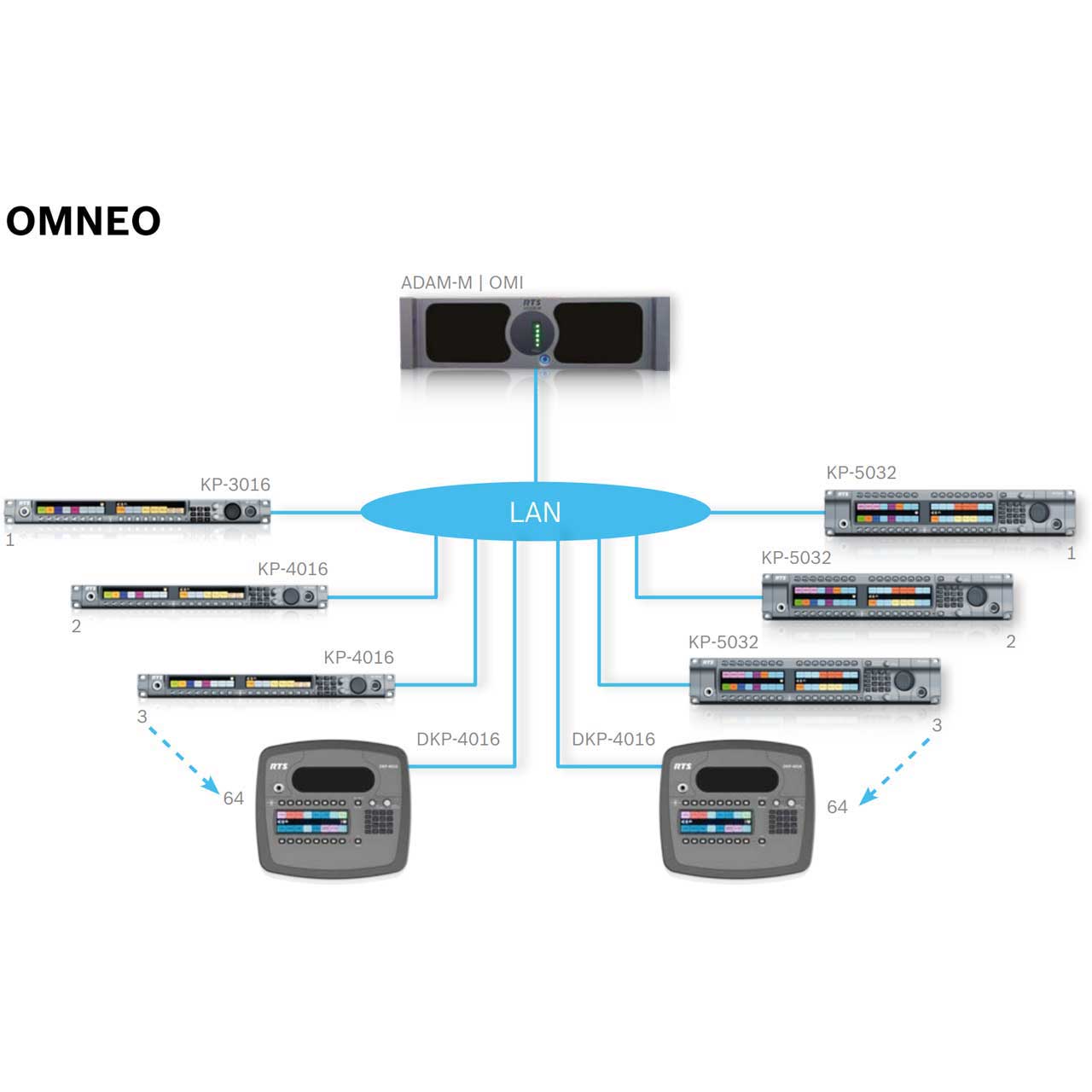

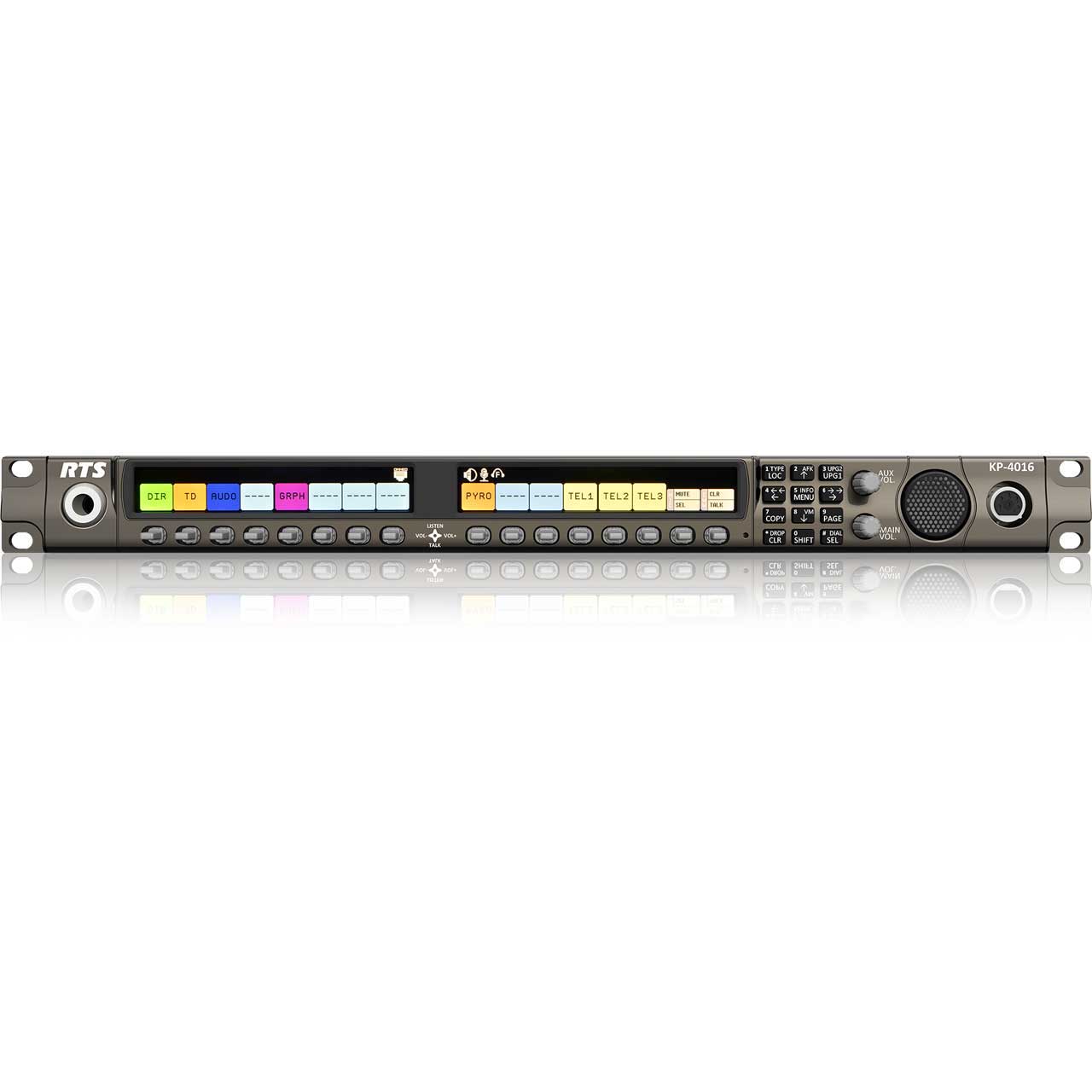

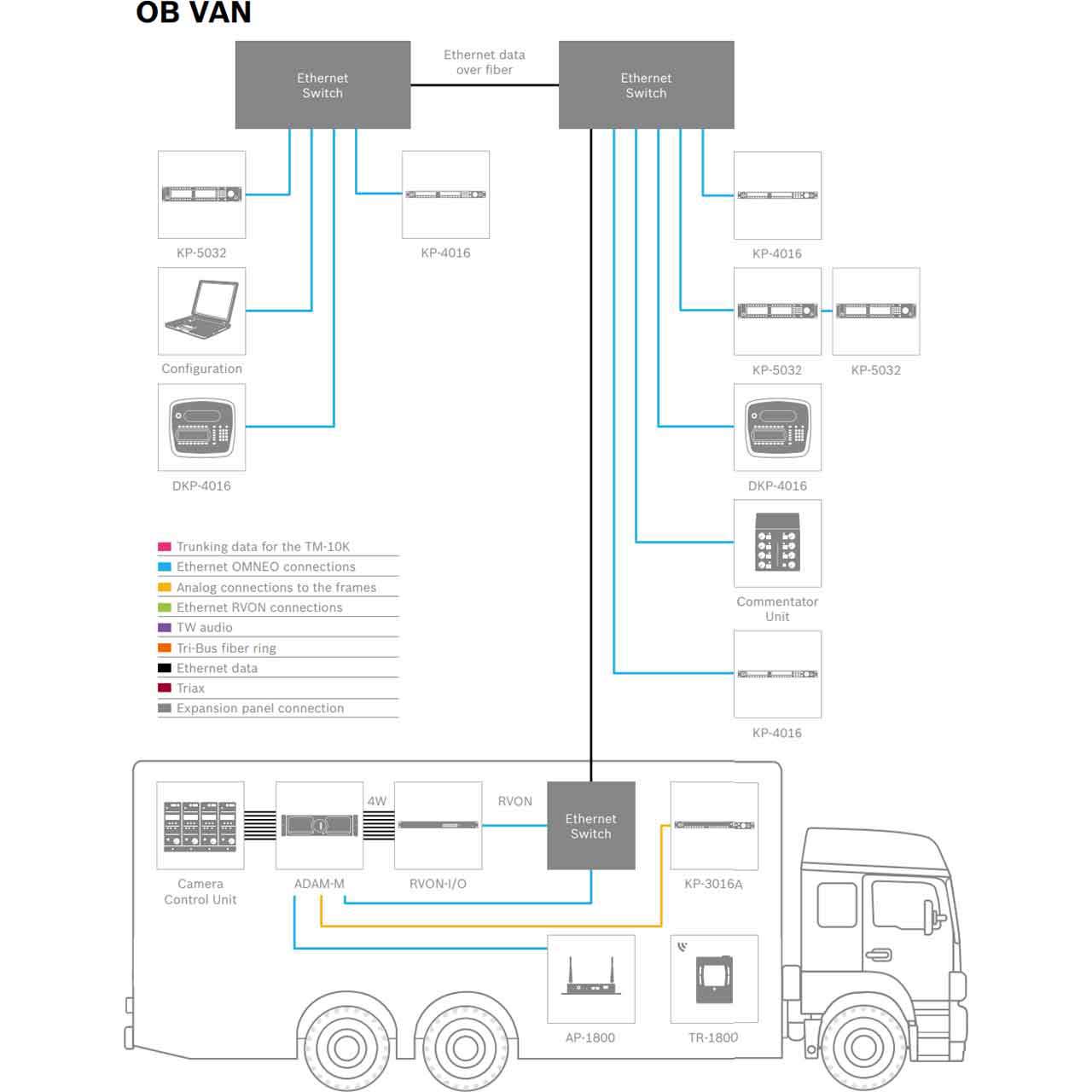

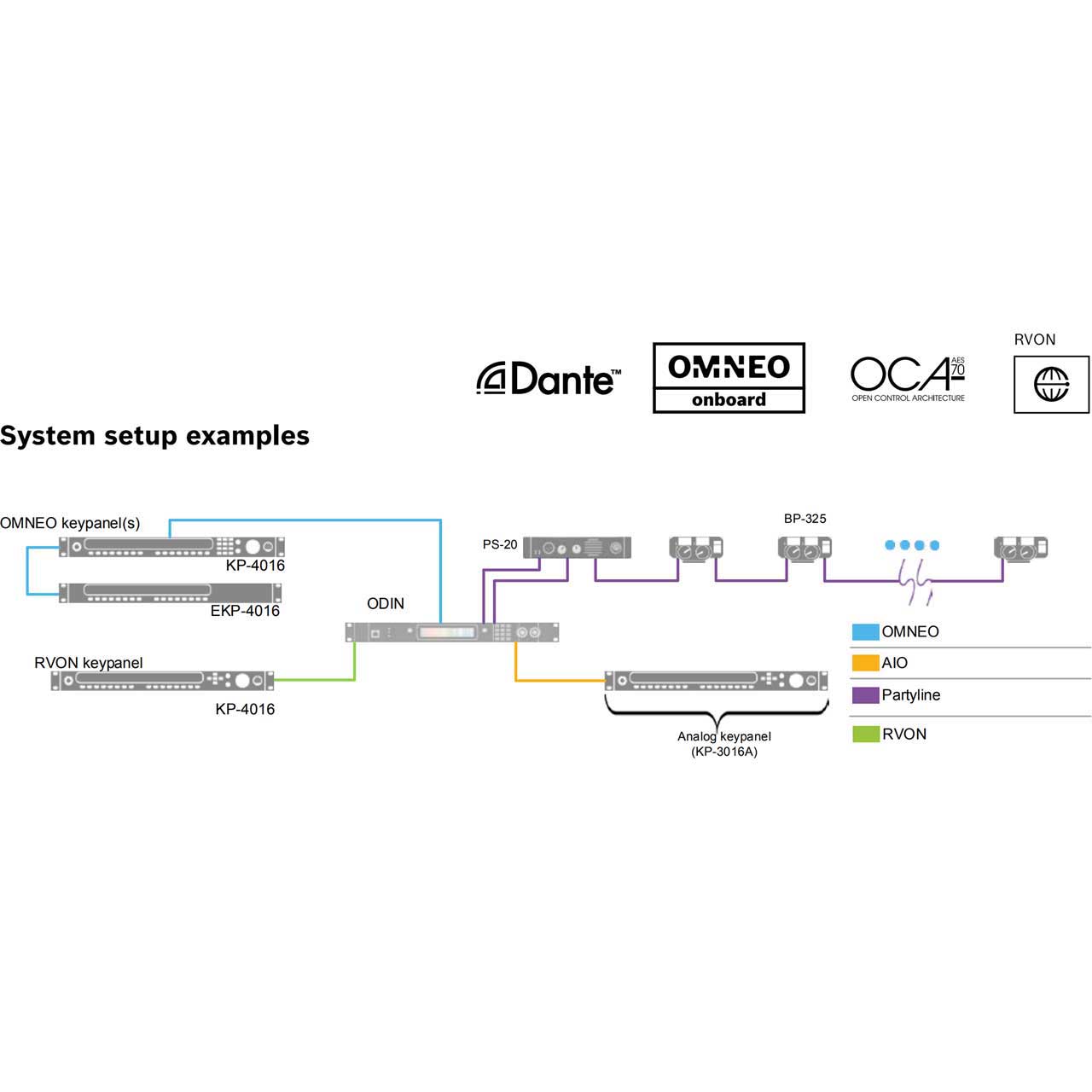

    The RTS KP-4016 keypanel delivers superior high-quality digital audio using the Bosch-branded OMNEO technology with Dante™ by Audinate audio over IP via either copper or fiber. The KP-4016 delivers top-notch audio, free of noise, delay, and other artifacts present in older technology. This family of keypanels includes a rich set of connectors as standard, including GPIO and RC. As with other RTS products, emphasis has been placed on backward compatibility with previous generations of matrices including analog technology.

    The keypanel models utilize the latest generation of wide angle TFT displays providing superior clarity, resolution, and longer display life, delivering high-quality readability under a variety of lighting conditions.

    • Features:

      • Backward compatible with older technologies such as analog audio in USOC and 568-B connector formats
      • All previous options hardware connectors (RC, GPI, and ancillary items) are now standard
      • New wide-angle high-definition display
      • Enhanced navigation menus optimized for ease of use
      • Front panel headset connector is field-swappable, making it simple to change the default 5-pin XLR (6-pin compatible) headset connector with a 4-pin XLR headset connector, as needed
      • OMNEO Open Media Networking Standard
      • Full IP Connectivity and TCP-IP Layer 2 & 3 Compatibility
      • Advanced Signal Processing and AD/DA
      • User-Friendly, High-Res Color Display
      • Backward compatibility
      • Enhanced navigation menus
      • Front panel headset connector

    • Specifications:

      • LCD Display
      • Active Area: 120.10mm (wide) x 18.77mm (high)
      • Dot Resolution: 576 x 90 pixels
      • Color Resolution: 16-bit (64K)RGB color
      • View Angle: 80 degrees (typical; all directions)

        Power Supply
      • Type: External DC
      • AC Input: 100-240VAC 50/60Hz

        General Purpose Inputs and Outputs
      • Outputs Type (relays): SPDT, Contact Rating: 1AMP @ 30VDC
      • Inputs: Optically Coupled
      • Input Voltage: 5-18 VDC on A+ * A+ is internally pulled to 5VDC. Connect K- to to activate.

        Inputs
        Matrix:
      • Type: Balanced
      • Typical Input Level: +8dBu
      • Typical Input Impedance: >10kO
      • Maximum Input Level: +20dBu
      • Supported Bandwidth: 100Hz to 20KHz
        Aux 1 and Aux 2:
      • Type: Balanced
      • Typical Input Level: +8dBu
      • Typical Input Impedance: >10 k O
        Front Panel Mic:
      • Type: Electret
      • Typical Input Level: -42dBu
      • Typical Input Impedance: 1kO
      • Maximum Input Level: -25dBu
        Rear Panel Mic:
      • Type: Electret
      • Typical Input Level: -42dBu
      • Typical Input Impedance: 1kΩ
      • Maximum Input Level: -25dBu
        Front and Rear Headset Mic - Electret:
      • Typical Input Level: -42dBu
      • Typical Input Impedance: 1kΩ
      • Maximum Input Level: -25dBu
        Front and Rear Headset Mic - Dynamic:
      • Typical Input Level: -50dBu
      • Typical Input Impedance: 600Ω
      • Maximum Input Level: -25dBu

        Outputs
        Matrix:
      • Type: Balanced
      • Typical Output Level: +8dBu
      • THD+N%: <0.20%
      • Typical Output Impedance: 600Ω
      • Maximum Output Level: +20dBu
      • Frequency Response: 100Hz to 20KHz
        MIC/LINE Out:
      • Type: Balanced
      • Typical Output Level: +8dBu
      • THD+N%: <0.20%
      • Typical Output Impedance: 600Ω
      • Maximum Output Level: +20dBu
      • Frequency Response: 100Hz to 20KHz
        Headset - Front, Rear, Left, Right:
      • Output Power: 125mW for 32Ω load
      • Earphone Impedance: 16Ω and above
      • THD+N%: <0.20%
      • Frequency Response: 100Hz to 20KHz
        Speaker - Rear:
      • Maximum Output Power: 5W for 8Ω load
      • Speaker Impedance: 4Ω and 8Ω
      • THD+N%: <0.20%
      • Frequency Response: 100Hz to 20KHz
        Speaker - Front:
      • Front: 84dBSPL for 1kHz sine wave @ 1 meter

        Digital
      • OMNEO Channels
      • Typical OMNEO Latency: 1ms
      • Frequency Response: 20Hz - 20KHz

        Environmental
      • Dimensions: 17.39" W(without rack ears) x 1.72" H x 3.88" D
      • Weight KP-4016: 3.5lb (1.58kg)
      • Power Supply: 0.53lb (.24kg)
      • Mounting Bracket: 0.30lbs (.14kg)
      • Operating: 32°F to 131°F
      • Storage: -4°F to 158°F

        Power Consumption
      • Nominal: 12 Watts
      • Maximum: 15 Watts
      • Maximum Volt Amp: 48 VA

        Certification
      • CE Compliance
      • UL Certified

    • Item Includes:

      • 1x RTS KP-4016PB Push Button Intercom Key Panel with A5F Connector


    KP-4016PB - Required Accessories
