RTS TR-800-E88R5 Belt Pack RTS - A5F Headset Jack - E88 BAND

ITEM #: RTS-TR-800-E88R5 MFG #: TR-800-E88R5

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
RTS Intercoms
Free Shipping with $49 Minimum Order

Our Price:

$2,093.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

TR-800-E88R5 - Overview

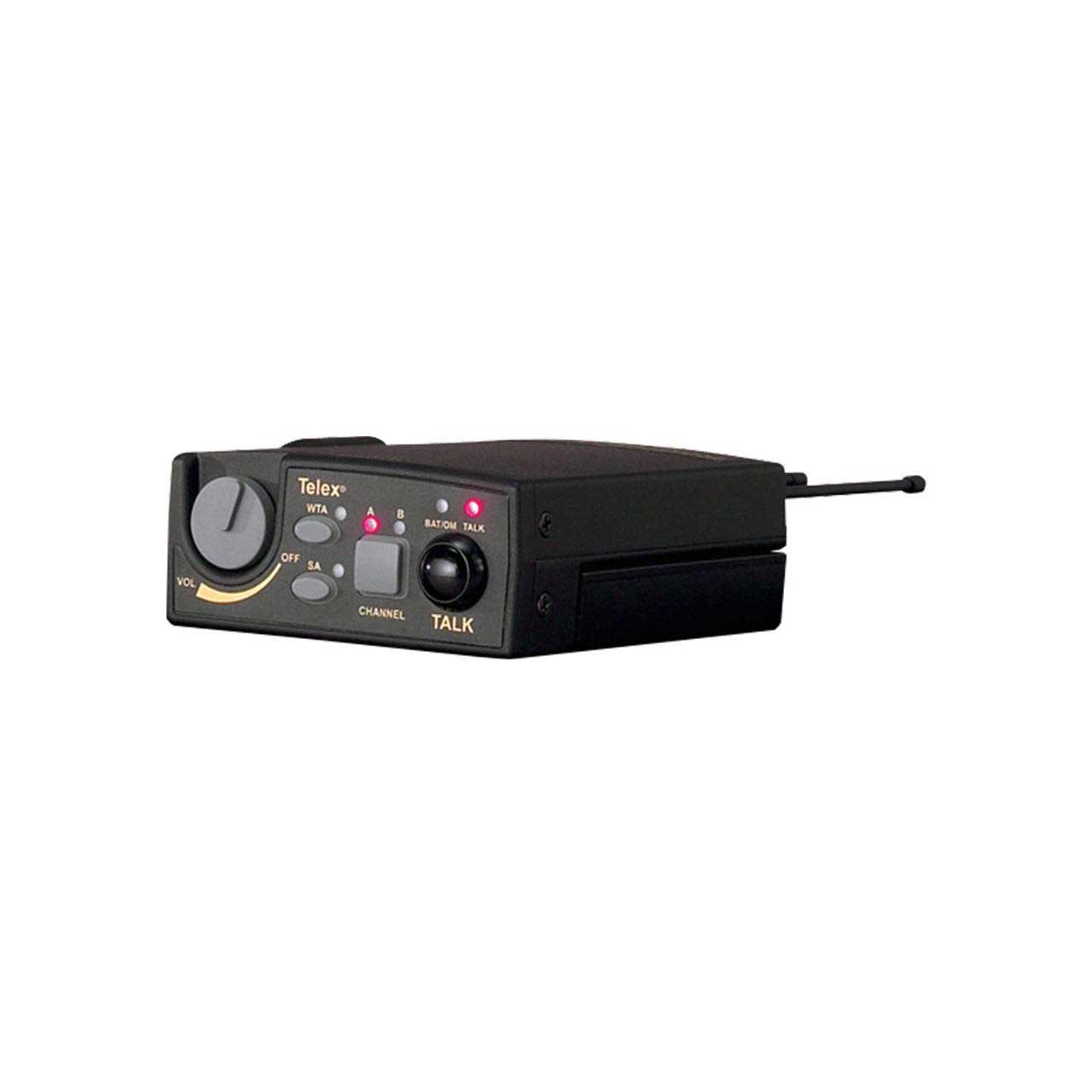

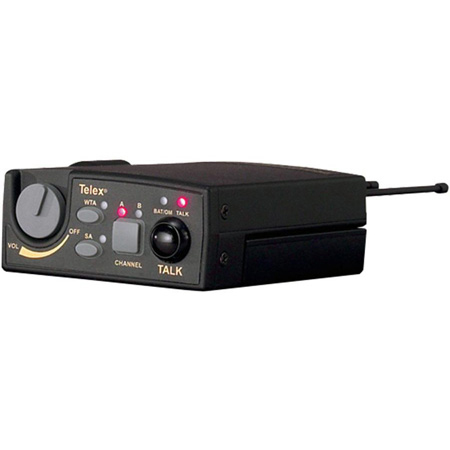

The RTS RadioCom TR-800 and TR-825 are 2-audio channel UHF frequency-agile wireless beltpacks for use with the BTR800. The TR-800 and the TR-825 both have an all metal cast magnesium case, an LCD-based user interface, stage announce activation, WTA (Wireless Talk Around), enhanced ClearScan, detachable antennas and an auto-sensing headset connector that automatically switches between electret and dynamic headset mics.

  • Specifications:

    • RF Frequency Range: 470-608MHz, 614-698MHz in 18MHz TX and RX bands
    • Power Requirements: 6 AA Cells Alkaline (NiMH optional)
    • TR-800 Current Draw: 140mA (Push-to-Talk, Talk On)
    • TR-825 Current Draw: 190mA (Push-to-Talk A and B Talk On)
    • Temperature Range: -4°F to 130°F (-20°C to 55°C)
    • TX Antenna: 1/4Wave (supplied) Screw type, Replaceable
    • RX Antenna: 1/4 Wave (supplied) Screw type, Replaceable
    • Frequency Response: 300Hz-8kHz
    • Microphone Input Sensitivity: 7mV
    • Local Headset Output: 40mW output into 600W (1% distortion)
    • Transmitter Type: Synthesized, 712 channels
    • Transmit Power: 50mW Max. (Auto-power reduction)
    • Modulation Type: FM
    • Deviation: 40kHz (35kHz Europe)
    • RF Frequency Stability: 0.005%
    • Modulation Limiter: Peak-Responding Compressor Radiated Harmonics
    • & Spurious: Complies with FCC specifications
    • Receiver Type: Dual Conversion
    • Super heterodyne, Synthesized, FM 712 channels
    • RF Sensitivity: <0.7µV for 12dB SINAD
    • Squelch Threshold: 20dB SINAD (About 1.0µV)
    • IF Selectivity: 3dB at 230kHz
    • Image Rejection: 70dB or better
    • Squelch Quieting: 90dB
    • RF Frequency Stability: 0.005%
    • Distortion: <1% at full deviationDimensions (W x H x D): 1.65" x 3.75" x 5.05" (9.5cm x 12.8cm x 4.2cm)
    • Weight: 16 oz (454g) with batteries


  • GTIN:

    0701001015689
