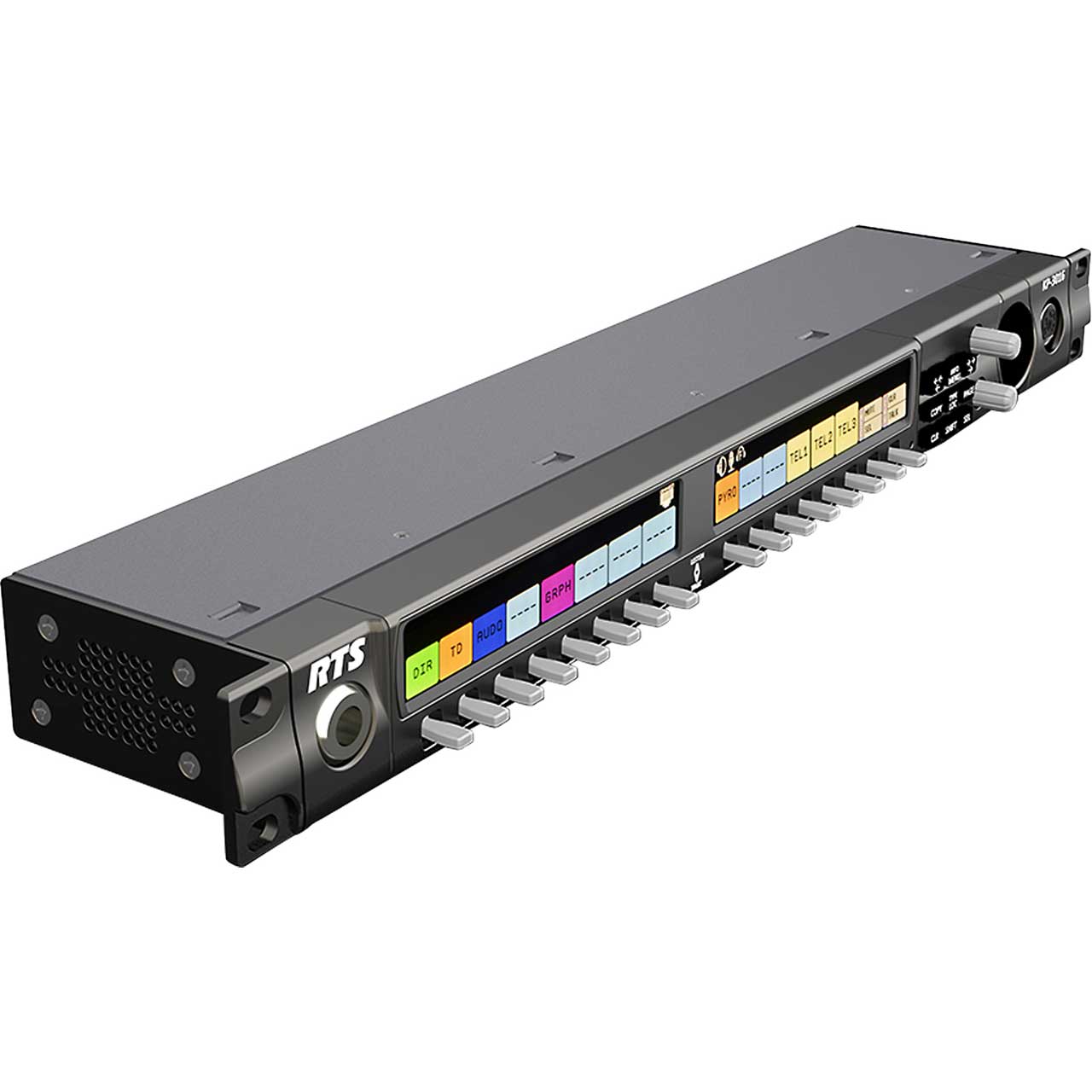

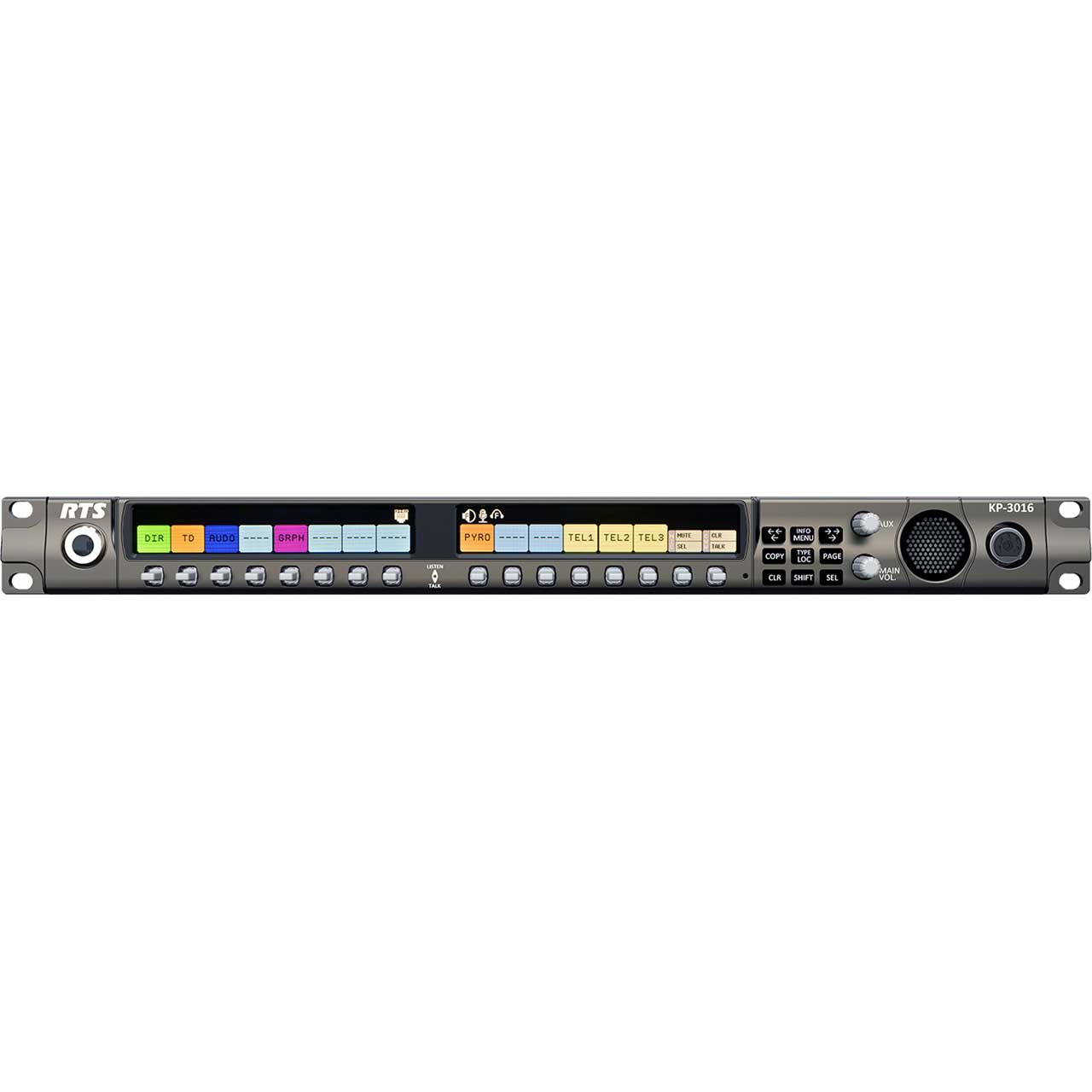

RTS KP-3016 OMNEO 16-Key Analog and IP Connection - 1RU

ITEM #: RTS-KP-3016 MFG #: F.01U.298.902

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order


We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: In Stock
iAvailability Description Popup


F.01U.298.902 - Overview

Part of the KP-Series keypanel family, the KP-3016 provides the same superior digital audio as the flagship KP-4016 model, by using OMNEO media networking technology (developed by RTS parent company Bosch and incorporating Dante high-quality audio over IP). The analog-only KP-3016A is also available. Both versions deliver top-notch sound quality, free of noise, delay, and other artifacts sometimes present in older technology.

  • Features:

    • Wide viewing-angle color screen
    • Ergonomic levers for talk/listen
    • Full support for OMNEO
    • Support for 4-wire analog connection
    • Built-in speaker
    • Microphone input for dynamic or electret mics
    • User-replaceable XLR headset connector - 4- or 5-pin available

  • Specifications:

    • LCD Display
    • Active Area: 120.10mm (wide) x 18.77mm (high)
    • Dot Resolution: 576 x 90 pixels
    • Color Resolution: 16-bit (64K) RGB color
    • View Angle: 80 degrees (typical; all directions)

      Physical
    • Power Supply Type: External DC
    • AC Input: 100-240VAC 50/60Hz
    • Power Consumption: 11 Watts (Normal); 13 Watts (Max.)
    • Max Volt Amp: 36 VA
    • Dimensions (W x H x D): 17.39" (without rack ears) x 1.72" x 3.88"
    • Weight: 3.35 lb
    • Operating Temperature: 0°C to 55°C (32°F to 131°F)
    • Storage Temperature: -20°C to 70°C (-4°F to 158°F)


F.01U.298.902 - Required Accessories
