RTS OEI-2 OMNEO External Interface-2 Channel

ITEM #: RTS-OEI-2 MFG #: F.01U.286.400

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


F.01U.286.400 - Overview

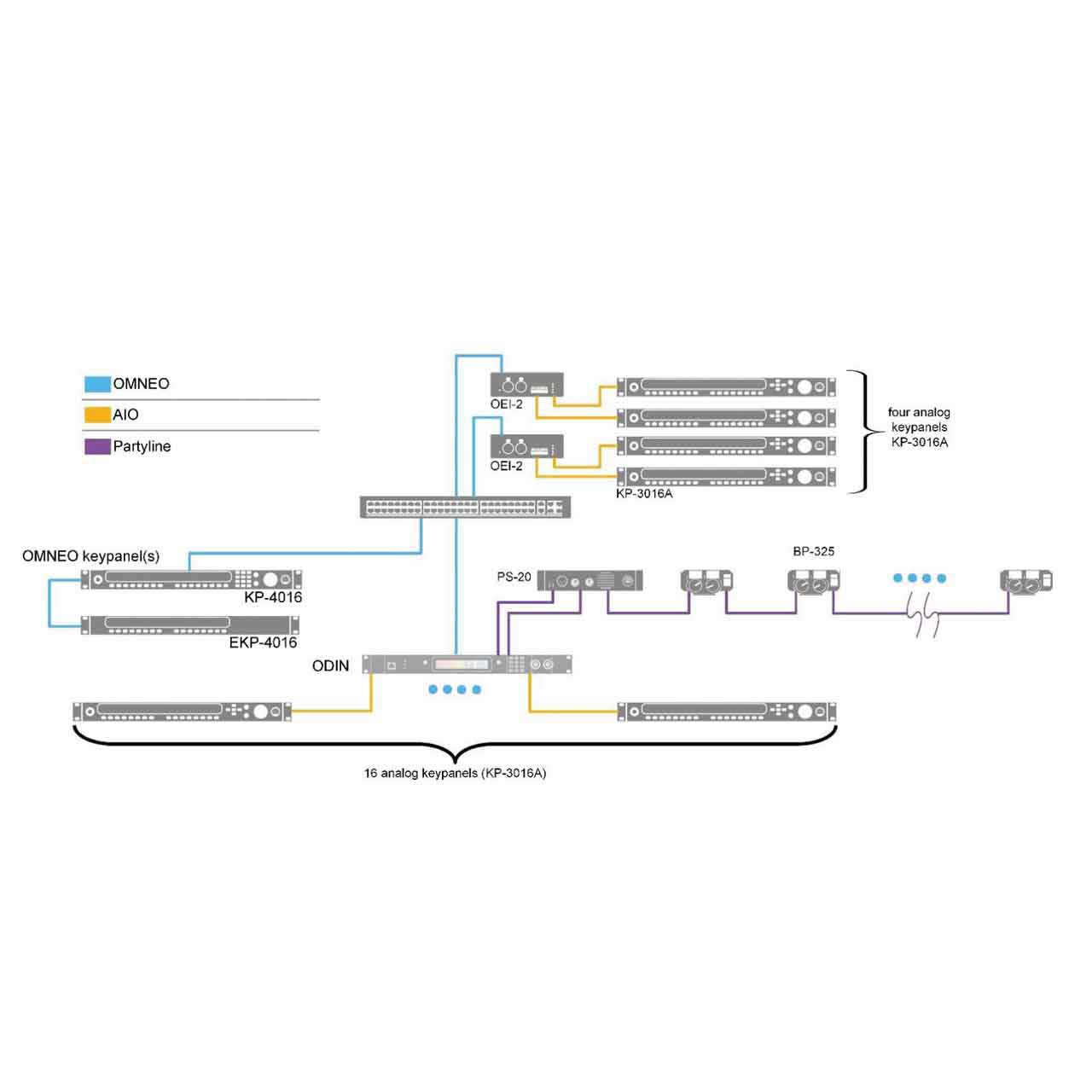

The RTS OEI-2 enables connectivity between analog audio sources and legacy RTS keypanels and an OMNEO network. This allows users to maintain existing infrastructure and the equity of their original equipment investment while updating to high-performance OMNEO media networking architecture.

Utilizing standard IP Ethernet infrastructure, OMNEO-equipped products can be assembled into networks of 2 to 10,000 cooperating devices that share common control systems. OMNEO sets new industry standards for audio communications by offering unparalleled scalability and future-proof expandability; studio-quality synchronized multichannel audio; the most robust, reliable, and secure control protocol suite available; ultra-low latency; and the support of DHCP protocols.

The compact, mountable OEI-2 is designed for quick installation and easy operation, and supports all RTS analog keypanels.

  • Features:

    • Provides an interface between legacy RTS keypanels and RTS OMI OMNEO interface cards for ADAM and ADAM-M units
    • Support for both USOC or 586B wiring
    • Provides less than 20 ms of audio latency in typical network installations
    • Provides a frequency response of 20 Hz to 20 KHz to the keypanel
    • Supports DHCP and device discovery for easy set up and network management

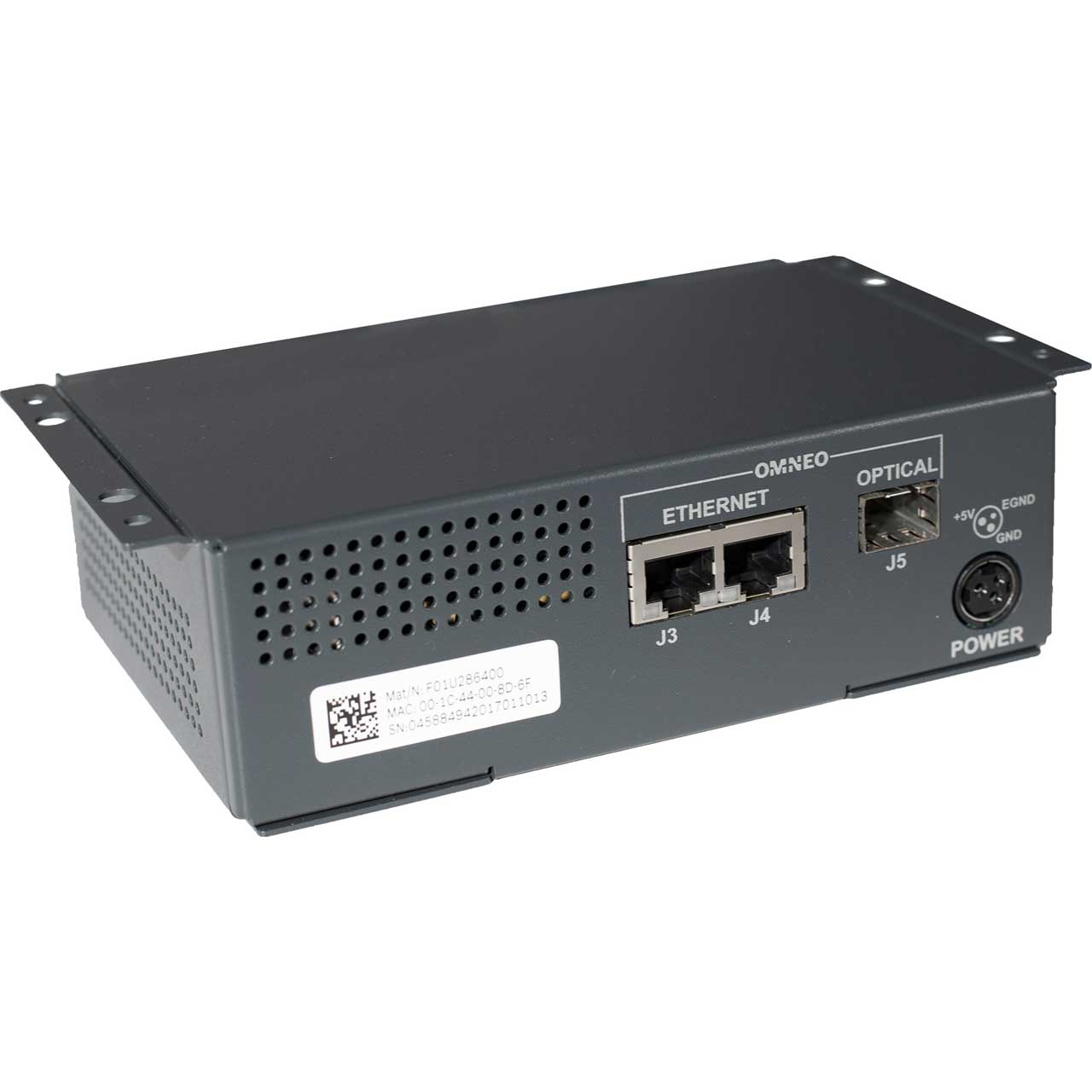

    • Optional fiber connection - multi-mode or single-mode available

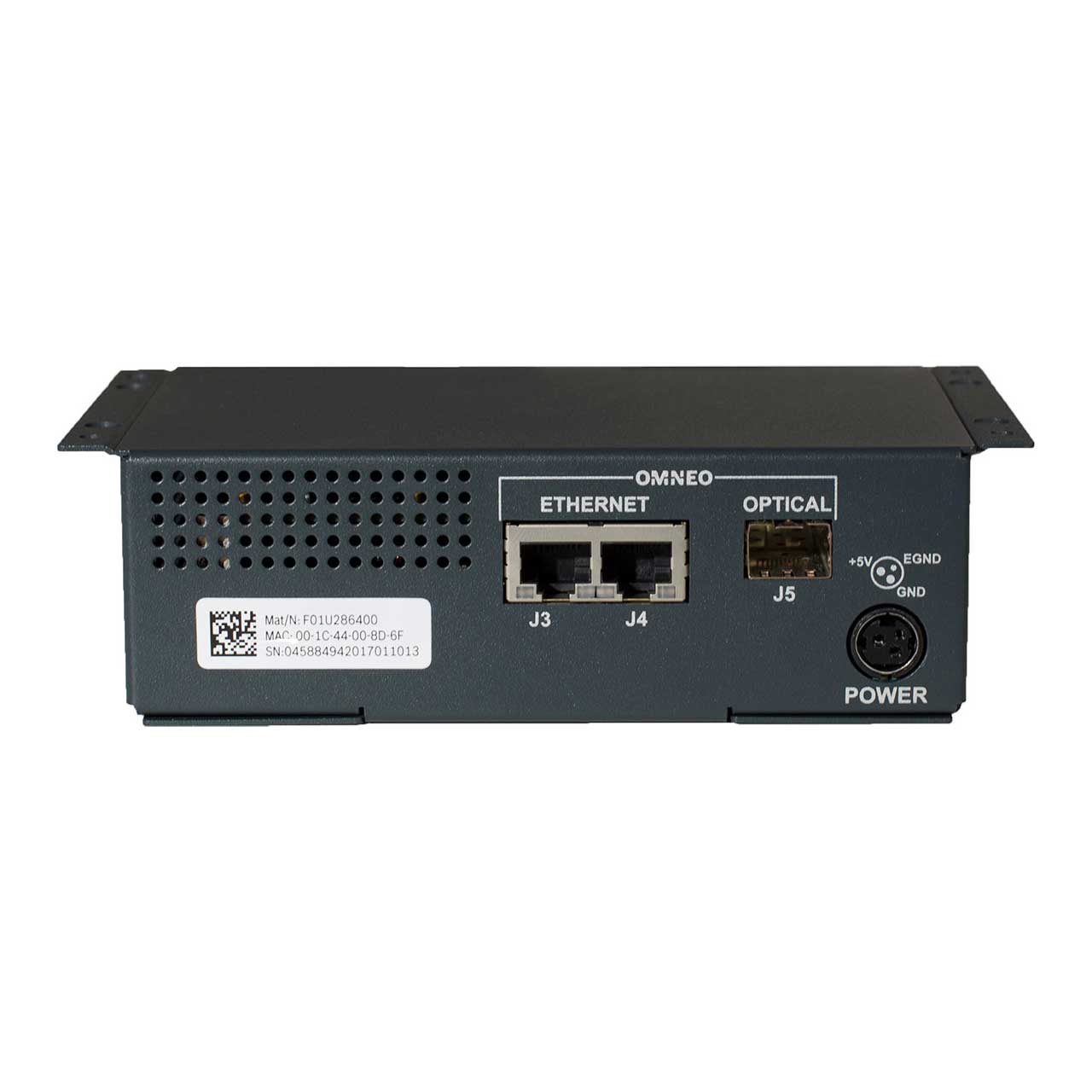

    • Supports CAT-5/5e and CAT-6 with dual Ethernet connectors for device looping
    • Supports compatibility with third-party Dante™ products available from numerous suppliers

  • Specifications:

    • 48kHz/24-bit per channel bandwidth: 2.59 Mbit/s
    • Analog Input Level Impedance: 10k Ω
    • Analog Input Level Maximum: 20 dBu
    • Analog Input Level Nominal: 8 dBu
    • Analog Output Level Impedance: 60 Ω
    • Analog Output Level Maximum: 20 dBu
    • Analog Output Level Nominal: 8 dBu
    • Analog to OMI latency: 20 ms
    • Depth: 4.45" (113 mm)
    • Frequency Response: 20Hz to 20kHz +/-0.1db
    • Height: 1.93" (49 mm)
    • Input Connections: SFP Fiber Connector
    • OMI to Analog latency: 20 ms
    • Operating Temperature: 0 to 55 °C

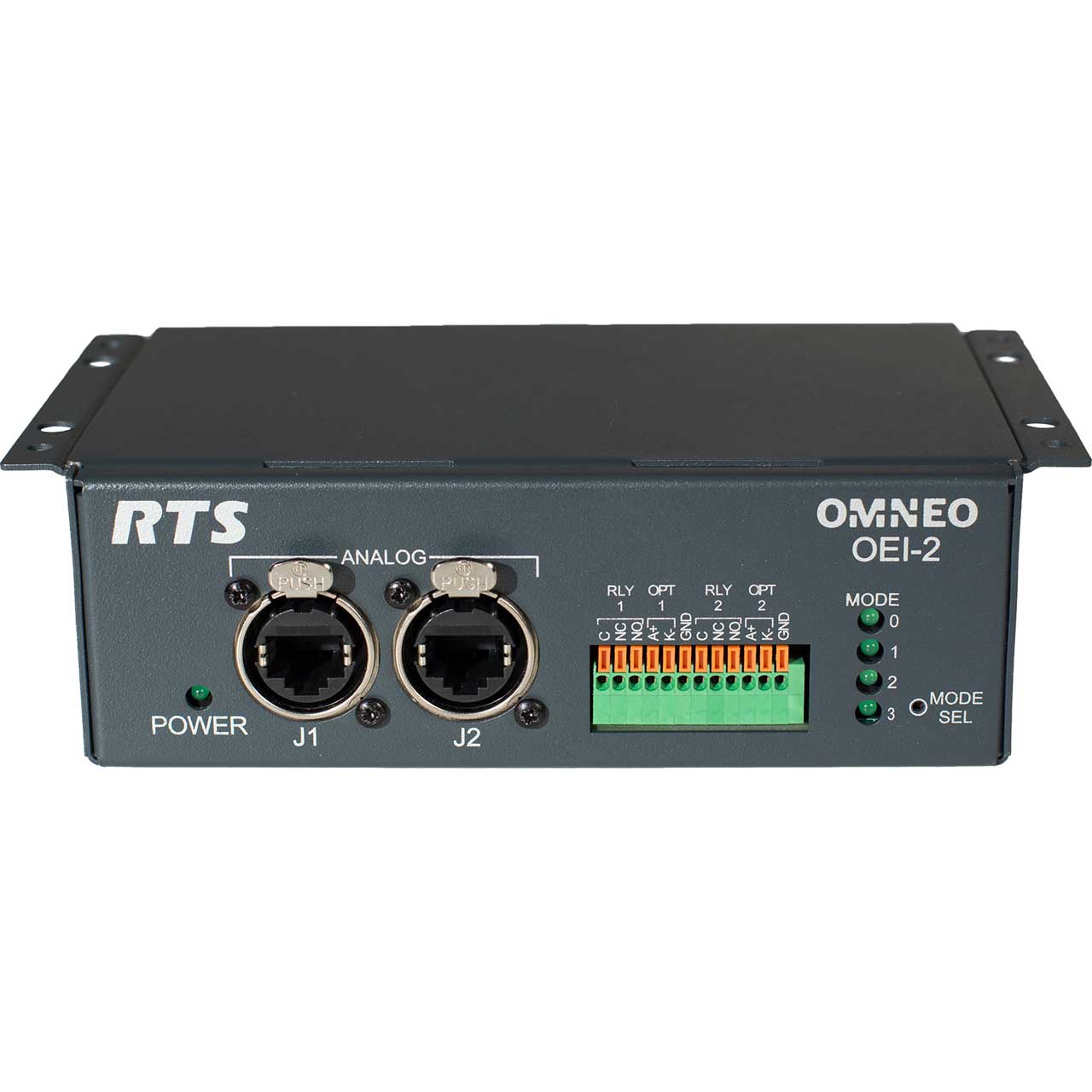

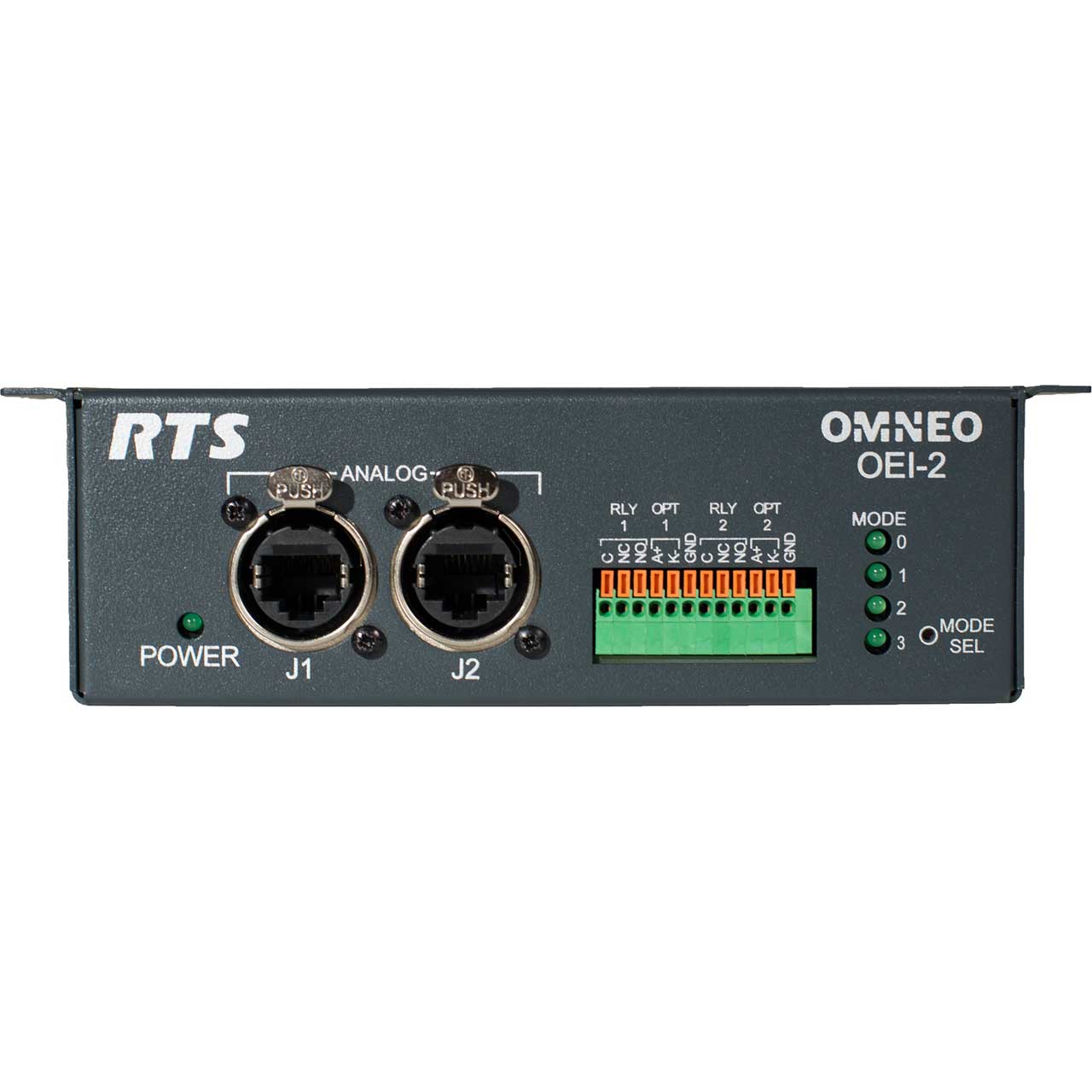

    • Output Connections: 12-position Terminal Block
    • Power Requirements: 5VDC, 2000mA
    • Storage Temperature: -20 to 70 °C
    • THD+Noise: <0.1 % (measured at 20-20kHz, +0dBu, unity gain)
    • Weight: 1.45 lbs (0.66 kg)
    • Width: 5.79" (147 mm)
