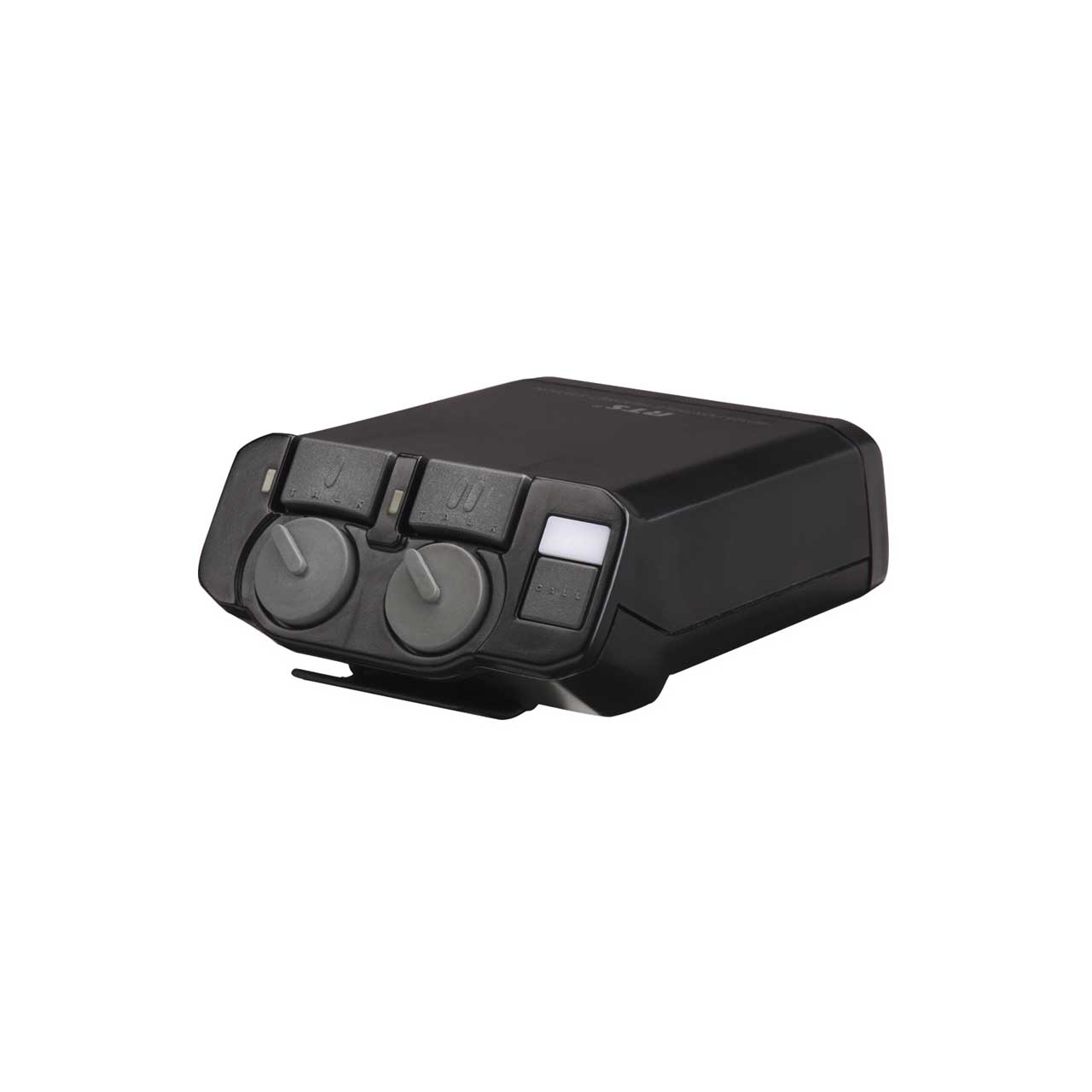

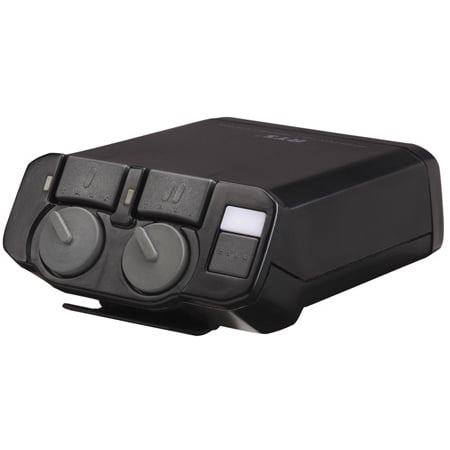

RTS OMNEO BP-325 Dual-Channel Binaural Programmable Intercom Beltpack - Black

F.01U.118.528 - Overview

Dual-Channel Binaural Programmable Beltpack

• Features:

  • Call Function
  • Headset
  • Microphone Kill Detect
  • Powered Externally


• Specifications:

  • Power Requirements: +18 to +33 VDC, 30 VDC nominal (standard RTS line), 45 to 85mA
  • Environmental Requirements: Storage: -4° F to 158° F (-20° C to 70° C); 0% to 95% humidity, non-condensing
  • Operating: 32° F to 122° F (0° C to 50° C); 0% to 95% humidity, non-condensing
  • Dimensions: 5 in (127 mm) H, 3.75 in (96.3 mm) W, 2.05 in (52.1 mm) D
  • Weight: 0.66 lbs (300 g)
  • Impedance Across Intercom Line: 10kΩ typical Noise Contribution to 200Ω Intercom Line -75dBu

    Headphone Amplifier
  • Maximum Voltage Gain: 30 dB
  • Frequency Response: 100 Hz to 8 kHz, +/-3 dB
  • Headphone Impedance: 50 to 600 Ω
  • Output Power: 150 mW/150 Ω
  • Output Voltage Level: 8 volt peak-to-peak

    Microphone Preamplifier
  • Maximum Voltage Gain: 54 dB
  • Frequency Response: 100 Hz to 8 kHz, +/-3 dB
  • Input Impedance: >1k Ω
  • Limiter Range: 30 dB

    Program Input
  • Maximum input level: +20 dBu
  • Nominal input level: -10 to +8 dBu
  • Frequency response: 100 Hz to 12 kHz, ±3 dB


• Warranty:

  • 3 Years


• GTIN:

  0800549425490
