RTS SSA-324 System-to-System Adapter

ITEM #: RTS-SSA324 MFG #: SSA324

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SSA324 - Overview

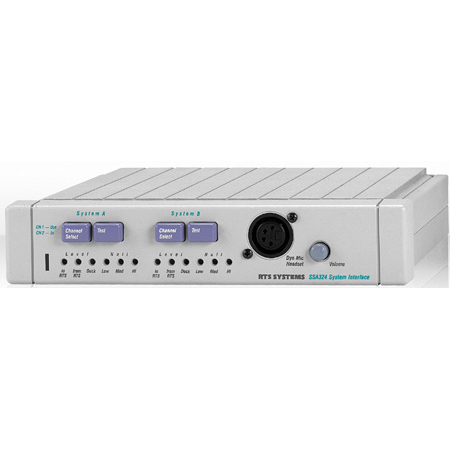

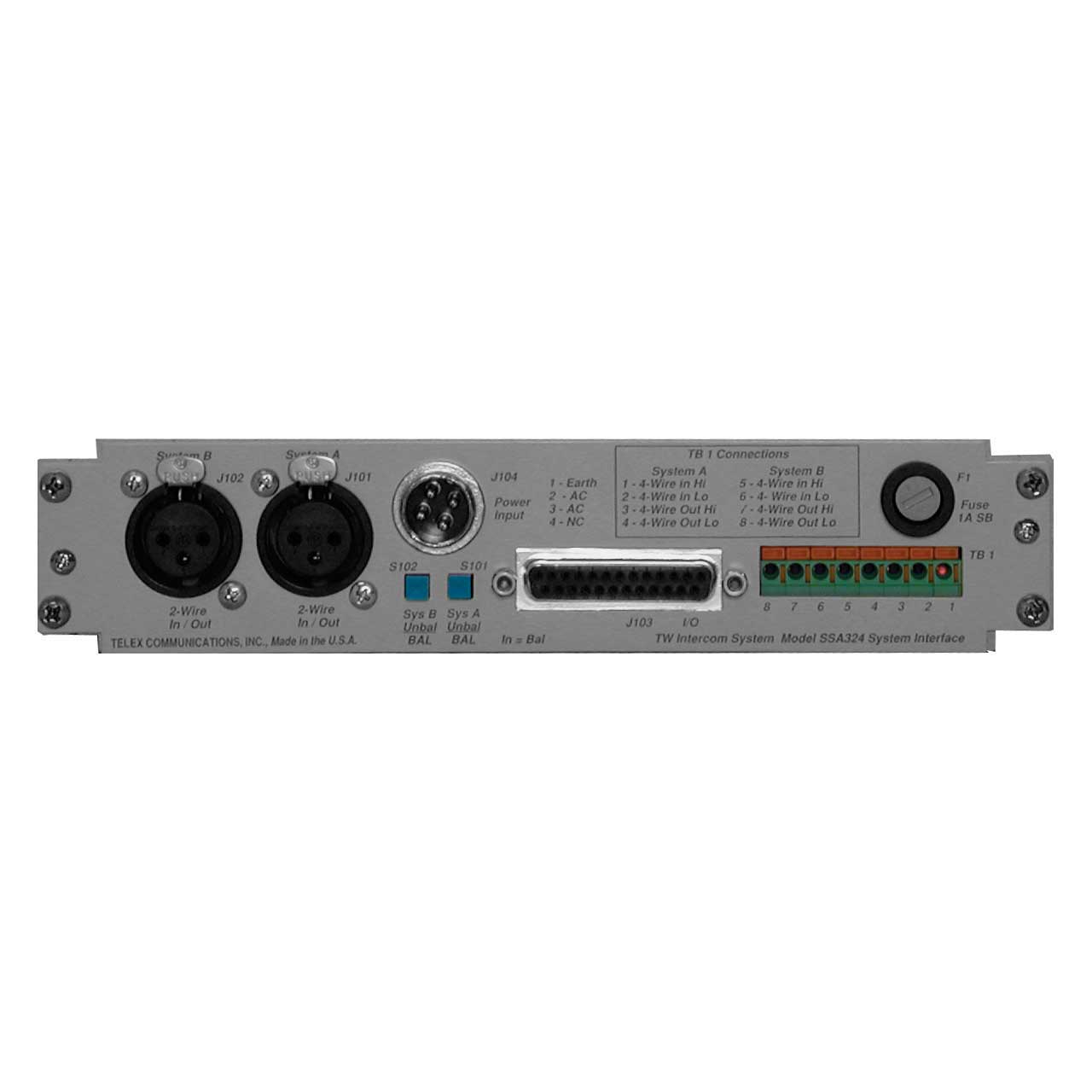

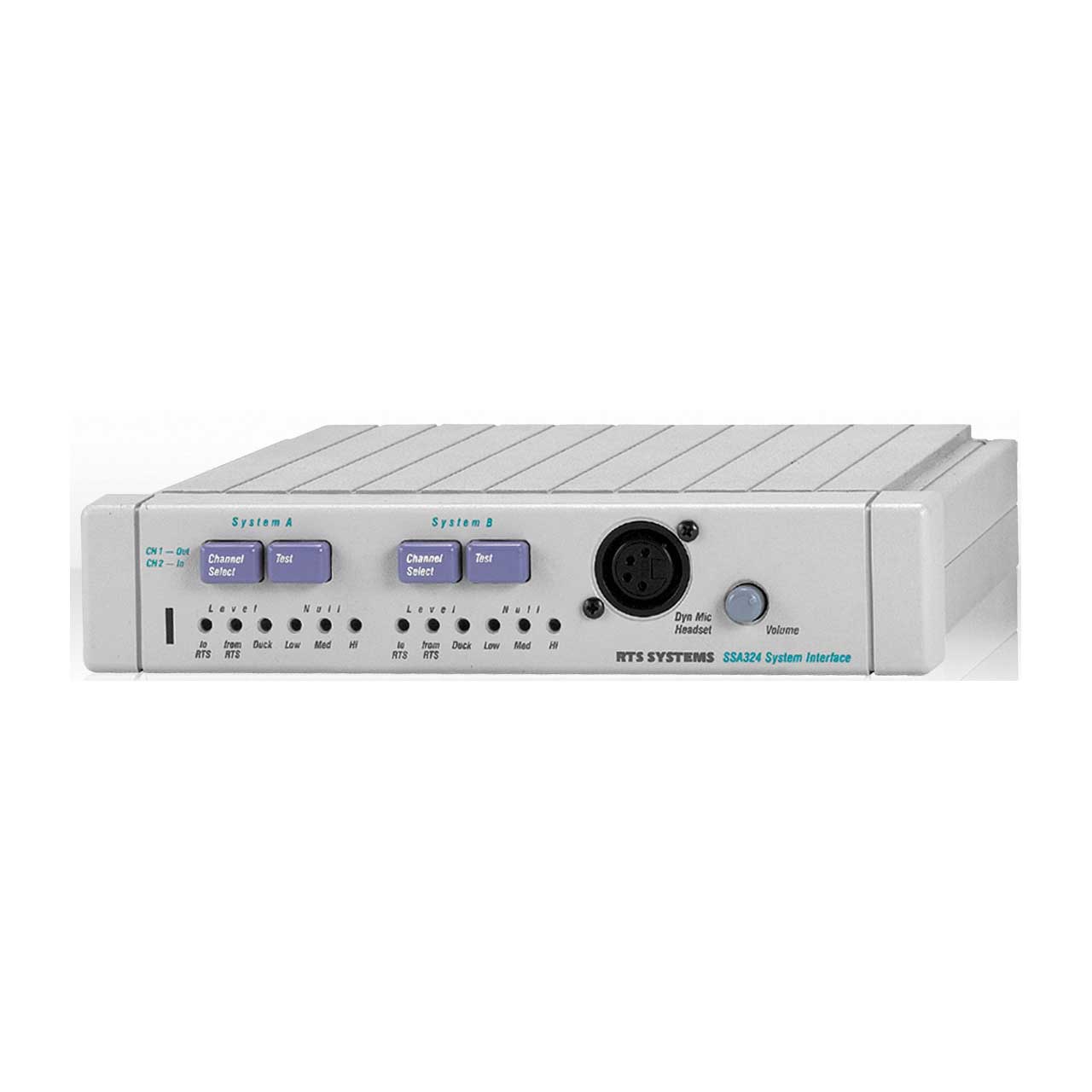

RTS Model SSA-324 is a System to System Adapter or interface. It interconnects the voice signals between different intercom systems. In addition, it can optionally interconnect calls or tally signals between systems. Each SSA-324 includes two (2) 2-wire to 4-wire converters. The 4-wire interface can deliver and accept high level signals. An SSA-324 can also function as a 2-wire to 2-wire interface by interconnecting the two (2) individual interfaces at the 4-wire level. The SSA-324 does two (2) voice channels when used as a dual 2-wire to 4-wire interface, and one (1) voice channel when functioning as a 2-wire to 2-wire interface.

  • Features:

    • Functional specifications
    • Ducking (bilateral)
    • Monitoring
    • Nulling
    • Level adjustments

  • Specifications:

    • 2-Wire Input
    • Impedance: 5,000Ω +/-20% single ended, 10,000Ω differential
    • Operating Levels: -20dBu to +0 dBu, nominal

      2-Wire Output
    • Impedance: 5,000Ω +/- 20% single ended, 10.000Ω+/- 20% differential
    • Operating Level: -20dBu to +0 dBU nominal

      4-Wire Input
    • Impedance: 10,000Ω minimum single ended, 20,000Ω minimum differential operating levels
    • Level: -10dBu to +8dBu, nominal

      4-Wire Output
    • Impedance: single ended or differential
    • Operating Levels: -10dBu to + 8dBu, nominal

      Transfer Functions (Duck Level Set To No Ducking)
    • Voltage Gain, 4-wire In to 2-wire Out
    • Level Pot 100% rotation: 3dB
    • Level Pot 50% rotation: -15dB/4dB

      Transfer Functions (Duck Level Set To No Ducking)
    • Voltage Gain, 2-wire In to 4-wire Out
    • Level Pot 100% rotation: 22dB 3dB
    • Level Pot 50% rotation: 8dB 4dB

      Frequency Response (Reference: 1kHz, 0 dBu Input)
    • 4-wire Input to 2-wire Output: 200Hz to 5kHz, +1, -4dB, typical
    • 2-wire Input to 4-wire Output: 250Hz to 5kHz, +1, -4dB, typical

      Signal-to-Noise Ratio (Reference: 1kHz, 0 dBu at 2-wire)
    • 2-wire to 4-wire: -60dB
    • 4-wire to 2-wire: -60dB
    • Crosstalk (Reference: 1kHz, 0 dBu)
    • System A to System B
    • 2-wire to 2-wire: -50dB

      Environmental
    • Operating Temperature: 0°C to 50°C (32°F to 122°F)
    • Storage Temperature: -40°C to 85°C (-40°F to 185°F)
    • Humidity: 0 to 95%. non-condensing

      Mains Voltage
    • Standard: 120 volts 10%, 50-60Hz
    • *P Option: 230 volts 10%, 50-60Hz
    • #D Option: 100 volts + 10%. -5%, 50-60Hz

      Mains Amperes
    • Standard: 0.20A @ 120 volts 10%, 50-60Hz
    • *P Option: 0.10A @ 230 volts 10%. 50-60Hz
    • #D Option: 0.22A @ 100 volts +10%,.-5%. 50-60Hz

      Physical
    • Dimensions (HxWxD): 1.72 8.19 x 8" (44 x 208 x 204mm)
    • Weight:
      SSA-324: 2.75 lbs (1.3kg)
      MCP-1/2: 1Lbs (0.45kg)

      Finish
    • Thermoplastic front panel, aluminum case, light gray finish

      Nulling
    • Manual

  • GTIN:

    0800549319430


SSA324 - Required Accessories
