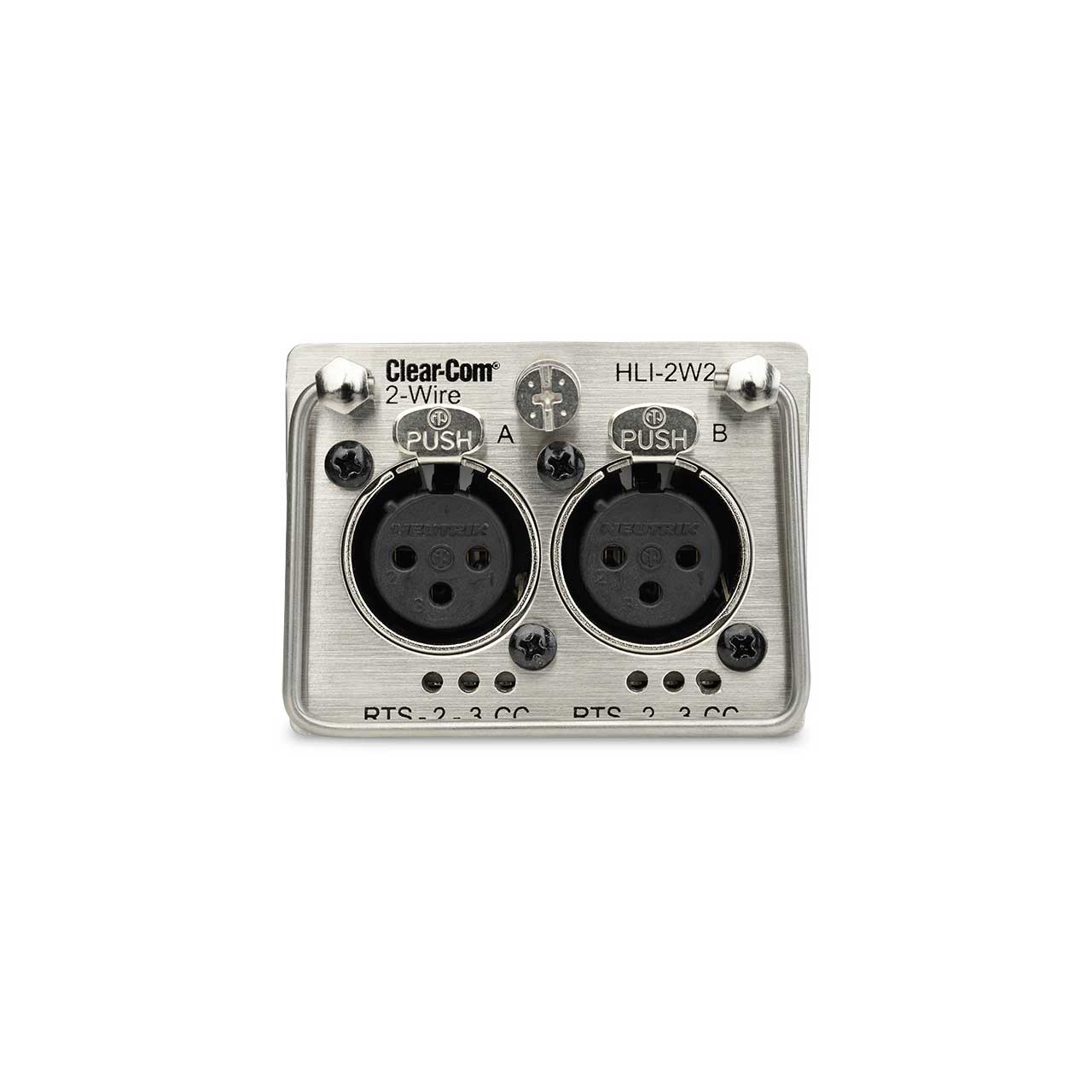

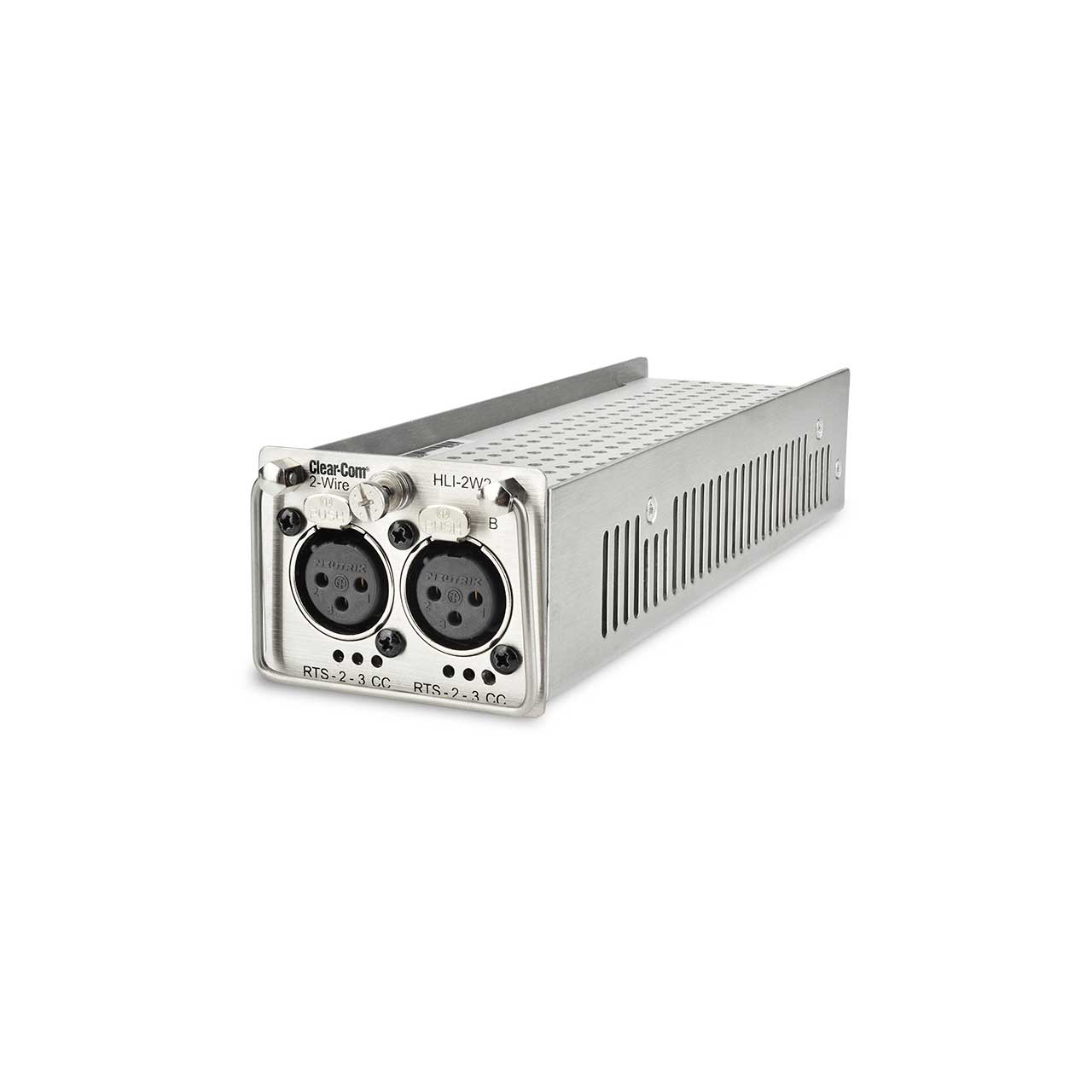

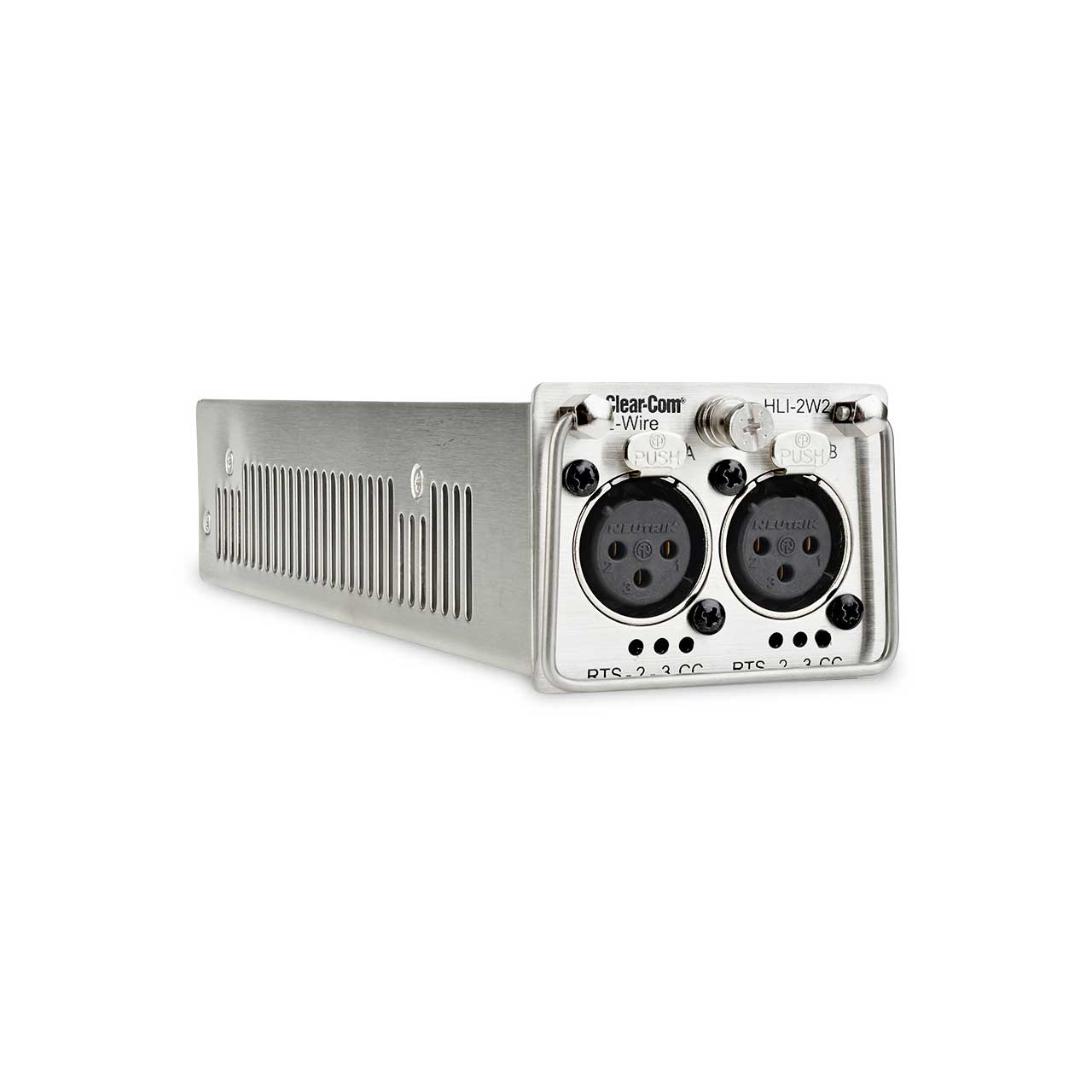

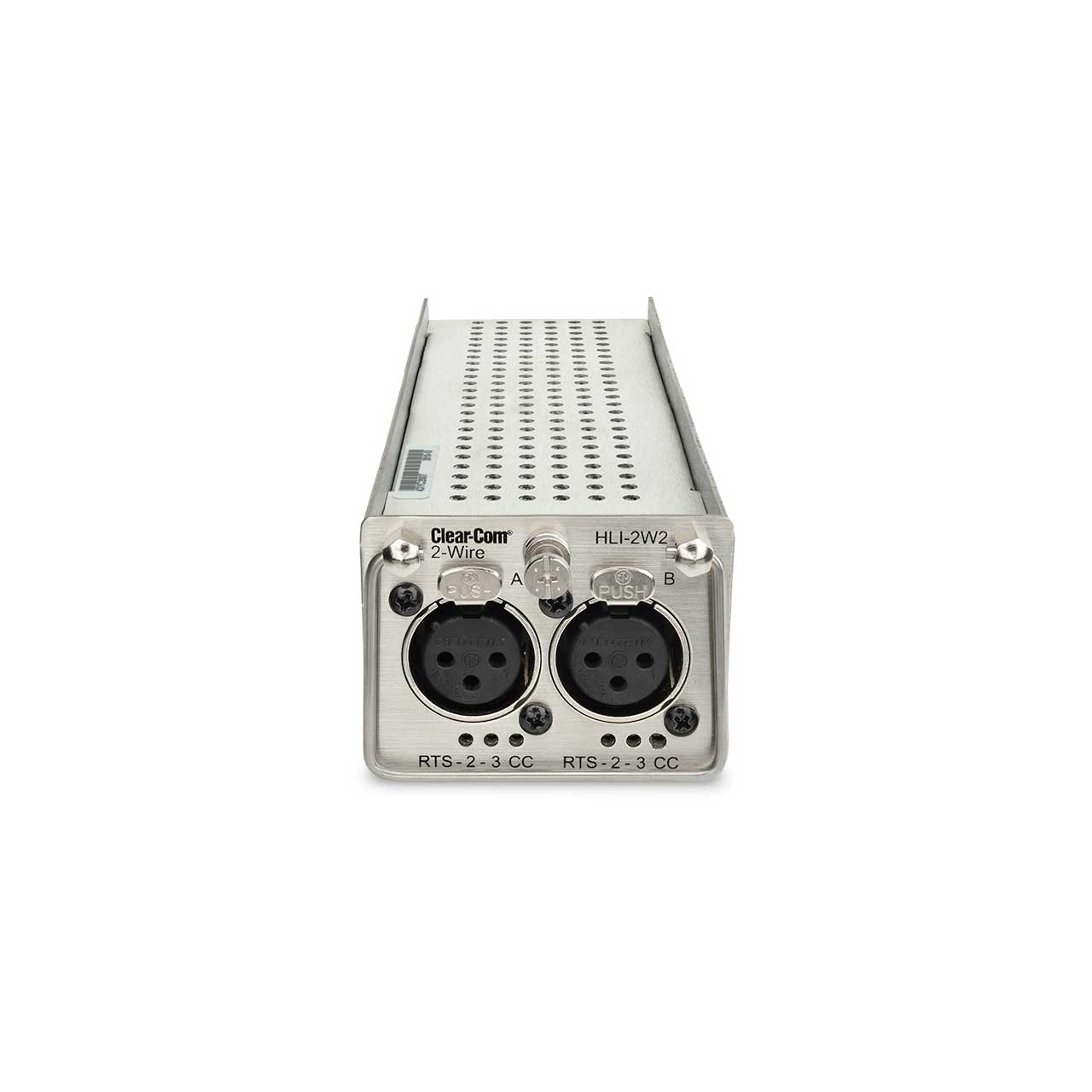

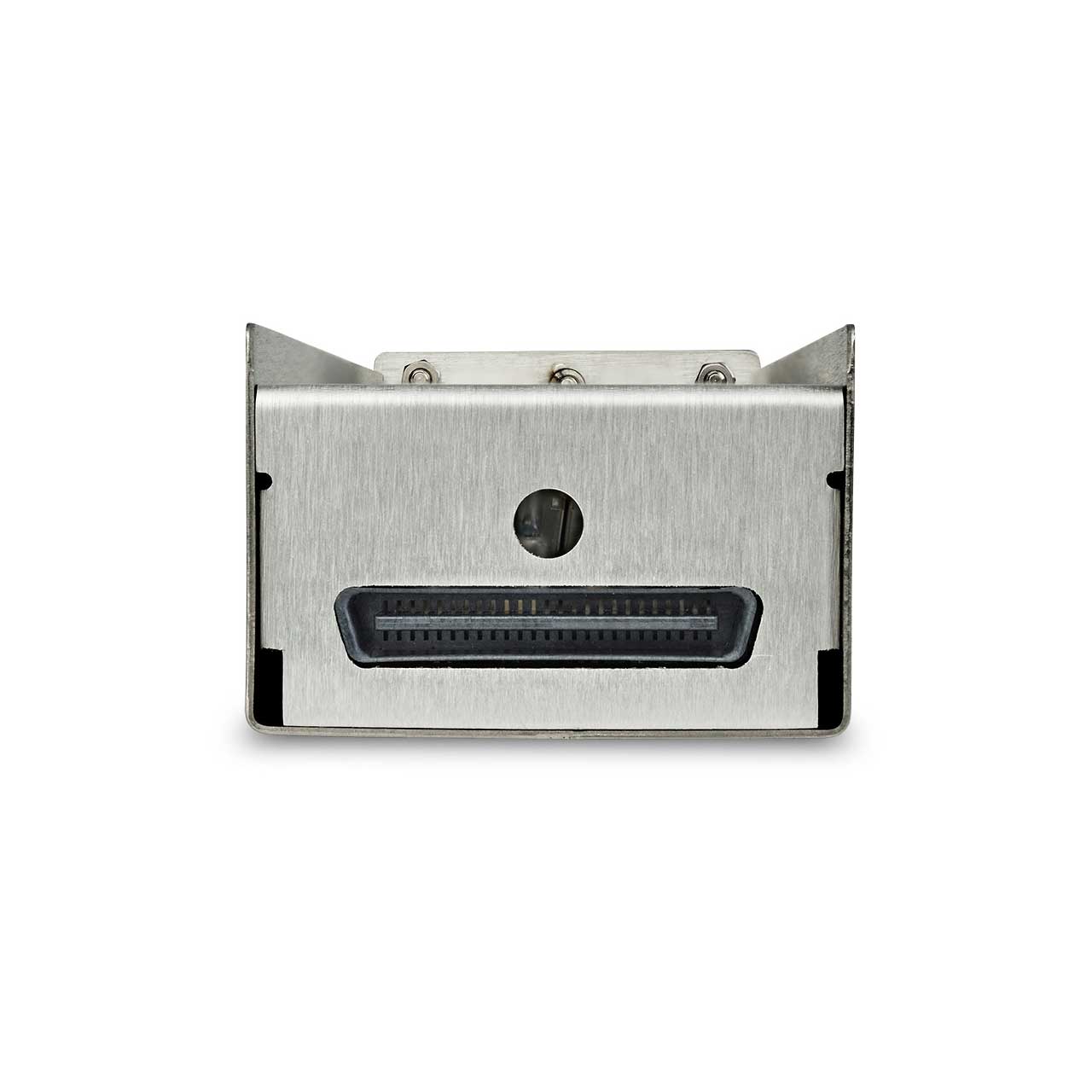

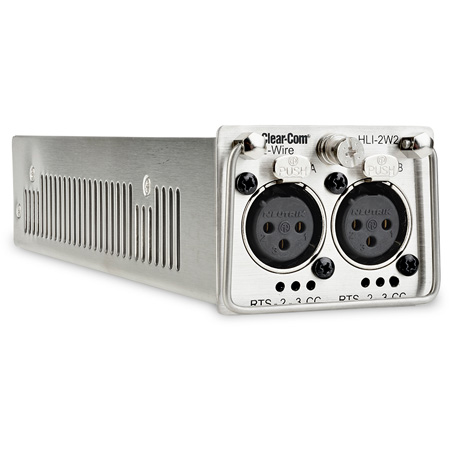

Clear-Com HLI-2W2 HelixNet 2-Wire Interface Module for HMS-4X Intercom Main Station

ITEM #: CLCM-HLI-2W2 MFG #: HLI-2W2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Clear-Com
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$1,525.00

Add to Wish ListLeasing Options
Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    HLI-2W2 - Overview

    The ClearCom HelixNet HLI-2W2 is a dual 2-wire interface module for the HelixNet HMS-4X Intercom System Main Station (sold seperately). HelixNet®is a fully networked partyline intercom, supporting up to 24 channels and independent Program Audio over XLR, LAN and WAN.

    HLI-2W2's 2-wire analog partyline interface are assignable to any channel in the HelixNet system and provide connectivity to powered Clear-Com or RTS-TW analog partyline systems. Level control and VOX/Gate capability is provided for each interface to accommodate the connected system. HLI-2W2 include call signaling and remote mic kill circuits when used with compatible Clear-Com and RTS-TW partyline devices.

    HLI-2W2 can be added to any HMS-4X main station with an available option slot. Once installed, any channel can be independently assigned to either 2-wire port locally on the HMS-4X front panel or centrally from the Core Configuration Manager.

    Please Note! This item is just one component of a larger system.

    • Features:

      • 2-wire interface for HMS-4X
      • Auto nulling
      • Level and VOX control
      • Clear-Com / RTS-TW Compatible
      • Call and RMK signaling


    • Specifications:

      • Connectors
      • 2-wire Partyline: (2) 3-pin XLR-F

        Partyline
      • Compatibility: Clear-Com, RTS-TW configurable with Call and Remote Mic Kill
      • Termination: External system
      • Nulling: R-L-C hybrid; user initiated Auto-Calibration with Echo Cancellation
      • Power: 25mA from external system
      • Voltage: 20-30V DC (max)
      • Maximum Level Before Clipping: 6dBu
      • Nominal Input Level: -18dBu (CC), -12dBu (RTS)
      • Input Impedance: >= 10KΩ bridging
      • Route to 4-wire input at 0dBu in:
      • Frequency Response: 100Hz - 10kHz ±3dB
      • Distortion: <0.2% THD @ 1kHz
      • Noise: <-55dBu
      • Route from a 4-wire output at 0dBu out:
      • Frequency Response: 40Hz - 10kHz ±3dB
      • Distortion: <0.2% THD @ 1kHz
      • Noise: <-75dBu

        Network Specifications (Version 4.2+)
      • Network Protocols
      • Ethernet IPv4-Unicast Audio and Control
      • mDNS-Multicast Device Discovery
      • Layer 3-Routable with mDNS function limitations
      • HTTP-Management
      • RTP-Audio Transport
      • WavPack-Audio Codec

        Network Ports
      • Unicast:
      • Port 80 TCP-System Management
      • Port 6001 TCP-System Management
      • Port 6001 UDP-Audio Streams
      • Multicast:
      • Port 5353 UDP-mDNS, Names, Discovery

        Network Parameters
      • Endpoint Resource Use: 1 per active port
      • Bandwidth:
      • 300 (max) kbps from each active port to HMS
      • 1200 (max) kbps from HMS to each active port
      • Network Jitter Tolerance:<= 128ms jitter buffer per audio stream receiver automatically adjusted to network performance
      • QoS Tags: DSCP=41, Assured Forwarding (AF)
      • System reserved IP range: 10.0.0.0/8 for endpoints


    • GTIN:

      0609385519604
