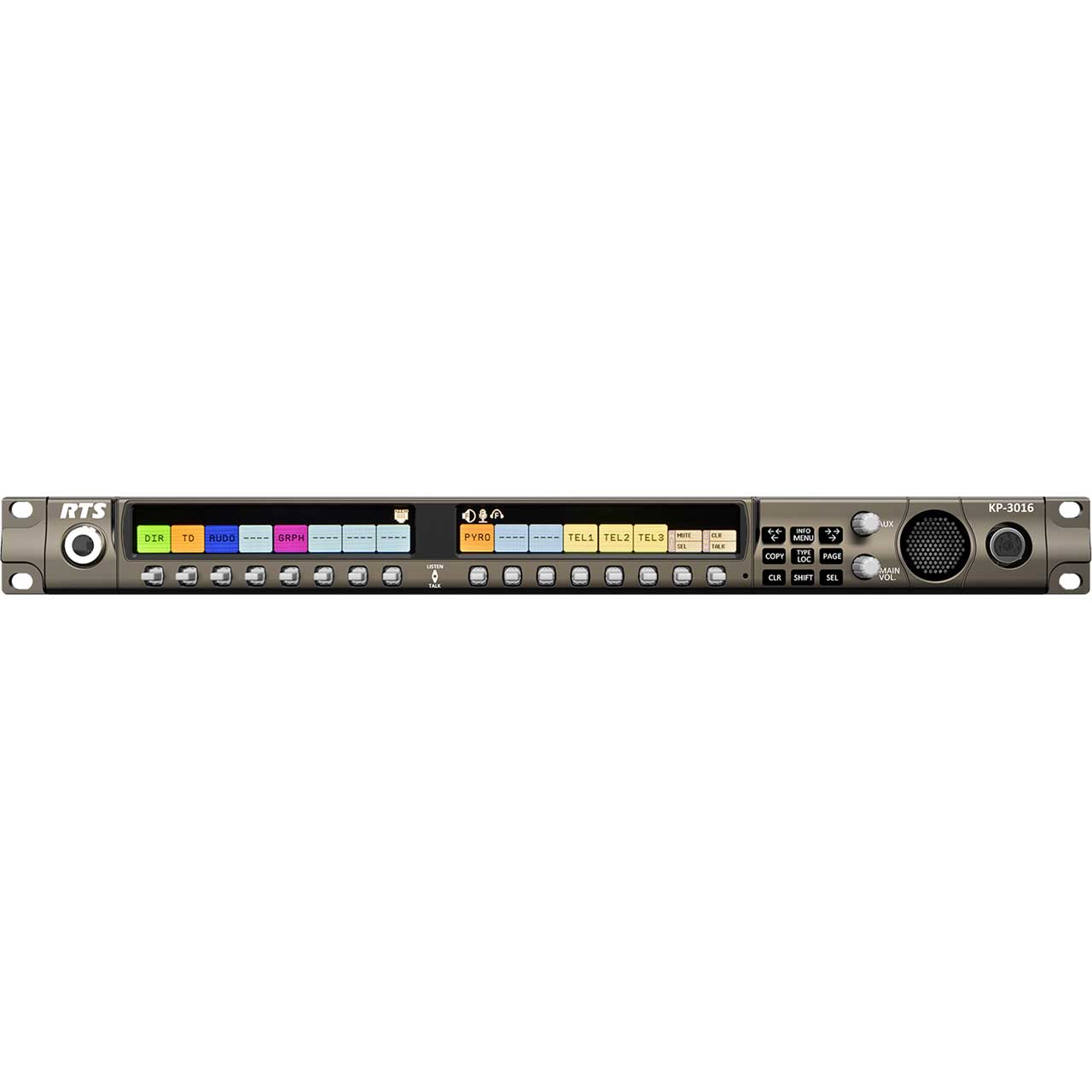

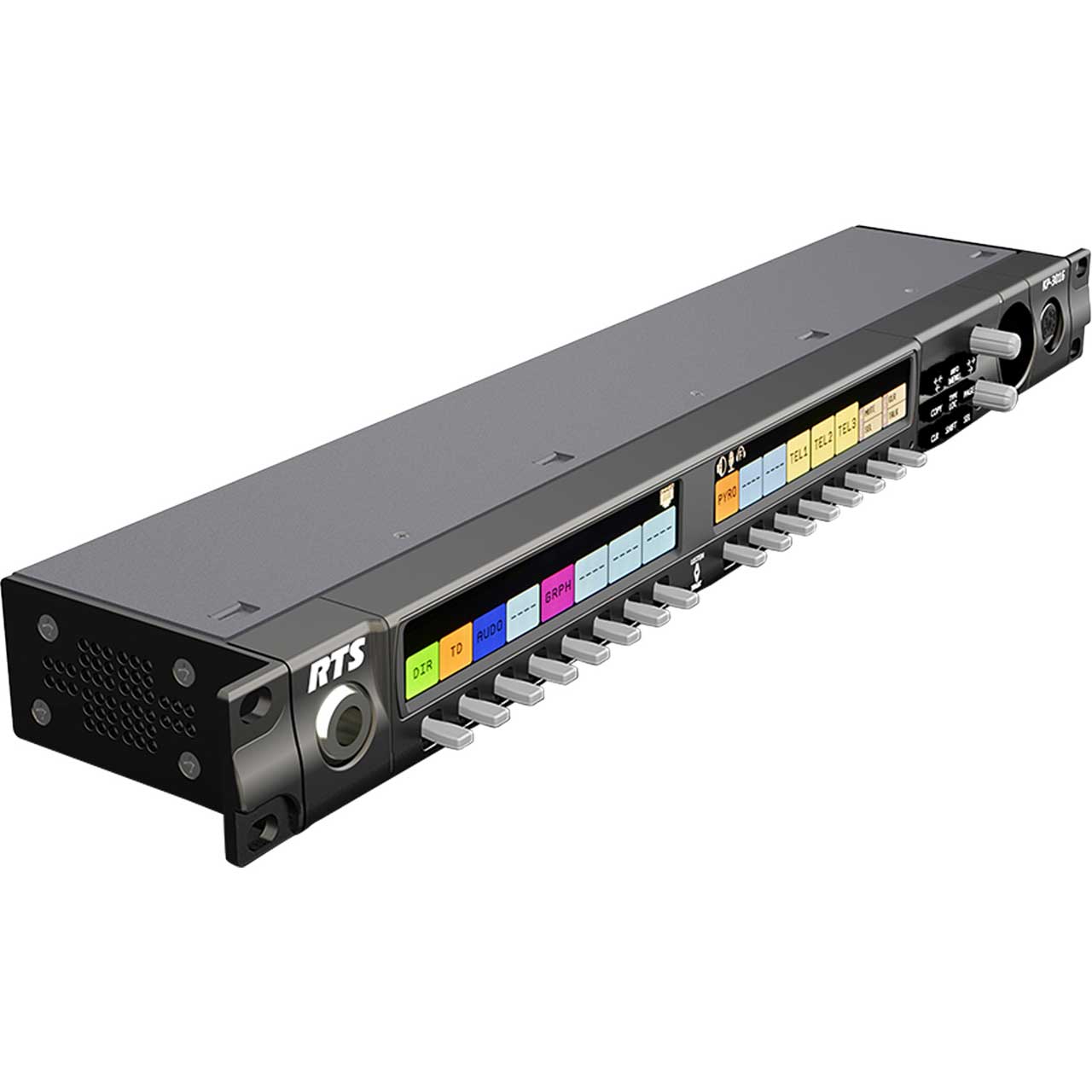

RTS KP OMNEO 3016A 1RU 16 Key IP Connection - Analog Only

KP-3016A - Overview

• Features:

  • Wide viewing-angle color screen
  • Ergonomic levers for talk/listen
  • Full support for OMNEO - KP-3016 Only
  • Support for 4-wire analog connection
  • Expansion panel option available
  • Built-in speaker
  • Microphone input for dynamic or electret mics
  • User-replaceable XLR headset connector 4- or 5-pin available
  • Expansion panel available (EKP-3016)
  • Analog version available (KP-3016A)


• Specifications:

  • AC Input: 100-240 VAC 50/60 Hz VAC
  • Certification: CE Compliance EMC EN55022 Class A VCCI Class A ICES-003 FCC Part 15 Subpart B Class A AS/NZS CISPR22 Class A Korean KN 22 EN 55024 Korean KN 61000-4 BSMI Class B Safety UL 60950-4 EN60950-1 CB Report PSE
  • Depth: 4.33" (110 mm)
  • Height: 1.72" (43.8 mm)
  • LCD Display:
    Active Area (WxH): 4.73 x 1.41" (120.10 x 35.86 mm)
    Color Resolution: 16-bit (64K)RGB color
    Dot Resolution: 576 x 172 pixels
    View Angle: 80 degrees (typical; all directions)
  • OMNEO Frequency Response: 20Hz - 20KHz
  • Operating Temperature: 32° to 135°F (0° to 55°C)
  • Output Connections: SPDT 1AMP @ 30VDC
  • Power:
    Consumption: Nominal 11W, Maximum: 13W, Maximum Volt Amp: 36VA
    Supply: External DC
  • Storage Temperature: -4° to 158°F (-20° to 70°C)
  • Weight: 3.35 lbs (1.52 kg)
