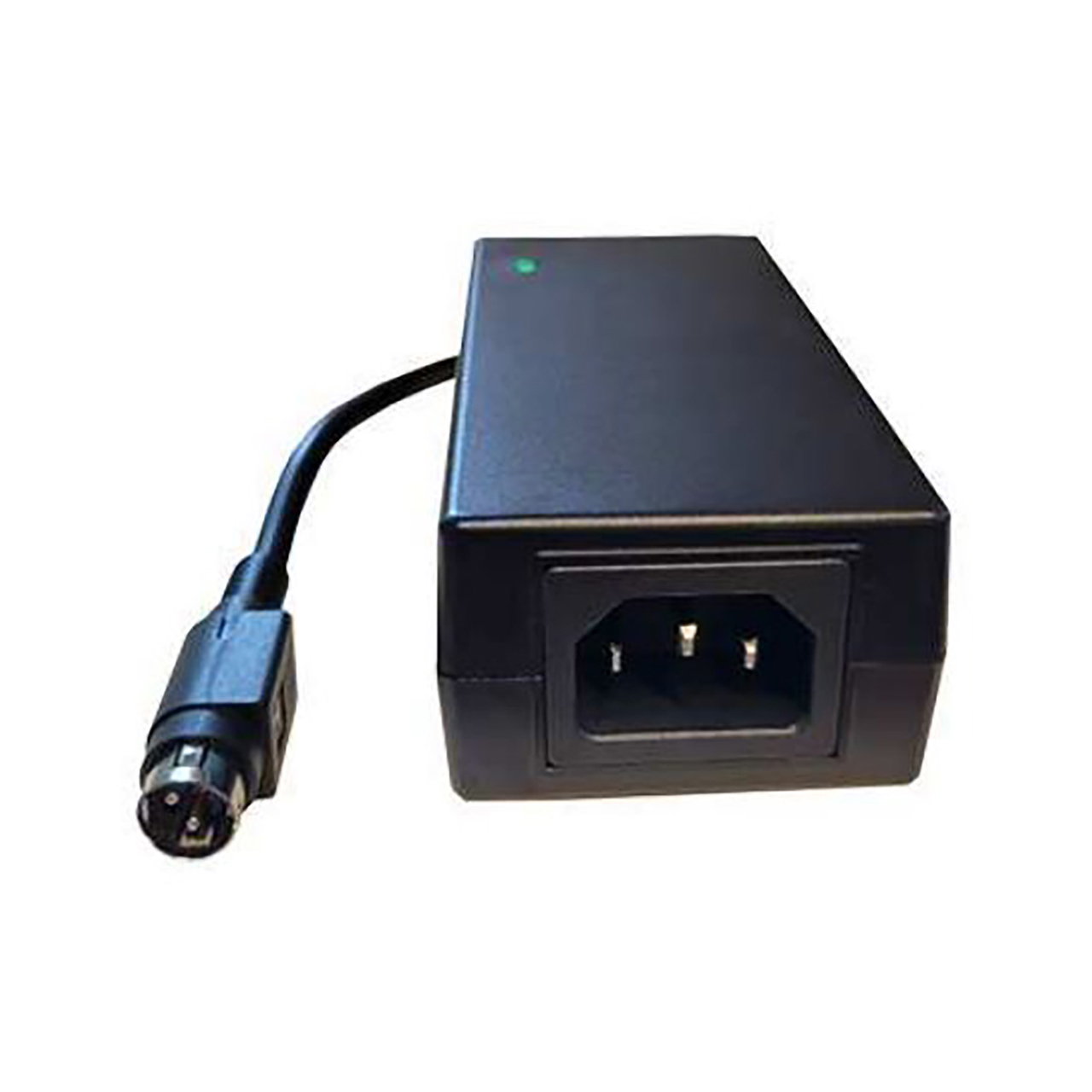

RTS PSU External Power Supply for 3-Pin KP-Series and DSPK Panels

RTS-PSU-KP-DSPK - Overview

• Features:

  • Universal power supply with 100 - 240 VAC input
  • Standard IEC-320-C14 input connector
  • Low earth leakage current
  • 3-Pin Connection


• Specifications:

  Input Power
  • Connector Type: IEC C14
  • Rated Power (W): 60 W
  • Input Voltage (VAC): 100 VAC - 240 VAC, +/- 10%, 50 - 60 Hz
  • Rated Input Current (A): 1.5 A

    Output Power
  • Connector Type: Kycon #KPPX-3, 3-pin snap locking
  • Output Voltage (VDC): 24 VDC, +/-5%
  • Output Current (A): 2.5 A
  • Power Supply Efficiency Level: VI

    Mechanical
  • Dimensions (H x W x D) (in): 1.3 in x 2.1 in x 4.6 in
  • Dimensions (H x W x D) (mm): 34.2 mm x 53.5 mm x 117.5 mm
  • Cable Length (ft): 4 ft
  • Cable Length (m): 1.2 m

    Environment
  • Operating Temperature(°F): -4 °F - 122 °F
  • Operating Temperature: (°C): -20 °C - 50 °C, derated to 80% load
  • Operating Relative Humidity, Non-condensing: (%) 0% - 95%
  • Storage Temperature: (°F) -22 °F - 176 °F
  • Storage Temperature: (°C) -30 °C - 80 °C


• Item Includes:

  • 1x PSU-KP-DKSP Exernal Power Supply


• Warranty:

  • 3 Year Warranty
