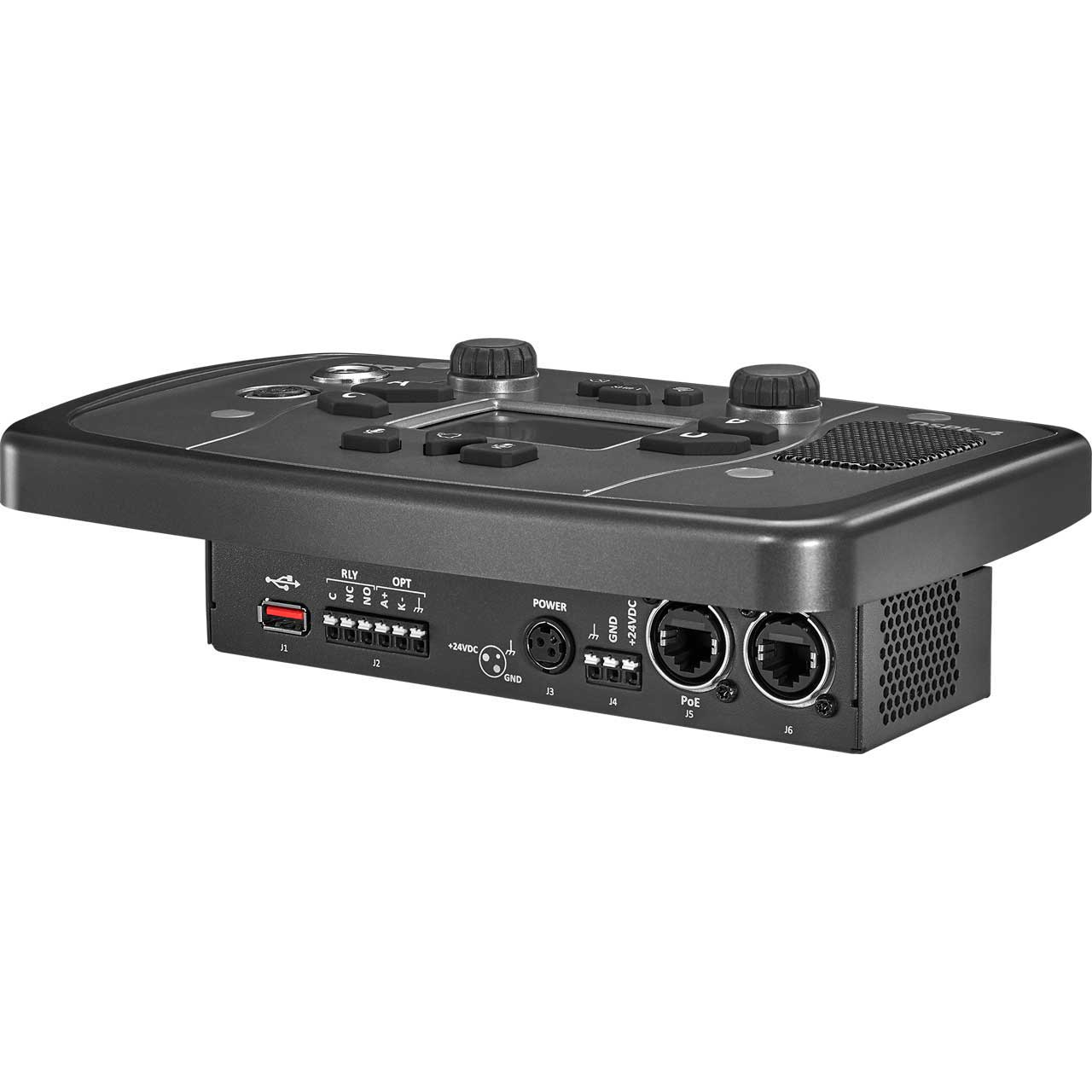

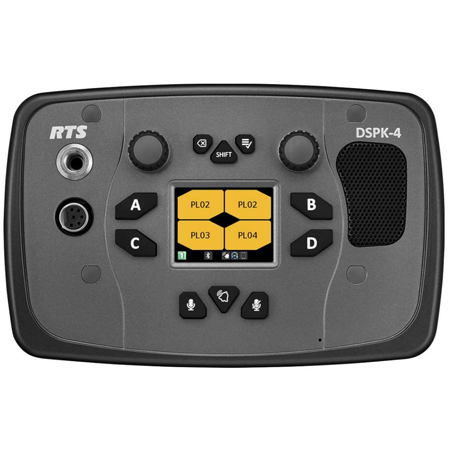

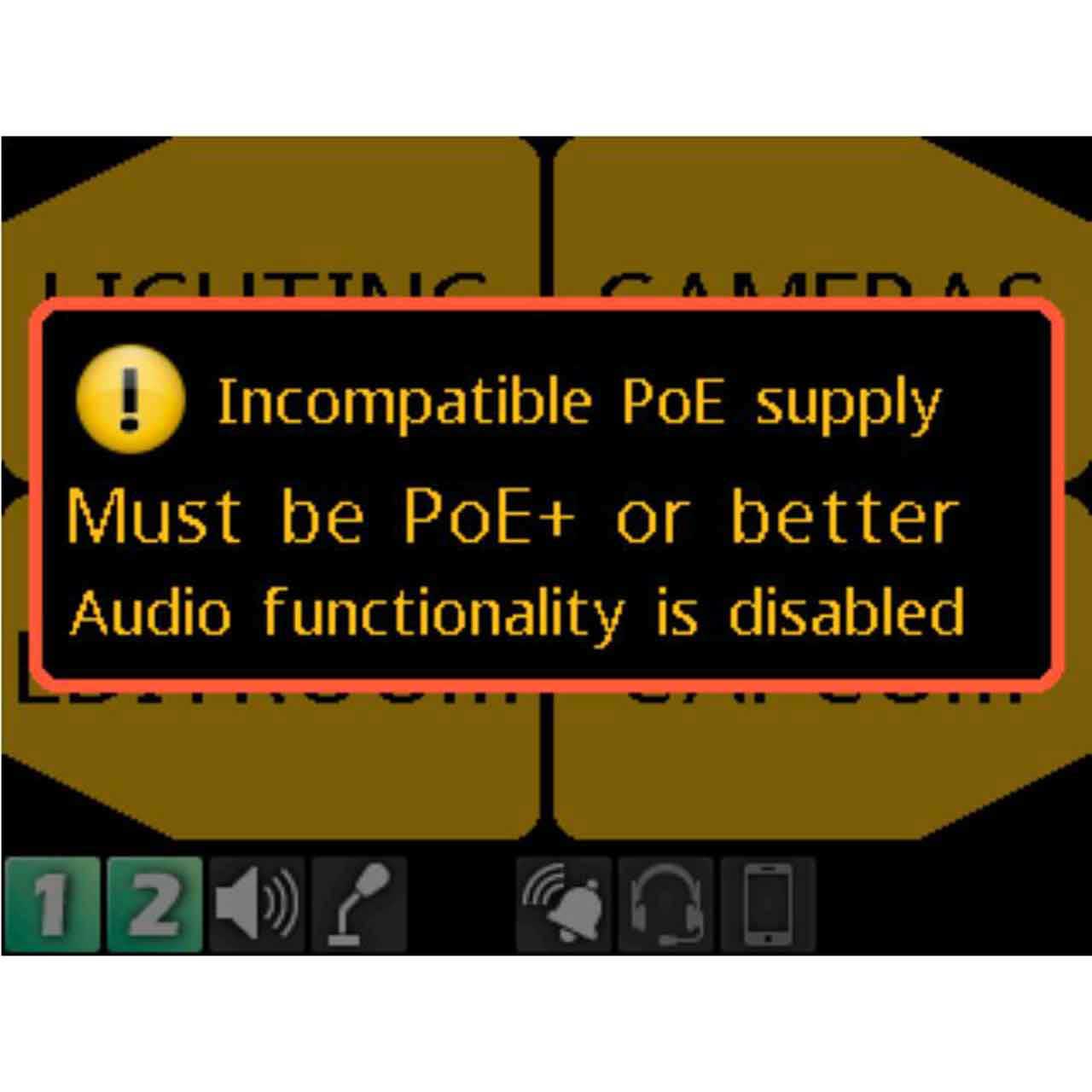

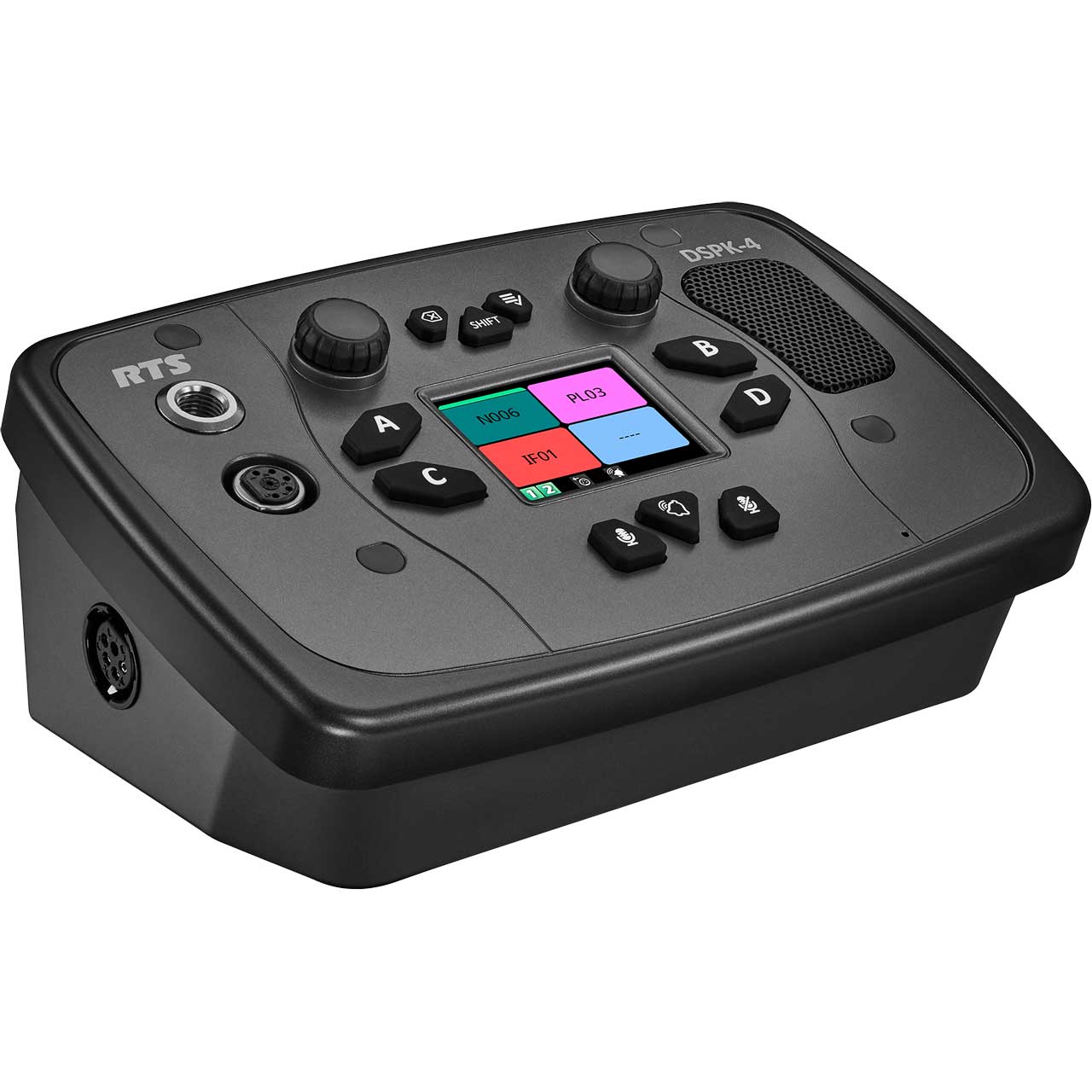

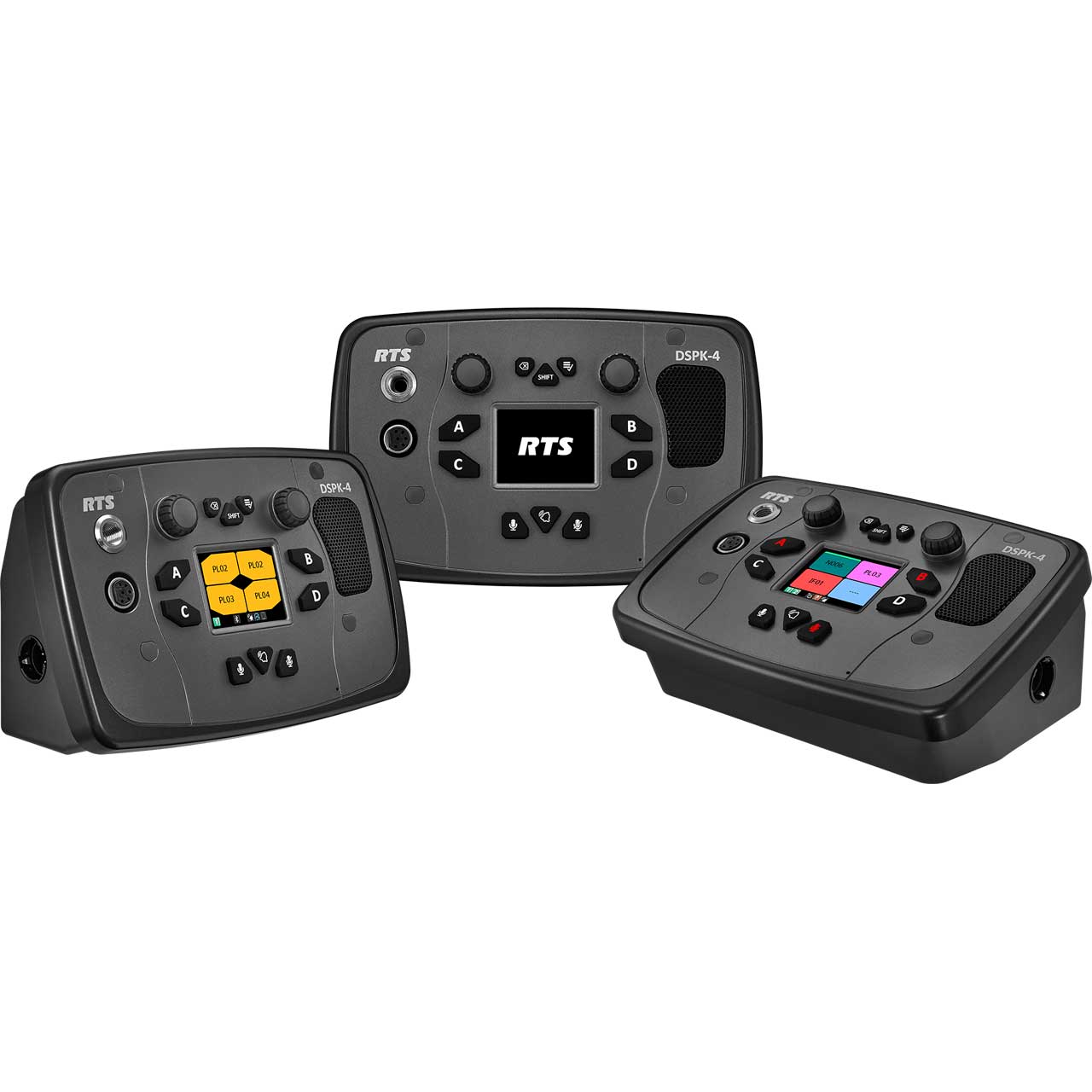

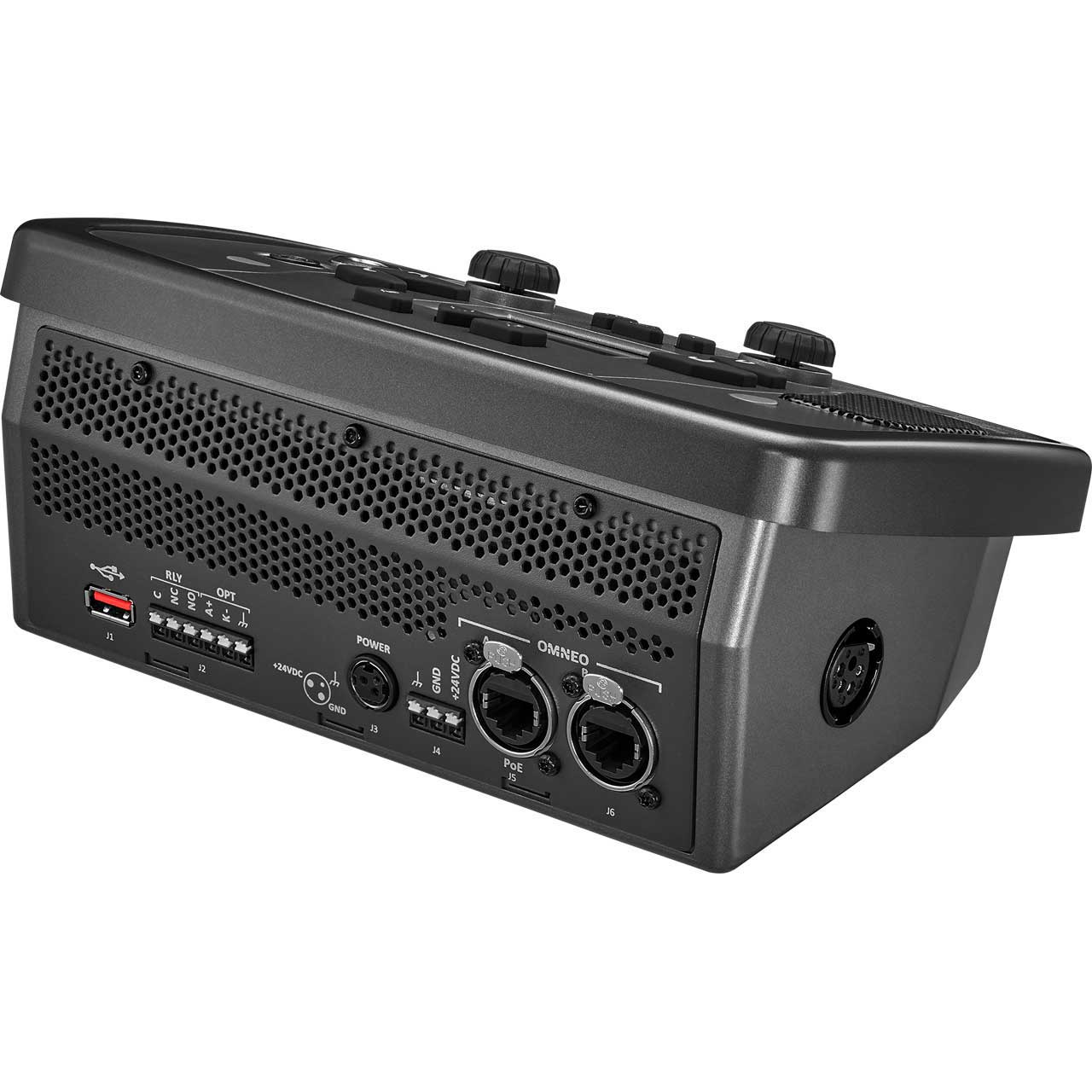

The RTS DSPK4-F-4F is an IP-based version of its wired analog speaker station predecessor, with several key enhancements, such as high quality digital audio and the use of standard Ethernet, making it compatible and versatile to fit into any environment. Building on the versatility, DSPK4 comes in three different variants: a desktop version, a wall mount version, and a flush mount version. There is a model for every situation. The flush mount version comes with 4-pin female, 4-pin male, or 5-pin female front panel XLR connector. The wall mount and desktop versions have all three XLR connectors. Power the DSPK4 via an external AC/DC power adapter, a DC +24 V terminal block, or by PoE+ / PoE++ (Power over Ethernet). In addition, you can have peace of mind when powering the DSPK4 local DC power because PoE+ / PoE++ is ready to take over as a redundant power supply with no interruptions if the unexpected happens. The DSPK4 has a full-color TFT display and an icon based menu interface, which allows for local configuration of essential customer preferences.
Please Note! If using External DC Power Supply or DC Terminal Block, PoE can act as a failover option. This
means if DC Power fails, the unit automatically switches to PoE.
Also Note! You cannot power the flush mount unit with the External DC power supply when using it in combination with an electrical box. The connector protrudes too far. RTS recommends using PoE+/++ to power the unit.
