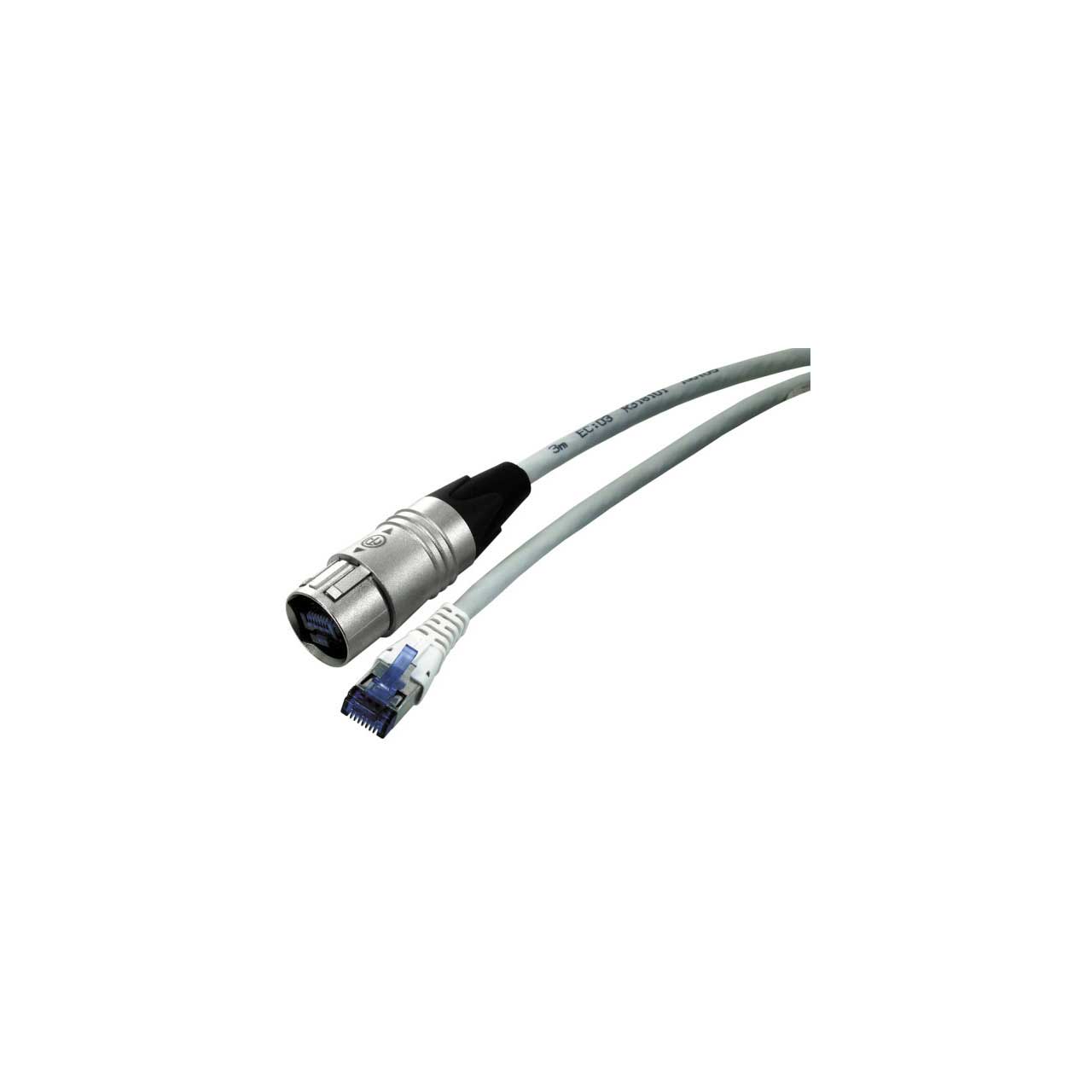

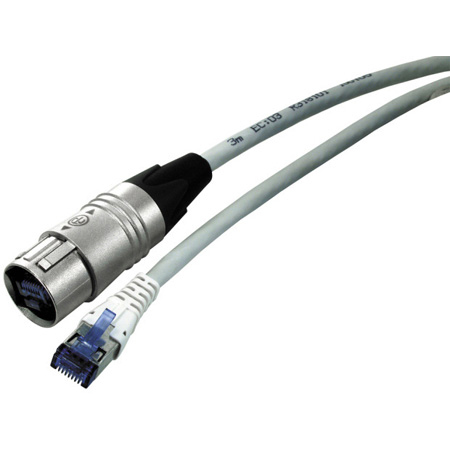

Neutrik NKE6S-10-WOC CAT6 etherCON to RJ45 Patch Cable - 10 Meter

NKE6S-10-WOC - Overview

• Features:

  • CAT6 compliant - data rate up to 10 Gbit/s
  • CAT6 specifications according TIA/EIA 568B, ISO/IEC 11801, EN 50173
  • Shielded system - high noise immunity and EMI protection
  • Ready made patch cables with rugged cable carrier and unique chuck-type strain relief
  • CAT6 performance - fast data transmission and high bandwidth applications
  • IP65 - Dust and waterproof in mated condition
  • Push Pull mating - secure and proven locking system


• Specifications:

  • Electrical
  • Contact Resistance: <10mΩ
  • Dielectric Strength: 1 kVdc
  • Frequency Range: 1 - 250MHz
  • Insulation Resistance: ≥0.5GΩ
  • Rated Current per Contact: 1,5A
  • Rated Voltage: <50V

    Mechanical
  • Insertion Force: ≤40 N
  • Withdrawal Force: ≤20 N
  • Lifetime: >1000 mating cycles
  • Wiresize: 8x AWG 27/7 mm²
  • Locking Device: Push-Pull

    Material
  • Boot: Polyurethan
  • Contact Plating: 0.7µm Au over 1.2µm Ni plating
  • Contacts: Bronze (CuSn8)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell Plating: Nickel
  • Strain Relief: Polyacetal (POM)

    Environmental
  • Flammability: UL 94 HB
  • Standard Compliance: CAT6, Class E acc. TIA/EIA 586B, IEC11801, EN 50173
  • Protection Class: IP 65
  • Temperature Range: 14°F - 140°F (-10°C - 60°C)
