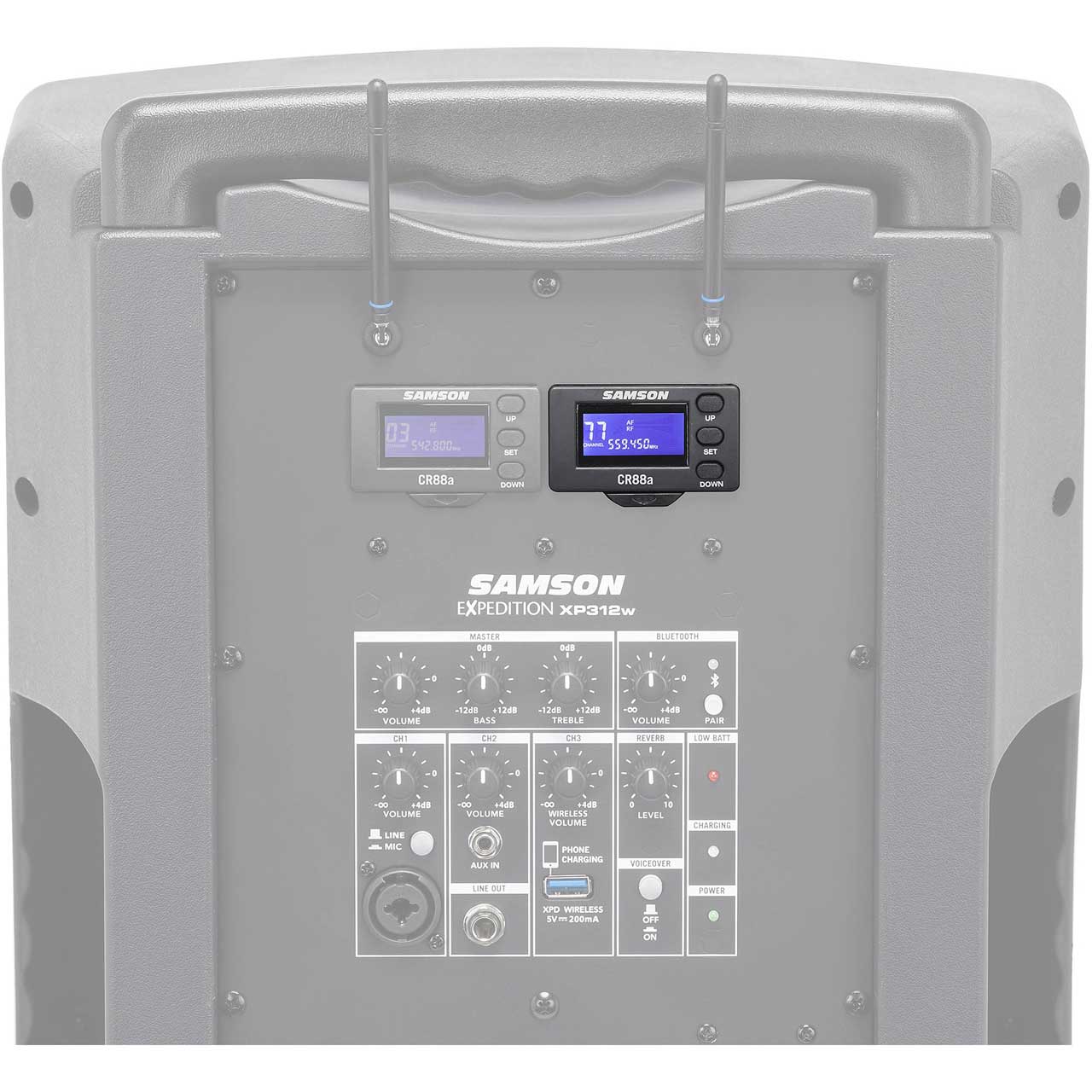

Samson SWMC88HQ6-D Concert 88 Module for XP310/XP312 with Q6 Handheld Wireless Microphone (CB88/CR88A) - D Band

ITEM #: SAM-SWMC88HQ6-D MFG #: SWMC88HQ6-D

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$203.98

Our Price:

$149.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SWMC88HQ6-D - Overview

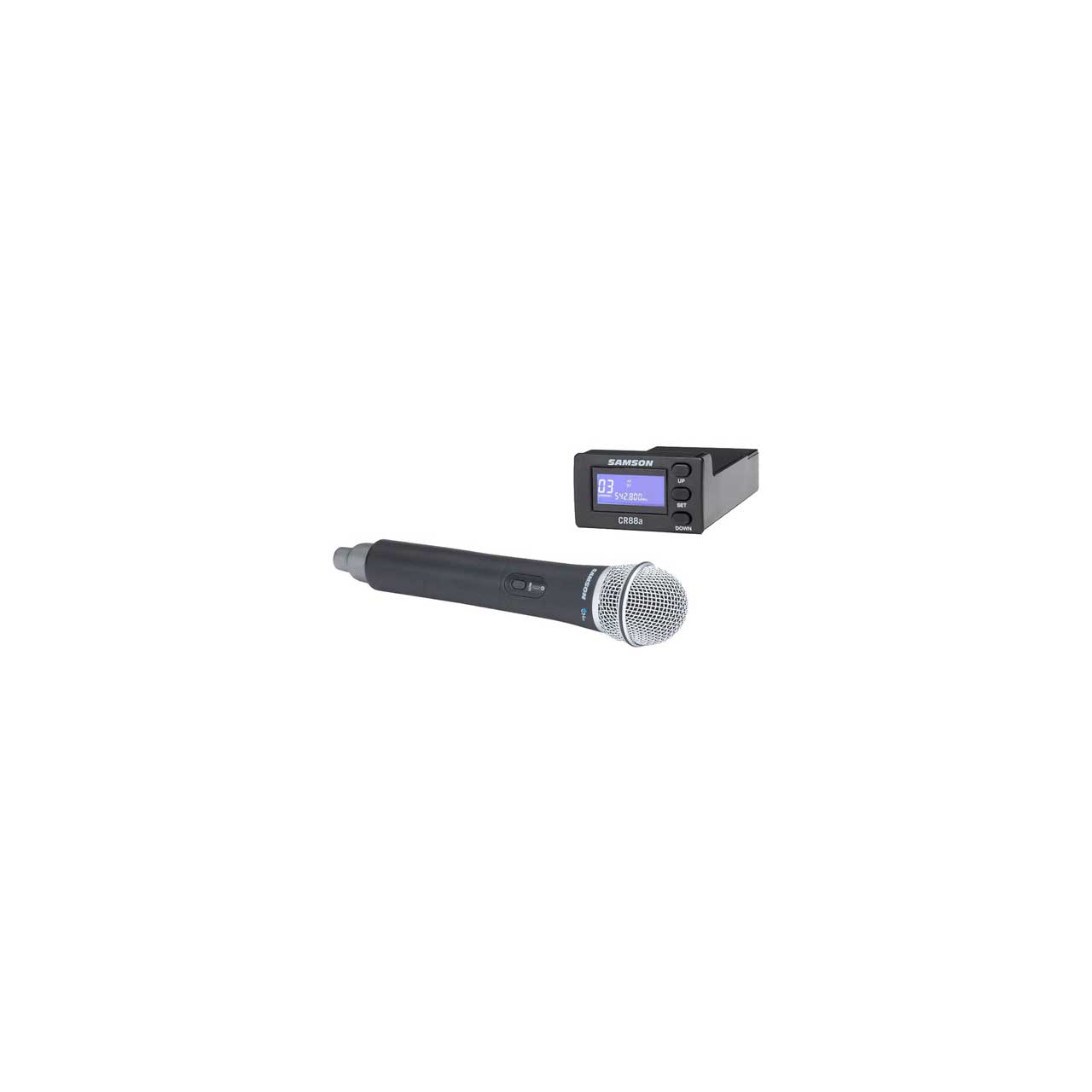

Samson's Concert 88 (SWMC88HQ6-D) Presentation Wireless System offers a high-performance UHF wireless solution where the freedom of mobility is a must. It's perfect for business professionals, educators and others looking for stunning sound and versatility without cables.

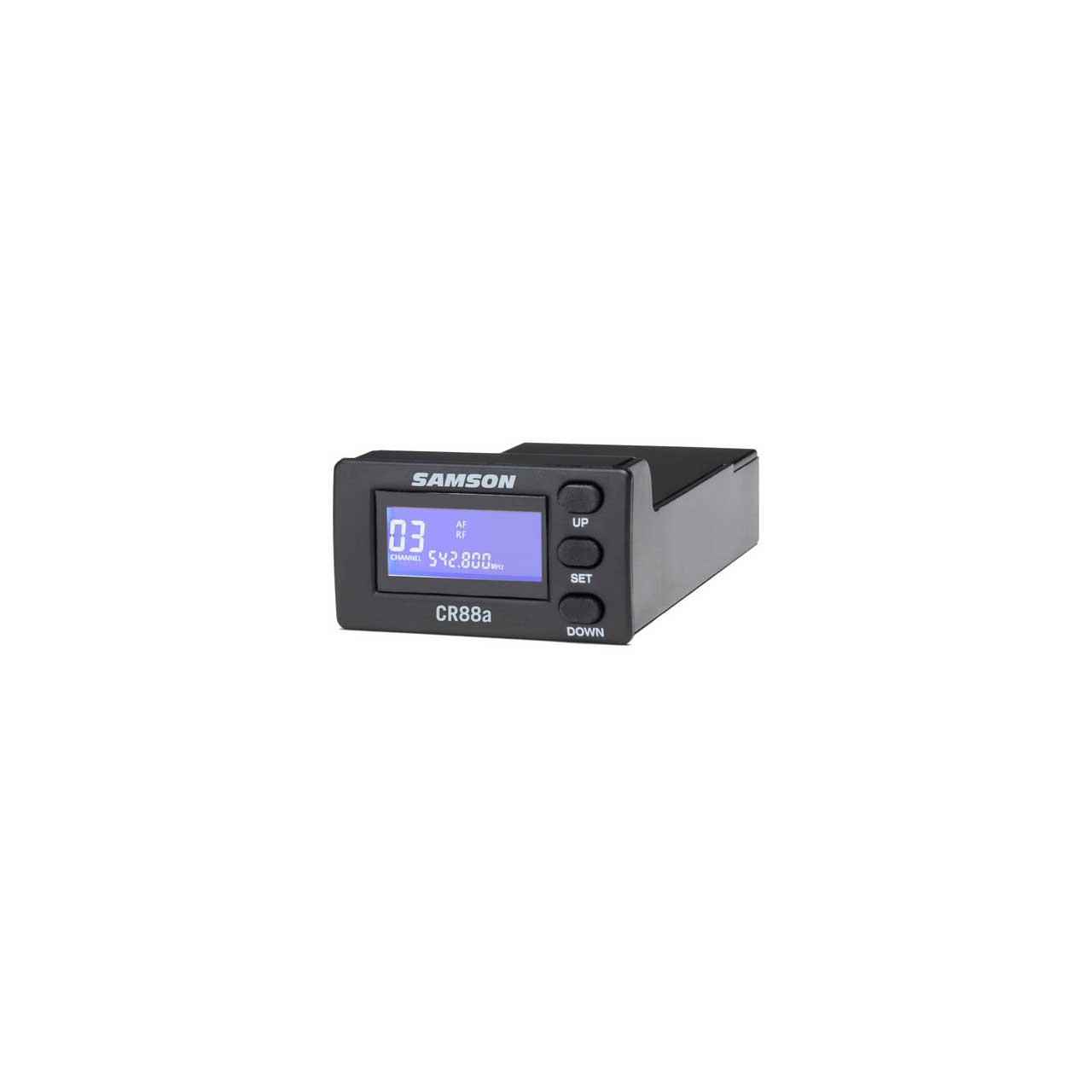

The frequency-agile Concert 88 Presentation allows for up to 16 systems to operate simultaneously across two frequency bands with up to 300 feet separating the receiver and transmitter. At the core of the system is the CR88 Wireless Receiver. Featuring a true diversity design, the CR88 minimizes signal dropouts during performance. If a dropout does occur, the CR88's tone key and auto mute functions eliminate any background noise until the signal is restored.

  • Features:

    • High performance professional UHF wireless system
    • True diversity design minimizes dropouts
    • Up to 16 systems can be operated simultaneously across two frequency bands
    • Rackmount kit included
    • D Band Version

  • Specifications:

    • System
    • Wireless Transmission: Analog UHF
    • Number of RF Channels: 100
    • Included Transmitters: 1x Handheld
    • Diversity: Non-Diversity
    • RF Frequency Band: D: 542 to 566 MHz
    • RF Bandwidth: 24 MHz
    • Max Operating Range: 100' (30.5m) (Line of Sight)
    • Dynamic Range: >100 dBA
    • Encryption: None
    • Modulation: F3E
    • Pilot Tone: 35 kHz

      Receiver
    • Form Factor: Receiver Module
    • Mounting Options: Slot-Mount
    • Number of Audio Channels: 1
    • Audio I/O: 1x Proprietary Unbalanced Output
    • Audio Output Level: 0 dBu (Max)
    • Frequency Response: 50 Hz to 15 kHz ±3 dB
    • Network I/O: None
    • Word Clock I/O: None
    • Approximate RF Sensitivity: -100 dBm
    • Display & Indicators: 1x Backlit LCD (AF Level, Channel, Frequency, RF Level)
    • Dimensions: 2.2 x 1.3 x 4.4" (57 x 32 x 112mm)
    • Weight: 1.6Lbs (0.7kg)

      Transmitter
    • Form Factor: Handheld
    • RF Output Power: 10 mW (EIRP)
    • Audio I/O: None
    • Pad: None
    • Muting: Off/On Switch
    • Gain Range: 28 dB
    • Signal Processing: None
    • Sync Method: IR
    • Power Requirements: Battery
    • Battery Type: 2x AA (Not Included)
    • Approx. Battery Life: 8 Hours
    • USB/Lightning Connectivity: None
    • Display & Indicators: 1x LED (Battery Status, Mute, Power)
    • Dimensions: 2.1 x 10.2 x 2.1" (5.3 x 25.9 x 5.3cm)
    • Weight: 7.7oz (218g)

      Microphone
    • Form Factor: Handheld
    • Sound Field: Mono
    • Operating Principle: Pressure Gradient
    • Capsule: Dynamic
    • Polar Pattern: Supercardioid
    • Frequency Range: 50 Hz to 15 kHz
    • Maximum SPL: 134 dB SPL

      Shipping
    • Weight: 0.87Lbs
    • Dimensions (LxWxH): 10.9 x 3.1 x 2.6"

  • GTIN:

    0809164224549
