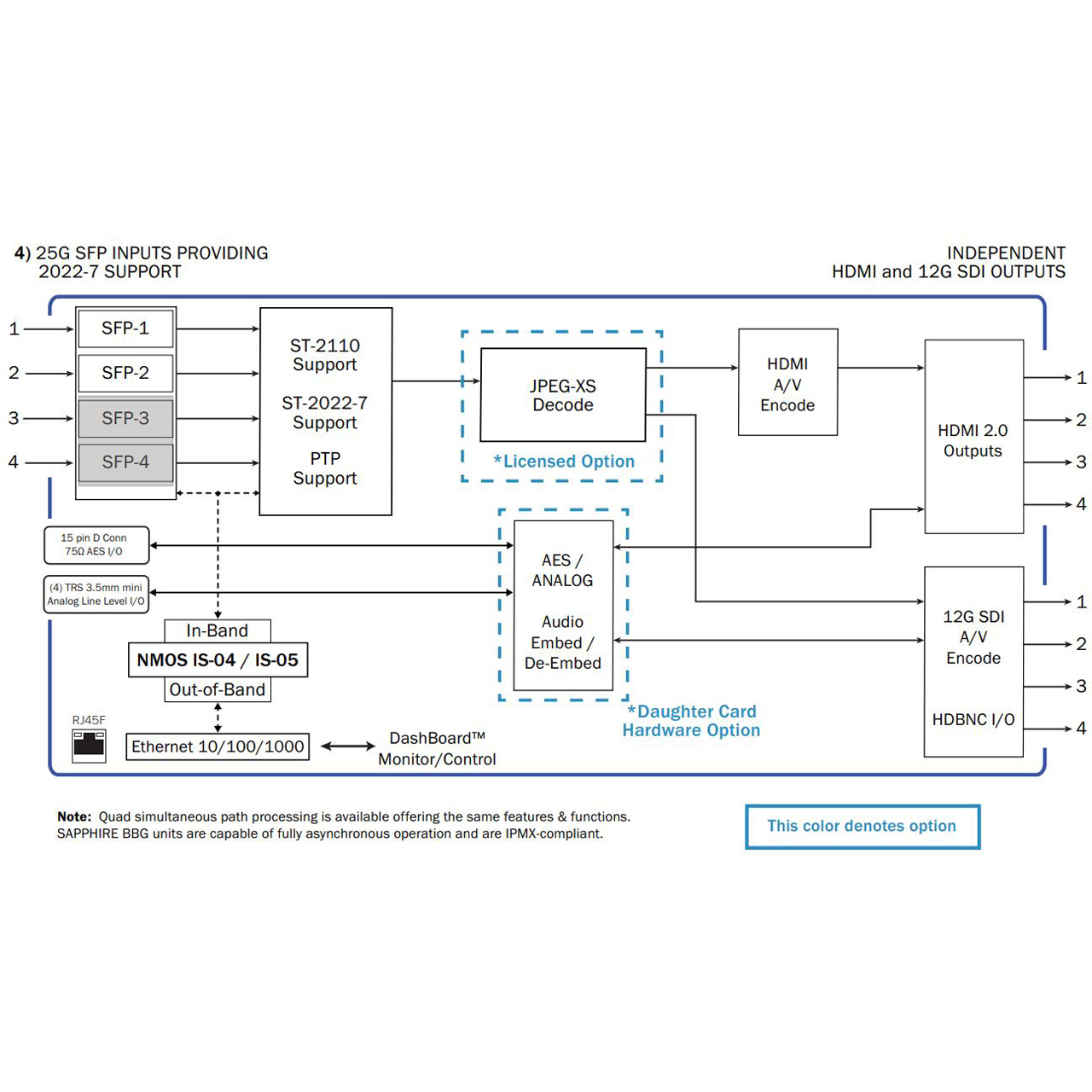

Cobalt Digital introduces the SAPPHIRE BBG 2110 4-H/S Quad channel SMPTE ST 2110 - 20/22 baseband to HDMI / SDI converter unit with four simultaneous HDMI and four simultaneous SDI outputs. This mini converter addresses the need to display received baseband and JPEG-XS* content on HDMI monitors in a simple and cost-effective way. The mini converter is designed to be mounted behind the monitor. The converter includes Quad SFP cages with support for 10G and 25G Ethernet ports, additional 1Gb copper Ethernet port for out-of-band management, support for SMPTE ST 2022 7 Seamless Switching up to Class C operation for WAN environments. Support for NMOS IS 04/IS 05 control and management (both in-band and out-of-band) and in-band PTP support. The SAPPHIRE BBG units are the ideal choice for directly displaying incoming baseband and JPEG-XS* content on HDMI monitors, including content originating from a WAN connection. The units can be mounted directly behind the monitor and will not take up any rack space. The unit depicted here features an active cooling (fan) and the audio hardware option* (-BBG-4H/S-AUD)
Options Include:
- BBG-4H/S-AUD Audio daughter board allows for AES I/O and Analog Audio I/O. (must be purchased at time of initial order - factory Installed option)
- CB-BBG-CA75-BNCM AES break-out cable HD15 pin to BNC (4 Inputs & 4 Outputs, or 8 Inputs or 8 Outputs)
+ JPEG-XS license option
- PS-40W-761K Spare / Redundant power supply

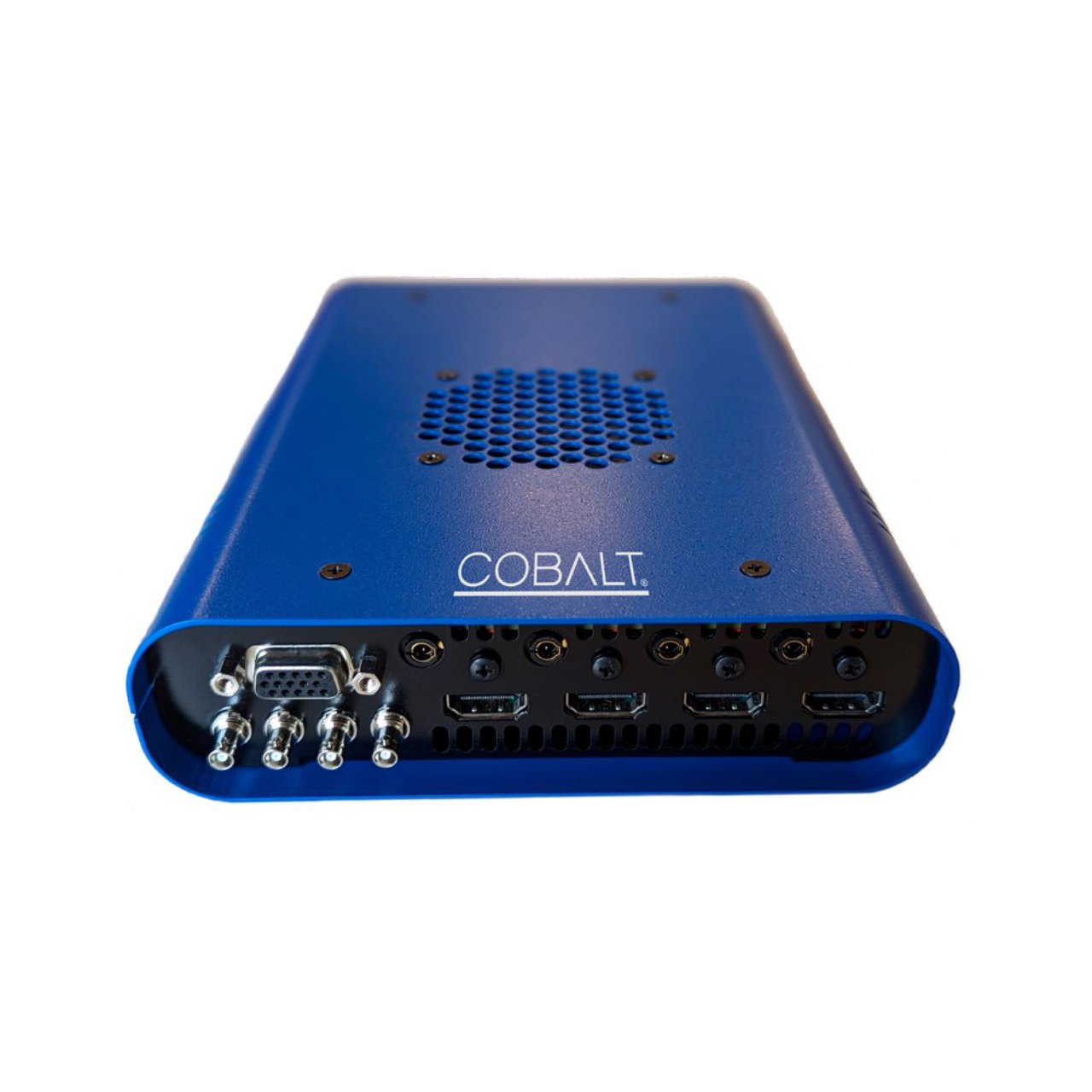

Please Note: Image shown with Optional audio daughter board which allows for AES I/O and Analog Audio I/O (Factory installed only) - BBG-4H/S-AUD 4) 3.5mm TRS jacks for consumer analog audio levels. Configurable in software as Analog Inputs or Outputs. *Optional AES HD15 break-out cable
