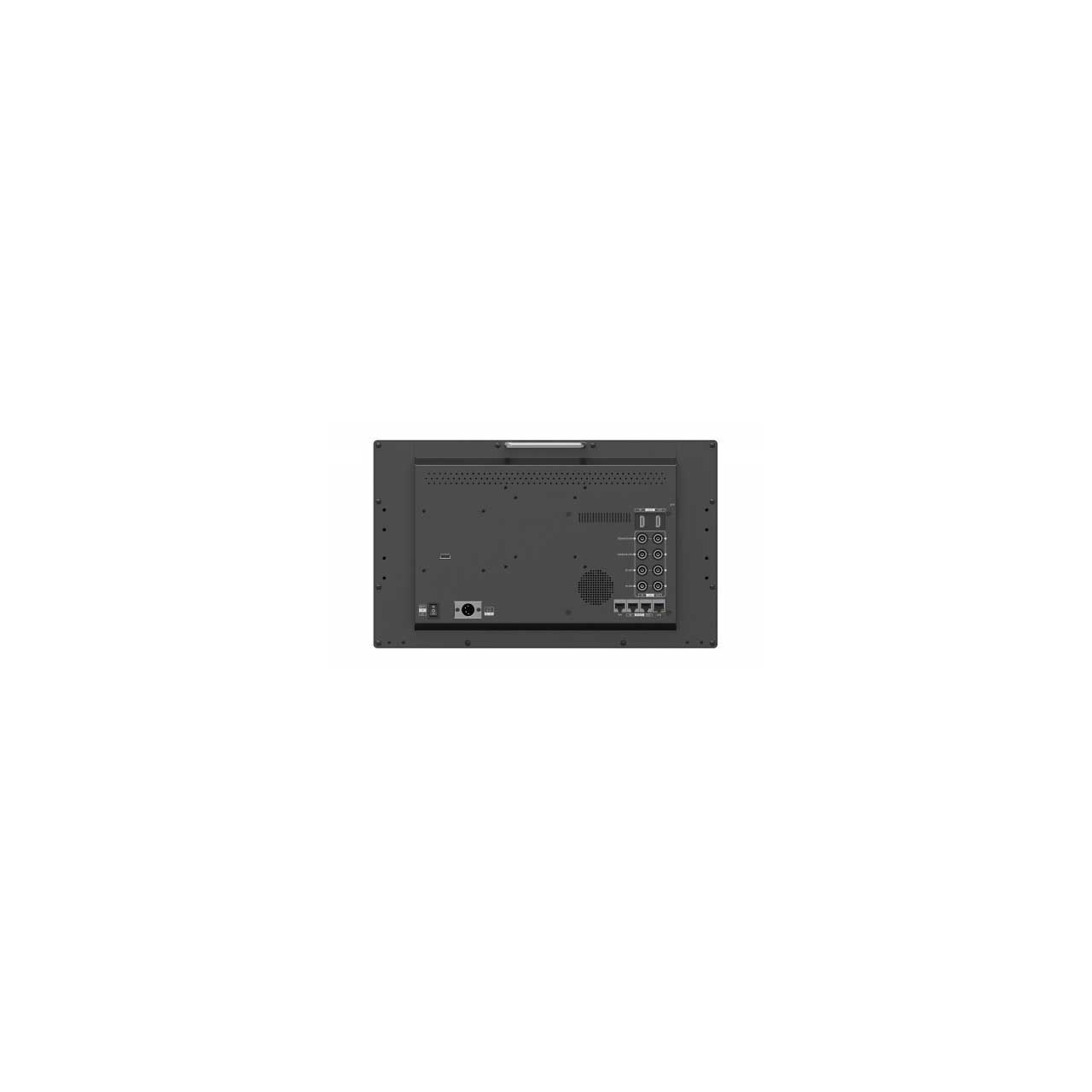

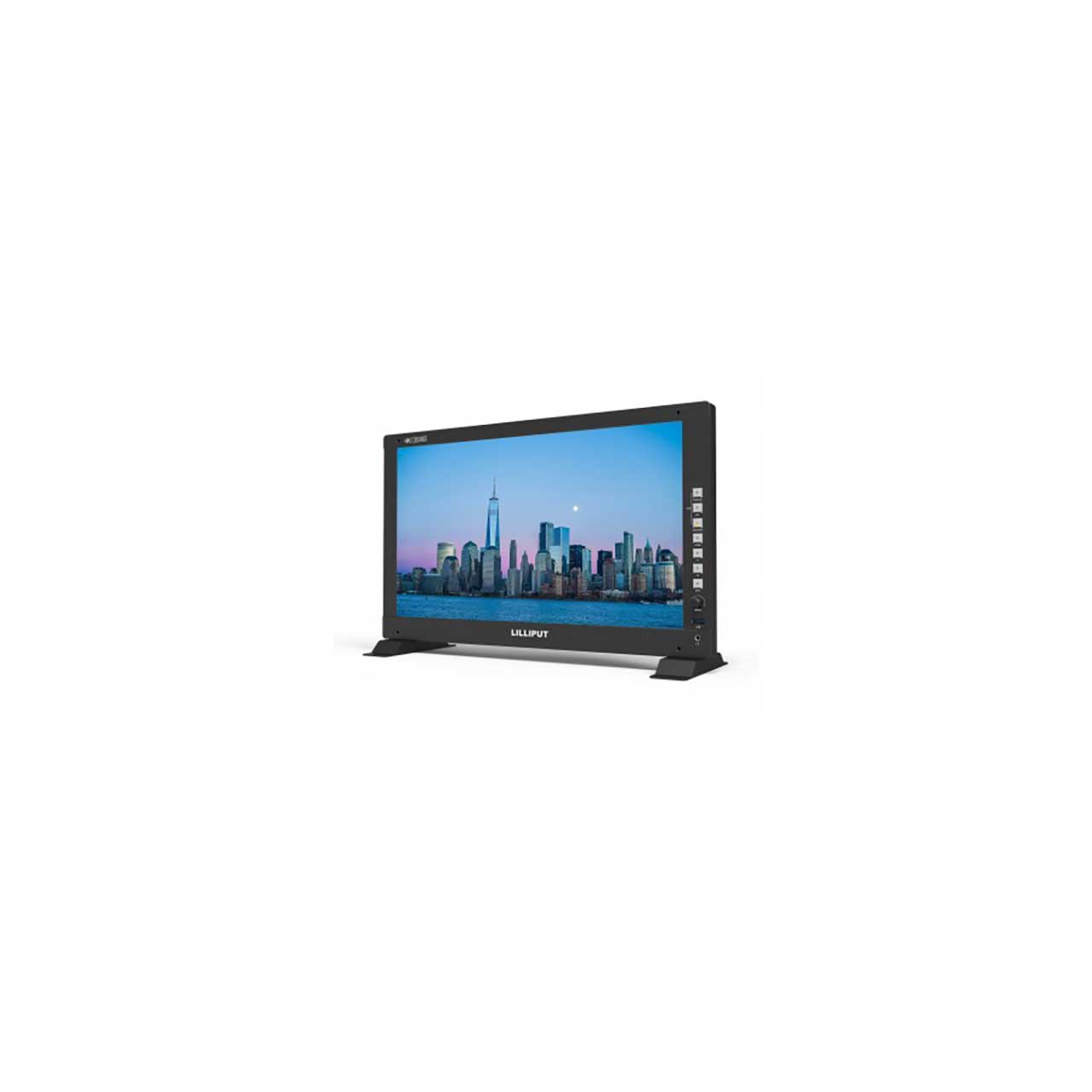

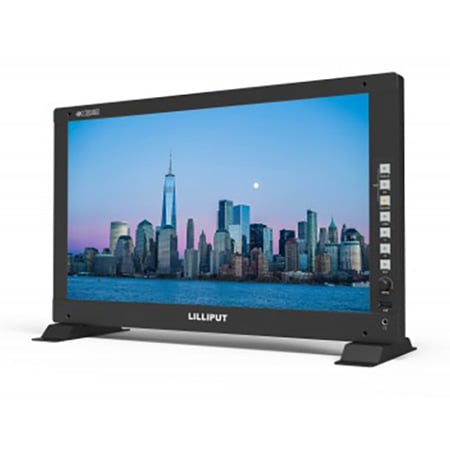

The Lilliput Q17 is a 17.3 inch production monitor with 1920x1080 resolution, 12G-SDI , 3G-SDI, HDMI 2.0 and SFP. The Q17 pro 12G-SDI broadcast production monitor is perfect for camcorder and DSLR applications for taking photos and movies. The 12G-SDI, 12G SFP+, 4K HDMI and other signal transmission methods are integrated into this display to avoid being lost in the choice question for video signals. Equipped with 12G-SDI, 3G-SDI and HDMI 2.0 input/output interfaces, it can support up to 4096x2160 (60p, 50p, 30p, 25p, 24p) & 3840x2160 (60p, 50p, 30p, 25p, 24p) signal. 12G SFP+interface, which allows to transmit 12G-SDI signal via SFP optical module, is suitable for most broadcast field. The color calibration of Q17 model are including color spaces (SMPTE_C, Rec709 and EBU) and color temperature (3200K, 5500K, 6500K, 7500K,9300K) and gammas (value from 1.8 to 2.8). It can support remote control application. To connect your computer to control the monitor via applications the interfaces of RS422 in and RS422 out can realize synchronization control of multiple monitors like picture, source, marker, audio, function, UMD. It can support Audio Vector, HDR and 3DLUT function.
12G-SDI / 4K HDMI Signal

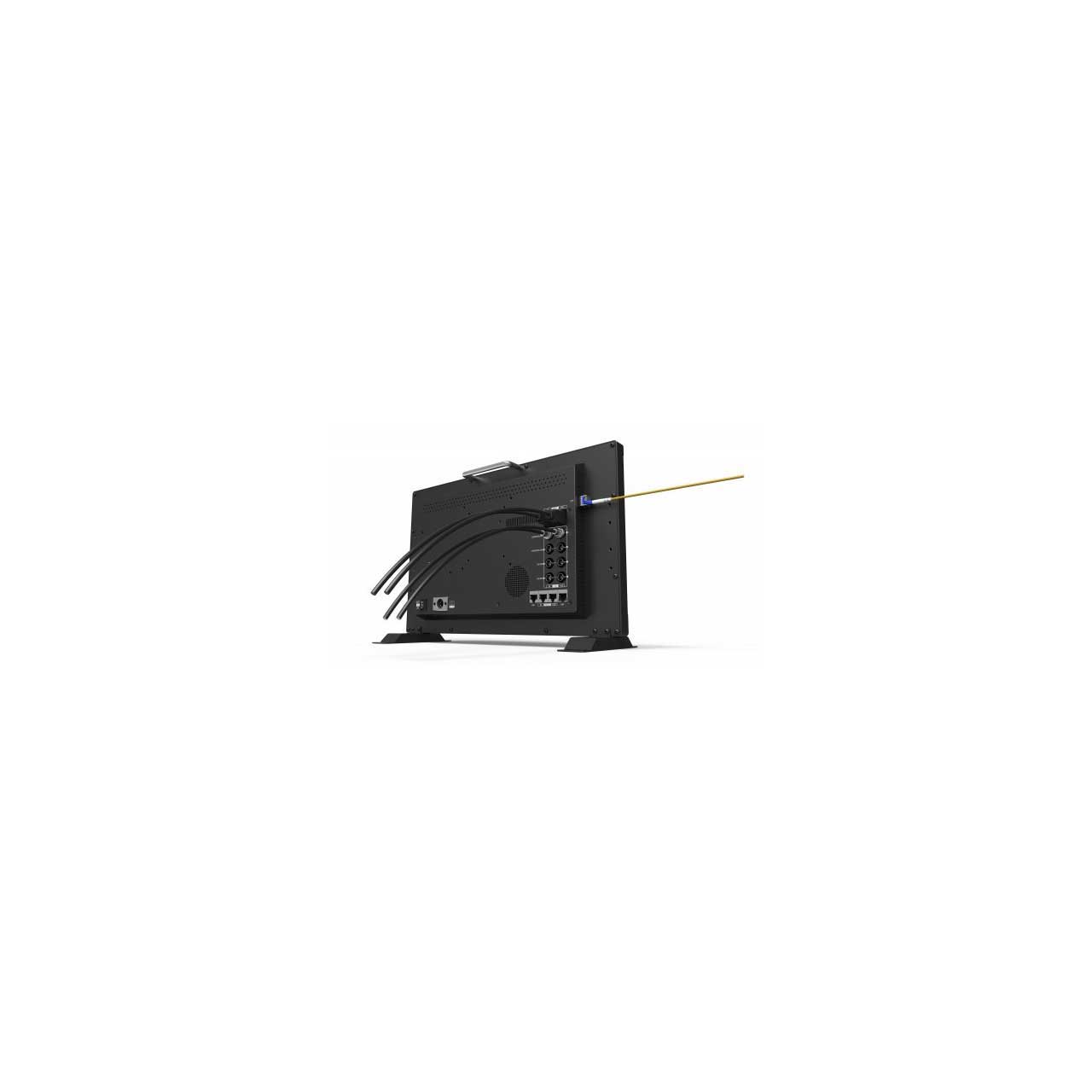

12G-SDI, 4K HDMI, 12G SFP+ and other signal transmission methods are integrated into this display,to avoid being lost in the choice question for video ignals.Equipped with 12G-SDI, 3G-SDI and HDMI 2.0 input/output interfaces, it can support up to 4096x2160 (60p, 50p, 30p, 25p,24p) & 3840x2160 (60p, 50p, 30p, 25p, 24p) signal. 12G SFP+ interface, which allows to transmit 12-SDI signal via SFP optical module, is suitable for most broadcast field.
Color Spaces
It is different from the old single color space "Native" mode used to match the colors of its screen, there are also three modes to choose, including "SMPTE_C", "Rec709" and "EBU". Aim to restore the original color in different color spaces picture.
Color Temperature
According to the different senses of the pictures, filmmaker have their own preferences for different color temperatures.The default is 3200K / 5500K / 6500K / 7500K / 9300K five color temperature conditions, can also be customized according to user needs.
Gammas
Gamma redistributes tonal level closer to how our eyes perceive them. Since Gamma value is adjusted from 1.8 to 2.8,more bits would be left to describe the dark tones where the camera is relatively less sensitive.
