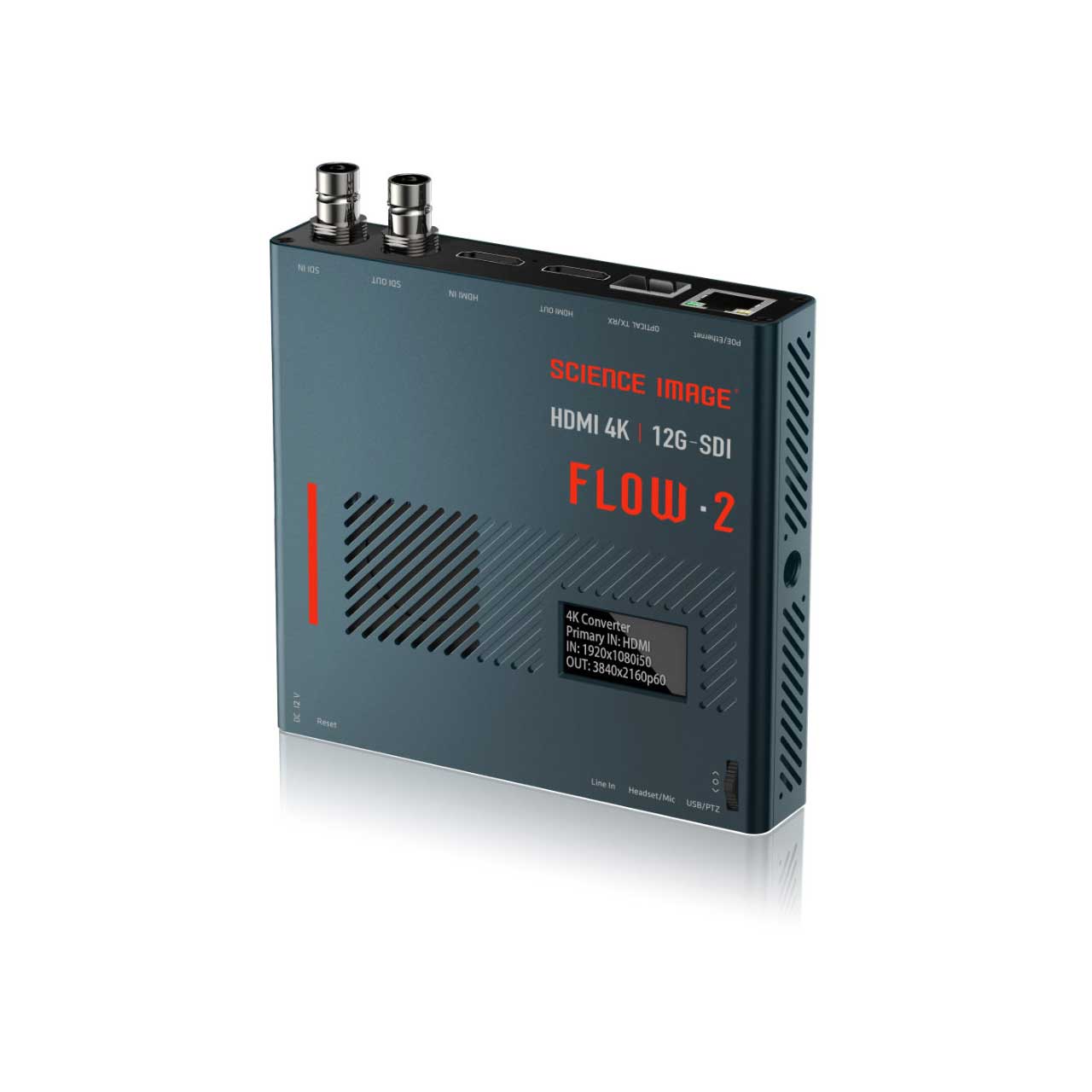

FLOW 2 is a powerful product, it combines frequency conversion and optical transceiver in one tiny device.It is the upgraded version of FLOW 4K with an intelligent scroll wheel. Widely used in various business scenarios such as broadcast program, variety show recording, large events, and video conferences, providing users with excellent AV experiences.

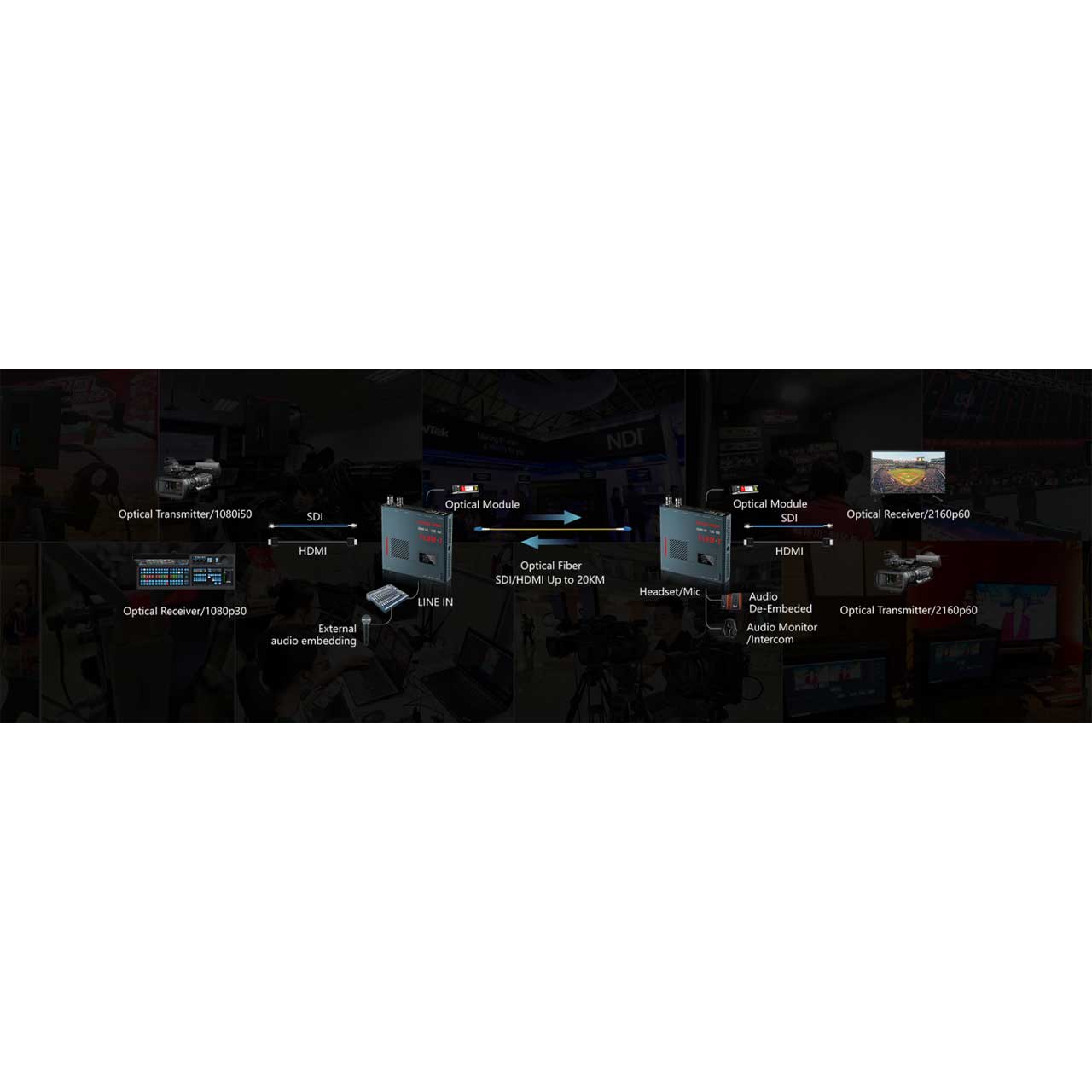

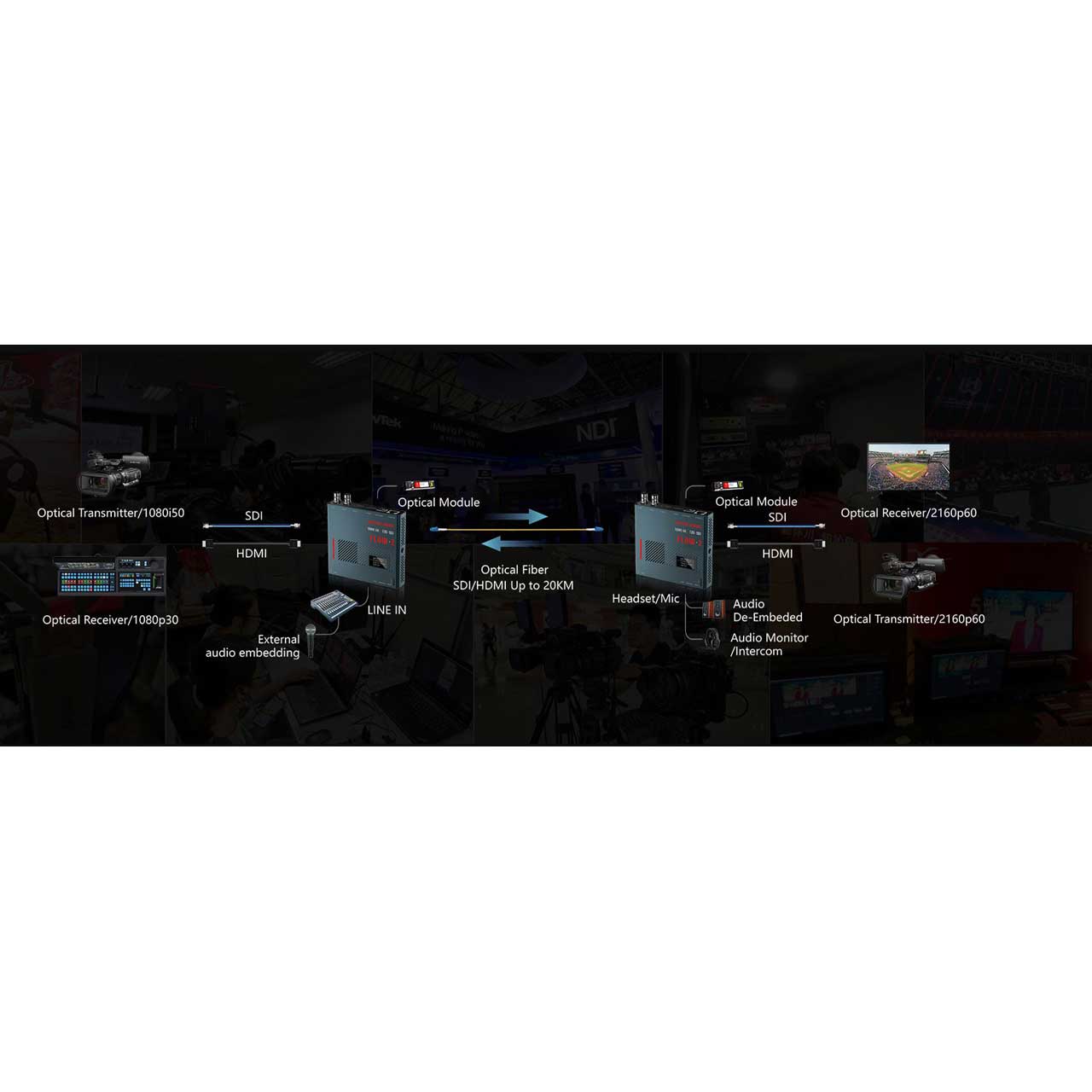

Provide a 12G SDI optical transceiver interface, simultaneously transmit and receive 3G/6G/12G SDI and HDMI 4K videos, support maximum 20km transmission; The web UI is equipped with an optical transceiver switch, allowing users to freely choose HDMI optical transceiver or SDI optical transceiver in the web UI.
With an intelligent scroll wheel, it's so convenient to operate that you just use your finger to scroll up and down to choose the menu and manage the settings. No need to enter the web UI.
Flexible deployment on the front end or display/control terminal according to different scenes on site; While the optical transceiver works, it is also an SDI/HDMI bidirectional converter; One machine for multiple purposes, reducing system cost, fast response, flexibility and convenience.

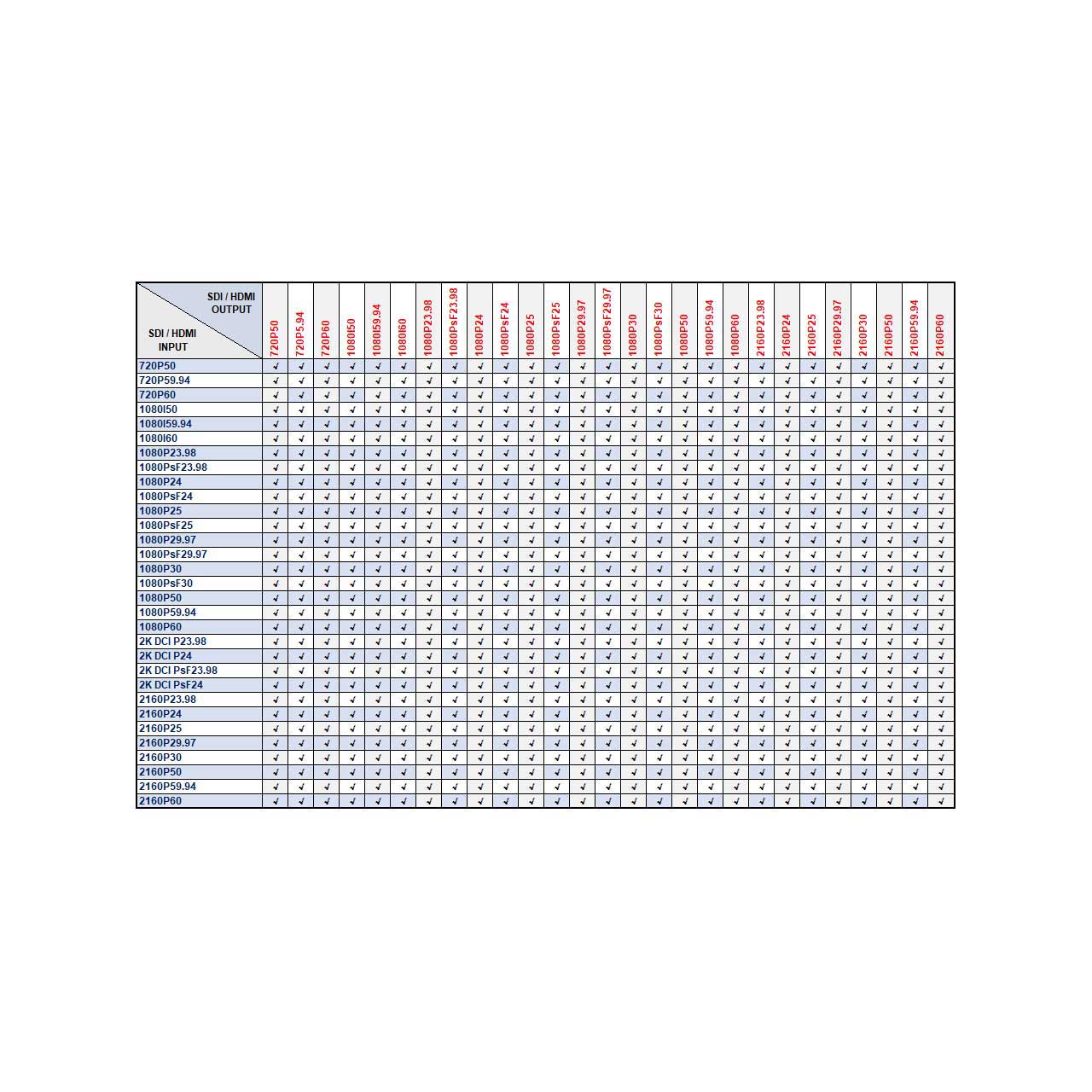

The FLOW2 supports 12G-SDI/HDMI 2.0 and SMPTE/ITU international broadcast standard formats, compatible with multiple sampling formats (444,422,420), accurate and fast signal recognition. Adopt Xilinx FPGA SOC hardware, internal design and embedded Linux system, ensure the program running stably, not influenced by the external complex environment.
It also supports SMPTE video source, compatible with the video from most equipment. Open to most software and browsers, truly plug and play. FLOW2 meets industrial standard, which ensure it works durably and reliably.
Please Note: SFP Modules Sold Separately.!
