Structured Cable 12/2SHDB 2-Conductor 12 AWG Shielded Direct Burial Speaker Cable - 1000 Feet Black

Name: Structured Cable 12/2SHDB 2-Conductor 12 AWG Shielded Direct Burial Speaker Cable - 1000 Feet Black
Brand: Structured Cable Products
SKU: SCP-122SHDB
Price: 656.89 USD
Availability: PreSale

ITEM #: SCP-122SHDB MFG #: 12/2SHDB

Structured Cable Products

List Price:

$1,051.02

Our Price:

$656.89

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

12/2SHDB - Overview

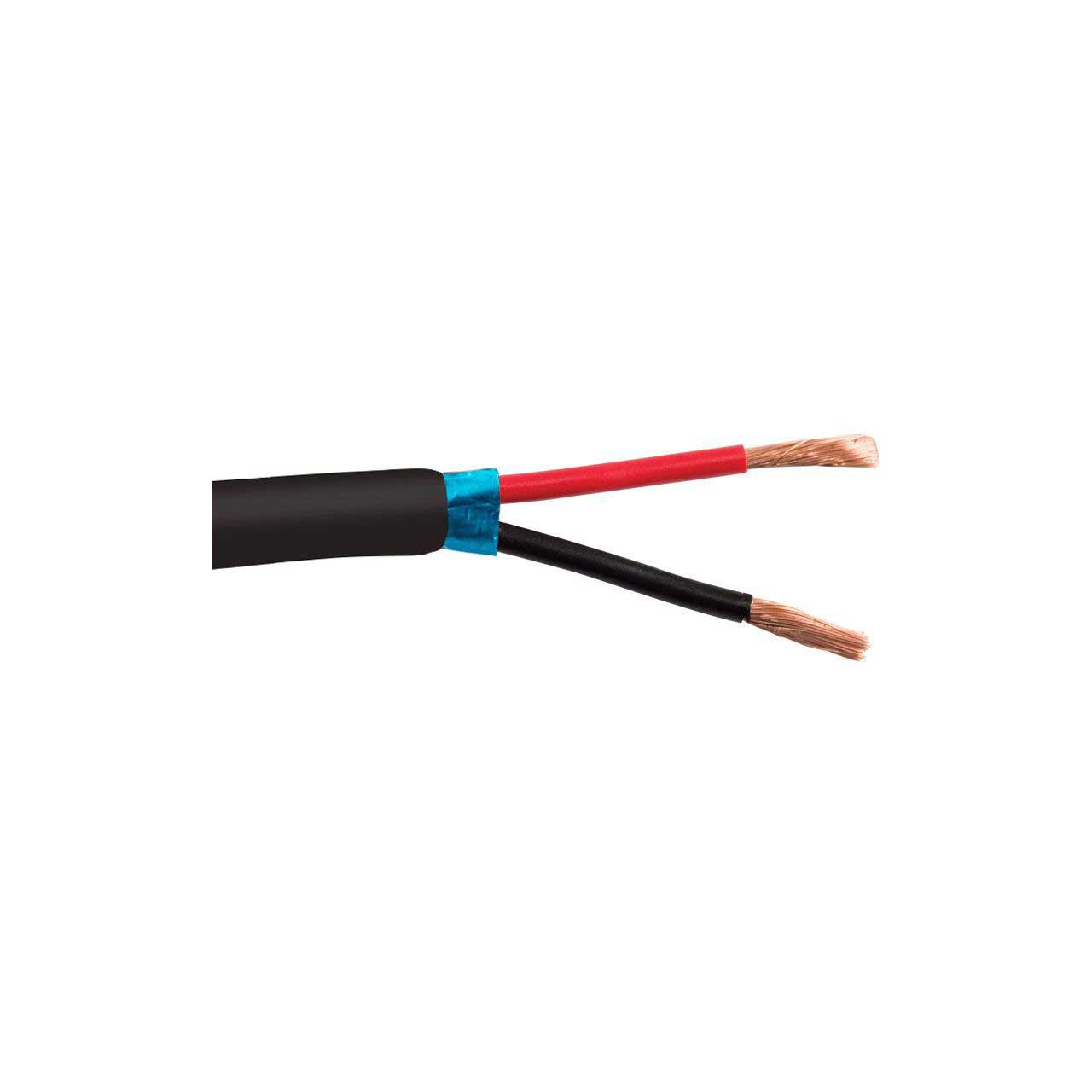

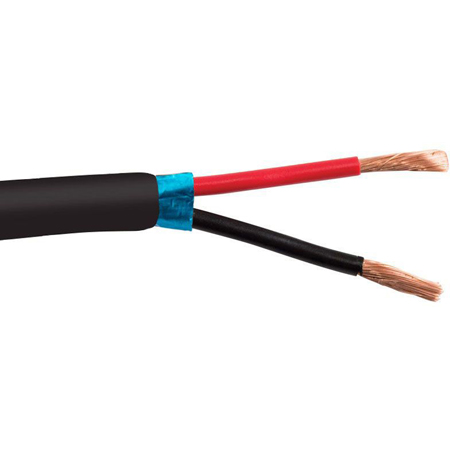

This cable consists of high strand count insulated oxygen free copper conductors in twisted pair construction (shielded) with easy strip LLDPE jacket. Cable includes SCP Cable Labeling System with sequential foot/meter markings, and room/zone/outlet designations for easy cable identification.

Features:
- Linear Low-Density Polyethelene jacket with UV Sun Resistance
- Insulated twisted pair
- Water Block Tape (WBT) for moisture protection
- Descending Feet and Zone/Outlet Jacket Markings
- Spool Packaging
Specifications:
- Conductor:
- Material: Stranded Bare Copper
- Size: 12AWG X 2C (3.28mm²)
- Construction: 65/0.254mm±0.004mm
- Resistance: Max 5.8Ω/km at 20°C

  Insulation:
- Material: PVC
- Min. Thickness: 0.33mm
- Avg. Thickness: 0.36mm
- Diameter: 3.20mm±0.05mm
- Colors: Black and Red
- Resistance: Min 50MΩ*km at 20°C

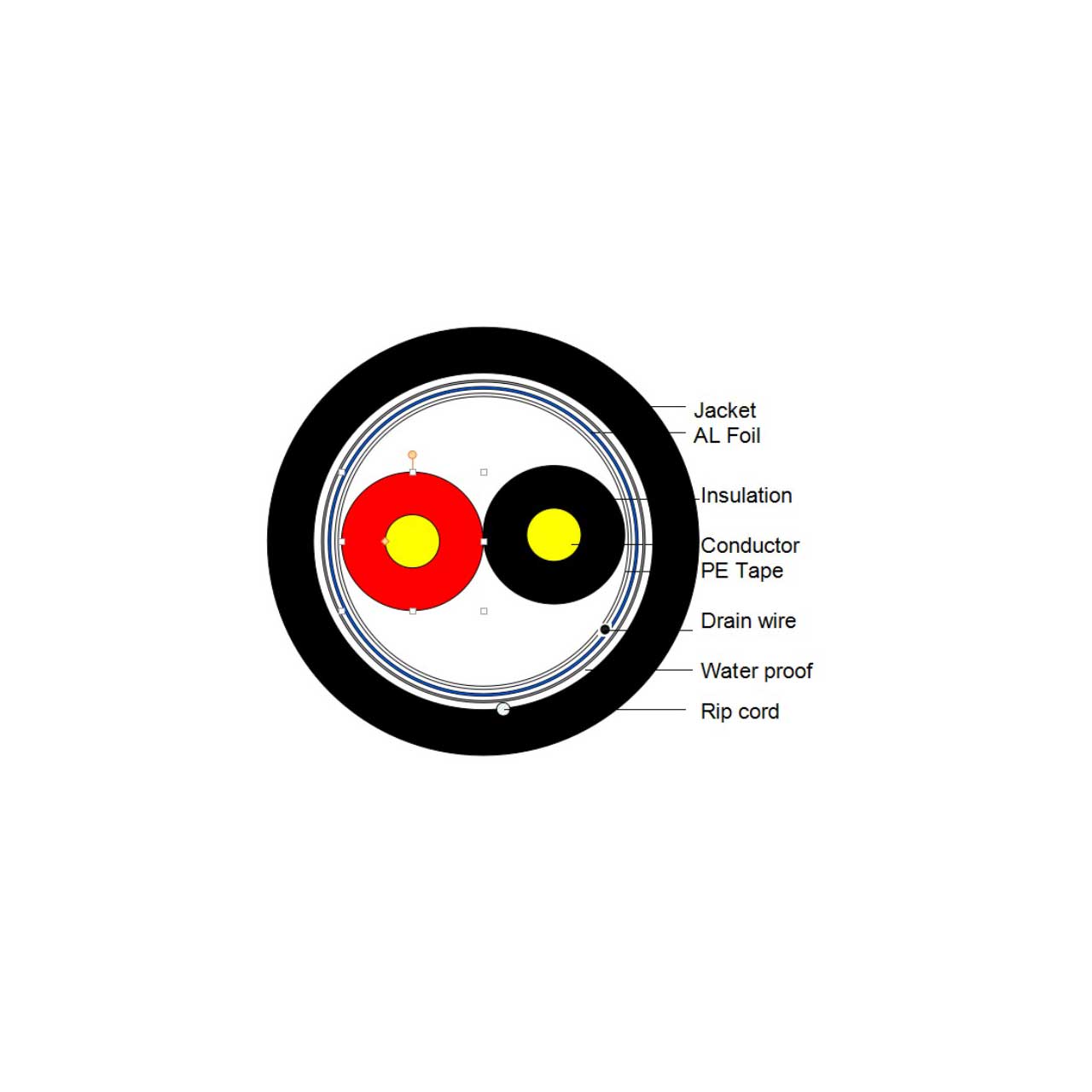

  Shield:
- Core Wrap: PE Tape
- Drain Wire (TC): 7/0.20±0.004mm
- Shield: AL Foil
- Filler: Water proof

  Jacket:
- Material: LLDPE
- Min. Thickness: 0.70mm
- Avg. Thickness: 0.80mm
- Diameter: 8.5mm±0.20mm
- Rip Cord: Nylon
- Operating Temperature Range: -20°C - +75°C
- Minimum Installation Temperature: 0°C - 40°C
- Dielectric Strength: Min AC1.5KV
- Rated Voltage: 300V
- Test Voltage: 800V/min
- Impedance (nearby): 77±5Ω
- Capacitance (nearby): 20±3pf/ft
GTIN:
0817777011173
