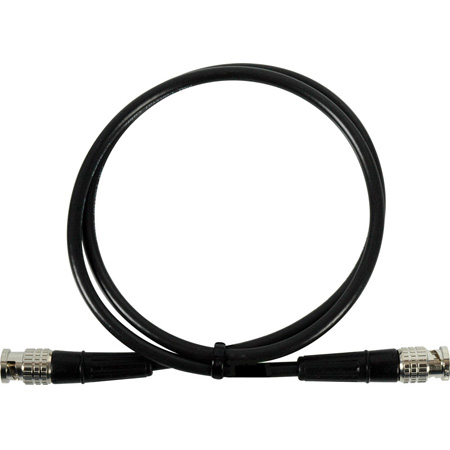

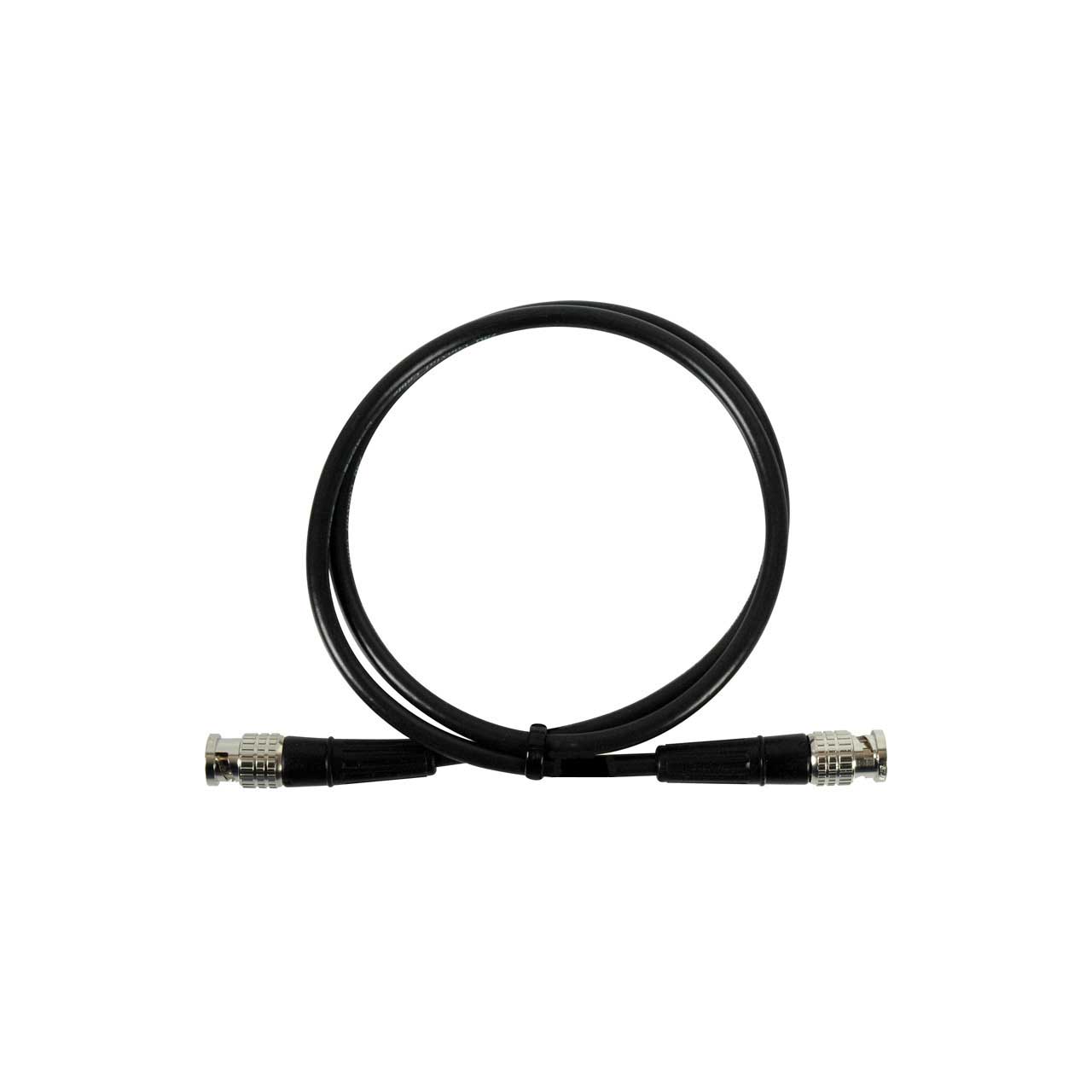

Laird Flexible Canare L-3CFW HD-Serial Digital SMPTE 292M/294M/424M BNC Cable - 3 Foot - Black

Name: Laird Flexible Canare L-3CFW HD-Serial Digital SMPTE 292M/294M/424M BNC Cable - 3 Foot - Black
Brand: Laird Digital Cinema
SKU: SD59-BB3
Price: 19.95 USD
Availability: InStock

ITEM #: SD59-BB3 MFG #: SD59-BB3

Laird Digital Cinema

Lengths:

Colors:

Lengths

Colors

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$21.95

Our Price:

$19.95

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

SD59-BB3 - Overview

Another exclusive. This super flexible series is hand crafted in our shop with Canare L-3CFW HD-Serial Digital Flexible RG59 Coaxial Cable and Canare BCP-B31F BNC Connectors. The Canare L-3CFW coax used in our BNC cables is 100% sweep tested to conform to SMPTE 259M, 292M and 424M standards. This means our BNC cable is ready to meet today's requirements for 3 Gbps signal / data serial interface as well as your most demnding productions.

Features:
- Meets SMPTE 259M, 292M,424M Standards
- Assembled with Super Flexible Canare L-3CFW 75 Ohm Precision HD Serial Digital Video Coaxial
- 100% Sweep Tested
- BCP-B31F 75 Ohm BNC Connectors
- Available in Black, Red, Green, and Blue
Specifications:
- Canare L-3CFW 22 AWG 75 Ohm Digital Video Flexible Coaxial Cable
- Solid Copper Center Conductor
- Foam PE Dielectric
- Dual Copper Braid for Flexibility
- Cable O.D.: 0.23"
- Cond. Material AWG: Bare Copper #22
- Cond. O.D. (Inches): 0.026
- Dielectric Insulation Type: Foam PE
- Insulation O.D. (Inches): 0.122
- Capacitance (between conductors): 16.8 pF/ft
- Attenuation dB/1,000 Feet: 10Mhz / 10.4
- Shield Material Coverage (mm/ends/carriers): 0.12TA/5/24 (94% or more) / 0.12TA/6/24 (94% or more)
- Cond. D.C.R. (ohm/100m): 5.5

  Canare BCP-B31F 75 Ohm BNC Crimp Plug
- SMPTE 424M & 292M Compliant
- 75 Ohm
- Superior Cable Pull Strength
- Gold Plated Center Pins
Warranty:
- 1 Year
