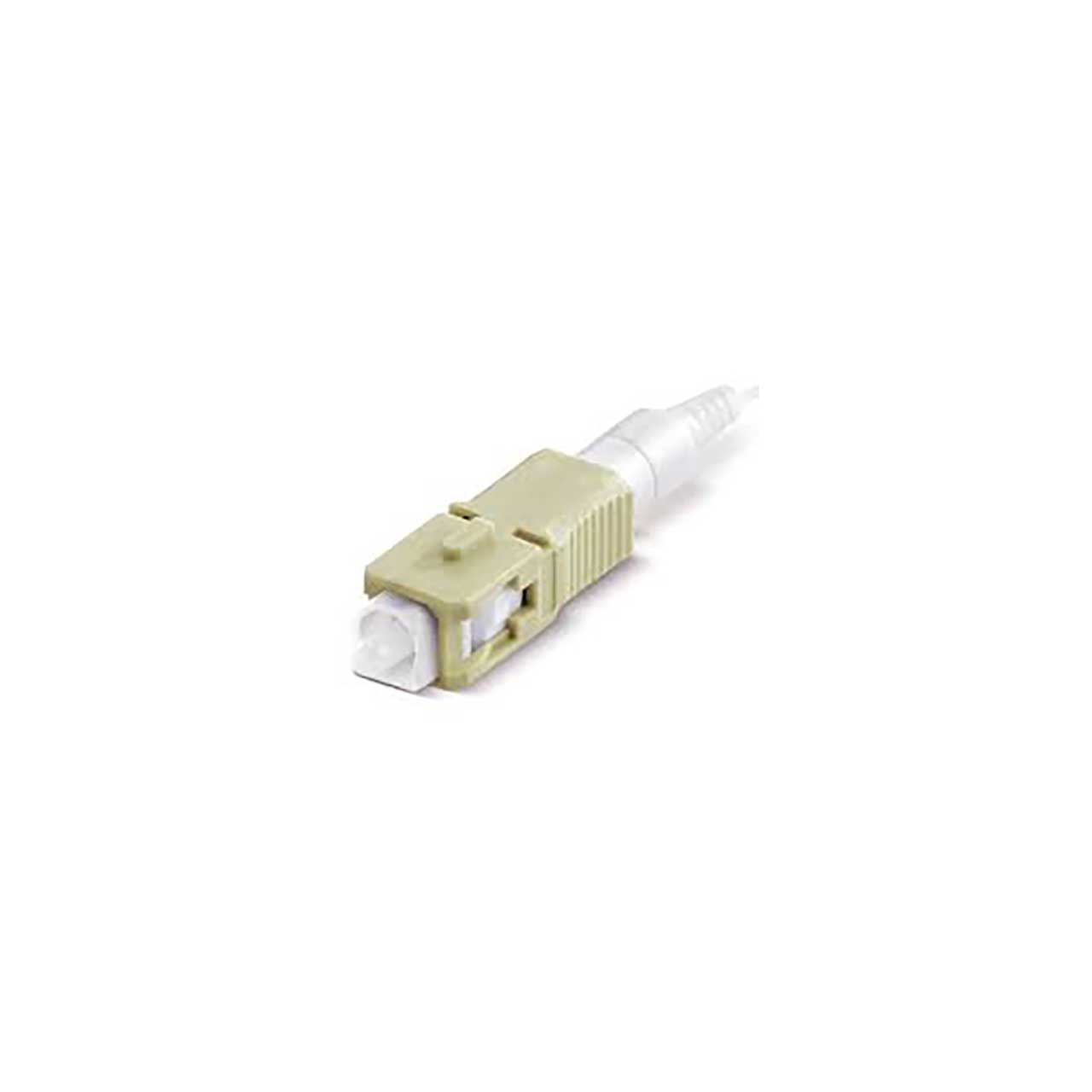

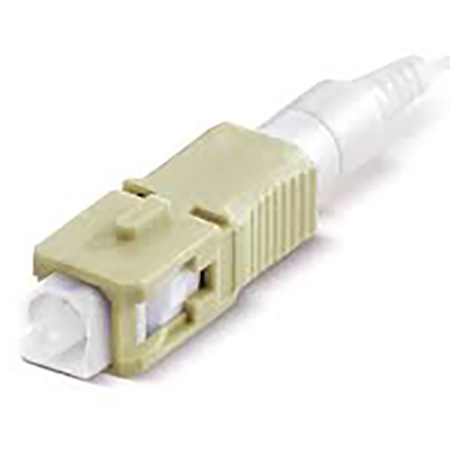

Senko 318-391-927-12 XPFit SC MM Connector 62.5/125 250/900um - Beige - 12 Pack

ITEM #: SENK-31839192712 MFG #: 318-391-927-12

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$149.00

Our Price:

$99.89

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


318-391-927-12 - Overview

The Senko 318-391-927-12 XP Fit Plus is a pre-polished, pre-assembled connector compatible with the standard SC connector. In place of epoxy, an internal mechanical grip gently but effectively holds the fiber in place and can be installed in under two minutes. Without polishing or adhesives, the XP Fit Plus makes field installations quick and easy, eliminating the need for epoxy curing and hand polishing at the work site.

  • Features:

    • Typical specification values are at 73.4°±5°F (23°±5°C)
    • The connector performance specifications include an internal mechanical splice

  • Specifications:

    • Count: 12
    • For XP Fit Plus SC: Typical
    • Insertion Loss:
      Single Mode: 0.2dB (PC) & 0.3dB (APC)
      Multi Mode: 0.1dB
    • Return Loss:
      Single Mode: 55dB (PC) & 60dB (APC)
    • Multi Mode: 35dB
    • Durability: <0.1dB change, 500 matings
    • Operating Temperature: -40° to 167°F(-40° to +75°C)
    • Tensile: TIA/EIA 568-C.3
    • Intermateability: IEC 61754-4
